- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.

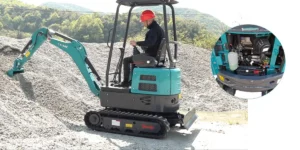

CX-15B Rotatable Pilot Valve Operation Hydraulic Mini Excavator
CX-15B Rotatable Pilot Valve Operation Hydraulic Mini Excavator
- Used in multiple scenarios—New upgraded 1.5 ton mini excavator with better heat radiation and higher efficiency. It can be used for road breaking, excavation, vegetable greenhouse, wasteland opening on hills, feces cleaning of the farm, transformation of toilet, indoor breaking etc.
- KUBOTA stage V engine—Highly trusted in the compact industrial machinery market, the efficient combustion created by our engine’s unique Three Vortex Combustion System reduces exhaust emission and noise. Its layout also puts most components within easy reach for faster maintenance. Furthermore, it is now fully Stage-V compliant.
- SERVICE/SECURITY—Service and security go hand in hand to ensure that your mini excavator is always ready to go to work.
Quote Now
A VERY POWERFUL KUBOTA ENGINE
Highly trusted in the compact industrial machinery market, the efficient combustion created by our engine’s unique Three Vortex Combustion System reduces exhaust emission and noise. Its layout also puts most components within easy reach for faster maintenance. Furthermore, it is now fully Stage-V compliant.
GOOD SERVICE AND SECURITY
Service and security go hand in hand to ensure that your mini excavator is always ready to go to work. Maintenance is simple, thanks to a full-opening engine cover that provides easy access to the engine and conveniently located and protected hydraulic service port pipes.
FULL OPENING ENGINE COVER
The engine cover’s tilt-up operation exposes most of the engine—providing easier access to components.
BATTERY ISOLATOR
The Kubota mini excavators are equipped with a battery isolator that helps to protect the entire electrical system from electrical faults.
PROTECTED HYDRAULIC SERVICE PORT PIPES
With the CX15B, you’ll never need to replace the hydraulic service port pipes again. To reduce the risk of damaging the hydraulic piping, the service port pipes are hidden inside the boom, and its service ports are conveniently located at the end of the boom.
TWO-PIECE HOSE DESIGN
When an on-site replacement of a dozer cylinder supply hose is necessary, its two-piece design simplifies the job.
TWO-PIECE HOSE DESIGN KUBOTA ANTI-THEFT SYSTEM
Only programmed keys will enable the engine to start up. Attempting to start with an un-programmed key will activate the alarm. Its features include an alert to remind the operator to extract the key after operation.
Optional Accessories
You can replace these parts：
- Swing Bucket
- Rake
- Ripper
- Wood Crab
- Aguer
- Plane Bucket
- Quick Hitch
- Bucket with hole
- Bucket with teeth
- Broken Hammer
Product Parameters
| General Information | |
| Opration Weight | 1510 kgs |
| Dimensions | |
| Width | 1050 mm |
| Track Gauge | 1050 mm |
| Length | 3240 mm |
| Whole Height | 2280 mm |
| Min. Ground Clearance | 150 mm |
| Engine | |
| Model | KUBOTA D902 | YANMAR 3TNV74 |
| Rated Power | | 11.8/2300 | 11.2/2300 |
| Hydraulic System | |
| Pump Capacity | 2.8(10.5)x2 GPM |
| Auxiliary Hydraulic Flow | 5.5(21) GPM |
| Max. Breakout Force | 2205(1000) / 1012(458.9) lbs.(kgf) |
| Drive System | |
| Travel Speed | Low-1.2, High-2.3 km/h |
| Tumbler Distance | 1040 mm |
| Crawler Length | 1360 mm |
| Shoe Width | 180 mm |
| Ground Contact Pressure | 4.1(0.29) psi |
| Swing System | |
| Unit Swing Speed | 8.5 rpm |
| Boom Swing Angle | Left 55°/Right 55° |
| Blade | |
| Dimension | W860/700xH200 mm |
| Max. Lift Above Ground | 200 mm |
| Max. Drop Below Ground | 180 mm |
Why Choose Us.
Customer’s Feedback
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
