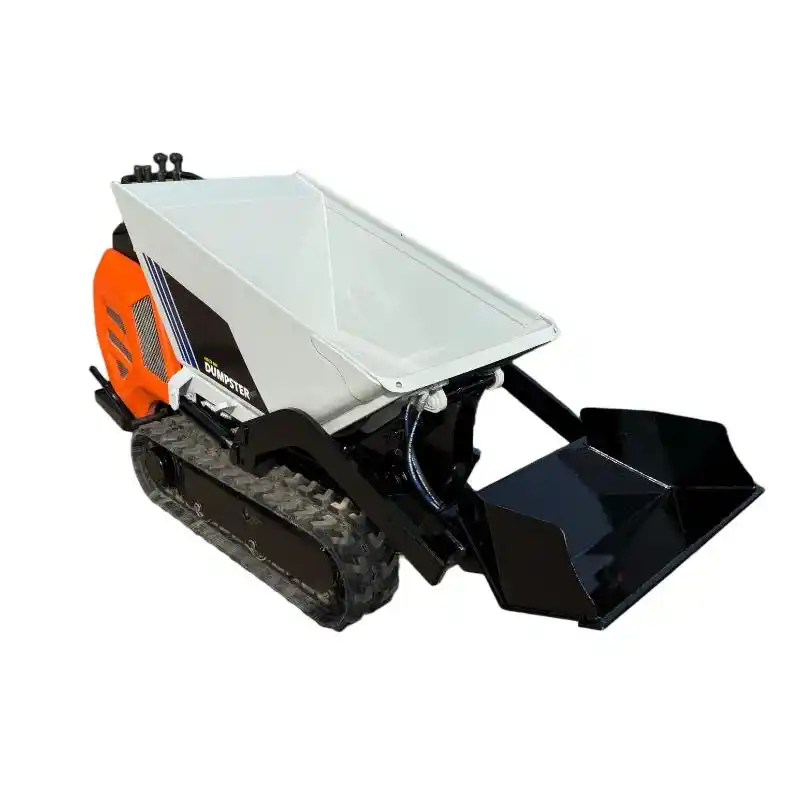

5.4HP KOOP Diesel HDCX-600S Dump Truck
5.4HP KOOP Diesel HDCX-600S Dump Truck
The new HTDS is a compact, ride-on, high-tip, diesel-powered Dumpster designed to save you time, energy and money. Our new optional SmartStep feature maximises comfort and on-side safety.
The HDCX-600S is not just a material handling device, but a comprehensive solution that improves operational efficiency, reduces labor intensity, and enhances safety standards. Its innovative design and superior performance allow it to excel in various demanding work environments, making it an ideal choice for modern construction and material handling operations.
Quote Now
Powerful Performance and Excellent Handling
Optimized Track Motors: New and improved track motors optimize tracking performance, allowing for increased power on site.
Two-Speed Track System: Two-speed tracking provides precision and accuracy, supporting precise low-speed control and efficient high-speed movement, adapting to various work rhythms.
Stable Load-Bearing and Structural Safety

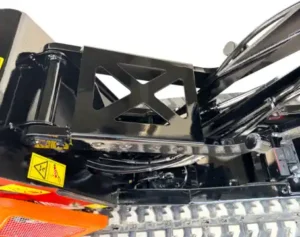

Reinforced Lifting Frame: Adopts a reinforced bending structure design, significantly improving load-bearing capacity and ensuring safe and reliable lifting operations.

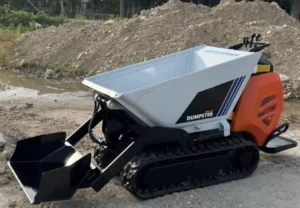

Compact and Flexible, Easy Access

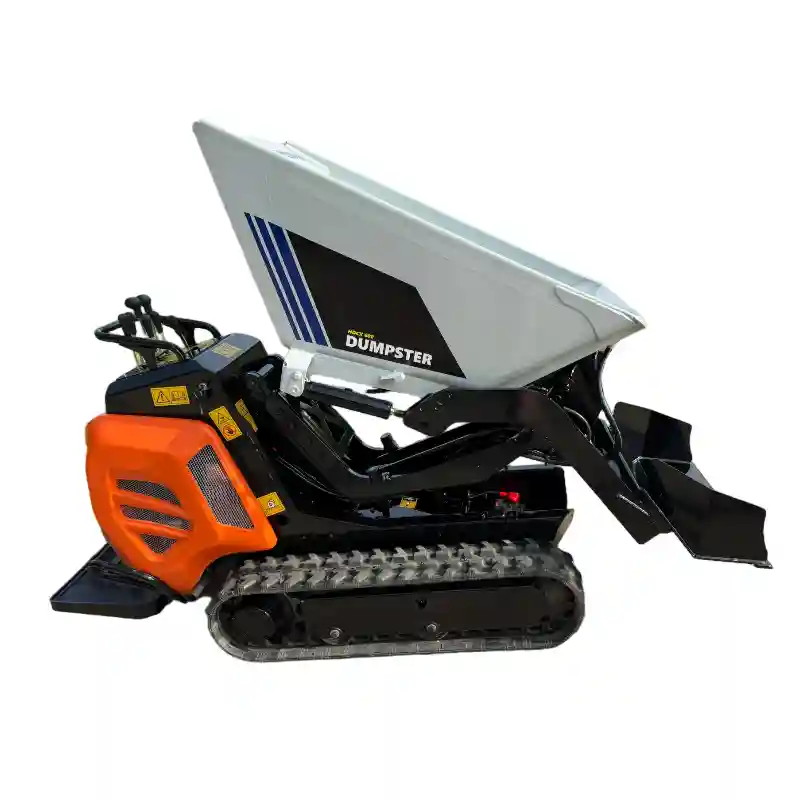

Only 706mm body width: Easily passes through standard doorways, construction site entrances, and narrow passages, adapting to confined space operations.
Efficient Unloading, Saving Time and Effort

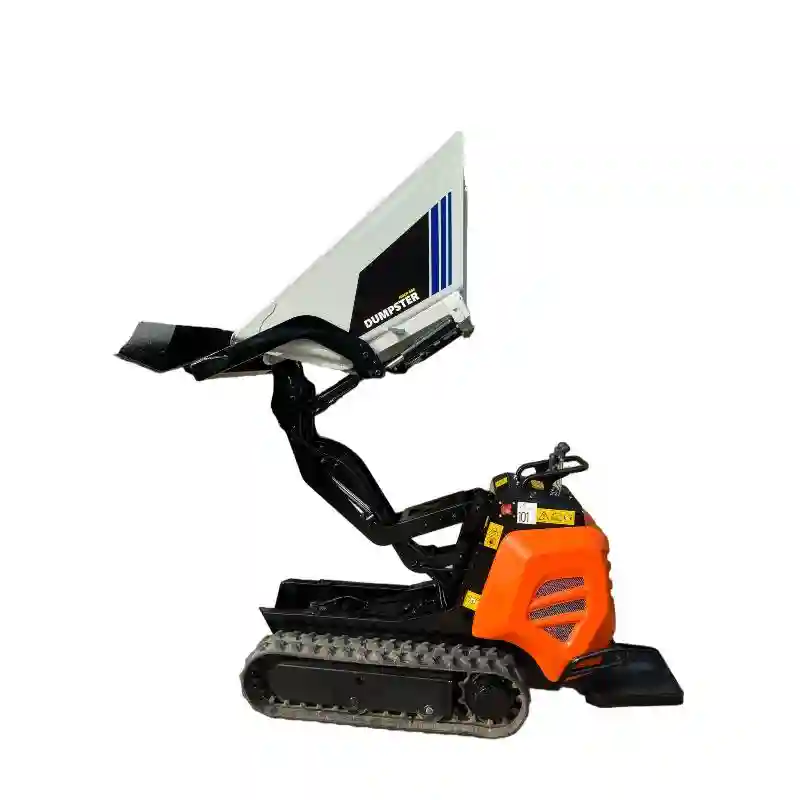

1.45-meter high unloading height: Allows direct dumping of materials into high-sided vehicles, containers, or hoppers, reducing secondary handling.
User-Friendly Operation Design
Independent Control Levers: Intuitive operation and precise control.
Compact Turning Radius: High maneuverability, facilitating flexible turning in confined spaces.
Large Maintenance Panels: Facilitates daily inspection, maintenance, and servicing, improving equipment maintainability.
Reliable Power and Core Configuration

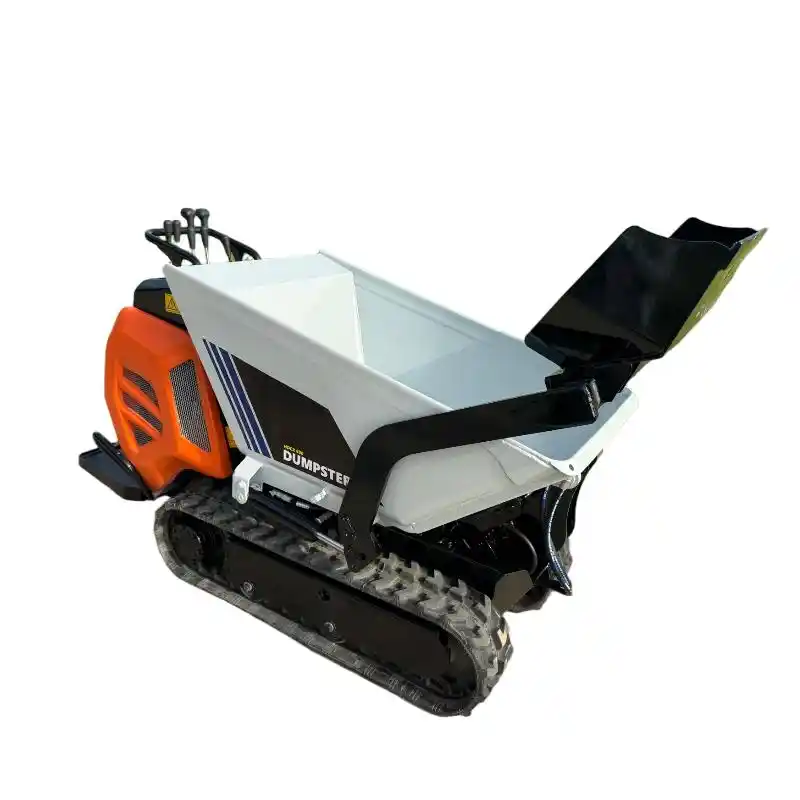

KOOP 4.0kW (5.4 hp) Diesel Engine: Ample power, suitable for long-term heavy-duty operation.
1-year manufacturer’s standard warranty, ensuring reliable quality.
Upgraded Safety and Convenience Features
New starter motor: Better starts in cold environments.
New enhanced track motors: Improved track motors for optimized tracking performance.
New machine isolator: A removable and securable isolator, the same as all standard machines.
New horn system: Horn delivers an instant high-pitched sound, allowing workers to communicate in loud environments or in case of emergency.
Adaptable to Multiple Industries
Widely applicable in construction, housing construction, landscaping, agricultural production, equipment rental, and other fields, meeting diverse material handling needs.
Product Parameters
| ENGINE | ||
| Engine Model | kW(hp) | KOOP KD182F with 4.4 power |
| Fuel | Diesel | |
| Cooling | Air Cooled | |
| Gross power ISO 14396 (kW) | kW | 4.8 |
| UNDERCARRIAGE | ||
| No of bottom rollers | 2 | |
| Track width rubber (STD) | mm | 180 |
| Track tensioning | Mechanical | |
| Travel speed – high | kph | 3 |
| STATIC DIMENSIONS | ||
| Overall Length Step Up （without/with Bucket） | mm | 1645 /1760 |
| Undercarriage overall Length – Rubber | mm | 1215 |
| Maximum height (tipping position) | mm | 2720 |
| Skip ground clearance (tipping postion) | mm | 1525 |
| Minimum Skip height (transport postion) | mm | 780 |
| Overall Height (transport postion) | mm | 1115 |
| Single Track width | mm | 180 |
| Track spacing | mm | 330 |
| Maximum Track Width | mm | 700 |
| Overall Length Step Down | mm | 1840 |
| Overall Length Step Down （Bucket down） | mm | 2415 |
| Overall Hight | mm | 1518 |
| HYDRAULIC | ||
| Pump | Triple | |
| Nominal output @ 3000rpm | lpm (gallons) | 27 (6) |
| Main relief pressure | bar | 150 |
| WEIGHTS | ||
| Machine mass without step | kg | 515 |
| Machine mass with step | kg | 590 |
| SERVICE CAPACITIES | ||
| Fuel tank | ltr | 4.3 |
| Engine oil | ltr | 1.2 |
| Hydraulic system | ltr | 13 |
| Hydraulic tank | ltr | 11.5 |
| LIFT CAPACITIES | ||

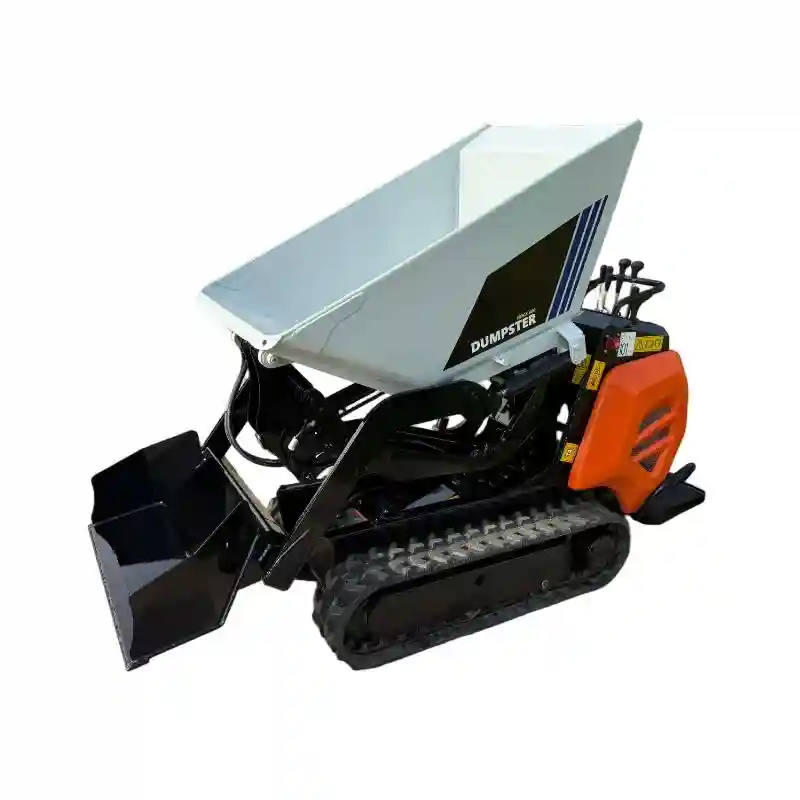

| Maximum carry capacity | kg (lb) | 600 (1,102) |
| Max machine load without step | kg (lb) | 1,015 (2,238) |
| Max machine load with step | kg (lb) | 1,090 (2,403) |
| OPTIONAL EQUIPMENT | SmartStep | |
| Hour Meter | ||
| Bullbar | ||
