C1200 Skid Steer Loader – Compact, Powerful & Versatile for Multiple Applications
C1200 Skid Steer Loader – Compact, Powerful & Versatile for Multiple Applications
The C1200 skid steer loader can rotate 360 degrees freely, with a maximum load capacity of 500kg, a driving speed of 0-7km/h, and a discharge height of up to 1704mm, ensuring efficient loading and unloading. It features a Kubota engine that meets EPA/EU Stage V emission standards and is equipped with an internationally renowned brand of gearbox for smooth and reliable operation.
This machine is easy to operate, features a hydraulic cylinder safety lock, and supports quick replacement of various attachments, enabling multi-purpose use.
Quote Now
Product Introduction
The C1200 mini skid steer is a versatile and compact track loader designed for demanding tasks in tight spaces, making it an essential tool for construction site material handling across European markets. As a small crawler loader, it excels in uneven terrain and frequent job changes, offering easy operation and a hydraulic cylinder safety lock for enhanced safety. This skid steer loader features a powerful Kubota engine with 18.5kW rated power, ensuring reliable performance in infrastructure projects, industrial applications, dock loading, urban streets, residential areas, barns, livestock sheds, and airport runways. Whether you’re seeking a gasoline skid steer alternative or a small crawler skid steer with up to 500kg load capacity, the C1200 combines compact dimensions of 2867x1045x1499mm with a 0.15m³ bucket capacity, 25° climbing ability, and 360° body rotation for unmatched flexibility. Built with high-quality thickened steel and anti-corrosion spray coating, it guarantees durability and smooth operation via an internationally renowned brand reducer, all while meeting EPA/EU5 emission standards for environmentally conscious operations in Europe.
Product Applications
The C1200 compact track loader is primarily suited for narrow work sites, uneven ground, and scenarios requiring frequent task switches. It is ideal for infrastructure construction, industrial uses, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, and airport runways. Additionally, it serves as auxiliary equipment for large-scale engineering machinery, providing reliable support in diverse European environments.
Core Advantages and Features
- Compact and flexible design, perfect for small terrain and narrow space operations in European construction sites.
- Simple and convenient operation with easy transportation, enhancing productivity on the go.
- High-quality thickened steel construction with spray plastic process for superior rust prevention and corrosion resistance.
- Internationally renowned brand reducer for smooth, reliable performance.
- 360-degree body rotation for agile maneuverability, facilitating outdoor work in challenging conditions.

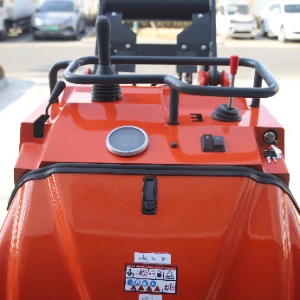

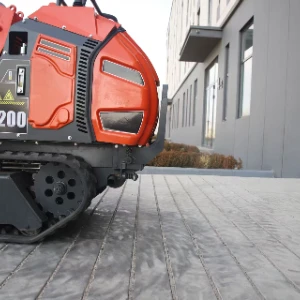

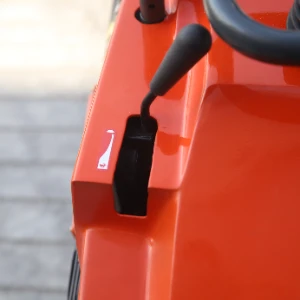

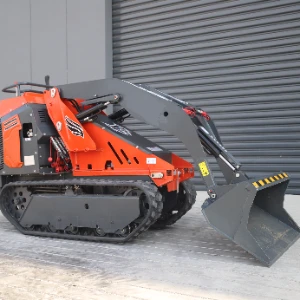

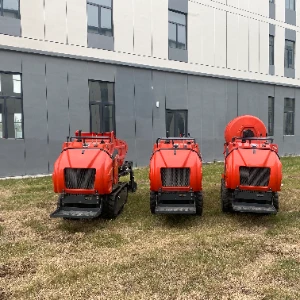

Product Details from Multiple Angles
Performance and Specifications
From a performance perspective, the C1200 small crawler loader boasts a rated load of 440kg and maximum load of 500kg, with a travel speed of 0-7km/h and a system pressure of 18.8MPa. Its maximum dumping height reaches 1704mm, and the bucket width is 1045mm, ensuring efficient material handling on construction sites.
Design and Build Quality
Examining the design angle, this mini skid steer features a ground clearance of 203mm and a track contact length of 1664mm, with overall dimensions optimized for compactness. The use of premium materials and a hydraulic safety lock underscores its robustness and user safety in European regulatory-compliant operations.
Engine and Efficiency
From an efficiency standpoint, powered by a Kubota D1105 3-cylinder naturally aspirated engine with 18.5kW power and a 32L fuel tank, the C1200 skid steer loader delivers low-emission performance meeting EPA/EU5 standards, making it a sustainable choice for gasoline skid steer alternatives in eco-focused European markets.
Tags: mini skid steer, compact track loader, small crawler loader, skid steer loader, gasoline skid steer, small crawler skid steer with 200kg load capacity, construction site material handling
FAQs
What is the rated load capacity of the C1200 mini skid steer?
The rated load is 440kg, with a maximum load of 500kg, ideal for small crawler skid steer applications in construction site material handling.
Does the C1200 compact track loader meet European emission standards?
Yes, it complies with EPA/EU5 emission standards, ensuring environmentally friendly operation across Europe.
What are the key features for narrow space operations?
It offers 360-degree rotation, compact dimensions, and easy operation, making it perfect for tight European work sites like urban streets and residential areas.
Where can I find more information or purchase the C1200 skid steer loader?
Visit our company website at www.example.com for detailed inquiries, pricing, and purchasing options tailored for European customers.
For more details on our range of compact track loaders, check out our products page.
Product Parameters
| C1200 Skid Steer Loader – Specifications | |
|---|---|
| Basic Performance Parameters | |
| Operating Weight | 1310 kg |
| Bucket Capacity | 0.15 m³ |
| Climbing Ability | 25° |
| Maximum Breakout Force | 4.5 kN |
| Rated Load | 440 kg |
| Maximum Load | 500 kg |
| Travel Speed | 0–7 km/h |
| Three-Item Sum of Work | 9 s |
| Working System Pressure | 18.8 MPa |
| Bucket Width | 1045 mm |
| Max Loading Height | 1980 mm |
| Max Dumping Height | 1704 mm |
| Max Operating Height | 2606 mm |
| Height to Bucket Pin | 2155 mm |
| Max Height Bucket Dump Angle | 63° |
| Min Height | 1499 mm |
| Tail Length | 500 mm |
| Ground Clearance | 203 mm |
| Dumping Distance | 833 mm |
| Wheelbase | 1664 mm |
| Dimensions | |
| Overall Dimensions | 2867 × 1045 × 1499 mm |
| Length Including Bucket | 2867 mm |
| Length Excluding Bucket | 2034 mm |
| Track Contact Length | 200 × 49 × 72 |
| Engine | |
| Brand | Kubota |
| Model | D722 |
| Rated Power | 18.5 kW |
| Number of Cylinders | 3 |
| Intake Method | Natural Inhalation |
| Emission Standard | EPA / EURO 5 |
| Fuel Tank Capacity | 32 L |
