- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.

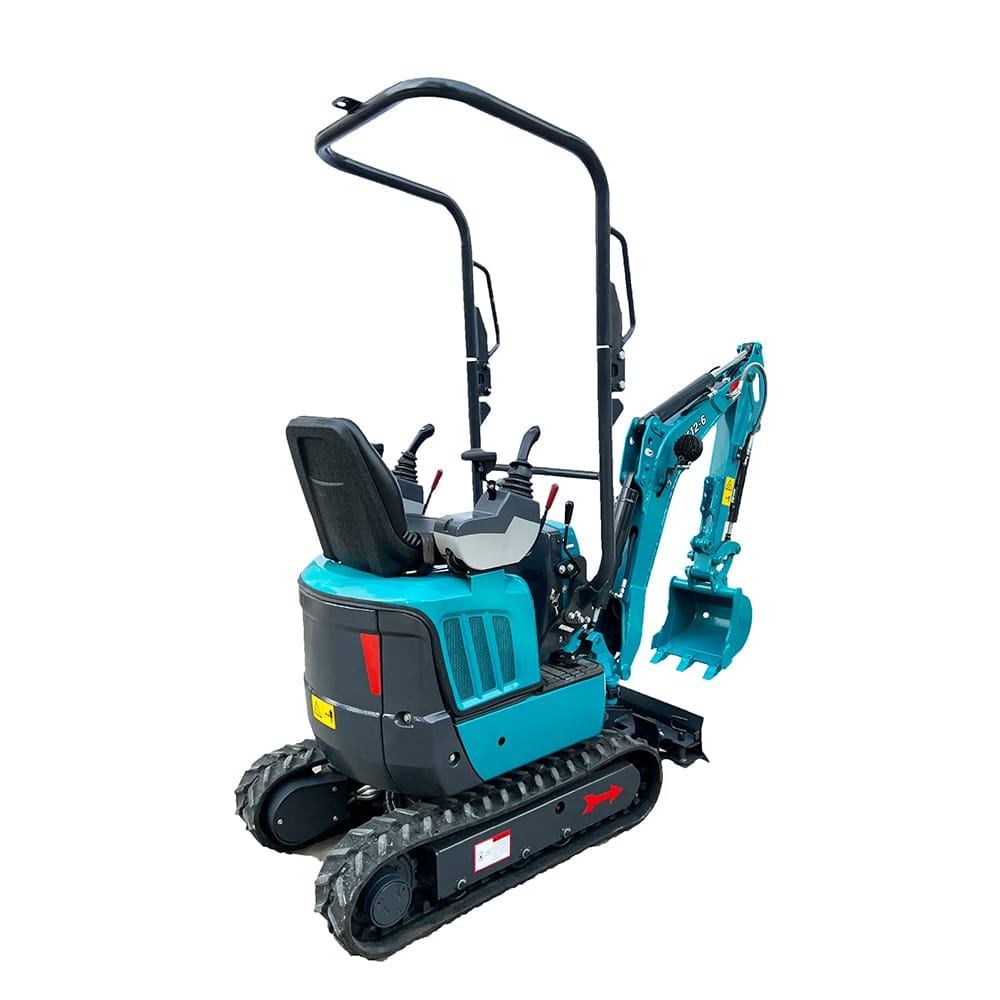

CX12-6 kubota mini excavator for sale
CX12-6 kubota mini excavator for sale
The CX12-6 mini excavator is a compact yet powerful machine ideal for tight spaces and small construction projects. Equipped with a reliable engine and efficient hydraulics, it ensures smooth digging and lifting operations. Its user-friendly controls, retractable undercarriage, and adjustable blade offer enhanced maneuverability and stability. With a sturdy structure and ergonomic design, the CX12-6 delivers durability and comfort for operators. This model is widely used in landscaping, utility work, and indoor demolition, making it a versatile and practical choice for professionals and individual users alike.
Quote Now

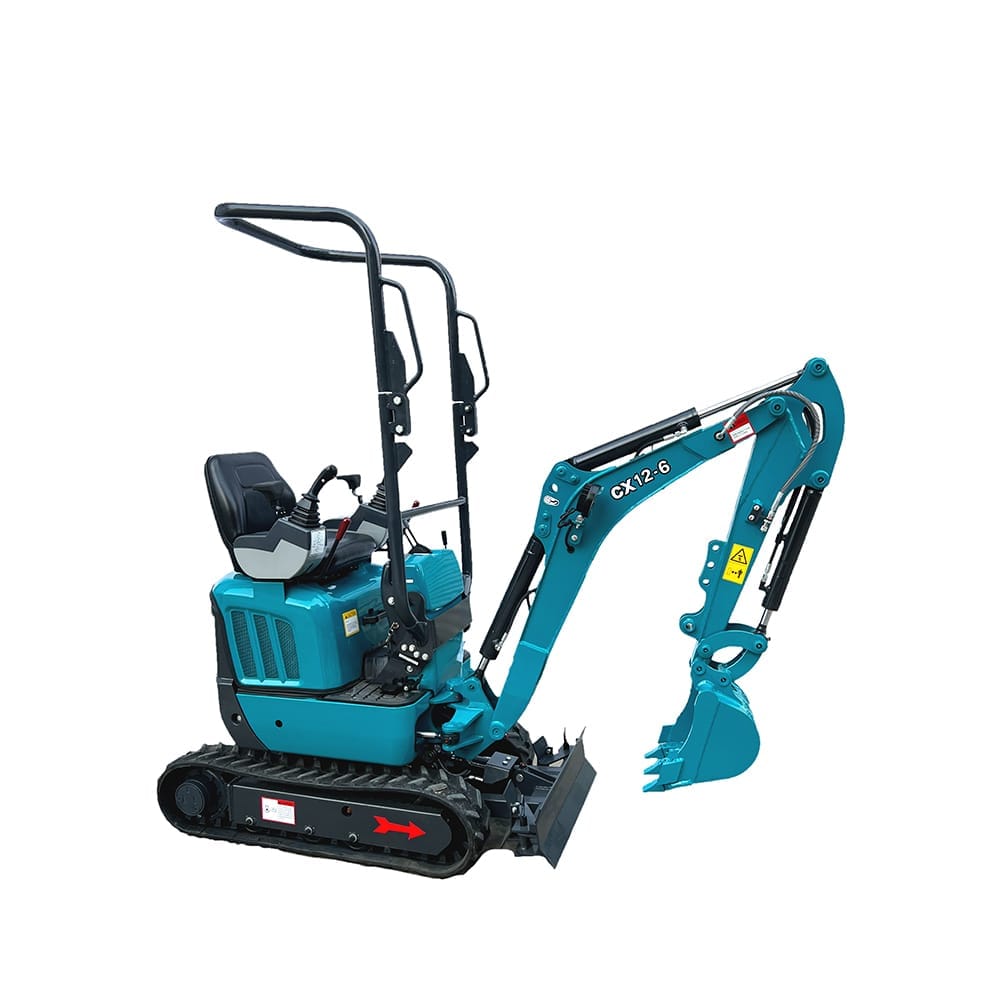

CX12-6 Mini Excavator
The CX12-6 Mini Excavator is a high-performance, compact construction machine designed to deliver efficiency and versatility on job sites with limited space. Engineered for reliability and productivity, it is ideal for landscaping, urban construction, agricultural digging, and indoor demolition tasks.
Key Features
- Compact Design: The retractable undercarriage allows access through narrow passages and confined spaces, enhancing maneuverability.
- Powerful Engine: Equipped with a dependable engine that ensures low fuel consumption and excellent operational efficiency.
- Advanced Hydraulics: Delivers smooth and responsive control for precise digging and lifting.

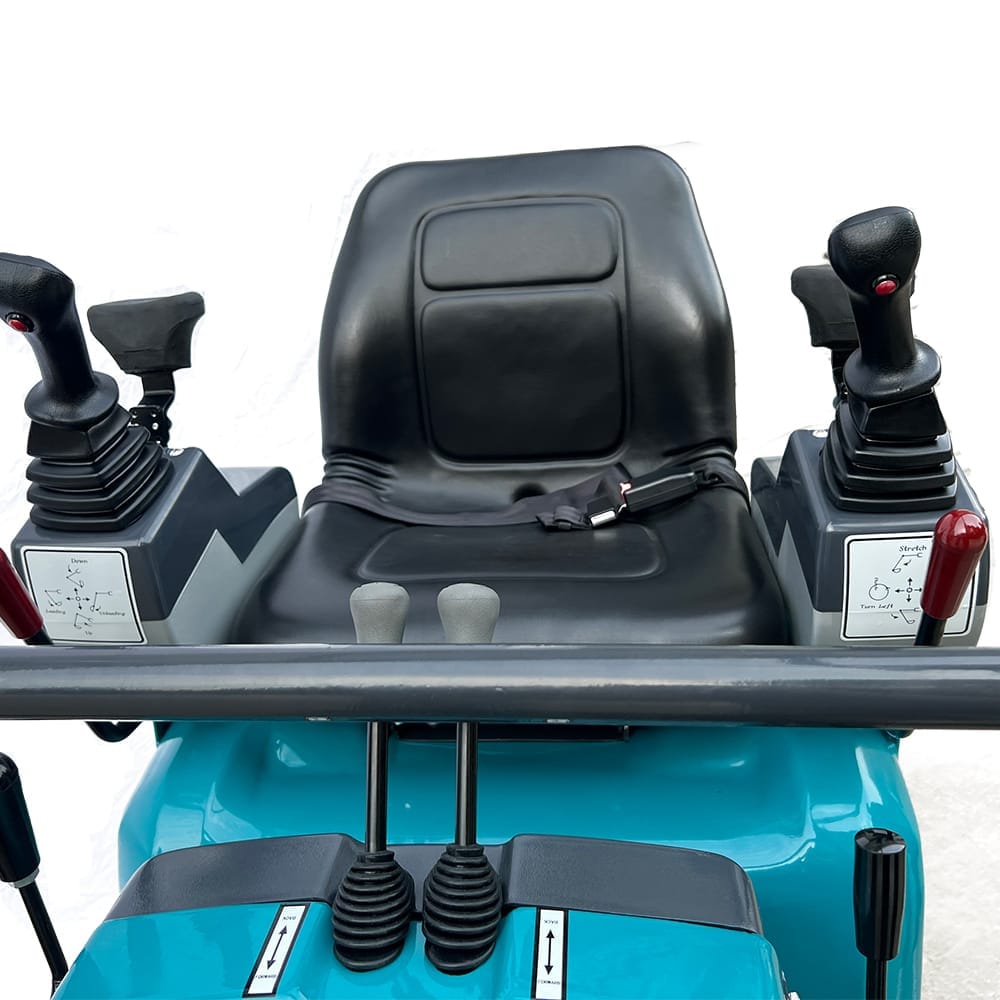

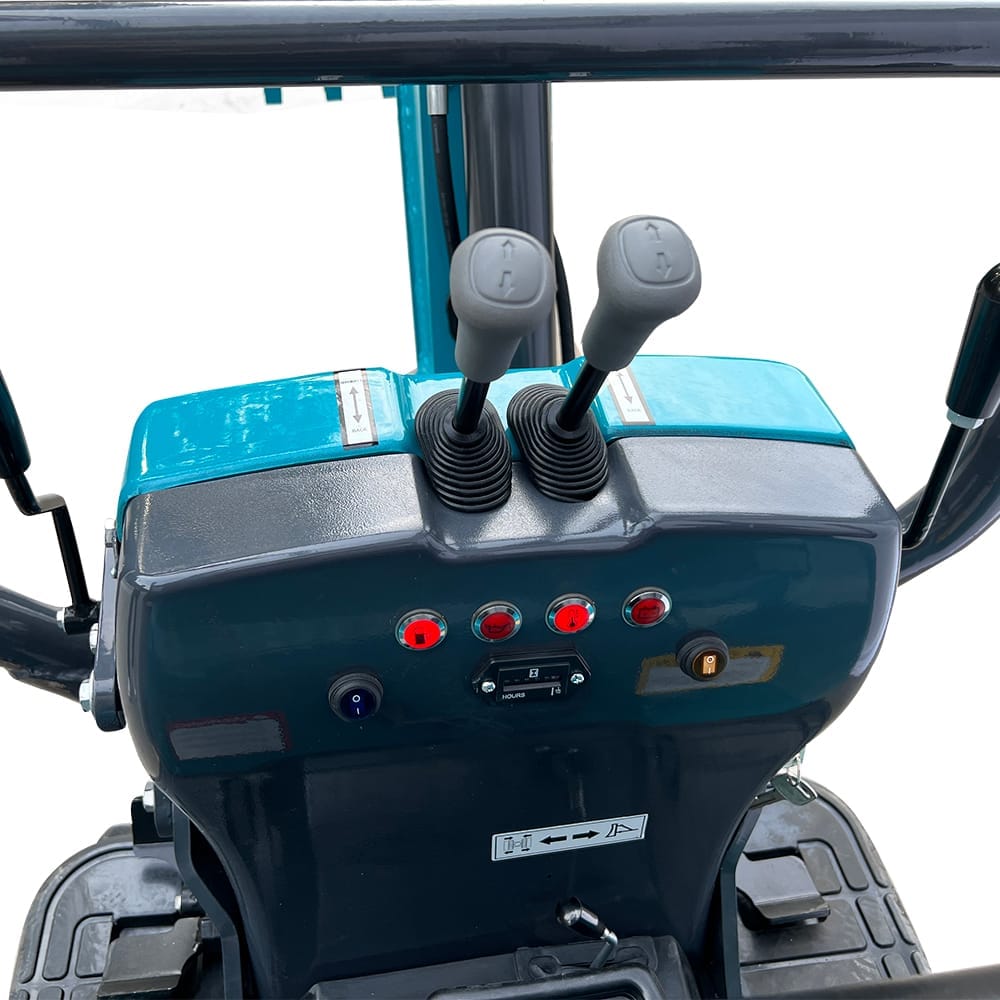

- Operator Comfort: Features an ergonomic seat and user-friendly controls for reduced fatigue and enhanced control.
- Durable Construction: Built with high-strength materials to ensure long-term use in demanding environments.
- Blade Function: Adjustable blade provides added stability and aids in leveling ground.
Applications
The CX12-6 is suitable for:
- Landscaping and gardening projects
- Small-scale construction and demolition
- Trenching and pipe-laying work
- Foundation and drainage installations
Why Choose the CX12-6?
This mini excavator offers a perfect balance between size and performance. With a focus on efficiency, ease of operation, and transportability, the CX12-6 is a smart investment for contractors, rental businesses, and individual users needing a compact but capable machine.
Product Parameters
| Model | CX12-6 |
| Dimensions | Specification |
| Overall length | 2980 mm |
| Overall height | 2260 mm |
| Swivelling speed | 8.3 rpm |
| Rubber shoe width | 180 mm |
| Tumbler distance | 1010 mm |
| Dozer size( width X height) | 750/990 X 200 mm |
| Hydraulic pumps | Specification |
| P1,P2 | Gear pump |
| Flow rate | 10.5+10.5 I/min |
| Hydraulic pressure | 17.2(175) Mpa(kgf/cm2) |
| P3 | Gear pump |
| Flow rate | 3.1 I/min |
| Hydraulic pressure | 3.9(40) Mpa(kgf/cm2) |
| Boom swing angle (left/ right) | 55/55 deg |
| Flow rate | 21 I/min |
| Hydraulic pressure | 17.2(175) Mpa(kgf/cm2) |
| Hydraulic reservoir (I) | 12.6 |
| Fuel tank capacity (I) | 12 |
| Operation Way | Pilot operation |
| Travel Motor | LKG Plunger motor |
| Max, travelling speed (low / high) | 2-speed,2/4km/h |
| Ground contact pressure / Mpa(kgf/cm2) | 29.0(0.30) |
| Ground clearance | 140 mm |
| Engine | Specification |
| Model | D722-EF11 |
| Type | Water-cooled diesel engine E-TVCS |
| Engine power | 10.2/2200 kW/rpm |
| Number of cylinder | 3 |
| Bore X Stroke | 67 X 68 mm |
| Displacement (CC) | 719 |
| Operating weight | 1200 kg |
| Bucket capacity std. SAE/CECE | 0.024/0.020 m³ |
| Bucket width(with side teeth/without side teeth) | 398/380 |
Why Choose Us.
Customer’s Feedback
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
