EZ-S55 Diesel Skid Steer Loader Agriculture Dumper Farm Dumper Truck
EZ-S55 Diesel Skid Steer Loader Agriculture Dumper Farm Dumper Truck
The S55 skid steer loader is a powerful and durable machine equipped with a Cummins HFC4DA1-2C3 engine delivering 36.8 kW. It offers a rated load of 890 kg and a bucket capacity of 0.4 m³, making it ideal for heavy-duty tasks. With a maximum operating height of 3790 mm and a travel speed of up to 12 km/h, it performs efficiently on construction sites. The S55 features a fully enclosed cabin, high breakout force, and advanced hydraulics, making it suitable for demanding commercial and industrial applications.
Quote Now
Product Positioning
A high-performance, multi-functional small engineering machinery device suitable for small and medium-sized operation scenarios, with the dual advantages of flexible operation and high efficiency.
Product Advantages
Powerful and Reliable Engine
Equipped with a Cummins 4-cylinder engine, rated power 36.8KW, providing ample power for heavy-duty operations.
Meets China III emission standards, balancing performance and environmental friendliness.
High Operating Efficiency
Maximum breakout force ≥25KN, rated load 890Kg, tipping load ≥1780Kg, easily handling various materials.
0.4m³ bucket capacity, coupled with 0–12km/h continuously variable transmission, ensuring smooth and efficient operation.
High Mobility, Adaptable to Confined Spaces
Compact overall dimensions, with a rear turning radius of only 1160mm and a wheelbase of 1370mm, suitable for narrow or complex terrain.
Comfortable and Safe Operation

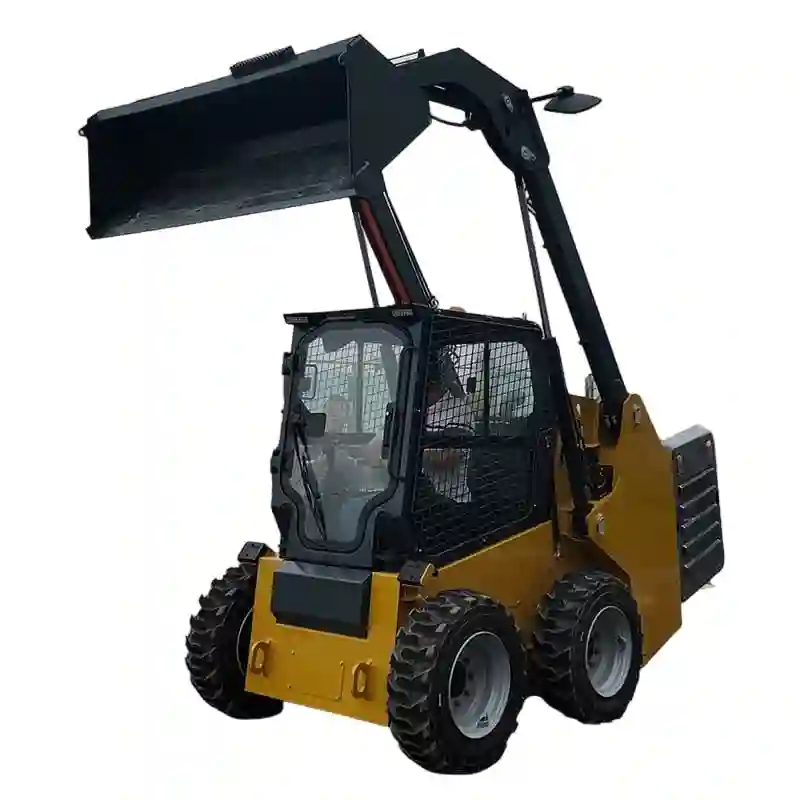

Equipped with an enclosed cab, enhancing operational comfort and safety.
Hydraulic system flow rate 55L/min, providing sensitive response and precise control.
Product Features
Excellent Key Operating Parameters
Maximum Working Height: 3790mm
Unloading Height: 2384mm, Unloading Distance: 520mm
Adjustable Bucket Angle: 27° at ground level, 43° at height, adaptable to various working postures.
Robust and Durable Structure
Working Pressure: 21Mpa, stable and reliable hydraulic system.
Tire Specification: 10*16.5, strong grip, adaptable to various road surfaces.
Easy Maintenance
80L fuel tank, reducing refueling frequency and improving continuous operation capability.
Key structural parameters such as wheelbase and ground clearance are rationally designed for easy maintenance and repair.
Controllable Quality and Good Consistency
Overall vehicle weight: 2880±3Kg, key dimensional errors controlled within ±2%-5%, rigorous manufacturing process.
Product Parameters
| Small four-wheel cabin skid steer EZ-S55 | |||
| Item name | Parameters | Item name | Parameters |
| Engine model | Cummins HFC4DA1-2C3 | Maximum operating height | 3790mm |
| Rated power | 36.8KW | Height to bucket pin | 3020mm |
| Number of air cylinders | 4 | Overall cab height | 2095±5%mm |
| Intake method | Naturally aspirated | Level length of bucket at ground level | 3450±5%mm |
| Emission standard | National III emission standard | Level length of bucket pin | 2700±5%mm |
| Rated load | 890Kg | Maximum horizontal span of bucket bottom | 2846±5%mm |
| Tipping load | ≥1780 | Maximum dumping height | 2384±5%mm |
| Maximum breakout force | ≥25KN | Dumping distance | 520±1%mm |
| Bucket capacity | 0.4m³ | Tip angle of bucket at ground level | 27±2° |
| Travel speed | 0-12km/h | Tip angle of bucket at highest level | 43±2° |
| Hydraulic flow | 55L/Min | Wheelbase | 1370mm |
| Working system pressure | 21Mpa | Ground clearance | 185±2%mm |
| Fuel tank capacity | 80L | Tail length | 1160±5%mm |
| Operational quality | 2880±3% | Vehicle width | 1640±2%mm |
| Tire model | 10*16.5 | Bucket width | 1800±2%mm |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
