EZ-S55 Diesel Skid Steer Loader wheel Loader Machinery
EZ-S55 Diesel Skid Steer Loader wheel Loader Machinery

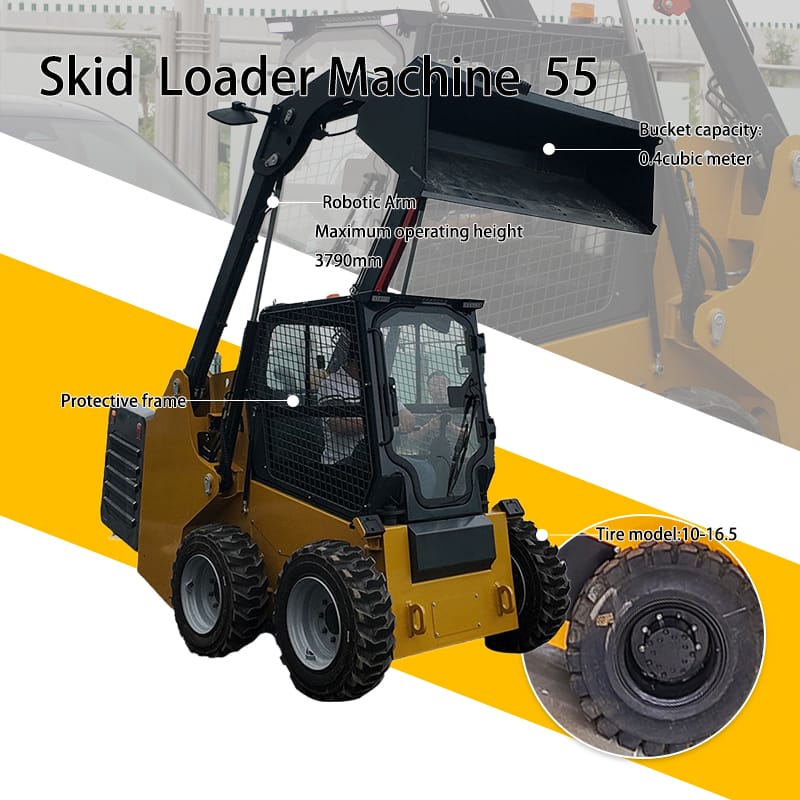

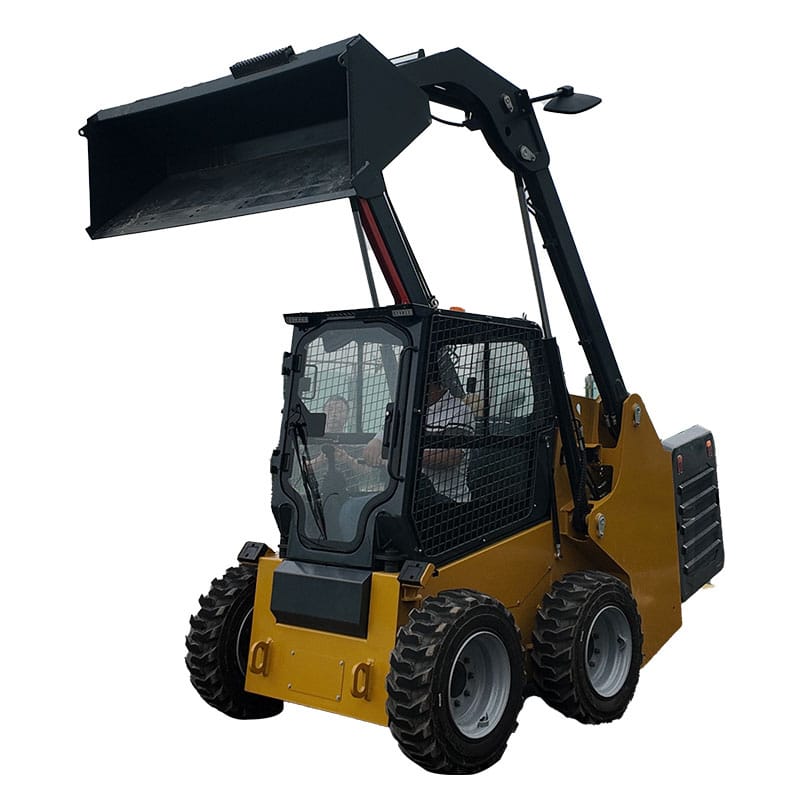

The S55 skid steer loader is a powerful and durable machine equipped with a Cummins HFC4DA1-2C3 engine delivering 36.8 kW. It offers a rated load of 890 kg and a bucket capacity of 0.4 m³, making it ideal for heavy-duty tasks. With a maximum operating height of 3790 mm and a travel speed of up to 12 km/h, it performs efficiently on construction sites. The S55 features a fully enclosed cabin, high breakout force, and advanced hydraulics, making it suitable for demanding commercial and industrial applications.
Quote Now
Versatile Performance in Confined Spaces
The S55 skid steer loader is engineered for efficiency in tight and challenging environments. Its compact design and zero-radius turning capability make it ideal for urban construction sites, landscaping projects, and agricultural tasks. With a rated load capacity of 890 kg and a tipping load exceeding 1780 kg, the S55 offers substantial lifting power. The loader’s robust build and advanced hydraulics ensure reliable performance, while its adaptability to various attachments enhances its utility across multiple applications.
Reliable Cummins Engine Meeting Emission Standards

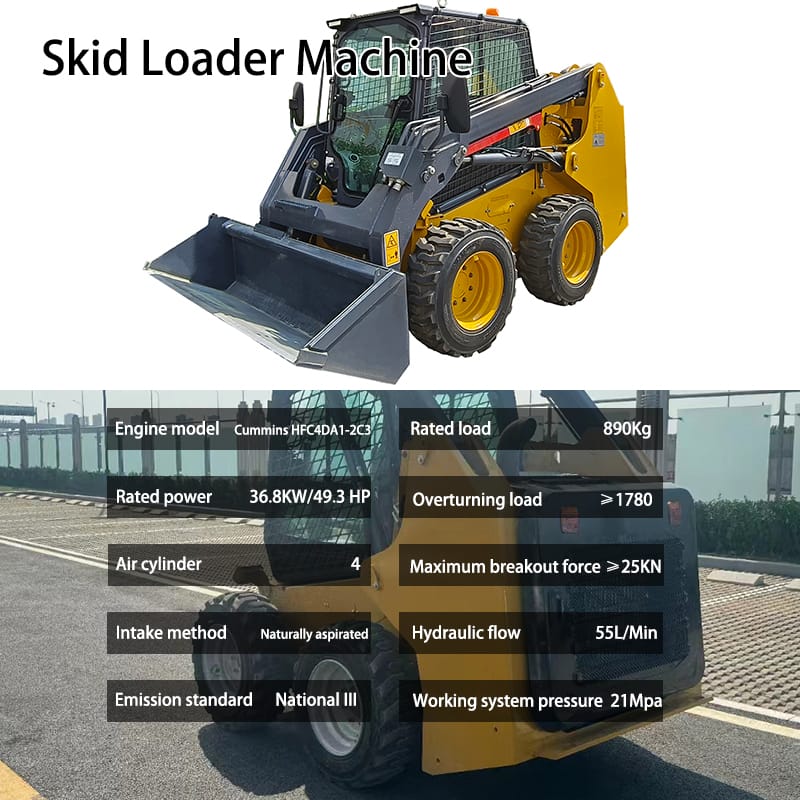

Powered by the Cummins HFC4DA1-2C3 engine, the S55 delivers a rated power of 36.8 kW through a naturally aspirated system. This four-cylinder engine complies with National III emission standards, ensuring environmentally responsible operation without compromising on performance.
Efficient Wheel-Based Mobility
The S55 features a wheeled chassis equipped with 10*16.5 tires, offering superior maneuverability and speed, reaching up to 12 km/h. Compared to track-type systems, wheels provide faster travel and are more suitable for hard surfaces, reducing wear and maintenance costs. The wheeled design of the S55 makes it particularly advantageous for operations requiring frequent movement over paved areas.
Operator-Centric Closed Cabin Design

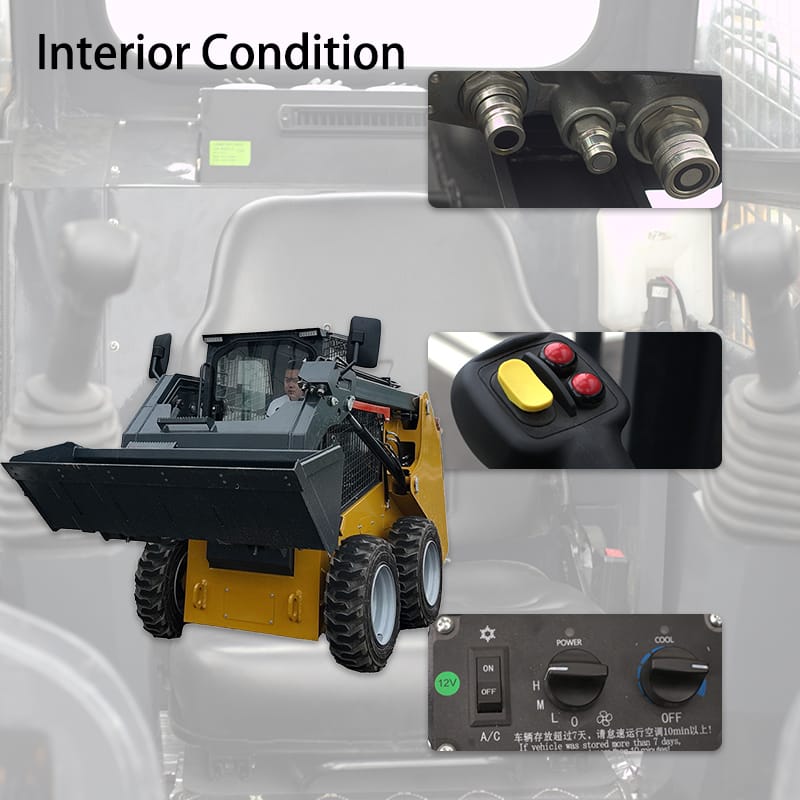

The S55 is designed with a fully enclosed cabin, providing operators with protection from external elements, thereby enhancing comfort and safety. This closed structure minimizes exposure to dust, noise, and weather conditions, contributing to increased productivity. The control interface utilizes intuitive icons, simplifying operation and reducing the learning curve for new users. This user-friendly design ensures that operators can efficiently manage the loader’s functions with minimal training.
Competitive Specifications and Target Users
The S55 skid steer loader boasts a bucket capacity of 0.4 m³ and a hydraulic flow rate of 55 L/min, supported by a working system pressure of 21 MPa. Its operational weight stands at approximately 2880 kg, with a fuel tank capacity of 80 liters, ensuring extended operation periods between refueling. When compared to similar models, such as the Bobcat S550, which has a rated operating capacity of 794 kg and a hydraulic flow of 64.7 L/min, the S55 offers comparable performance with the added benefit of a more compact footprint. This makes the S55 particularly suitable for small to medium-sized contractors, landscaping businesses, and agricultural operations that require a versatile and efficient loader capable of operating in confined spaces.
Product Parameters
| Small four-wheel cabin skid steer EZ-S55 | |||
| Item name | Parameters | Item name | Parameters |
| Engine model | Cummins HFC4DA1-2C3 | Maximum operating height | 3790mm |
| Rated power | 36.8KW | Height to bucket pin | 3020mm |
| Number of air cylinders | 4 | Overall cab height | 2095±5%mm |
| Intake method | Naturally aspirated | Level length of bucket at ground level | 3450±5%mm |
| Emission standard | National III emission standard | Level length of bucket pin | 2700±5%mm |
| Rated load | 890Kg | Maximum horizontal span of bucket bottom | 2846±5%mm |
| Tipping load | ≥1780 | Maximum dumping height | 2384±5%mm |
| Maximum breakout force | ≥25KN | Dumping distance | 520±1%mm |
| Bucket capacity | 0.4m³ | Tip angle of bucket at ground level | 27±2° |
| Travel speed | 0-12km/h | Tip angle of bucket at highest level | 43±2° |
| Hydraulic flow | 55L/Min | Wheelbase | 1370mm |
| Working system pressure | 21Mpa | Ground clearance | 185±2%mm |
| Fuel tank capacity | 80L | Tail length | 1160±5%mm |
| Operational quality | 2880±3% | Vehicle width | 1640±2%mm |
| Tire model | 10*16.5 | Bucket width | 1800±2%mm |
