T360 compact crewler 900kg skid steer loader
T360 compact crewler 900kg skid steer loader

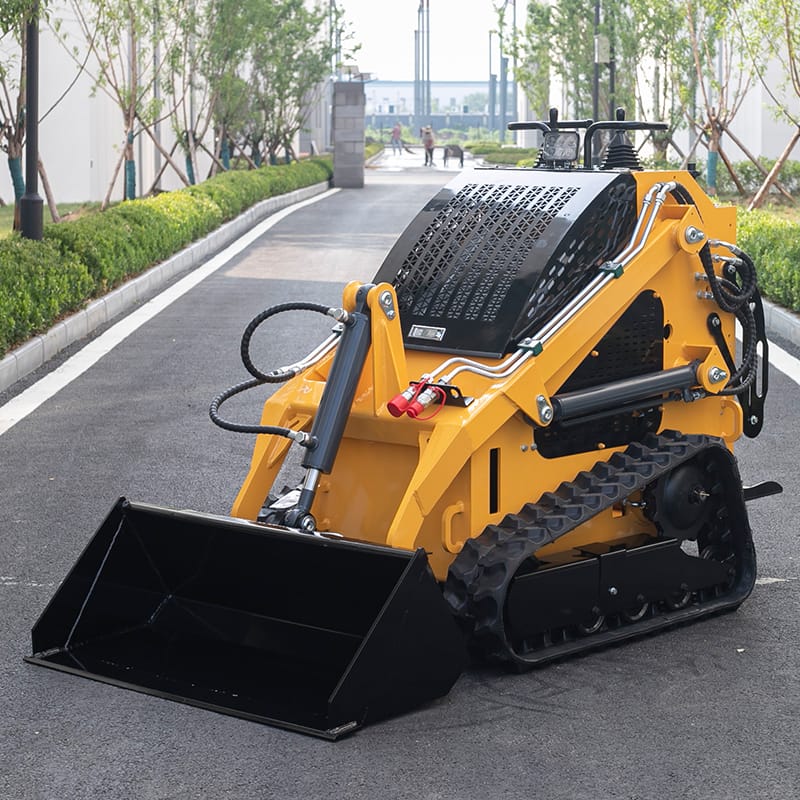

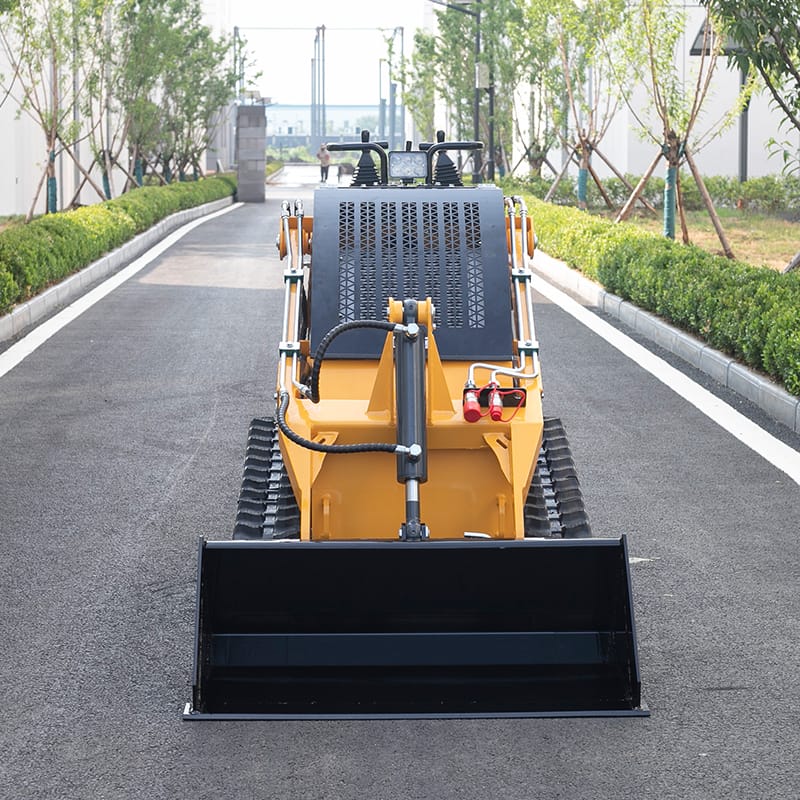

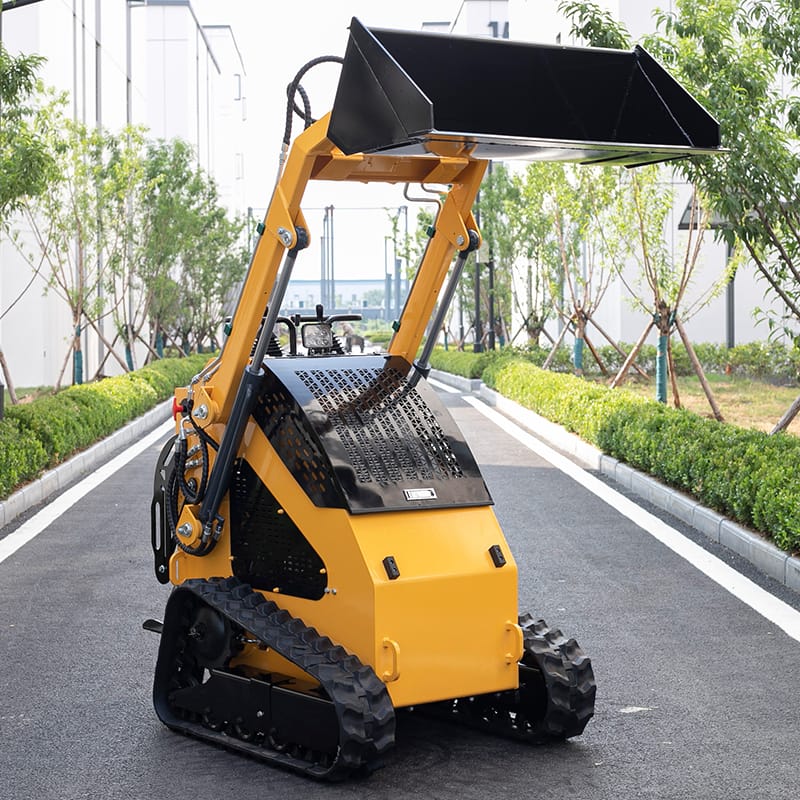

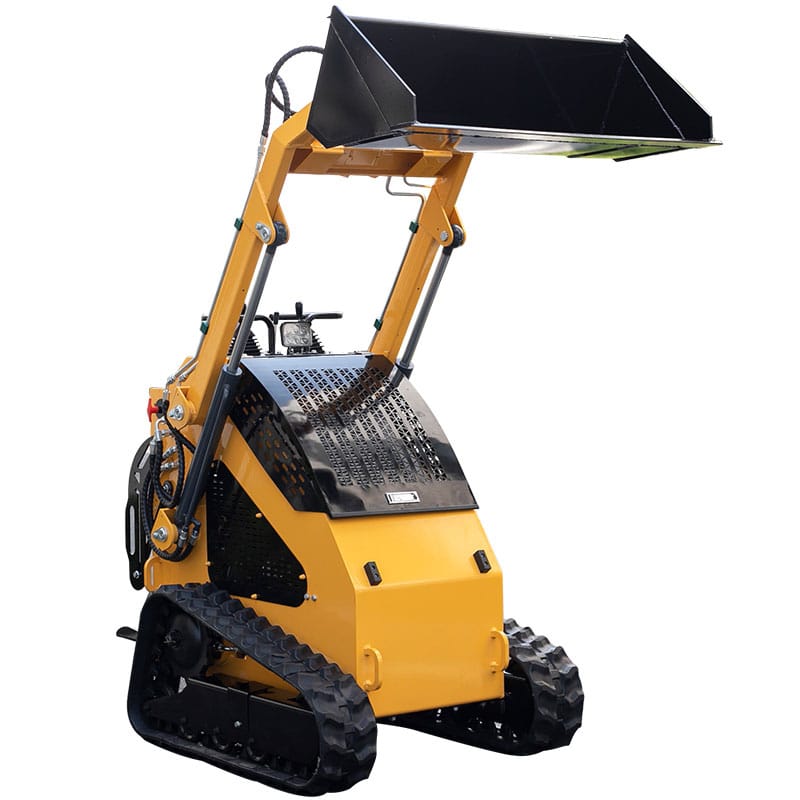

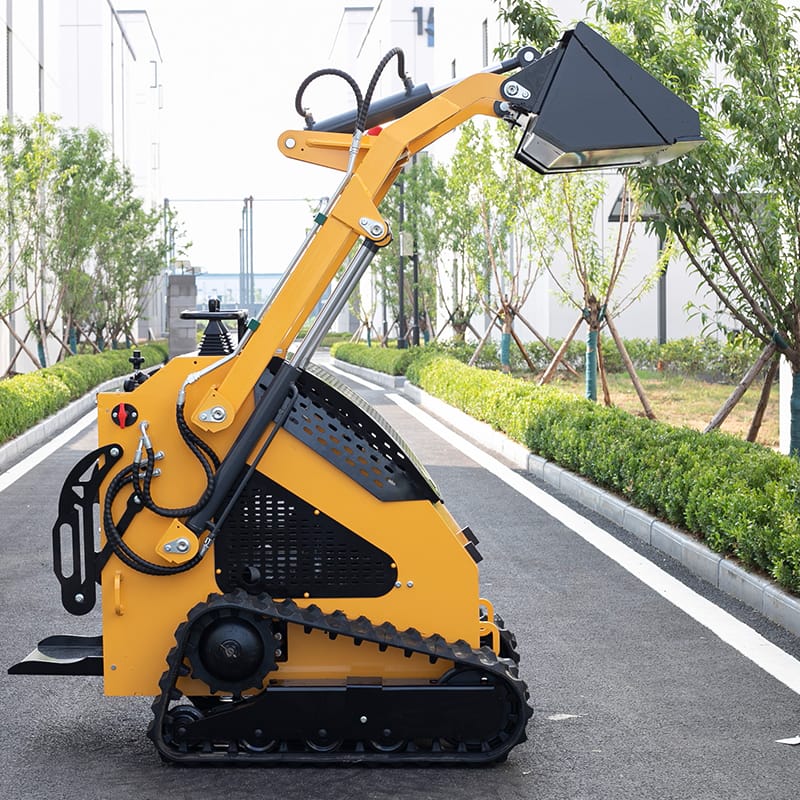

The T360 skid steer loader is a compact, efficient machine ideal for various construction and landscaping tasks. It features multiple engine options including electric and EURO 5/EPA-compliant models, delivering up to 9.9kW power. With a 200 kg rated operating capacity and 0.12 m³ bucket, it offers strong performance in tight spaces. The T360 boasts a 6 km/h top speed, 3.5 kN breakout force, and a 900 kg operating weight. Its design includes a 2400 mm maximum extension height and excellent maneuverability, making it a reliable choice for light-duty operations.
Quote Now
T360 Mini Track Skid Steer Loader
Product Overview
The T360 is a compact track loader designed for flexible operation and stable performance. Its tracked chassis improves grip and helps reduce ground pressure. Because of this, the machine works well on lawns, gardens, gravel paths and mixed terrain. It also supports smooth movement in narrow spaces. For contractors, dealers and rental companies, the T360 offers a useful balance of size, control and maintenance convenience.
Product Details
Lockable Side Service Panel
The side service panel uses a lockable design. It protects key internal parts and also gives quick access for daily checks. In addition, the perforated steel cover helps air move around the machine. It also helps block larger debris during work. Therefore, this detail improves both safety and maintenance convenience.

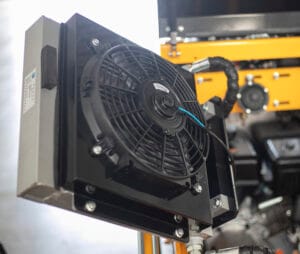

Efficient Cooling Fan System
The T360 uses a compact electric cooling fan assembly. This system helps release heat during long working hours. As a result, the machine can keep a more stable working temperature. This is especially useful in hot weather and dusty job sites. It also supports better reliability for both the hydraulic and engine systems.
Reliable Hydraulic Drive Components
The hydraulic drive section has a compact and solid structure. It supports smooth oil flow and stable machine response. For example, it helps the loader react well during travel, lifting and attachment use. High-quality fittings also improve durability. Therefore, the machine can handle demanding site conditions more confidently.

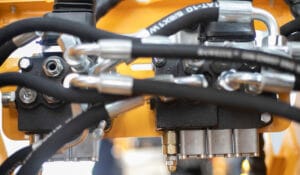

Organised Hydraulic Valve and Hose Layout
The valve block and hose layout are clean and easy to inspect. This design makes routine service simpler. It also helps reduce hose wear caused by vibration and friction. As a result, operators can check the system more quickly and maintenance teams can work more efficiently. Over time, this may help reduce downtime.

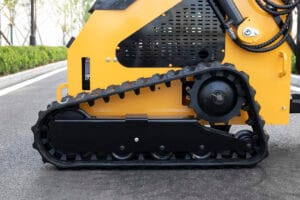

Heavy-Duty Rubber Track Undercarriage
The rubber track undercarriage gives the T360 strong traction and stable travel. It also helps lower ground pressure. Therefore, the loader can work better on soft, wet or uneven surfaces. In addition, rubber tracks are suitable for lawns, gardens and finished ground where surface protection matters. This makes the T360 a good fit for landscaping and confined-site construction.
Key Advantages and Features
- Compact Size: Works well in narrow access areas
- Rubber Tracks: Improve grip and reduce ground pressure
- Efficient Cooling: Helps keep stable working performance
- Hydraulic Control: Supports smooth travel and lifting response
- Easy Maintenance: Makes daily inspection faster and easier
- Durable Structure: Fits landscaping, farm and site work
Applications
The T360 mini track skid steer loader fits many job sites. For example, it can support landscaping, garden renovation, site cleaning and farm material handling. It also works well for municipal maintenance and light construction tasks. Because the machine is compact, it can enter narrow passages and restricted areas more easily. In addition, suitable attachments can expand its working range through the year.
Why Choose the T360 Mini Track Loader
Many buyers want a machine that is compact, easy to maintain and simple to transport. The T360 answers that need with a practical design. Its track chassis improves stability on soft ground. Its hydraulic layout supports smooth control. Its service-friendly structure also helps reduce maintenance effort. Therefore, the T360 is a strong option for dealers, rental businesses and contractors who need a reliable compact track loader.
Built for Stable Performance and Easy Daily Service
A compact track loader should do more than fit into small spaces. It should also work reliably every day. The T360 combines a practical track chassis, an organised hydraulic system and an efficient cooling design. Together, these features support stable performance and easier servicing. As a result, the machine is well suited to professional users in landscaping, farming and light construction.
FAQ
What jobs is the T360 mini track skid steer loader suitable for?
The T360 is suitable for landscaping, garden work, farm tasks, site cleaning and light construction in compact areas.
Why does the T360 use a rubber track undercarriage?
Rubber tracks improve traction, reduce ground pressure and support better travel on soft or uneven ground.
Is the T360 easy to maintain?
Yes. The lockable service panel and organised hydraulic layout make daily checks and routine maintenance easier.
How does the cooling system help performance?
The cooling fan helps control working temperature during long operating hours. Therefore, it supports stable performance in demanding conditions.
Can the T360 work in narrow spaces?
Yes. Its compact body makes it suitable for gardens, courtyards, side paths and other restricted work areas.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/koop/Runtong/Zhongcheng/B&S | Vehicle height | 1300mm |
| Rated power | 6kw、72V、125ah/7.5/8.6/8.5/9.9kw | Length with standard bucket | 2070mm |
| Number of cylinders | 1 | Vehicle width (standard tire) | 920mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 1640mm |
| Emissions standards | EURO5/EPA | Bucket width | 1050mm |
| Rated operating capacity | 200Kg | Tail length | 500mm |
| Maximum operating capacity | 300Kg | Height at maximm extension | 2400mm |
| Maximum breakout force | 3.5KN | Height to the the bucket pin | 1870mm |
| Bucket capacity | 0.12m³ | Maximlm height as lay the bucket flat | 1720mm |
| Driving speed | 0-6km/h | Dumping height | 1510mm |
| Total cycling time | 9s | Discharge distance | 250mm |
| System operating pressure | 17-21bar | Track contact with ground length | 900mm |
| Fuel tank capcity | 5L | Ground clearance | 130mm |
| Operating weight | 900KG | The flip angle of the bucket on the ground | 27° |
| Track model | 180*72*35 | Bucket flip angle at highest position | 114° |
