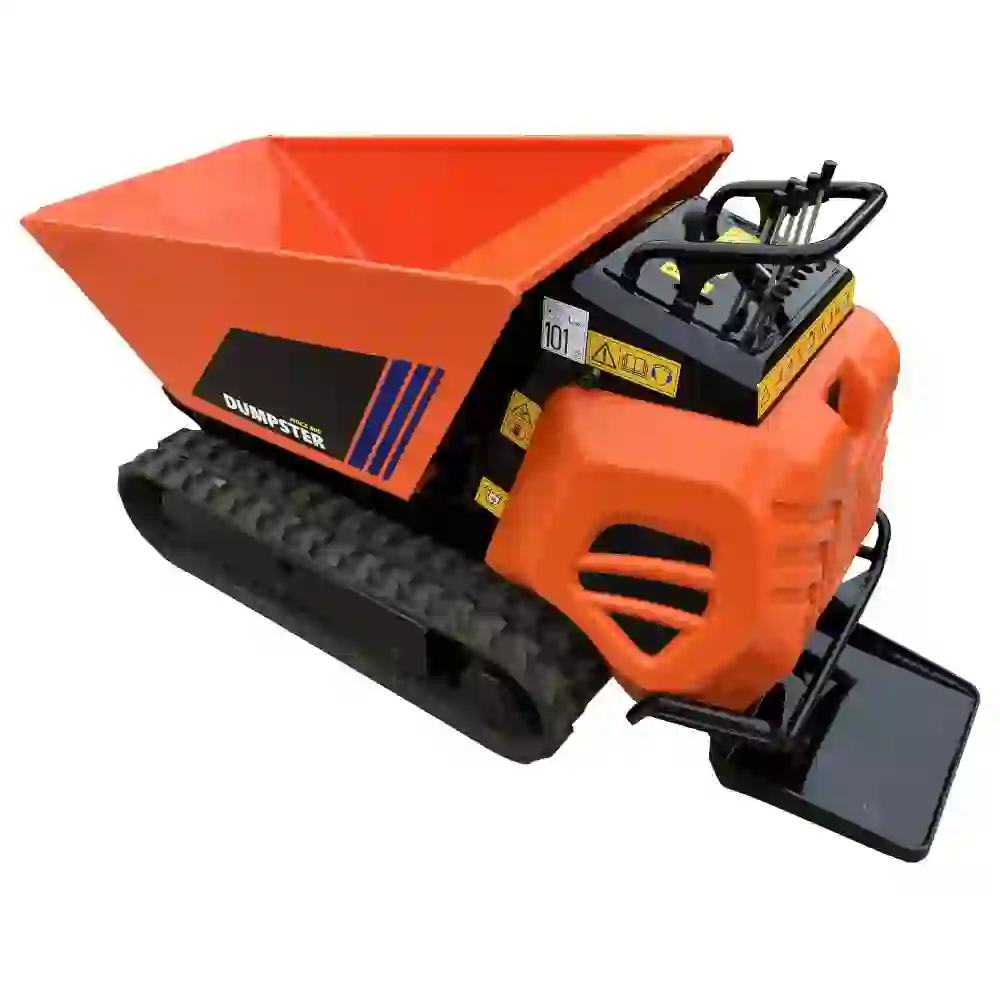

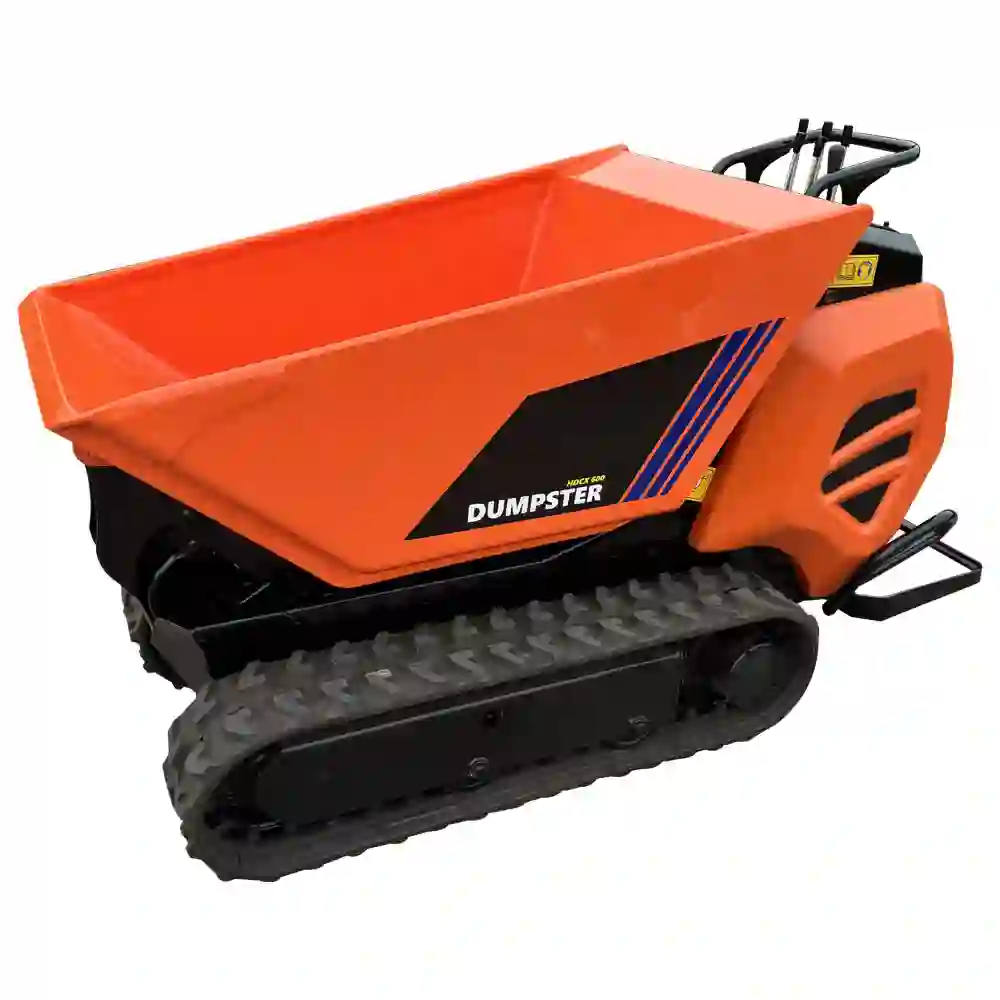

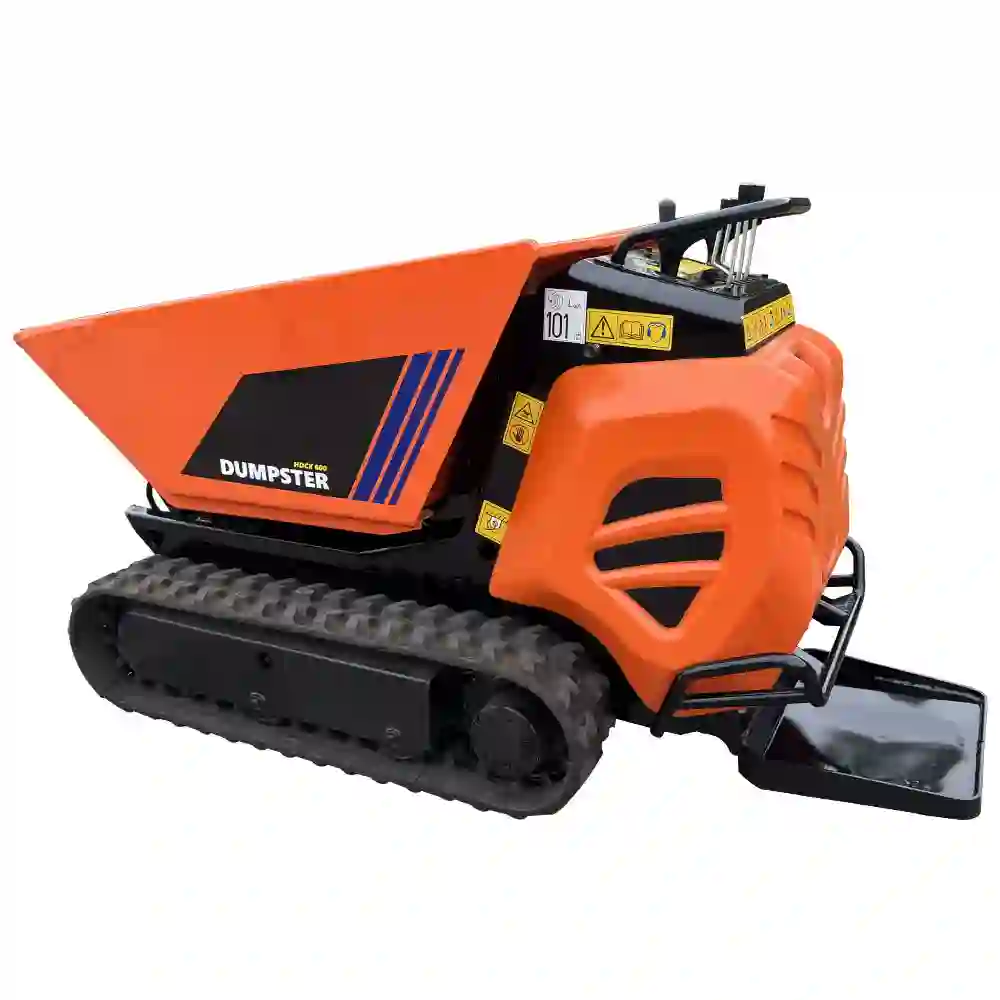

HDCX-600 Dump Truck – A Good Choice in China
HDCX-600 Dump Truck – A Good Choice in China
The HDCX-600 is a well-designed and reliable diesel-powered mini dump truck, particularly suitable for use in industrial environments with limited space and complex terrain. Its high load capacity, maneuverability, safe operation, and diverse optional configurations make it an ideal piece of equipment for improving construction site transportation efficiency.
Quote Now
Product Advantages
Compact and Flexible, High Availability
- With a body width of only 706mm, it can easily pass through standard doorways or fences.
- Small turning radius, flexible operation, suitable for narrow construction sites.

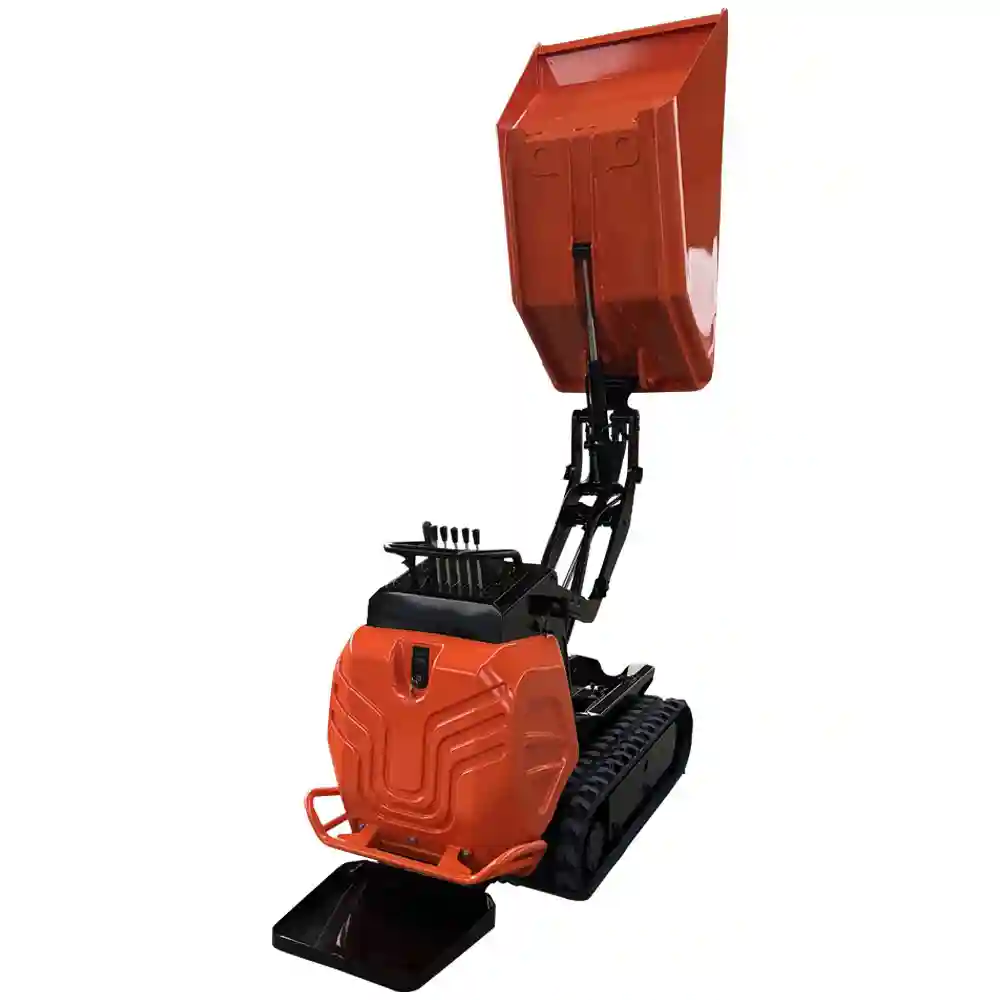

High Discharge Design, High Operating Efficiency
- Maximum discharge height of 1.45m, allowing direct unloading to high-side vehicles or hoppers.
- Reinforced structural lifting frame ensures safe and reliable lifting.
Optimized Track System
- Dual-speed track control, precise operation at low speeds, rapid movement at high speeds.
- Optimized track motors improve traction and site adaptability.
- Mechanical tensioning system for easy maintenance.
Intelligent Safety and Comfort
- SmartStep optional function enhances operating comfort and safety.
- New starter motor adapted to low-temperature environments.
- High-volume horn system for easy communication in noisy environments.
User-Friendly Operating Environment
- Independent joystick for intuitive and precise operation.
- Large-opening panel for easy daily inspection and maintenance.
- Standard 1-year manufacturer’s warranty.
Applicable Industries
- Construction Sites
- House Construction
- Landscape Gardening
- Agricultural Transportation
- Equipment Leasing
Product Parameters
| HDCX-600 | |
| Brand Name | ACE |
| Type | Mini Loader |
| Engine Brand | KOOP |
| Power | 4KW |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Machine Weight | 515 kg |
| Hydraulic Pump Brand | Famous Brand |
| UNIQUE SELLING POINT | High operating efficiency |
| Core Components | PLC, Pressure vessel, Engine, Gear, motor, Pump, Bearing, Gearbox |
| Moving Type | Crawler Loader |
| Make | ACE |
| Hydraulic Cylinder Brand | Famous Brand |
| Hydraulic Valve Brand | Other |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Product name | Mini Diesel Dumpster |
| Type | HDCX-600 |
| Keyword | Tracked Dumper Crawler Dumper |
| Color | Customer’s Requiement |
| Engine | KOOP |
| Engine power | 4KW |
| After Warranty Service | Online Technical Support |
| MOQ | 1 Set |
| Selling Units: | Single item |
| Single package size: | 1215×1940×800MM |
| Single gross weight: | 600.00 kg |
| HYDRAULIC | |
| Pump | Triple |
| Nominal output @ 3000rpm | 27 (6)lpm (gallons) |
| Main relief pressure | 150bar |
| WEIGHTS | |
| Machine mass without step | 515kg |
| Machine mass with step | 590kg |
| SERVICE CAPACITIES | |
| Fuel tank | 4.3ltr |
| Engine oil | 1.2ltr |
| Hydraulic system | 13ltr |
| Hydraulic tank | 11.5ltr |
| STATIC DIMENSIONS | |
| Overall Length Step Up | 1645mm |
| Undercarriage overall Length – Rubber | 1215mm |
| Maximum height (tipping position) | 2720mm |
| Skip ground clearance (tipping postion) | 1525mm |
| Minimum Skip height (transport postion) | 780mm |
| Overall Height (transport postion) | 1115mm |
| Single Track width | 180mm |
| Track spacing | 330mm |
| Maximum Track Width | 700mm |
| Overall Length Step Down | 1840mm |
| ENGINE | |
| Engine Model | KOOP KD180 with 4.0 (5.4) powerkW(hp) |
| Fuel | Diesel |
| Cooling | Air Cooled |
| Gross power ISO 14396 (kW) | 4kW |
| UNDERCARRIAGE | |
| No of bottom rollers | 2 |
| Track width rubber (STD) | 180mm |
| Track tensioning | Mechanical |
| Travel speed – high | 3kph |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
