KV18 & KV18 Pro – 1.5 Ton Kubota Mini Excavator | Compact & Powerful
KV18 & KV18 Pro – 1.5 Ton Kubota Mini Excavator | Compact & Powerful
The KV18 & KV18 Pro are powerful 1.5 ton mini excavators powered by the reliable Kubota D722 14HP diesel engine. Featuring 360° rotation, hydraulic pilot controls, and compact design, these small tracked excavators excel in concrete breaking, trenching, landscaping, indoor demolition, and utility work. EPA compliant and attachment-ready – the perfect compact solution for tight spaces across Europe.
Quote Now
KV18 & KV18 Pro Mini Excavators
Powerful. Compact. Versatile. – The perfect Kubota-powered solution for tight spaces and demanding jobs across Europe.
Product Description
The KV18 and KV18 Pro represent the next generation of compact 1.5 ton mini excavators, both equipped with the legendary Kubota D722 14HP diesel engine. These small tracked excavators deliver exceptional performance, EPA compliance and outstanding manoeuvrability thanks to true 360° rotation. Featuring smooth hydraulic pilot controls, high-quality imported components (NOK seals, international reducers) and a wide range of multi-function mini excavator attachments, they are the ideal choice for concrete breaking, trenching, landscaping, indoor demolition, pipe laying, river cleaning, municipal works and much more. Whether you choose the agile KV18 or the enhanced KV18 Pro with variable piston pump and wider tracks, you get a reliable kubota mini excavator engineered for long service life and maximum productivity in the most confined European job sites.
Applications
- Road restoration & utility trenching
- Concrete breaking & demolition
- Cable & water pipe laying
- Gardening & landscaping
- River / ditch cleaning & dredging
- Indoor demolition & bathroom renovation
- Municipal works & small civil engineering projects
- Barren land clearing & light earthmoving
Core Advantages & Key Features
- Ultra-compact design – perfect for narrow access and indoor work
- Reliable Kubota D722 diesel engine – low fuel consumption & EPA compliant
- Full 360° slew for excellent manoeuvrability in confined spaces
- Precise hydraulic pilot controls on both models
- High-strength steel structure with anti-rust plastic coating
- Premium international reducers & NOK sealed cylinders
- Wide selection of multi-function attachments: hammer, ripper, auger, grapple, rake, large/mud bucket
- Easy transport – fits on small trailers

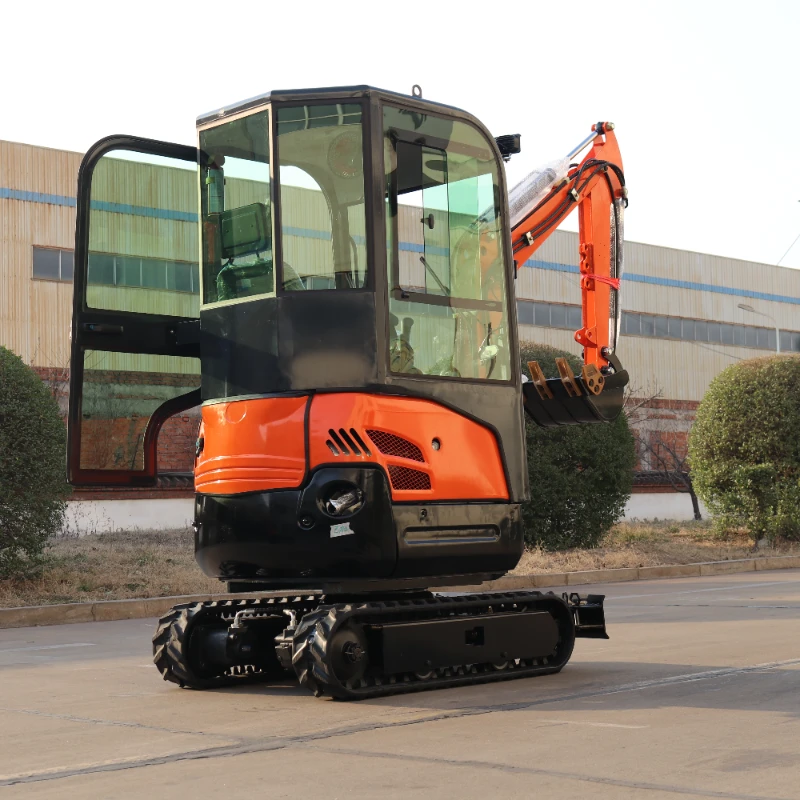

- Optional steel tracks and enclosed cab available
Product Details & Configuration
Standard on both models: Kubota D722 engine, imported cylinders & hoses with NOK seals, forward-flip operator seat, adjustable dozer blade, wear-resistant rubber tracks, ergonomic adjustable seat, standard bucket, ROPS canopy, hydraulic pilot joysticks, LCD display.

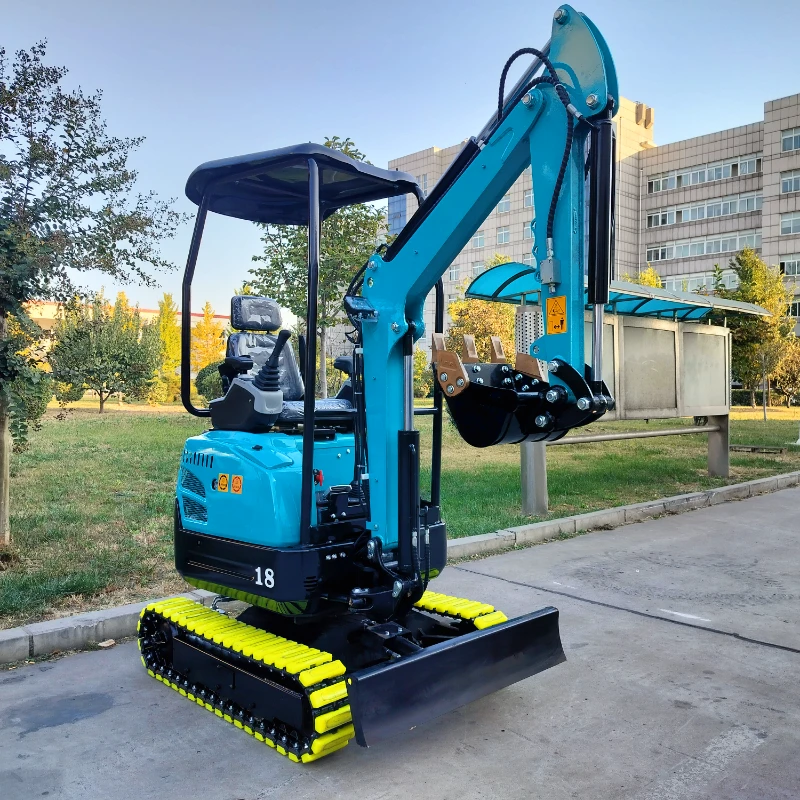

KV18 Pro exclusive advantages: variable displacement piston pump, 230 mm wider tracks for improved stability & lower ground pressure, dual-side pilot operation readiness.
KV18 vs KV18 Pro – Key Differences & Selection Guide
| Feature | KV18 | KV18 Pro | Recommendation |
|---|---|---|---|
| Weight | 1400 kg | 1500 kg | Pro for better stability |
| Hydraulic pump | Gear | Variable piston | Pro for better attachment performance |
| Track width | Standard | 230 mm widened | Pro on soft / uneven ground |
Choose KV18 if budget, transport weight and higher travel speed are priorities.
Choose KV18 Pro when you need maximum hydraulic efficiency, better flotation and attachment performance (especially with hammer or auger).
Why Choose Our Kubota Mini Excavators?
- Proven Kubota reliability – the gold standard in compact diesel engines
- EPA & EU Stage V ready – legal for Europe
- Outstanding quality-to-price ratio
- Full after-sales support & spare parts availability
- Versatile machine ready for dozens of attachments
- Designed and tested for tough European working conditions
Frequently Asked Questions
What is the main difference between KV18 and KV18 Pro?
The Pro version features a variable piston pump for better hydraulic performance, wider tracks for improved stability and flotation, and slightly higher operating weight. It is better suited for continuous heavy attachment work and softer ground conditions.
Are these mini excavators street legal in Europe?
They are compact machines primarily intended for off-road / construction site use. Road legality depends on national regulations and possible additional lighting / registration requirements.

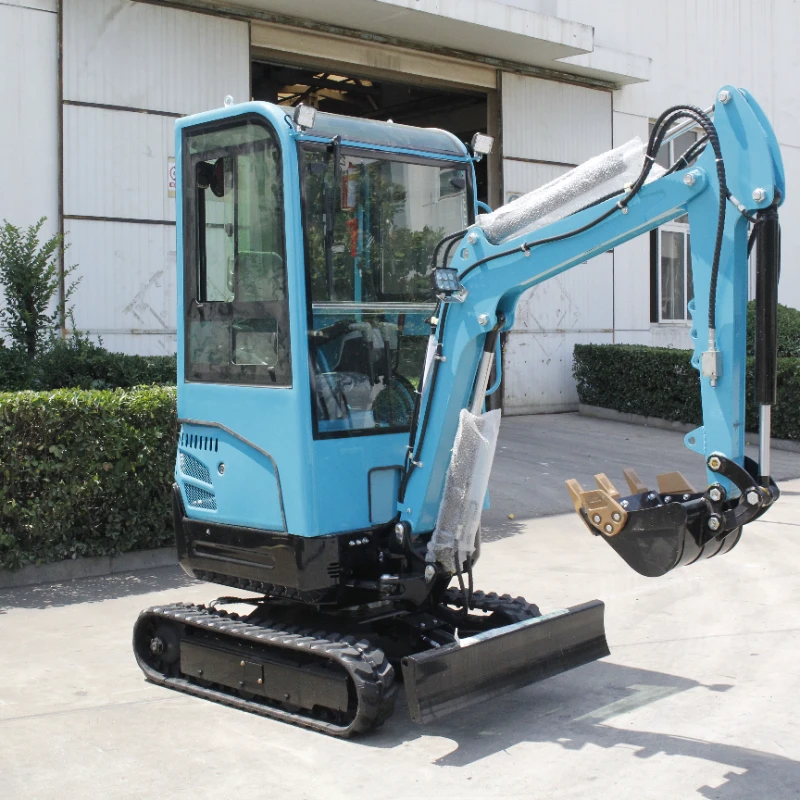

Is the Kubota D722 engine Stage V / EPA compliant?
Yes – the engine meets current EPA Tier 4 final / EU Stage V emission standards when properly configured.
What attachments are most popular?
Hydraulic breaker (for concrete), hydraulic thumb + bucket combo, auger, ripper tooth, grading beam and grabber are among the most requested options.
Can I fit a closed cab later?
Yes – both models support an optional enclosed cab with heater, which can usually be retrofitted.
Product Parameters
| Model | KV18 | KV18 pro |
| Operating weight | 1400kg | 1500kg |
| Total length | 2200mm | |
| Total width | 1100mm | |
| Total height | 2200mm | |
| Max. digging radius | 3280mm | |
| Max.digging depth | 1810mm | |
| Max. digging height | 2660mm | |
| Max. unloading height | 1900mm | |
| Max. digging force | 15KN | |
| Engine brand | Kubota-D722 | |
| Maximum power | 14HP | |
| Walking speed | 0-8km/h | 0-6km/h |
| Climbing angle | 30° | 30° |
| Standard Configuration | Kubota D722 engine / Imported oil cylinders and oil pipes with built-in NOK sealing ring / Dual Gear Pump / Forward flip-up seat / Hydraulic pilot handle / Adjustable bulldozer / Wear-resistant engineering rubber track / Adjustable driving seat / Standard bucket / Standard canopy | Kubota D722 engine / Imported oil cylinders and oil pipes with built-in NOK sealing ring / Plunger pump (变量柱塞泵) / Forward flip-up seat / Hydraulic pilot handle / Adjustable bulldozer / Wear-resistant engineering rubber track / Adjustable driving seat / Standard bucket / Standard canopy |
| Optional Configuration | Hammer / Ripper / Log grapple / Rake / Auger drill / Large bucket / Mud bucket | Hammer / Ripper / Log grapple / Rake / Auger drill / Large bucket / Mud bucket |
| Features | Compact and flexible for small terrain and narrow spaces; Simple operation and transportation; High-quality thickened steel with plastic molding for rust prevention; International brand reducers for smooth and reliable operation; 360° body rotation for outdoor convenience. | Compact and flexible for small terrain and narrow spaces; Simple operation and transportation; High-quality thickened steel with plastic molding for rust prevention; International brand reducers for smooth and reliable operation; 360° body rotation for outdoor convenience. |
| Product Application | Road restoration, concrete breaking, cable laying, water pipe laying, gardening, river/ditch cleaning, construction; Functions: excavation, breaking, ditch cleaning, drilling, bulldozing. | Road restoration, concrete breaking, cable laying, water pipe laying, gardening, river/ditch cleaning, construction; Functions: excavation, breaking, ditch cleaning, drilling, bulldozing. |
| Application Scope | Indoor demolition, toilet upgrading, engineering forcible entry, barren hill excavation, small earthwork, municipal projects, concrete breaking, river dredging. | Indoor demolition, toilet upgrading, engineering forcible entry, barren hill excavation, small earthwork, municipal projects, concrete breaking, river dredging. |
| Additional | Hydraulic pilot handle; Display instrument; Can add steel tracks and cab. | 230mm widened engineering rubber tracks; Pilot operation on both sides; Variable piston pump; Can add steel tracks and cab. |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
