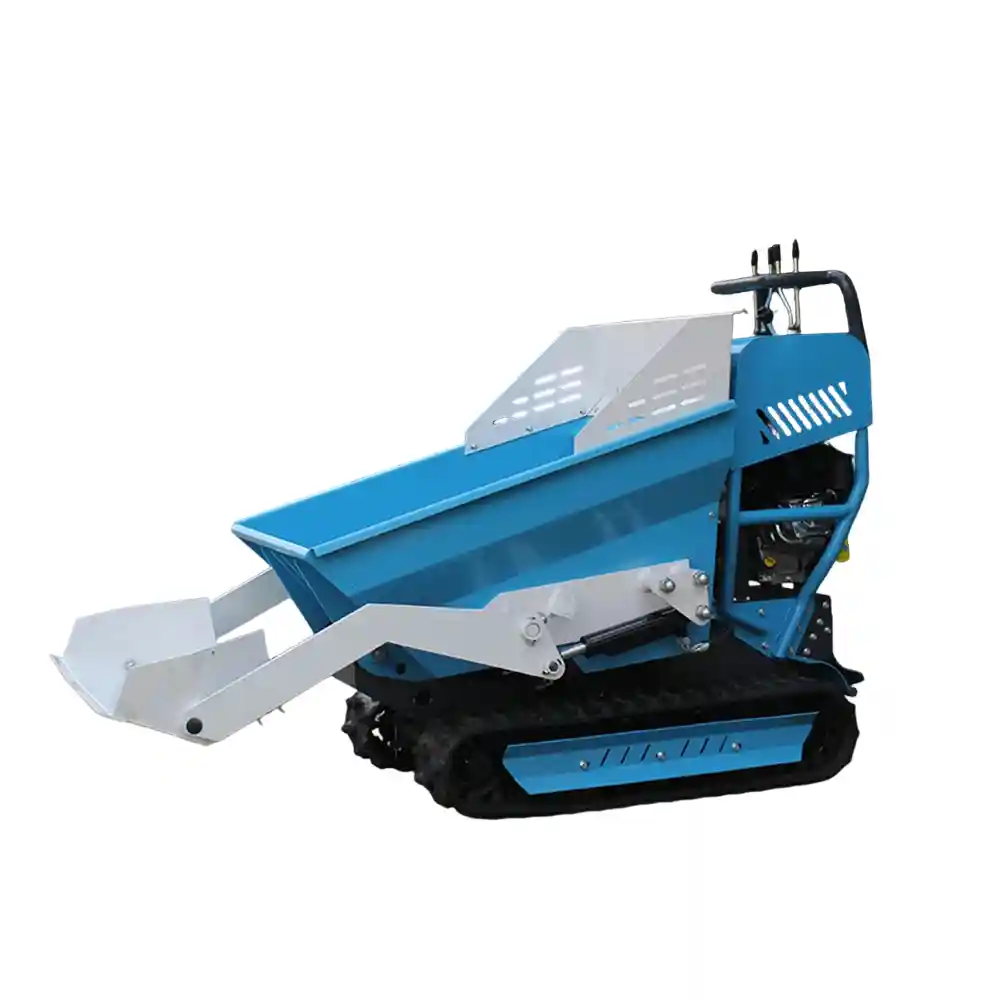

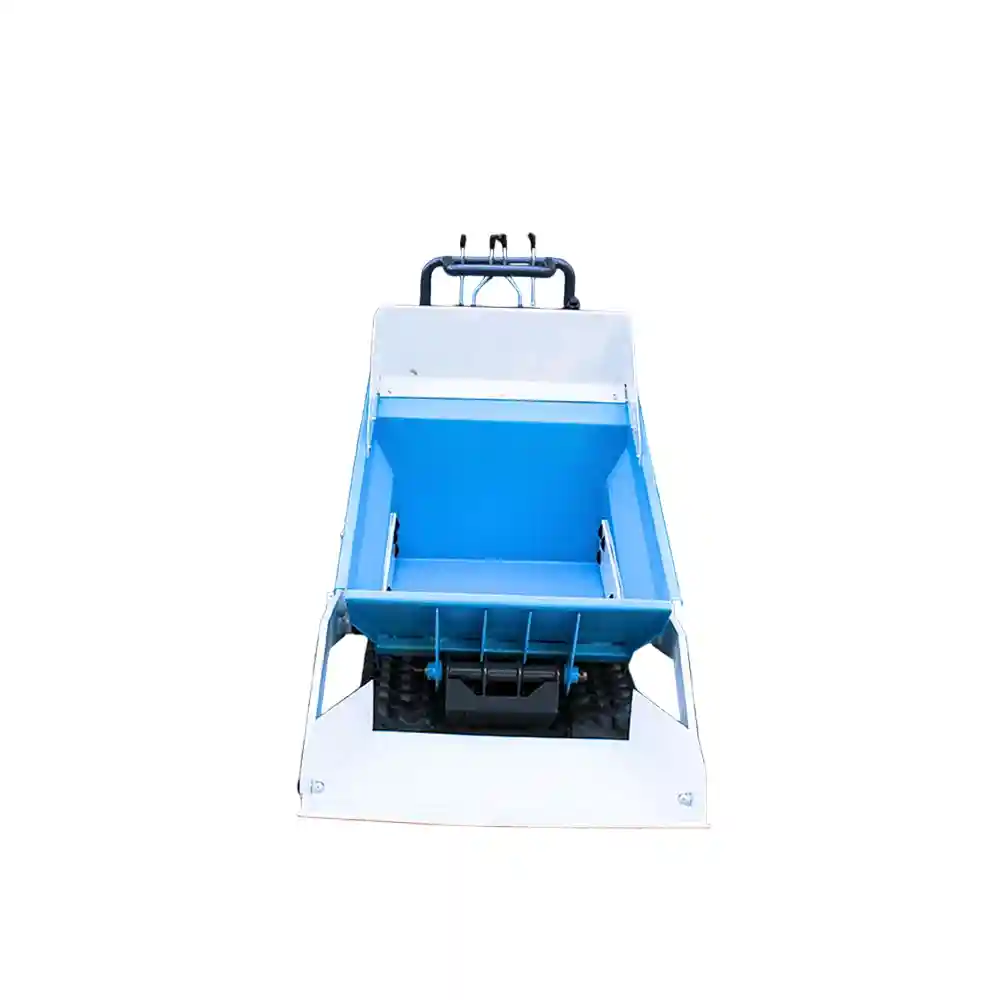

Powerful EZ-500 dump truck
Powerful EZ-500 dump truck

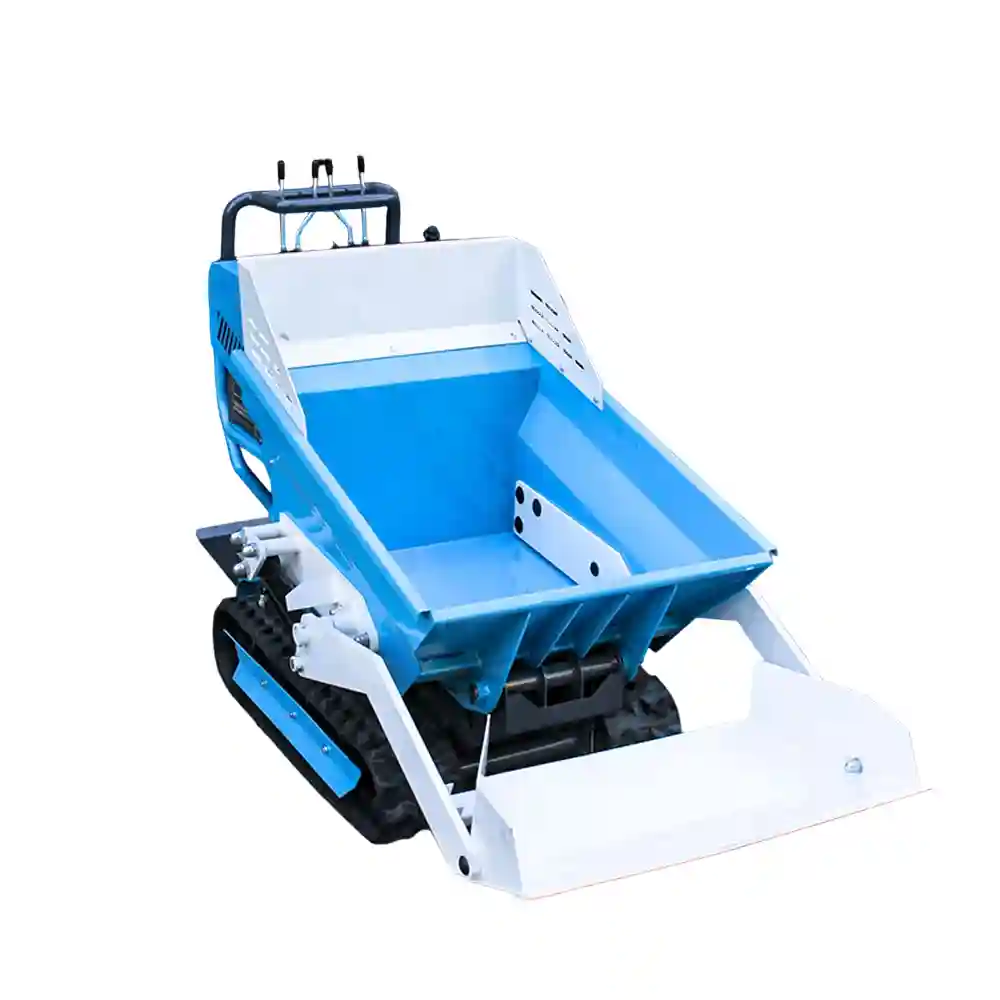

The EZ-T500 is a compact, small, upright tracked transporter designed for efficient material transport in narrow, rugged industrial areas. Combining a compact body, powerful tracked traction, and a 500kg payload capacity, it offers maneuverability and excellent mobility, making it an ideal solution for replacing manual handling and improving operational efficiency.
Quote Now
Key Highlights
Superior Off-Road Performance: Utilizes a tracked chassis with low ground pressure, boasting a powerful 20° climbing ability and a minimum ground clearance of 85 mm, easily handling complex terrains such as mud and rough surfaces.
Exceptional Mobility:Its compact design and turning radius of only 0.95 meters allow for agile maneuverability in tight spaces.

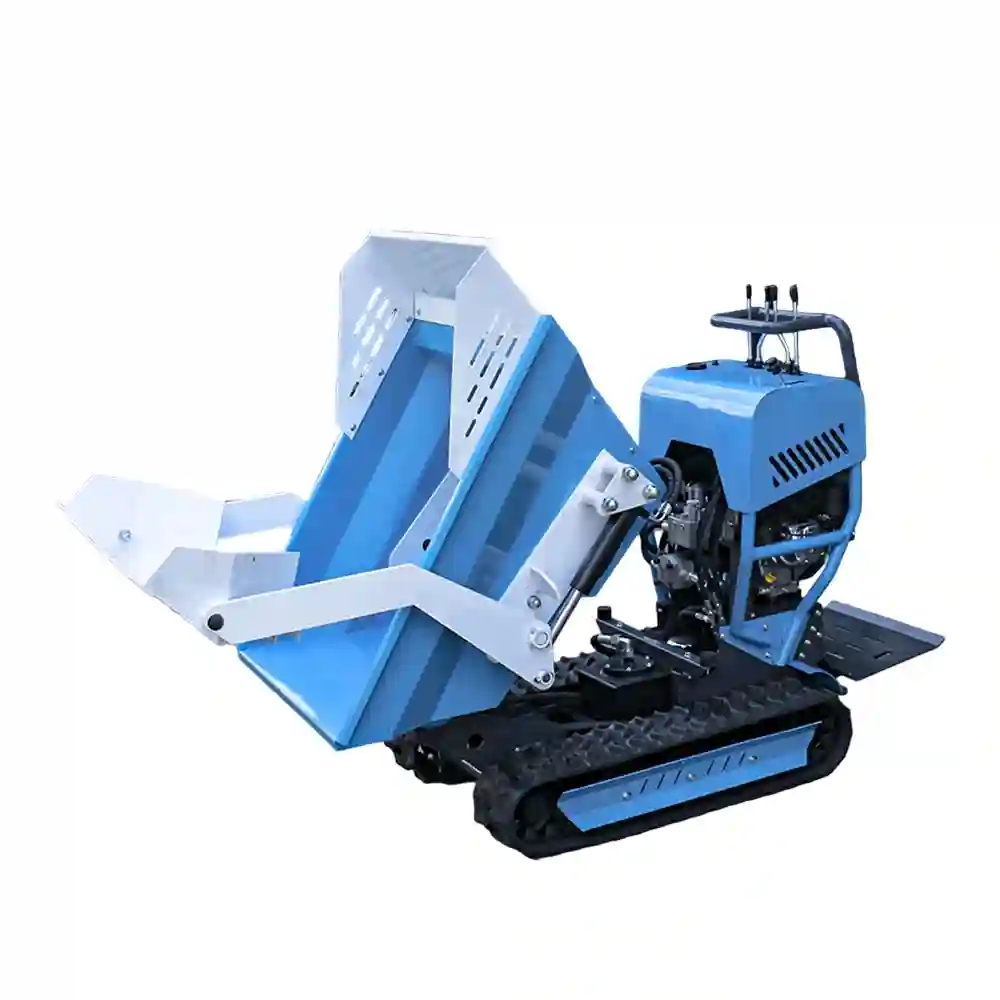

Efficient Cargo Capacity:With a maximum payload of 500 kg and a 0.22 cubic meter cargo box, it provides excellent cargo capacity to meet the demands of high-intensity transportation.
Dual-Speed Operation: Offers two driving speeds, 1.7 km/h and 3.5 km/h, which can be flexibly switched according to load and road conditions, balancing heavy-load starts and low-load efficiency.
Reliable Core Components
High-Efficiency Hydraulic System:Integrated valve block control ensures smooth operation and reliable high-speed/low-speed switching.
High-Torque Travel Motor: Delivers a powerful torque of up to 805 Nm, ensuring superior traction.
Powerful Performance: Equipped with a 130G engine, delivering 6.5 hp (4.8 kW) of power, providing ample power.
Core System Introduction
Integrated Valve Block: Composed of a valve body, back pressure check valve, and hydraulically controlled directional valve, its core function is to control stable vehicle operation and achieve smooth switching between high and low speeds.
Walk Motor: The large displacement design provides strong output torque, ensuring sufficient power for the vehicle under heavy loads and climbing conditions.
Applications
This mini dump truck is ideal for the following applications:
Mining Tunnels: Transporting ore and materials in narrow tunnels.
Agriculture and Horticulture: Transporting fertilizer and harvested agricultural products in orchards, greenhouses, and terraces.
Construction Industry: Moving building materials in narrow areas indoors, basements, and construction sites.
Mountainous and Hilly Areas: Transporting materials in rugged terrain where vehicles cannot easily pass.
Product Parameters
| Small stand-up crawler transporter EZ-T500 dump truck | |||
| Model | FD50 | Machine weight | 400kg |
| Maximum load | 500kg | Travel speed | 1.7/3.5 (km/h) |
| Minimum turning radius | 0.95m | Crawler center distance | 509mm |
| Minimum ground clearance | 85mm | Climbing ability | 20° |
| Hydraulic oil tank capacity | 7L | Hydraulic oil grade | 46# anti-wear hydraulic oil |
| Cargo box volume (m3) | 0.22 (1040*730*590) | Length x width x height (mm) | 1735x844x1255 |
| Engine parameters | |||
| Model | 130G | Displacement (cc) | 208 |
| Total power (HP)*@3600rpm | 6.5 (4.8KW/3600) | Fuel capacity (L) | 3.1 |
| Oil capacity (L) | 0.6 | Net weight (kg) | 16 |
| Integrated valve block | |||
| Composition | Valve body, back pressure check valve, hydraulic control reversing valve, direct acting Overflow valve, electric control reversing valve, etc… | Function | Control the stable operation of the vehicle and realize the high and low speed switching of the vehicle |
| Travel motor | |||
| Displacement | 200cc | Maximum working pressure | 20MPa |
| Maximum torque | 805Nm | ||
