- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.

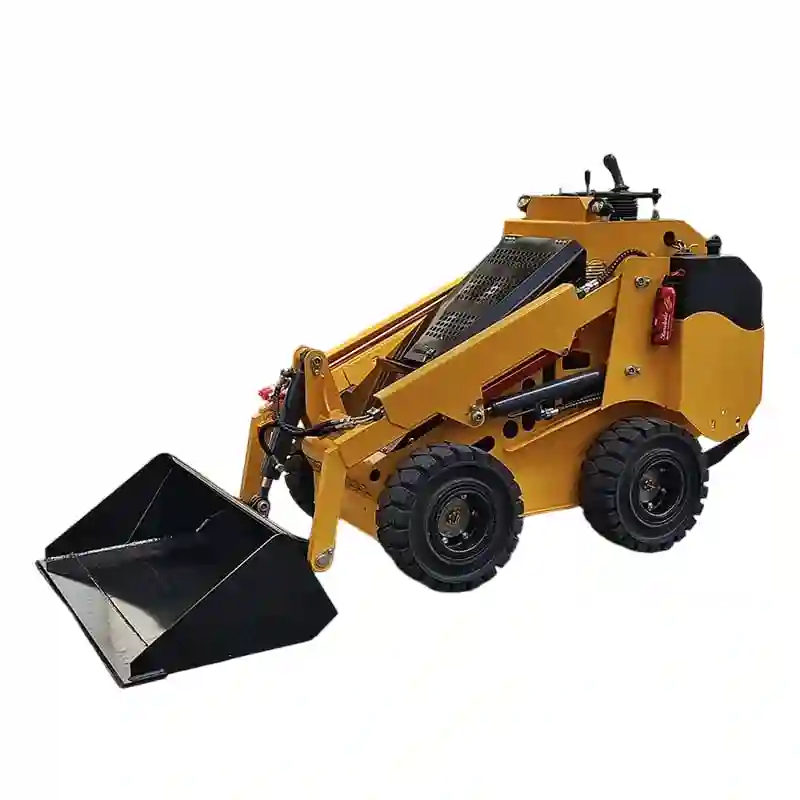

S750 CE Approved Engine Skid Steer Loader Mini Skid wheel Loader Kubota
S750 CE Approved Engine Skid Steer Loader Mini Skid wheel Loader Kubota
The S750 is a CE-certified mini skid steer loader powered by a reliable Kubota diesel engine, delivering 20-25HP for robust performance in a compact package ideal for European professionals. This diesel mini skid steer offers a 400kg rated load capacity, 0.15m³ bucket, and quick 9-second cycle times, making it a versatile wheel loader for construction, landscaping, and agricultural tasks. With its narrow 980mm width, 6km/h travel speed, and compatibility with multiple attachments, the S750 compact wheel loader provides excellent maneuverability and productivity as a mini wheel loader with attachments, fully compliant with EURO5 emissions and backed by ISO quality standards.
Quote Now
S750 CE Approved Engine Skid Steer Loader Mini Skid Wheel Loader Kubota
Product Description
The S750 CE certified skid steer loader is a robust and compact mini skid steer loader designed for the European market, offering exceptional performance. It features a reliable Kubota diesel engine with a power output of 20-25 horsepower, a three-cylinder naturally aspirated engine, and complies with EURO5/EPA emission standards. This diesel mini skid steer loader has a rated load of 400 kg, a maximum load of 450 kg, and a maximum lifting force of 4.5 kN, making it an ideal wheeled loader for various demanding tasks. It is equipped with a 0.15 cubic meter bucket, a working system pressure of 25 bar, and a travel speed of up to 6 km/h. The S750 compact wheeled loader boasts a three-function cycle time of 9 seconds, a 30-liter fuel tank capacity, and a total weight of 1200 kg, ensuring efficient and sustained operation.
Its dimensions include a width of 980 mm, a wheelbase of 1180 mm, a ground clearance of 180 mm, and 18*72 tire size for enhanced stability. Furthermore, its maximum working height of 2900 mm, bucket pin height of 2160 mm, discharge height of 1600 mm, discharge distance of 450 mm, and bucket tilt angles (27° at ground level, 114° at maximum height) contribute to precise material handling. This mini wheeled loader is CE, ISO management system, and EURO5 certified and can be equipped with various attachments, making it ideal for construction, landscaping, and agricultural applications in Europe. With dimensions of 2.4 x 1.35 x 1.8 meters, it combines durability and versatility.
Multi-Functional Performance
- Versatile diesel power from Kubota engine enables seamless operation as a mini skid steer loader in diverse European terrains.
- Compatible with various attachments, transforming the skid steer loader into a multi-purpose tool for lifting, digging, and transport.
- High maneuverability with 6km/h speed and 180mm clearance for efficient compact wheel loader tasks in confined spaces.
- Robust load handling up to 450kg maximum for demanding mini loader applications like material moving and site preparation.
- Extended runtime with 30L fuel tank, supporting prolonged use in wheel loader scenarios across construction and farming.
Core Advantages and Features
- Powerful Diesel Engine: The Kubota-powered diesel mini skid steer provides 20-25HP for reliable performance, meeting EURO5 standards for eco-conscious European operations.
- Compact and Agile Design: With 980mm width and 1180mm wheelbase, this compact wheel loader offers superior navigation in tight areas as a mini skid steer loader.
- High Load Capacity: Rated at 400kg with 4.5kN lifting force, the skid steer loader excels in heavy-duty tasks without sacrificing mobility.
- Certified Reliability: CE approved with ISO management, ensuring safety and quality for mini wheel loader with attachments in professional settings.
Engine and Frequency

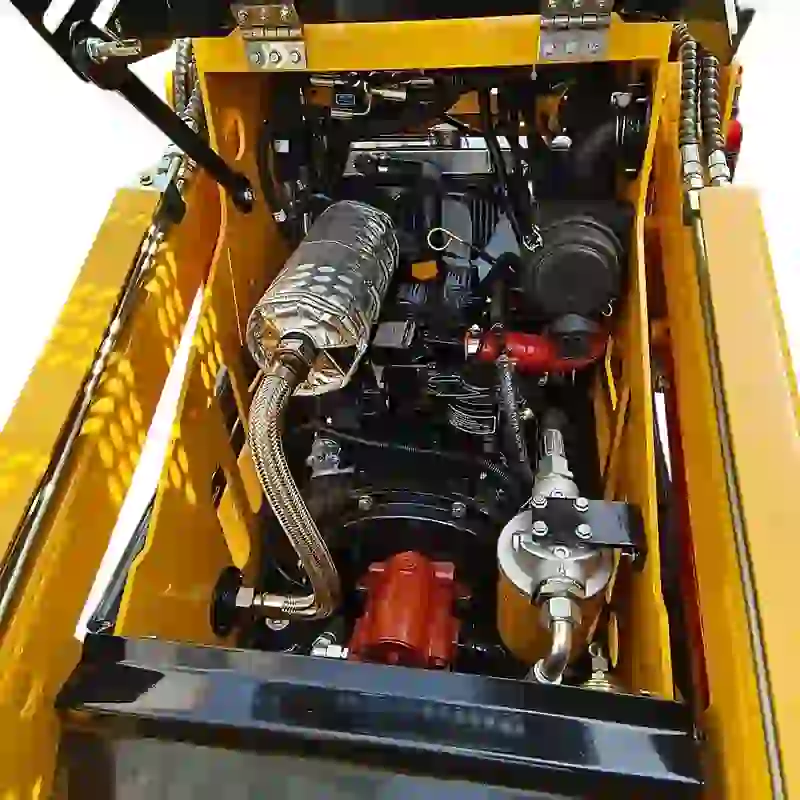

The S750 features a high-performance Kubota diesel engine, a 3-cylinder unit with natural aspiration delivering 20-25HP at operational frequencies optimized for efficiency and low emissions under EURO5/EPA standards. This gear pump hydraulic system integrates seamlessly with the engine for consistent power output, ensuring smooth performance in mini loader applications with minimal fuel consumption from the 30L tank.
mini skid steer loader, skid steer loader, mini loader, diesel mini skid steer, wheel loader, compact wheel loader, mini wheel loader with attachments
FAQ
What engine powers the S750 mini skid steer loader?
The S750 is equipped with a Kubota diesel engine, offering 20-25HP with 3 cylinders and natural aspiration for reliable performance.
What is the load capacity of this skid steer loader?
It has a rated load of 400kg and maximum load of 450kg, ideal for compact wheel loader tasks.
Is the S750 suitable for European markets?
Yes, with CE approval and EURO5 emission standards, it’s designed for safe and eco-friendly operation across Europe.
What attachments can be used with this mini wheel loader?
The S750 supports various attachments, enhancing its versatility as a mini wheel loader with attachments for digging, lifting, and more.
What are the key dimensions of the S750 diesel mini skid steer?
Key dimensions include 980mm width, 1180mm wheelbase, and 2900mm max operating height for agile maneuvering.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/Laidong 385/Yanmar 380 | Vehicle height | 1540mm |
| Rated power | 8kw、72v、20ah/18.6/18.4kw | Length with standard bucket | 2694mm |
| Number of cylinders | 3 | Vehicle width (standard tire) | 980mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 2067mm |
| Emissions standards | EURO5/EPA | Bucket width | 1100mm |
| Rated operating capacity | 400Kg | Tail length | 500mm |
| Maximum operating capacity | 450Kg | Height at maximum extension | 2900mm |
| Maximum breakout force | 4.5KN | Height to the the bucket pin | 2160mm |
| Bucket capacity | 0.15m³ | Maximum height as lay the bucket flat | 1810mm |
| Driving speed | 0-6km/h | Dumping height | 1600mm |
| Total cycling time | 9s | Discharge distance | 450mm |
| System operating pressure | 25bar | Ground clearance | 180mm |
| Fuel tank capcity | 30L | The flip angle of the bucket on the ground | 27° |
| Operating weight | 1200KG | Bucket flip angle at highest position | 114° |
| Tire model | 18*72 |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
Get Quote Now!
Welcome to discuss your purchasing requirements with our customer service.
