- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.
Small backhoe Loader dump trucks cheap farm trucks for sale
Small backhoe Loader dump trucks cheap farm trucks for sale
This power barrow is very powerful, built for the tough outdoors, helping you reach new heights, it can load up to 0.5tonne and is an essential machine at the fram, stable, work site and at home for your gardening and building projects. It is safe, convenient and high efficiency, suitable for carrying almost everything like brick, cement, sand, stone and so on.
Power Barrow BY250 Mechanical Transmission case
Engine: Honda GXV160 5.5HP/ B&S 750series DOV 5.5HP/5.5HP, 4stroke, 163cm3 gasoline engine
Transmission: Peerless transaxle 4 forward / 1 reverse speed
Capacity: 6cu. Ft. /170L or 1/4 tone(250kg) weight
Brake: Disk, Cabels: Protected
Wheels: Front 400× 10, 4 ply, rear 400× 8
Drum Material: Hot dip galvanizing
Optional engines: B&S and Loncin gasoline engine
Quote Now

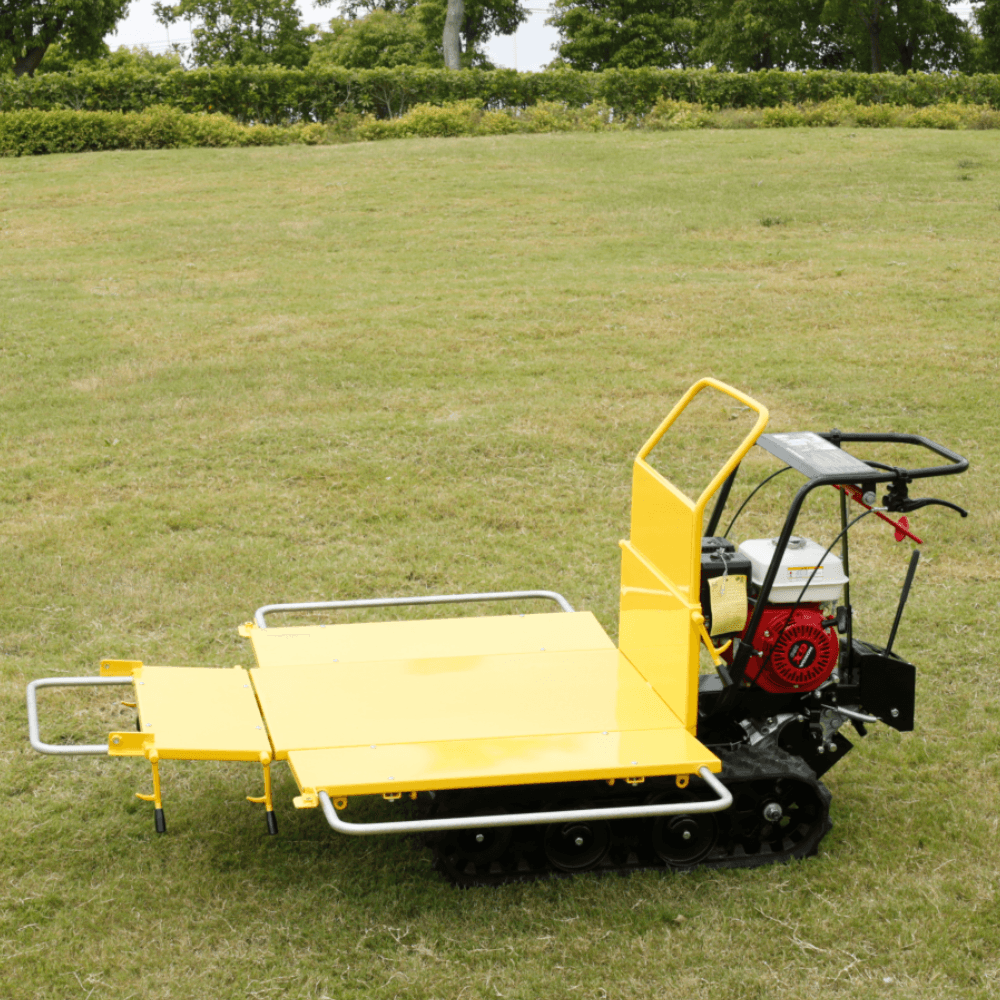

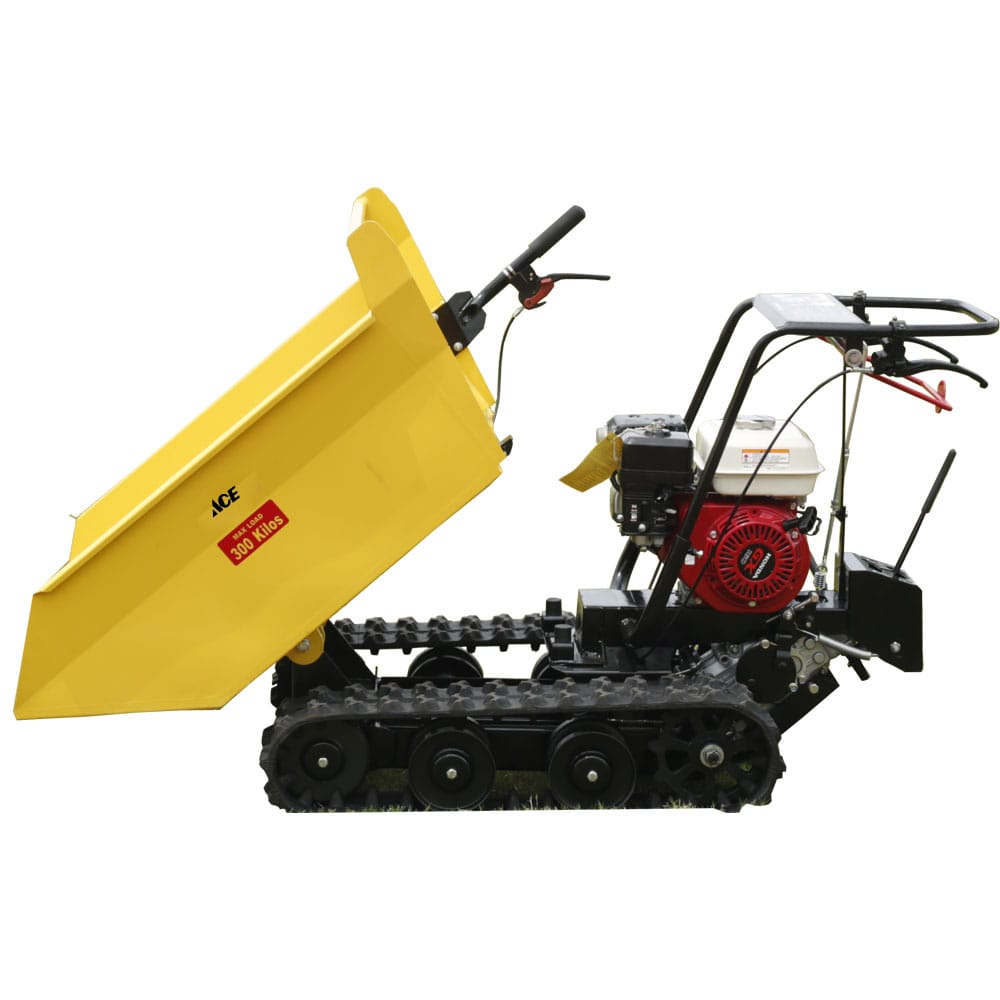

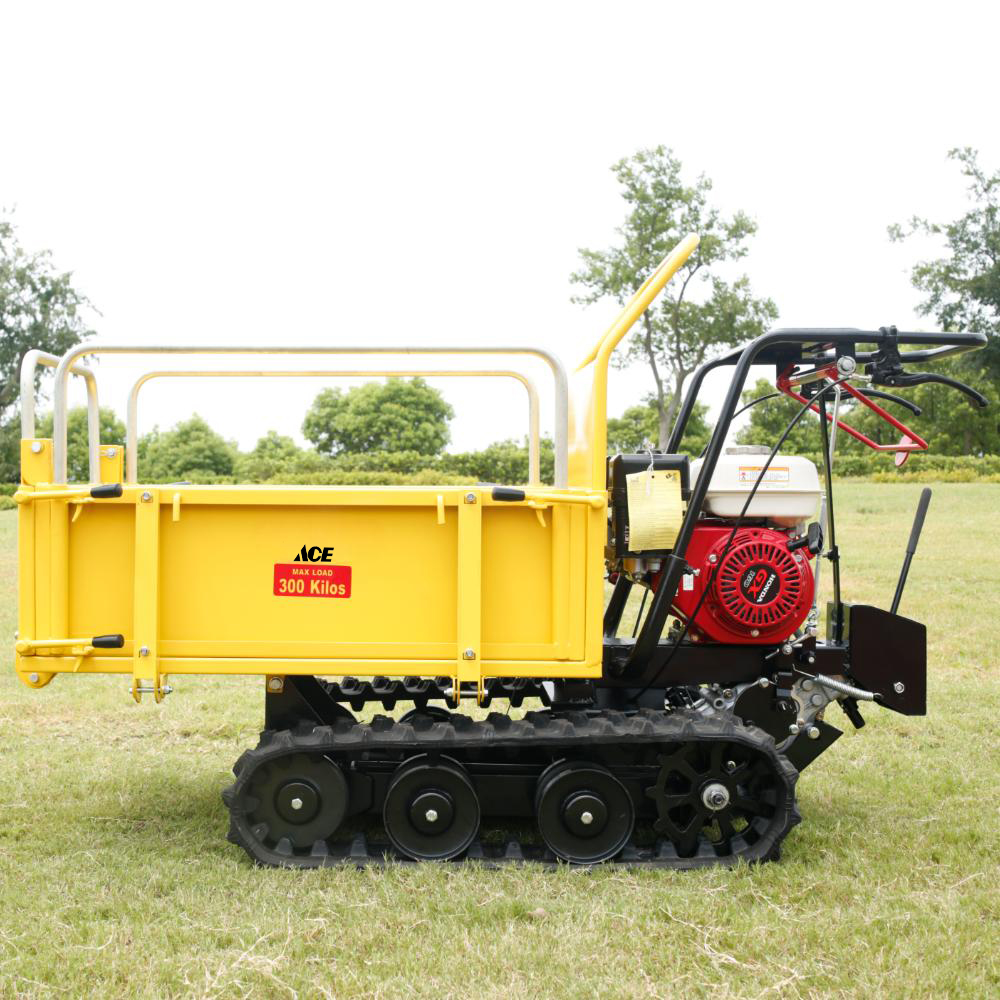

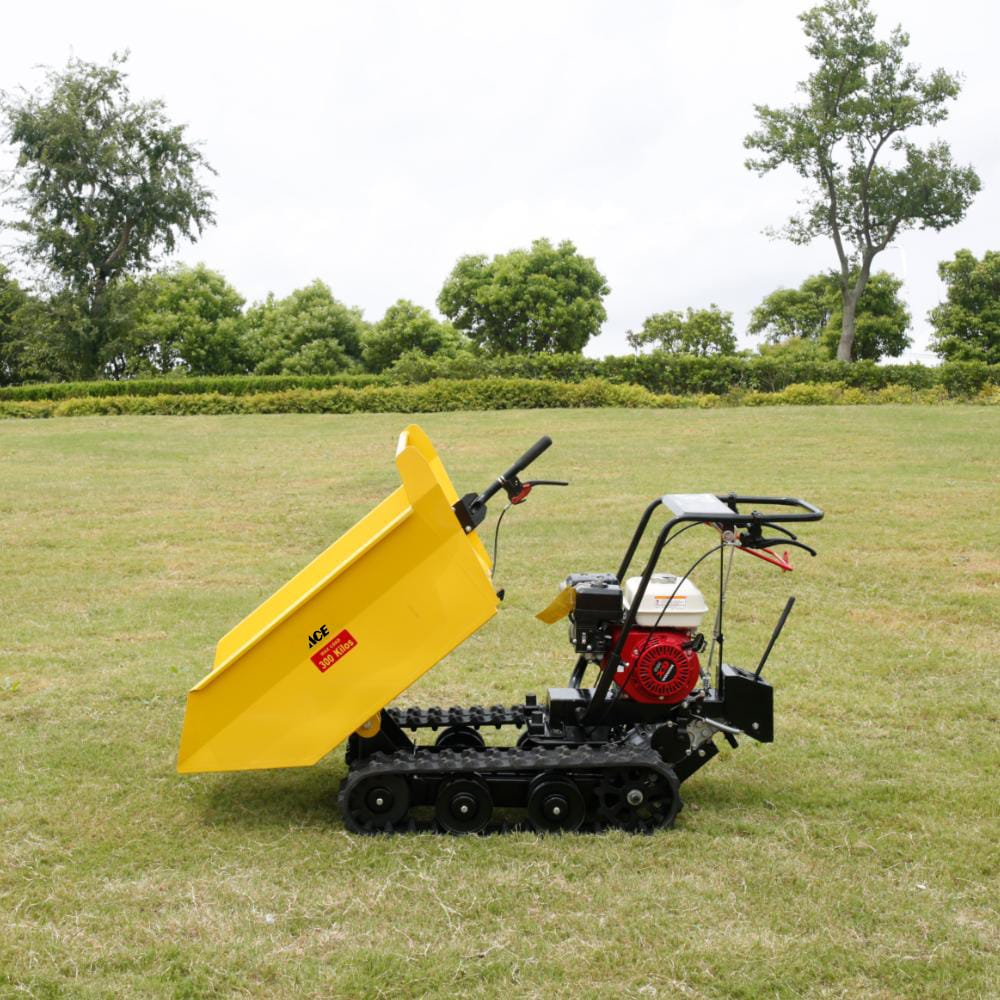

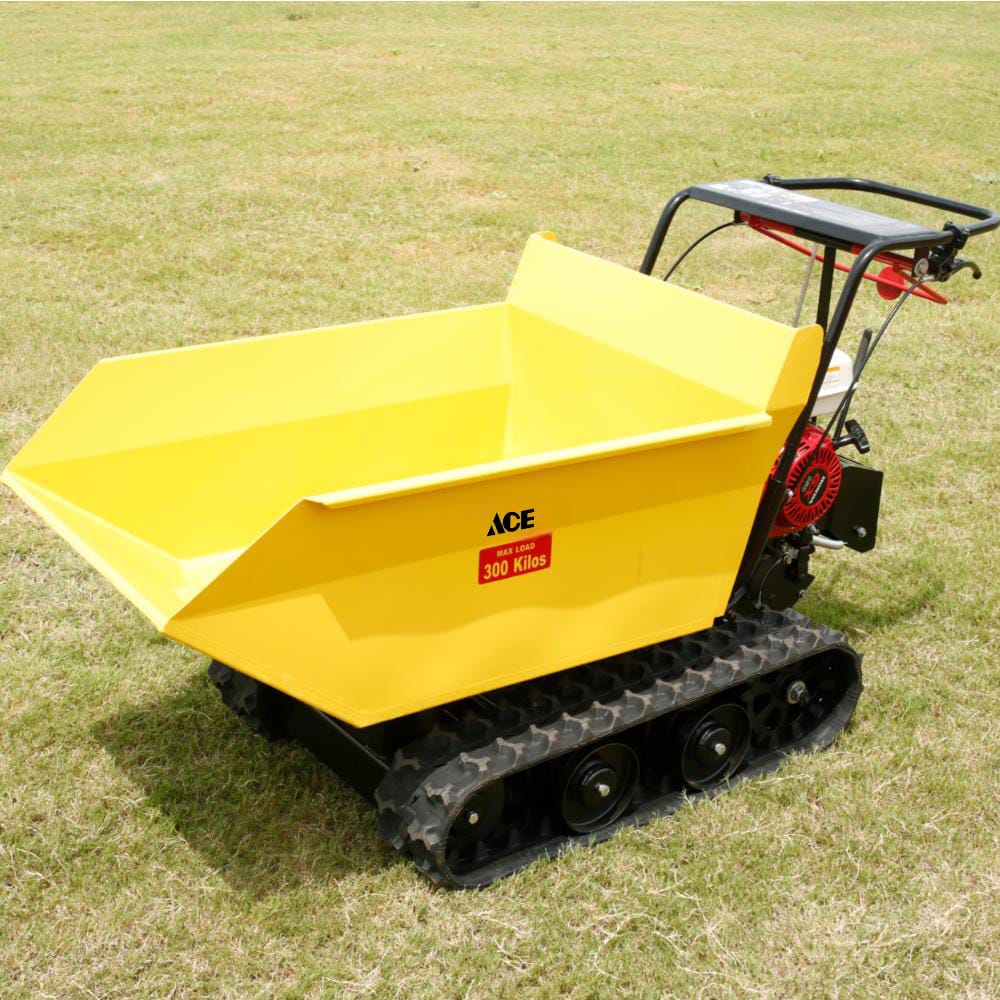

The BY300C is an ACE branded crawler mini-dumper designed for rough terrain and heavy lifting, with long service life at its core. Powered by a Briggs & Stratton or Honda GX160 gasoline engine, this powerful model is suitable for a wide range of scenarios such as construction, agriculture and gardening.
Core features
Excellent durability: BY300C is designed with a highly wear-resistant structure and the core components (engine and transmission) are optimized to ensure long-term stable operation.
Powerful load capacity: the maximum load capacity is up to 300kg, which is suitable for transporting heavier materials such as gravel, building materials and agricultural products.
Crawler drive, adapting to complex terrain: Adopting full crawler walking system, compared with wheeled model, it has stronger passability and stability in harsh environment such as mud, ramps, gravel roads, etc., and the maximum climbing angle is up to 25°.
Flexible Control: Equipped with 2 forward + 1 reverse gears mechanical transmission, it has a forward speed of 5.5 km/h and a reverse speed of 1.5 km/h, and supports automatic steering, which is more convenient to operate.
Key Configurations
Engine: optional Briggs & Stratton 5.5HP or Honda GX160 5.5HP 4-stroke gasoline engine with 163cm³ displacement and plenty of power.
Braking system: adopts shoe brake, reliable braking, suitable for slope operation.
Dumper material: yellow powder coating process, rust and corrosion resistance, to extend the service life.
Protection design: the cable is protected by protective sleeve to avoid abrasion and improve safety.
Applicability and service
Applicable industries: construction sites, farms, orchards, landscaping and other scenarios that require heavy-duty handling.
Certification standards: CE and EPA certified, in line with international environmental protection and safety standards.
After-sales service: Provide 1 year or 3 years warranty (depending on the configuration), and support online technical support to ensure users worry-free use.
Packaging and Transportation: Single package size 170×75×110 cm, gross weight 215 kg, suitable for 20GP, 40GP standard container shipping.
Additional Advantage
Customized Color: We can provide personalized appearance painting according to customer’s requirements.
Quality assurance: Mechanical inspection report and factory inspection video are provided to ensure the quality of the product.
The BY300C is ideal for material handling in complex terrain with its excellent throughput of track drive, high load capacity of 300kg, and long service life design, especially suitable for working environments where stability and durability are required.
Product Parameters
| BY300C | |
| Brand Name | ACE |
| Type | Backhoe Loader |
| Engine Brand | Briggs & Stratton |
| Power | Other |
| Bucket capacity | no |
| Other attributes | |
| Place of Origin | ZheJiang, China |
| Warranty | 1 Year |
| Machine Weight | 175 kg |
| Hydraulic Pump Brand | no |
| UNIQUE SELLING POINT | Long lifetime |
| Core Components | Engine, Gearbox |
| Moving Type | crawler dumper |
| Dimension(Long * Breadth * High) | 1740*740*1100MM |
| Hydraulic Cylinder Brand | no |
| Hydraulic Valve Brand | no |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Brand | ACE |
| Model | BY300C |
| Color | Customer’s Requiement |
| Keyword | mini dumper |
| Drive type | crawler |
| Certification | CE EPA |
| After Warranty Service | Online Technical Support |
| Transmission | Mechanical Transaxle |
| Loading weight | 300kg |
| Drum material | Plastic-spray |
| Packaging and delivery | |
| Selling Units: | Single item |
| Single package size: | 170X75X110 cm |
| Single gross weight: | 215.000 kg |
| Specification | |
| BY300C | Mechanical Transmission case |
| Engine | B&S 5.5HP/HONDA GX160 5.5HP 4stroke, 163cm3 gasoline |
| Transmission | 2 forward / 1 reverse speed |
| Forward/ Reverse speed | 5.5km/h / 1.5km/h |
| Capacity | 300KG weight |
| Brake | shoe brake |
| Cabels | Protected |
| Driven type | Crawler driven |
| Drum Material | yellow powder coating |
| Weight | 175KG |
| Limited grade ability | 25° |
| Dimension | 1740*740*1100MM |
| Drum Material | yellow powder coating |
| Unloading | Manual |
| Turing | Auto turning |
| Loading Capacity | 20GP |
| 40GP | |
| Warranty | 1 year or 3 years, depending on configuration. |
| Payment Term | T/T |
Why Choose Us.
Customer’s Feedback
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
