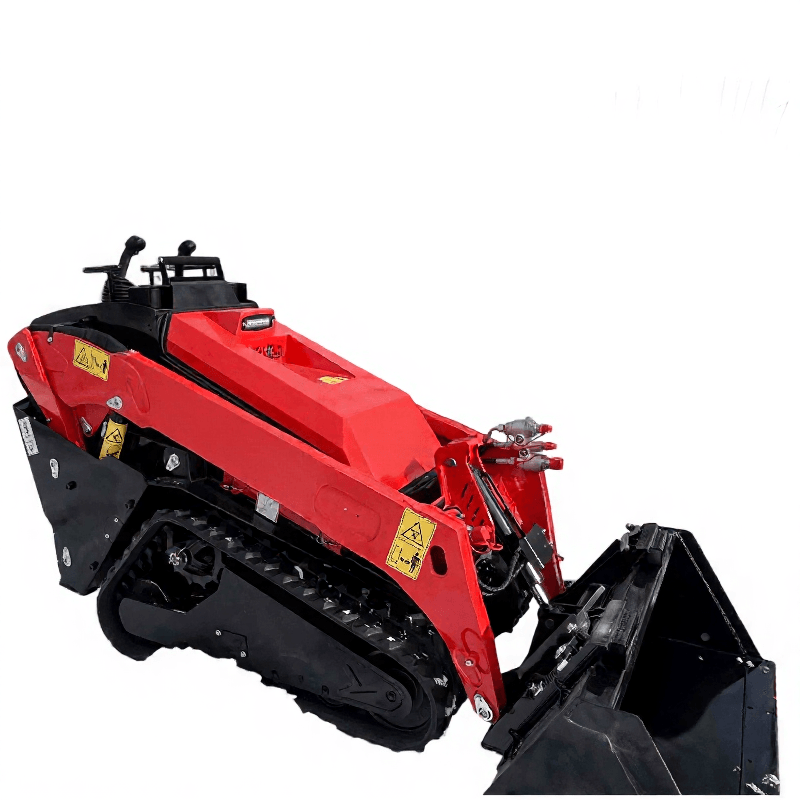

V1000 Mini Track Skid Steer Loader with 25HP Diesel Engine
V1000 Mini Track Skid Steer Loader with 25HP Diesel Engine
Key Advantages and Features
- Reliable engine output: The Kubota engine gives stable power and supports long working hours.
- Strong ground grip: The tracked chassis improves traction on soft, wet and uneven surfaces.
- Low ground pressure: This helps protect turf, soil and other finished ground areas.
- Smooth hydraulic control: The closed hydraulic system improves lift, tilt and attachment response.
- Easy daily maintenance: Quick-access panels save time during inspection and servicing.

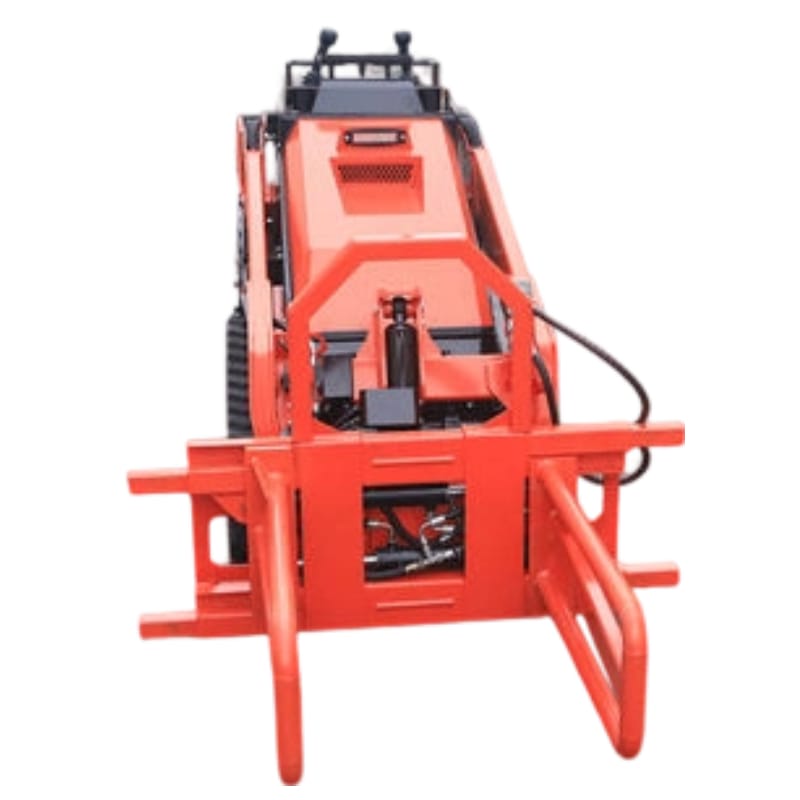

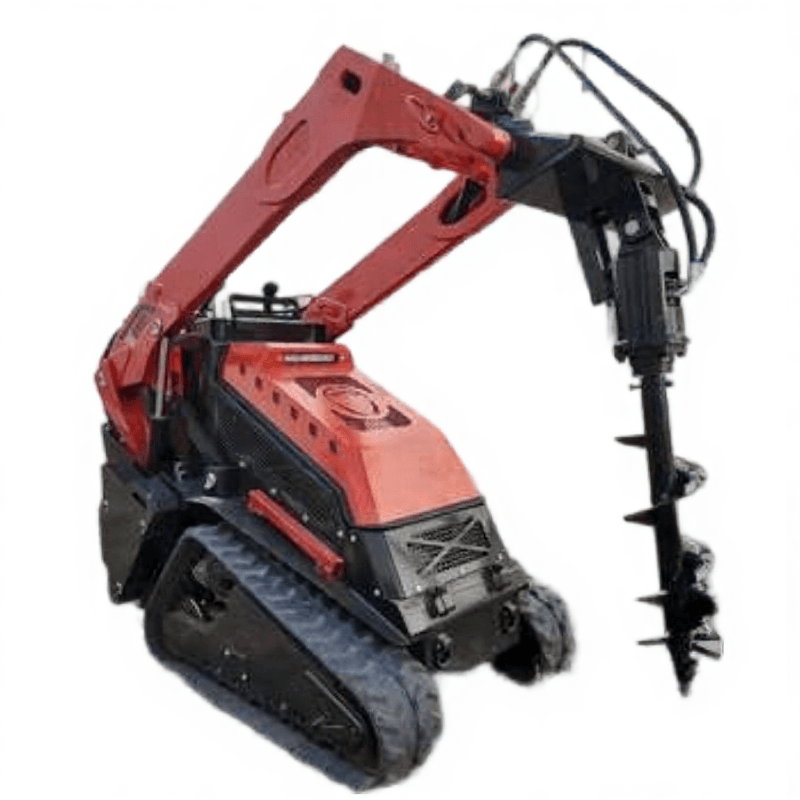

- Flexible job use: The machine supports multiple attachments for different site tasks.
Applications
- Landscaping and garden construction
- Farm work and agricultural maintenance
- Site cleaning and material transport
- Ground levelling and light grading
- Land clearing and debris removal
- Narrow access and confined working areas
Why Choose the V1000 Mini Skid Steer Loader
The V1000 is a good choice for users who want a small machine that can still do serious work. Its compact size makes transport and storage easier. Its tracked design gives better flotation and grip than many wheeled machines. This is important when the ground is soft or uneven. The machine is also easier to control in tight spaces, which makes it useful on farms, gardens and small building sites.
From an engineering point of view, the V1000 offers a balanced design. The Kubota engine gives dependable power. The hydrostatic drive helps the machine move smoothly. The hydraulic system supports stable attachment work. The universal quick-attach interface also increases job flexibility. For buyers looking for a Kubota engine mini skid steer, a crawler loader or a 1650 lb capacity tracked mini loader with low ground pressure, this model is a practical and efficient option.
Tags: V1000 skid steer loader, mini skid steer loader, diesel crawler skid steer loader, Kubota engine mini skid steer, compact track loader with attachments, EU EPA mini skid steer loader, 1650 lb capacity tracked mini loader low ground pressure, crawler loader
FAQ
What type of work is the V1000 best suited for?
The V1000 is best suited for landscaping, farm work, property maintenance and light construction. It performs well where space is limited and ground conditions are poor.
Why does the V1000 use tracks instead of wheels?
Tracks spread the machine weight over a larger area. This lowers ground pressure and improves traction on soft or uneven ground.
What is the benefit of the Kubota engine?
The Kubota engine is known for stable output, good durability and easier service support. It is a practical choice for daily commercial use.
Can this mini skid steer loader use different attachments?
Yes. The universal quick attachment interface allows the machine to work with different tools for loading, levelling, clearing and handling materials.
Why is low ground pressure important?
Low ground pressure reduces damage to grass, soil and finished surfaces. It also helps the machine travel more safely on soft ground.
Is the V1000 suitable for export markets?
Yes. The machine is built to meet EU Stage 5 and EPA Tier 4 Final emission standards, which makes it more suitable for regulated markets.
Product Parameters
| Category | Parameter | Value |
| Basic Information | Brand Name | ACE |
| Product Name | ACE V1000 Skid Steer Loader | |
| Type | Mini Loader / Skid Steer Loader / Front Loader | |
| Moving Type | Crawler Loader | |
| Power Type | Diesel | |
| Place of Origin | Ningbo, China | |
| Keyword | Mini Diesel Tracked Skid Steer Loader | |
| Power & Engine | Power | 18.5 kW |
| Engine Brand | Kubota | |
| Rated Speed | 3000 rpm | |
| Emissions Tier | EU NRM 97/68/EC Stage 5, EPA Tier 4 Final | |
| Hydraulic System | Hydraulic Pump Brand | Hansa |
| Hydraulic Pump Type | Hydraulic Closed Circuit System | |
| Hydraulic Valve Brand | Kawasaki | |
| Hydraulic Cylinder Brand | Kawasaki | |
| Main Pump | HANSA Italy | |

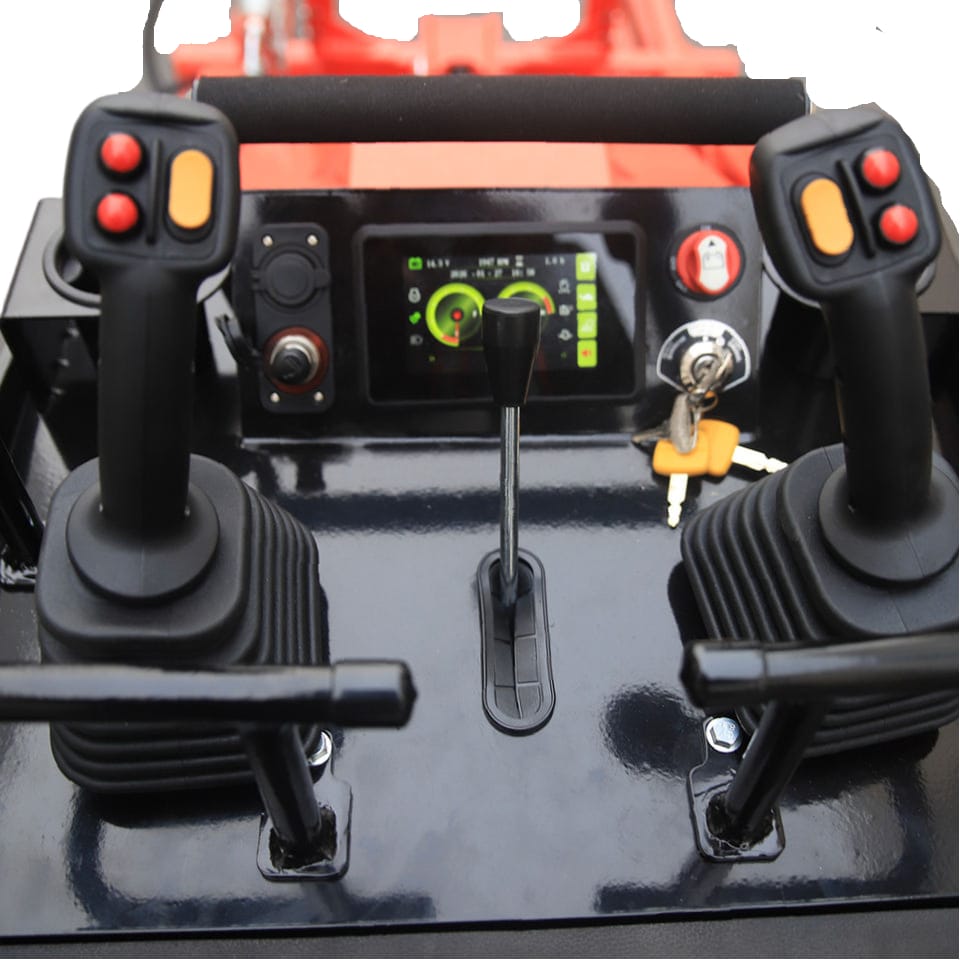

| Hydraulic System | Lift and Tilt | Dual axis, manual-operated joystick |
| Maximum Speed | 6 km/h | |
| Bucket Capacity | 0.185 m³ | |
| Maximum Unloading Height | 1522 mm | |
| Hinge Pin Height at Max Lift | 2.09 m | |
| Performance | Transmission | Hydrostatic track drive system |
| Machine Weight | 1317 kg | |
| Dimension (L × W × H) | 2619 × 960 × 1548 mm | |
| Packaging Size | 270 × 127 × 155 cm | |
| Weight & Dimensions | Gross Weight | 1400 kg |
| Core Components | Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, PLC | |
| Unique Selling Point | High operating efficiency | |
| Color Options | Blue, Black, Green, Yellow, White | |
| Warranty | 2 Years | |
| Machinery Test Report | Provided | |
| Video Outgoing-inspection | Provided | |
| Other | Selling Units | Single item |
