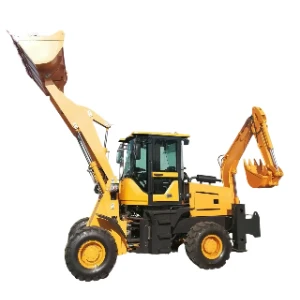

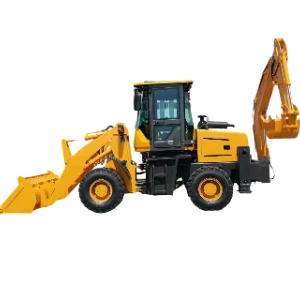

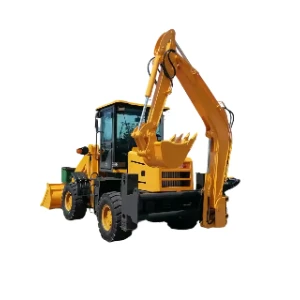

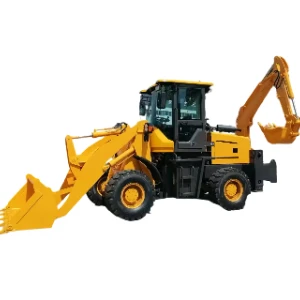

WZ15-26 Backhoe Loader
WZ15-26 Backhoe Loader
The wz15-26 backhoe loader is a dual-purpose machine. Through its supercharged power, efficient operating performance, flexible control, and reliable safety features, it effectively replaces the traditional “excavator + loader” combination, significantly reducing equipment procurement and switching costs.
Quote Now
Compact Structure, High Mobility
Dimensions: 5800×1850×2750 mm, suitable for operation in confined spaces.
Minimum turning radius of only 4000 mm, highly maneuverable.
Powerful Engine and High Efficiency
Equipped with a 490 turbocharged engine, rated power 55 kW, suitable for high-intensity operations.
System pressure 16 MPa, stable and reliable hydraulic system.
Multi-functional Integrated Design
Simultaneously capable of digging and loading:
Digging: Maximum digging depth 2700 mm, digging force 28 kN.
Loading: Maximum unloading height 3300 mm, unloading distance 850 mm, bucket capacity 0.7 m³.
Good Passability and Adaptability
Minimum ground clearance 220 mm, maximum climbing ability 25°, suitable for rugged terrain.
Tire sizes 23.5-16, adjustable tire pressure, adaptable to various ground conditions.
Flexible and Convenient Operation
Equipped with articulated full hydraulic steering, offering a 33° steering angle and precise handling.
The transmission is a fixed-shaft power shift gearbox with 2 forward and 2 reverse gears, simplifying operation.
High Safety and Reliability
Equipped with an air-over-hydraulic caliper service brake and a manual parking brake, ensuring reliable braking.
The hydraulic oil tank and fuel tank each have a capacity of 40L, with a well-matched range and cooling system.
Product Parameters
| Model | WZ15-26 | |
| Overall dimensions | Overall dimensions (mm) | 5800*1850*2750 |
| Wheelbase (mm) | 2315 | |
| Track width (mm) | 1500 | |
| Minimum ground clearance (mm) | 220 | |
| Performance parameters | System pressure (MPa) | 16 |
| Machine weight (Kg) | 4800 | |
| Maximum speed (km/h) | 26 | |
| Maximum climbing ability (°) | 25 | |
| Minimum turning radius (mm) | 4000 | |
| Mining parameters | Maximum digging depth (mm) | 2700 |
| Digging and unloading height (mm) | 2200 | |
| Maximum digging radius (mm) | 4600 | |
| Bucket width (mm) | 600 | |
| Bucket capacity (m³) | 0.2 | |
| Maximum digging height (mm) | 4200 | |
| Maximum digging force (KN) | 28 | |
| Excavator rotation angle (°) | 180 | |
| Loading parameters | Maximum unloading height (mm) | 3300 |
| Maximum unloading distance (mm) | 850 | |
| Bucket width (mm) | 1900 | |
| Bucket capacity (m³) | 0.7 | |
| Maximum lifting height when loading (mm) | 4200 | |
| Maximum breakout force (KN) | 36 | |
| Shovel action time (S) | 12 | |
| Engine | Model | 490 Supercharged |
| Type | Turbocharged, four-stroke | |
| Rated power (KW) | 55 | |
| Rated speed (r/min) | 2400 | |
| Cylinder number-inner diameter | 4-90 | |
| Drivetrain | gearbox | Fixed-axis power shift |
| Number of gears | 2 in front and 2 in back | |
| torque converter | ZL29A | |
| Steering system | Type | Articulated fully hydraulic steering |
| Steering angle (°) | 33 | |
| Tire | Specification | 23.5-16 |
| Front wheel air pressure (KPa) | 250 | |
| Rear wheel air pressure (KPa) | 250 | |
| Service brake | Air-over-oil caliper brake | |
| Parking brake | Manual | |
| Oil volume | Fuel tank (L) | 40 |
| Hydraulic oil tank (L) | 40 | |
