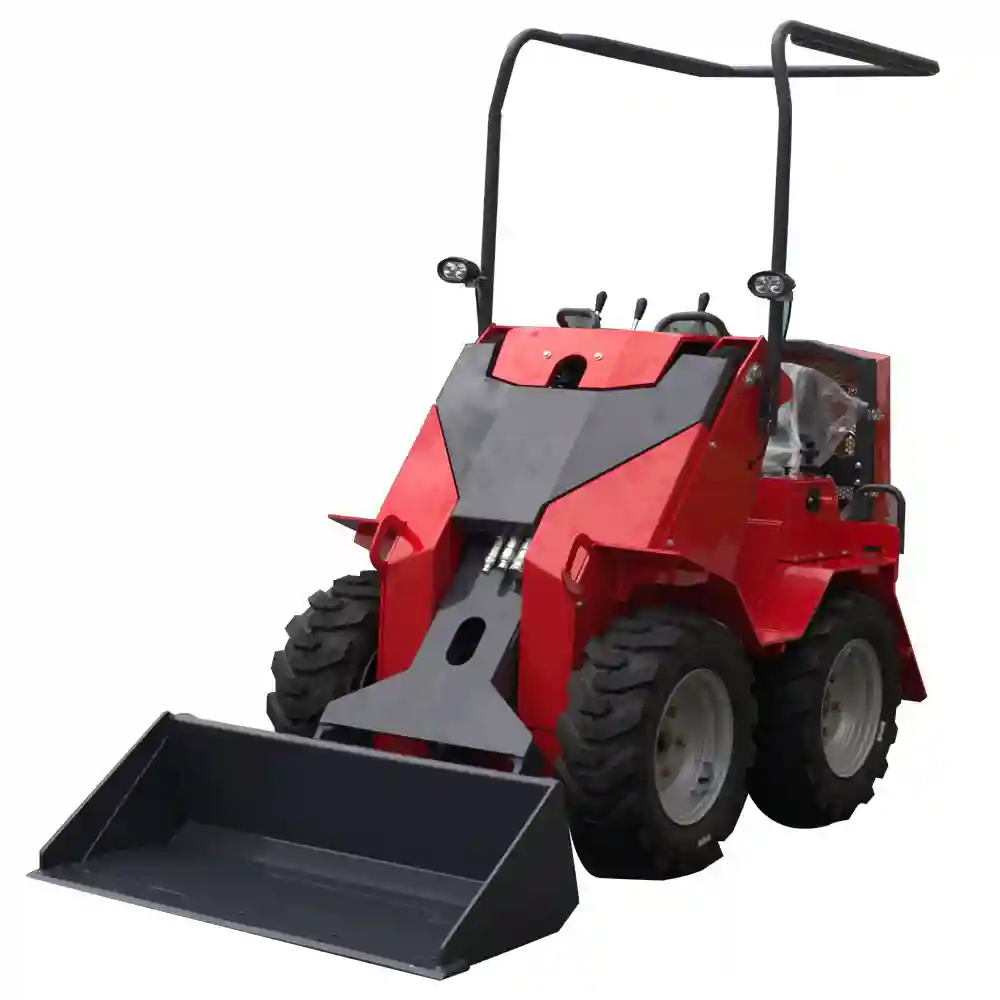

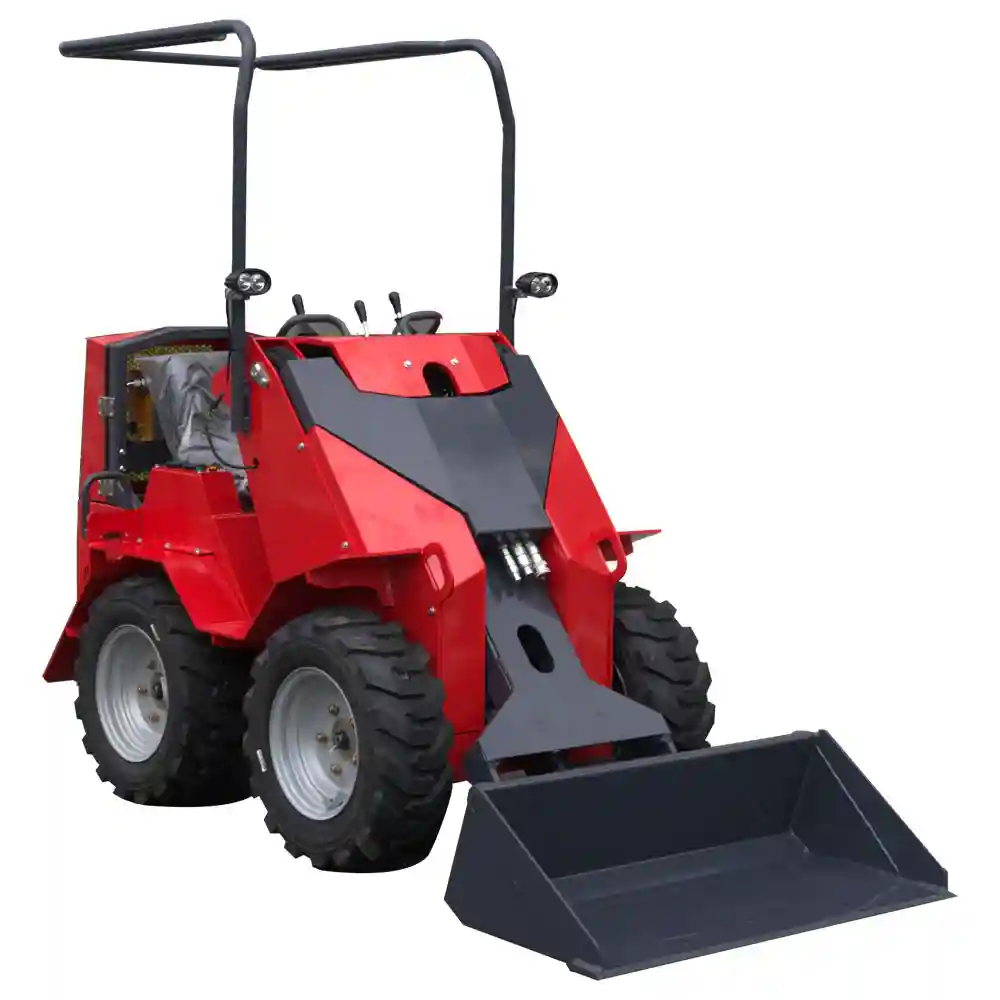

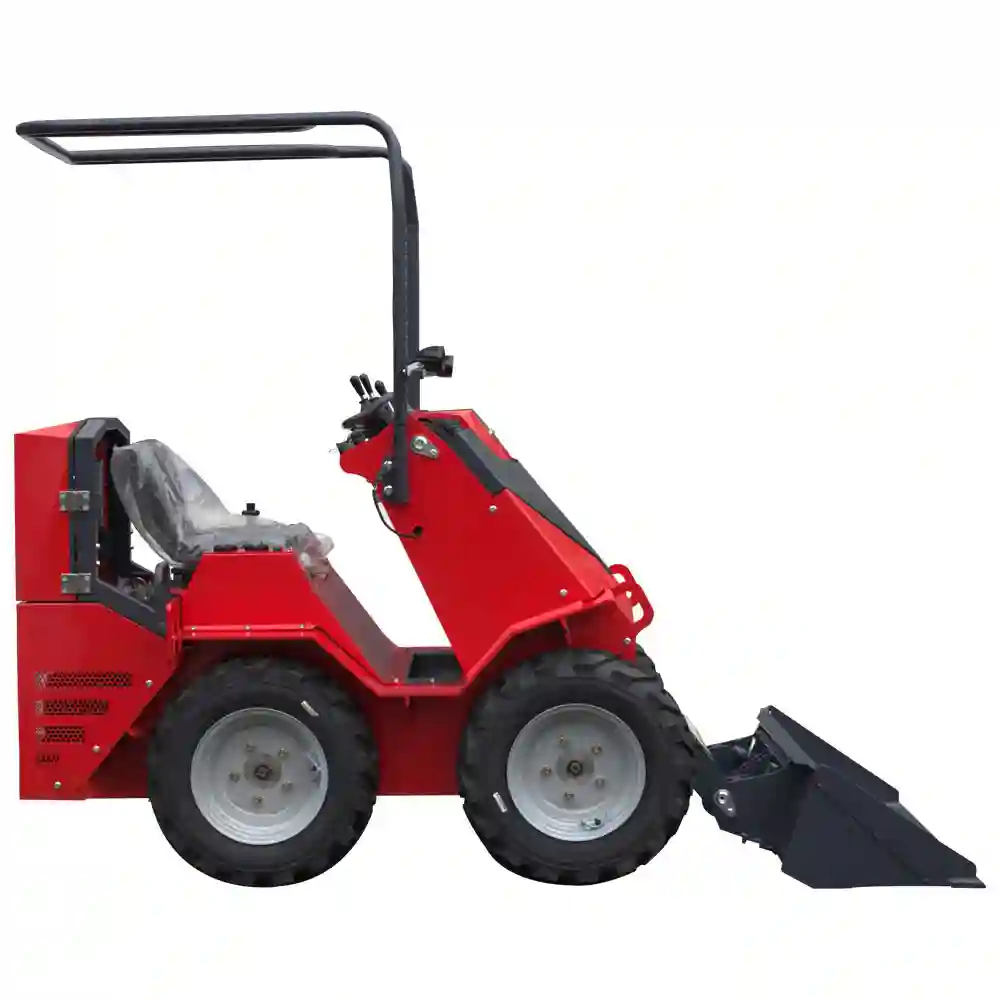

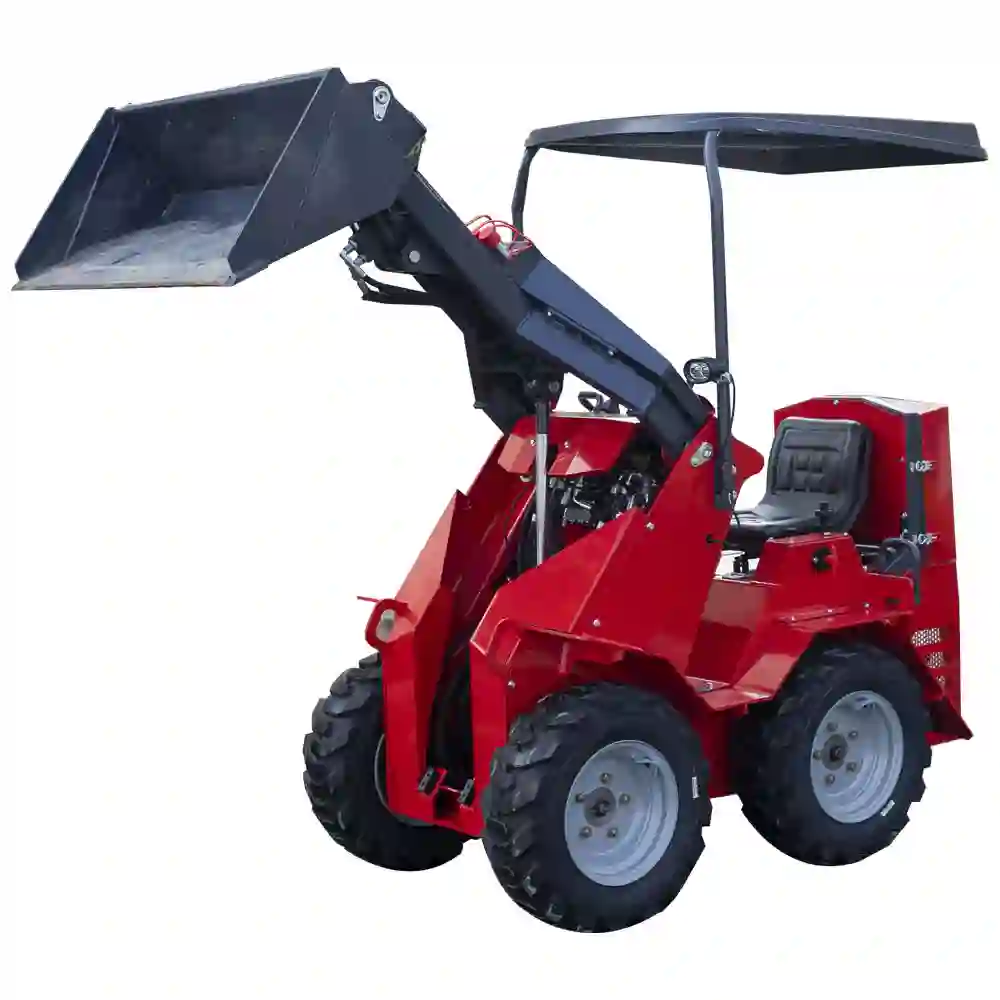

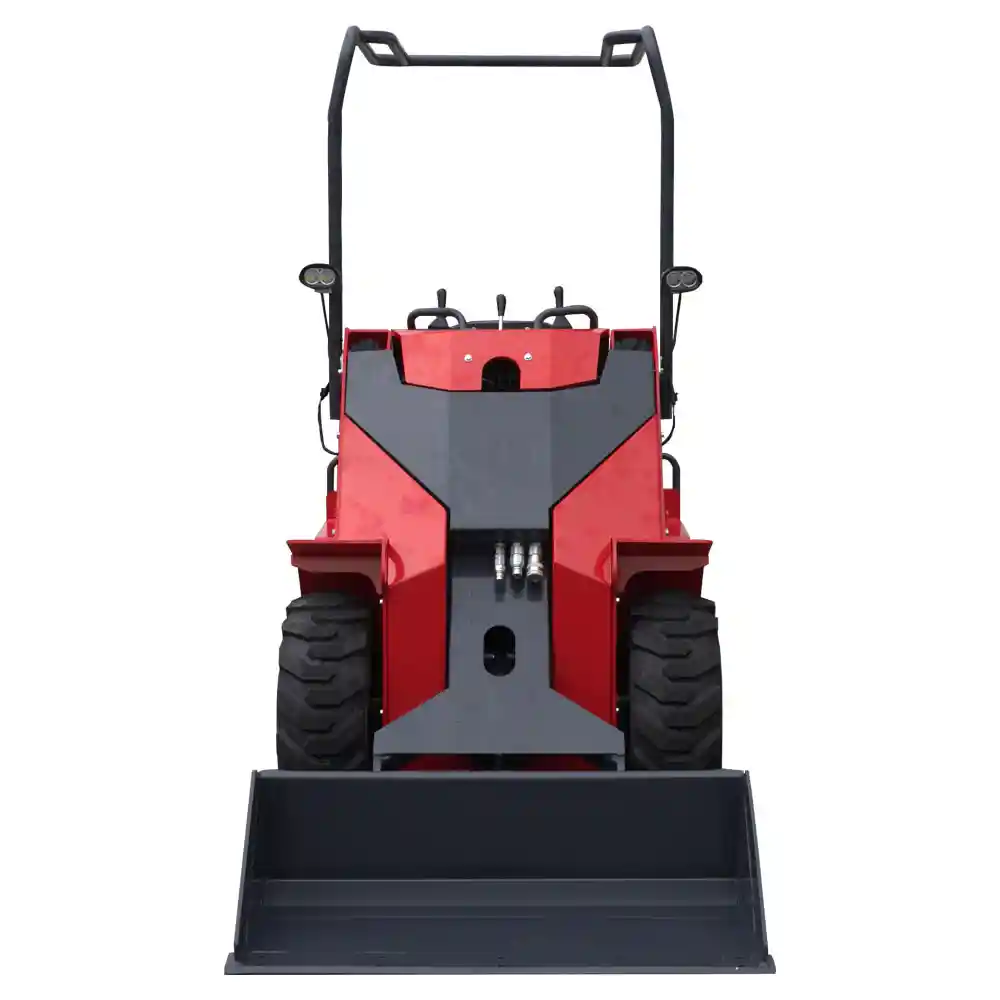

YZ-S390 Ultra-Compact Skid Steer Loader
YZ-S390 Ultra-Compact Skid Steer Loader
The YZ-S390 is an ultra-compact loader designed for tight spaces and light material handling, featuring a lightweight body, agile operation, and economical fuel consumption. It is ideal for small farms, gardens, warehouses, and a variety of light-duty indoor and outdoor applications.
Quote Now
Key Advantages and Highlights
Ultra-compact and Lightweight Design
Weighing only 250kg, its compact size (L×W×H: 2450×970×1900mm) allows for easy access to narrow passages, greenhouses, and indoor spaces.
With a ground clearance of 210mm, it boasts excellent maneuverability and adapts to rough terrain.
Economical Fuel Economy
Equipped with a single-cylinder gasoline engine, rated power 15HP, electromagnetic ignition, and easy starting.
Fuel consumption as low as ≤374g/kw·h, resulting in economical operating costs, making it particularly suitable for intermittent, short-distance operations.
Stable and Efficient Operating Performance
Rated load of 200kg and bucket capacity of 0.12m³ perfectly match lightweight material handling needs.
Lifting time of only 3.9 seconds enables rapid work cycles, effectively improving work efficiency.
Maximum gradeability of 30° provides excellent terrain adaptability.
Easy Operation and Maintenance
The hydraulic system operates at a stable and reliable pressure of 17-18MPa.
The fuel tank has a capacity of 6.8L, and the hydraulic oil tank has a capacity of 23L, which meets daily needs in terms of range and maintenance cycle.
Wide Range of Applications
Family Farms and Horticulture: Fertilizer and feed handling, greenhouse operations, light-duty orchard transport.
Small-scale Projects and Renovations: Indoor sand and gravel and building material handling, yard earthwork preparation.
Warehouses and Factories: Material stacking and transfer in narrow warehouse aisles.
Communities and Property Management: Light municipal operations such as garbage collection and landscaping maintenance.
Product Details
Product Parameters
| YZ-S390 | ||
| Dimensions | No.of cylinders | 1 cylinder |
| Net Power | 15HP | |
| Operating height | 2470mm | |
| Height to bucke thinge pin | 1970mm | |
| Vehicle height | 1900mm | |
| Over all 1ength with GPbucket | 2450mm | |
| Over all length without bucket | 1950mm | |
| Wheel base | 800mm | |
| Overall width | 970mm | |
| Ground clearance | 210mm | |
| Unloading height | 1500mm | |
| Rated loading capacity | 200kgs | |
| Bucket volume | 0.12m³ | |
| Bucket width | 1000mm | |
| Machine weight | 250kgs | |
| working system pressure | 17bar | |
| Tank capacity | 5L | |
| Travel speed | 0~5.5km/h | |
| Performance parameters | Rated load | 200kg |
| Bucket volume | 0.8m³ | |
| Working speed | 0-5.5km/h | |
| Rated pressure | 18mpa | |
| Lifting time | 3.9s | |
| Lowering time | 2.8s | |
| Dumping time | 5.6s | |
| Gradeability | 30° | |
| Engine parameters | Brand | Runtong |
| Model | R420 | |
| Type | Gasoline engine, single cylinder, air-cooled | |
| Output power | 8.6kw/3600rpm | |
| Fuel consumption | ≤374g/kw·h | |
| Starting method | Electromagnetic ignition | |
| Capacity parameters | Fuel tank | 6.8L |
| Oil tank | 1.1L | |
| Hydraulic tank | 23L | |
