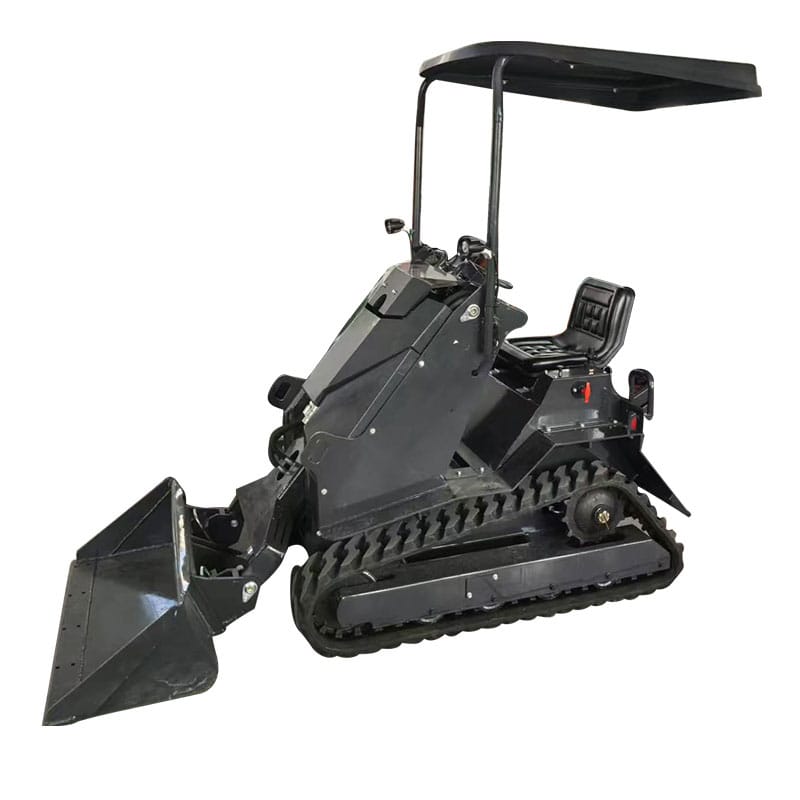

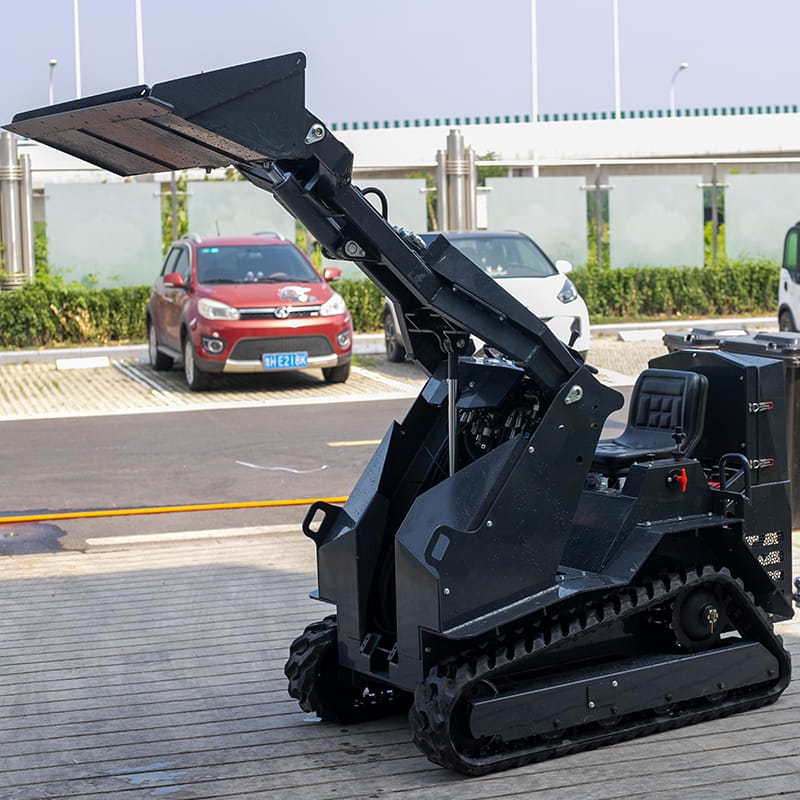

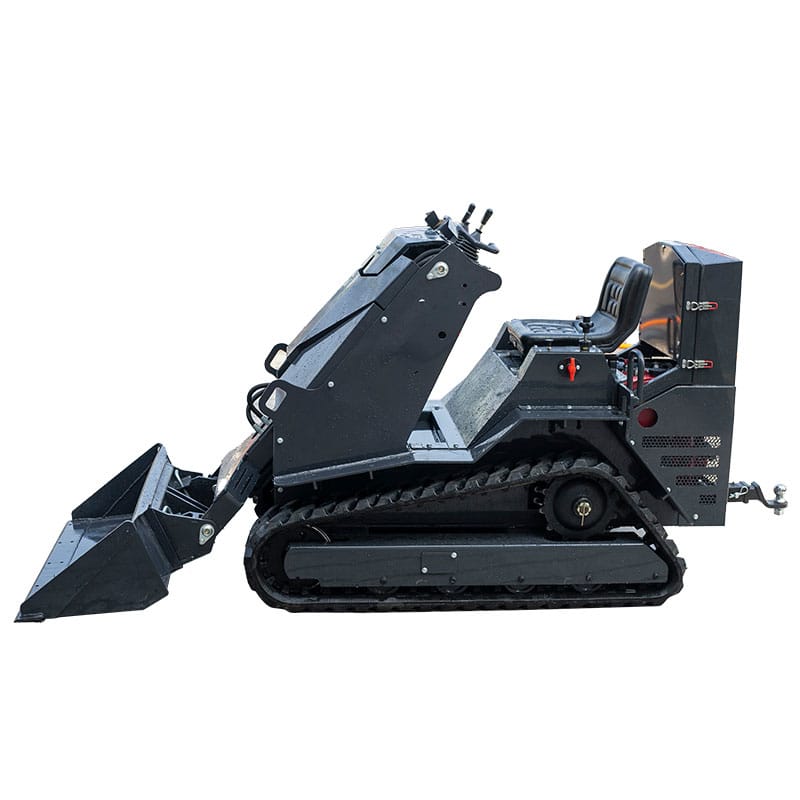

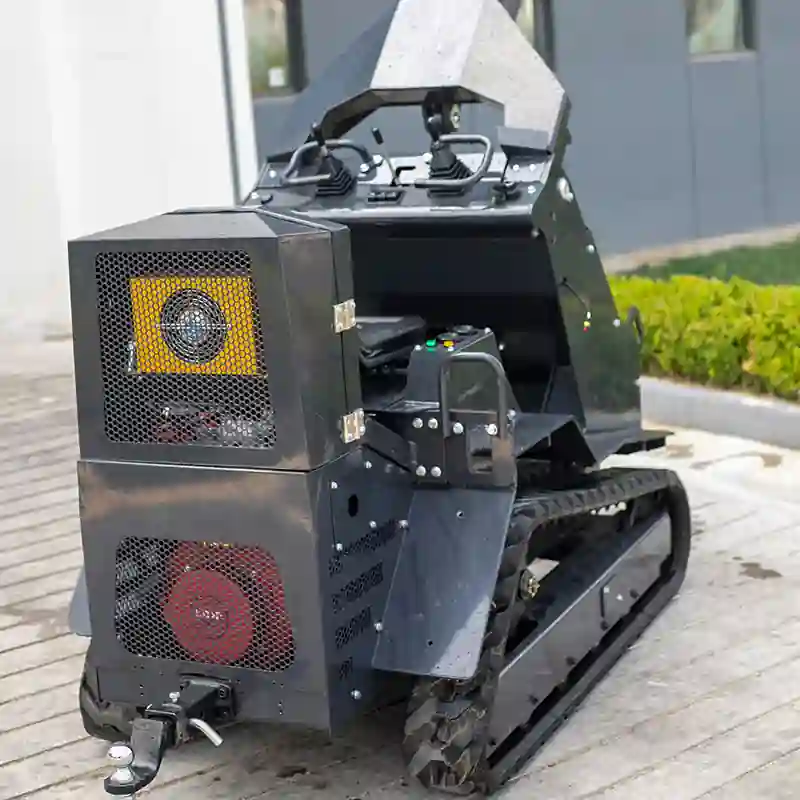

YZ-T390 epa skid steer loader mini track loader
YZ-T390 epa skid steer loader mini track loader
The T390 Skid Steer Loader is a compact and efficient machine ideal for tight job sites. It offers engine options including Electric, Koop, Runtong, Zhongcheng, and B&S, with power outputs ranging from 6kW to 9.9kW. With a rated operating capacity of 200kg and a maximum breakout force of 3.5kN, it handles tasks with ease. The T390 features a 0.12m³ bucket, 17-bar system pressure, and a top speed of 6km/h. Its small footprint, only 960mm wide, ensures excellent maneuverability and performance in confined spaces.
Quote Now
Versatile Performance for Confined Workspaces
The T390 Skid Steer Loader is a compact, agile machine designed for efficiency in tight spaces. Its narrow 960mm width and zero-radius turning capability make it ideal for urban construction, landscaping, and interior demolition. With a rated operating capacity of 200kg and a maximum breakout force of 3.5kN, it handles material handling and light excavation tasks effectively. The loader’s 0.12m³ bucket and 17-bar hydraulic system ensure precise control, while its 6km/h top speed facilitates swift movement across job sites. The T390’s design emphasizes maneuverability and productivity, offering significant value in space-constrained environments.
Engine Options and Compliance
The T390 offers a range of engine options, including Electric, Koop, Runtong, Zhongcheng, and B&S, with power outputs from 6kW to 9.9kW. These engines are designed to meet EPA and Euro 5 emission standards, ensuring environmental compliance. The availability of multiple engine choices allows users to select the configuration that best suits their operational needs and regulatory requirements.
Mobility Systems: Tracks vs. Tires
Skid steer loaders can be equipped with either tire or track systems. Track systems provide superior traction on uneven or soft terrains but may cause more surface damage and require higher maintenance. Tire systems offer better maneuverability and are more suitable for hard surfaces. The T390 features a wheeled configuration, enhancing its agility and speed on paved or firm ground, making it particularly effective for indoor applications and urban construction sites.
Operator-Centric Design

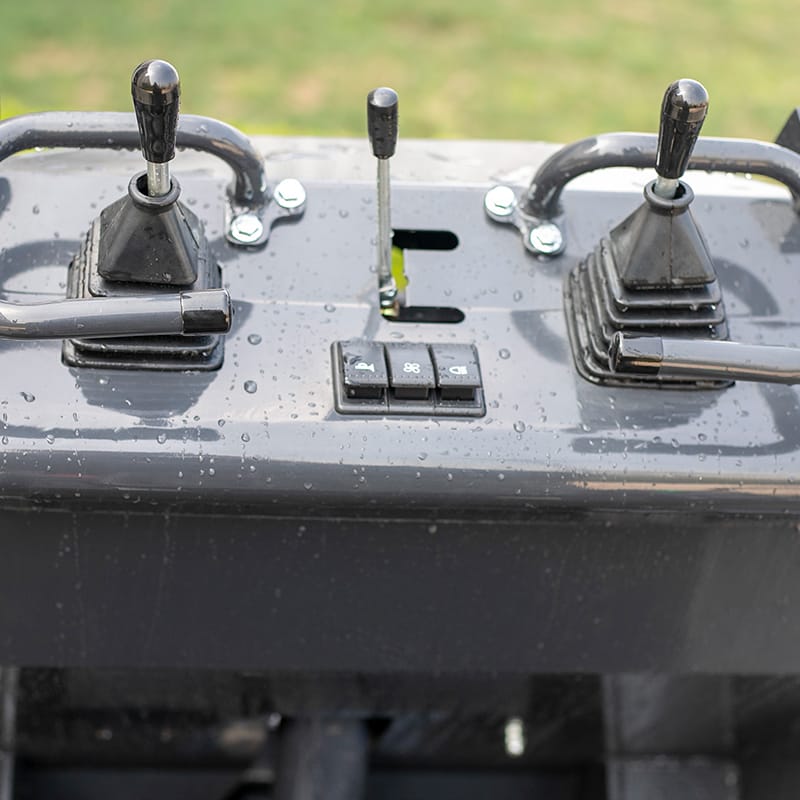

The T390’s enclosed cab structure offers protection against environmental elements and enhances operator safety. This closed design minimizes exposure to dust, noise, and weather conditions, contributing to a more comfortable working environment. Control interfaces are icon-based, facilitating intuitive operation regardless of the operator’s language proficiency. This universal design approach reduces training time and potential operational errors, ensuring efficient and safe machine handling.
Technical Specifications and Comparative Analysis
The T390 Skid Steer Loader boasts a compact design with a vehicle height of 1250mm and a length of 2400mm with the standard bucket. It has a rated operating capacity of 200kg and a maximum operating capacity of 300kg. The machine’s 0.12m³ bucket, combined with a 17-bar hydraulic system, allows for precise material handling. Its operating weight is 1070kg, and it achieves a top speed of 6km/h. When compared to larger models like the Case 90XT, which has an operating capacity of 1110kg and a weight of 4059.7kg, the T390 offers superior maneuverability and is better suited for tasks in confined spaces. Similarly, the Bobcat T590, with a 971kg capacity and 3548kg weight, is more appropriate for larger-scale operations. The T390’s compact size and efficient performance make it an ideal choice for small to medium-scale projects, particularly in urban environments where space is limited.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/koop/Runtong/Zhongcheng/B&S | Vehicle height | 1250mm |
| Rated power | 6kw、72v、125ah/7.5/8.6/8.5/9.9kw | Length with standard bucket | 2400mm |
| Number of cylinders | 1 | Vehicle width (standard tire) | 960mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 1900mm |
| Emissions standards | EPA/ERUO5 | Bucket width | 1050mm |
| Rated operating capacity | 200Kg | Tail length | 220mm |
| Maximum operating capacity | 300Kg | Height at maximum extension | 2620mm |
| Maximum breakout force | 3.5KN | Height to the the bucket pin | 2000mm |
| Bucket capacity | 0.12m³ | Maximum height as lay the bucket flat | 1830mm |
| Driving speed | 0-6km/h | Dumping height | 1470mm |
| Total cycling time | 9s | Discharge distance | 600mm |
| System operating pressure | 17bar | Track contact with ground length | 1300mm |
| Fuel tank capcity | 5L | Ground clearance | 230mm |
| Operating weight | 1070kg | The flip angle of the bucket on the ground | 27° |
| Track model | 180*72*45 | Bucket flip angle at highest position | 114° |
