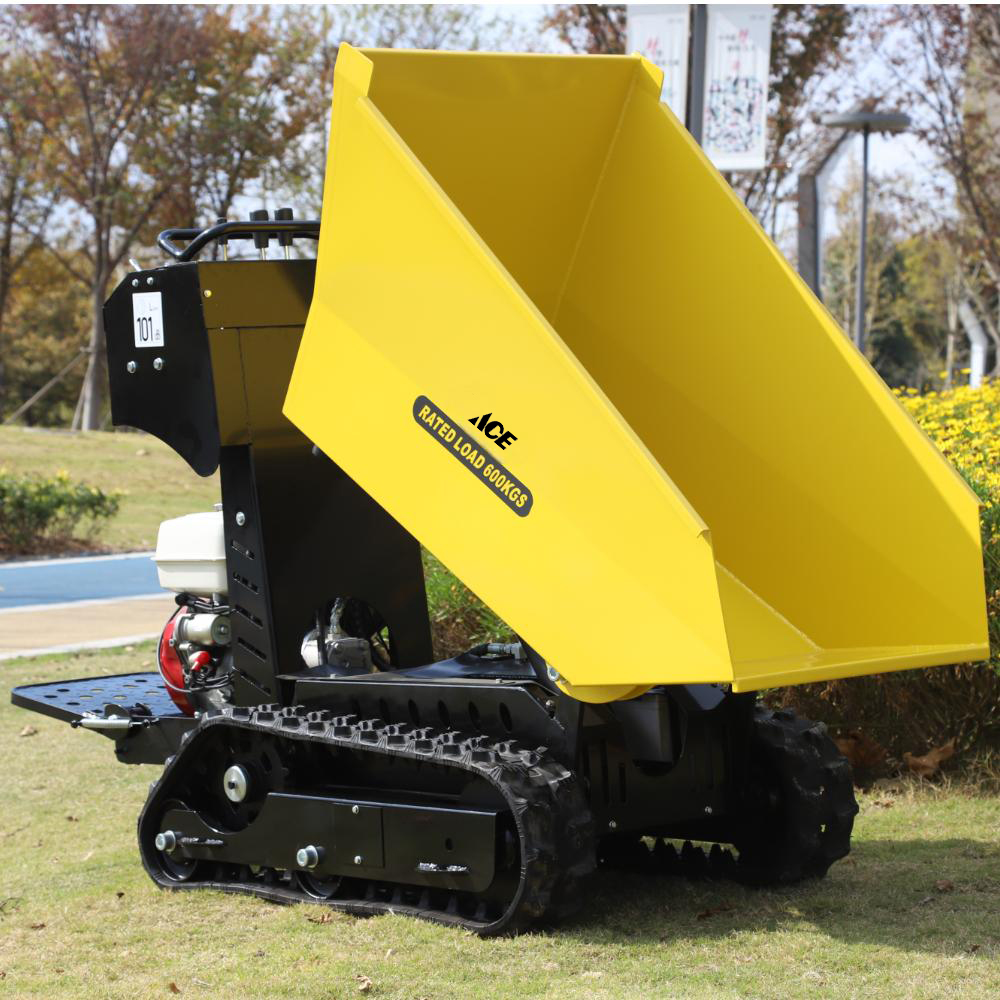

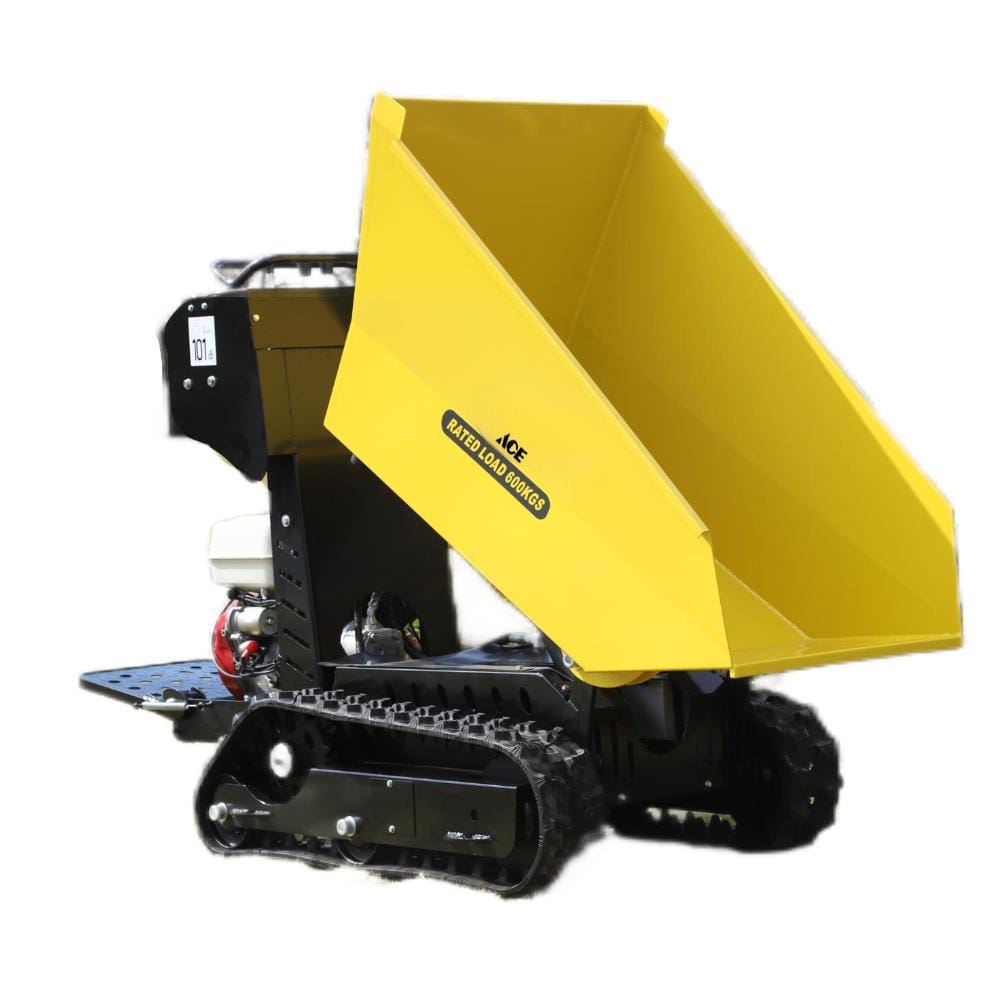

ACE mini dump truck manual transmission trucks for sale

Core Configuration

1. Power Transmission System

Engine: Equipped with a Briggs & Stratton 5.5HP gasoline engine, 4-stroke design, 163cm³ displacement, providing stable power output and low failure rate. It is suitable for heavy-duty applications up to 600kg and benefits from a wide service network for convenient maintenance.

Transmission Structure: Mechanical gearbox with chain drive, supporting 3 forward gears + 1 reverse gear. Forward speed is 3.8km/h, reverse speed is 2.5km/h, balancing work efficiency and operational safety. The chain drive is durable and has lower maintenance costs than hydraulic transmission.

Walking Mechanism: Tracked design, with a maximum climbing ability of 25°. Large ground contact area and low ground pressure allow for stable operation on muddy, soft, and hilly terrain without slipping or damaging the ground.

2. Hydraulic and Braking System

Hydraulic Configuration: Uses a complete set of SAUER-DANFOSS hydraulic components, including hydraulic pump, hydraulic cylinders, and hydraulic valves. This international top brand ensures fast hydraulic response and precise control, meeting the requirements for stable lifting and operation under heavy loads.

Braking System: Equipped with drum brakes for reliable braking performance and short braking distance under heavy loads; features a protective cable design to prevent cable wear during operation, extending the lifespan of the electrical system and improving operational safety.

3. Load-Bearing and Structural Design

Load Capacity: Estimated maximum load of 600kg, equipment weight of 385kg, load-to-weight ratio of 1.56:1, resulting in outstanding work efficiency. It can easily transport heavy materials such as sand, bricks, fertilizer, and seedlings.

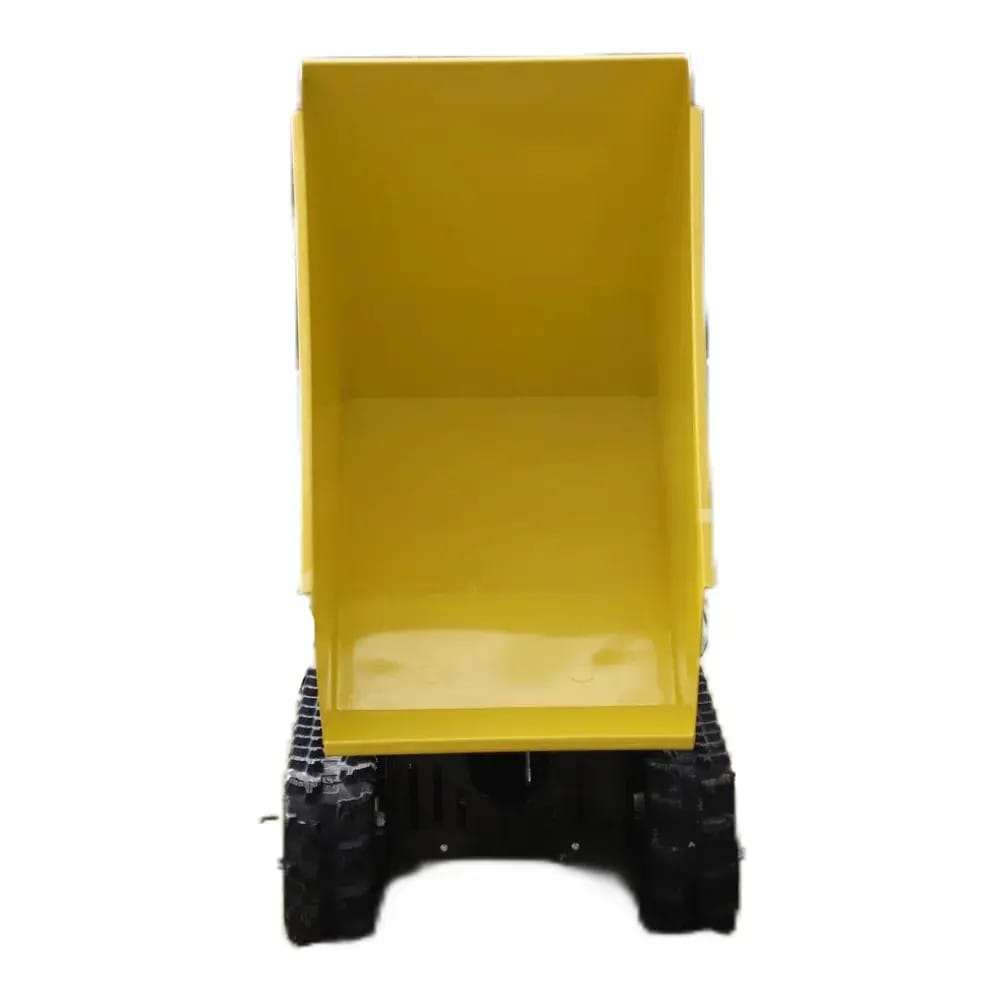

Hopper Protection: The hopper features double protection with plastic coating and yellow powder coating, providing corrosion resistance and wear resistance, suitable for various corrosive or sharp materials, extending the hopper’s lifespan. Dimensions: Overall dimensions 1900×850×1300mm (length × width × height), 850mm narrow body design allows for flexible movement in narrow spaces such as construction site alleys, greenhouses, and garden paths, adapting to multiple work scenarios.

Core Advantages

High Operating Efficiency: 3 forward gears + 3.8km/h forward speed reduces round-trip transportation time; 25° climbing ability + track drive eliminates the need for detours on complex terrain, further improving operating efficiency.

Strong Stability: The reasonable self-weight of 385kg and the scientifically matched 600kg load capacity prevent tipping during operation; the tracked design enhances ground adhesion, allowing for stable driving even under heavy load.

Low Maintenance Costs: Mechanical transmission + manual unloading structure eliminates complex hydraulic unloading systems, reducing the risk of failure; core components (engine, hydraulic system) are international standard products, making replacement convenient and parts easily available.

Customized Service: Supports customer color customization; the body color can be adjusted according to industry characteristics or brand image to meet personalized needs.

Quality Assurance: Provides a 1-year warranty covering core components; equipped with mechanical test reports and video inspection services, ensuring traceable quality and peace of mind.

Applicable Scenarios

Construction: Transporting sand, bricks, cement, and other building materials; the narrow body is suitable for construction site alleys, and the heavy load capacity reduces the number of trips.

Landscaping: Transporting seedlings, planting soil, and fertilizers; the tracked design does not damage lawns and soil, and is suitable for complex garden terrain.

Agricultural Production: Transporting fertilizers, pesticides, and harvested crops; can move through fields and greenhouses, and the 25° climbing ability is suitable for hilly farmland.

Equipment Leasing: High durability + low failure rate, suitable for the high-frequency operation needs of the leasing industry, and can meet the leasing needs of customers in construction, landscaping, and other industries.
