- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.
Ce Epa Garden Loader Track Mini Skid Steer Loader 0.4ton
Ce Epa Garden Loader Track Mini Skid Steer Loader 0.4ton

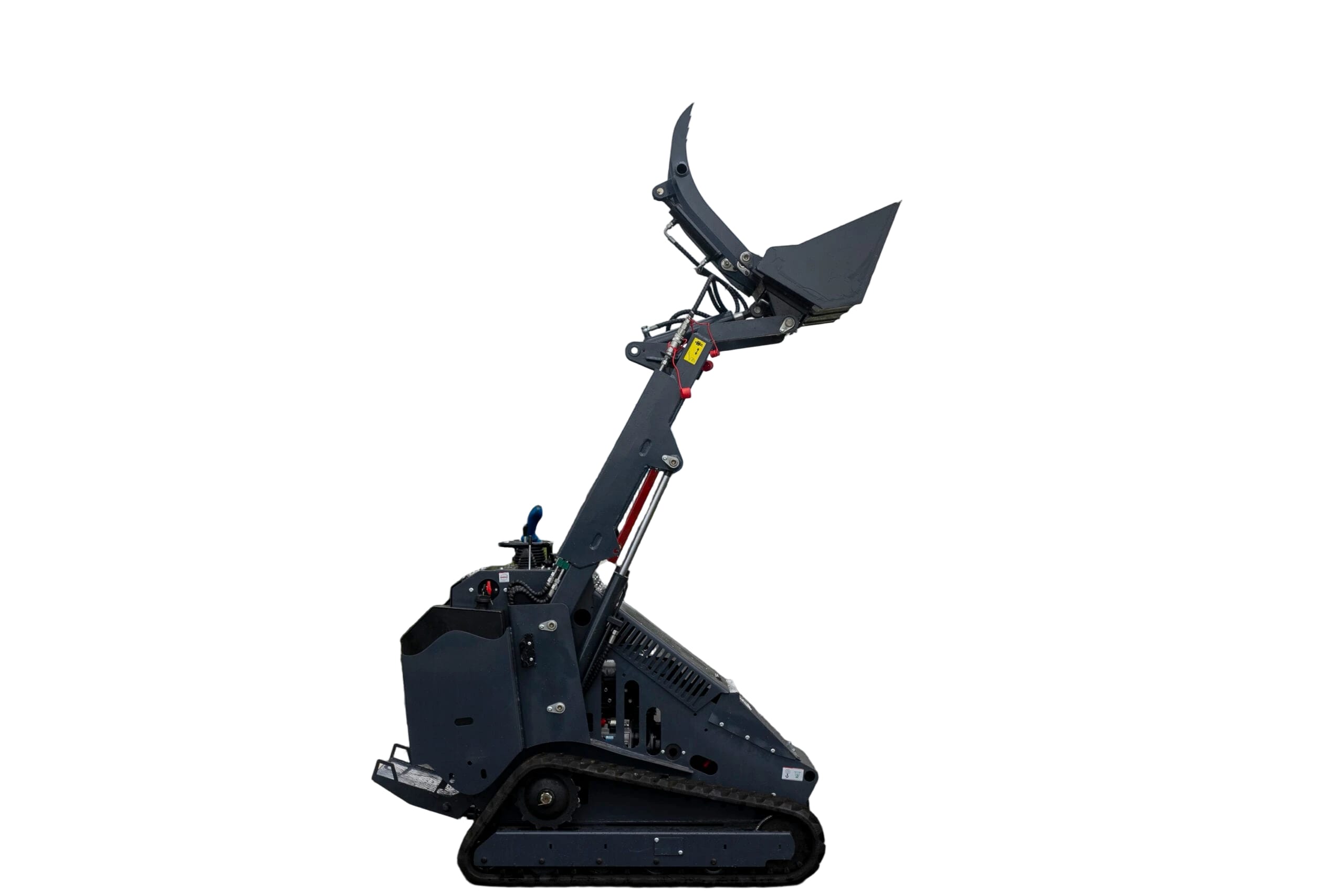

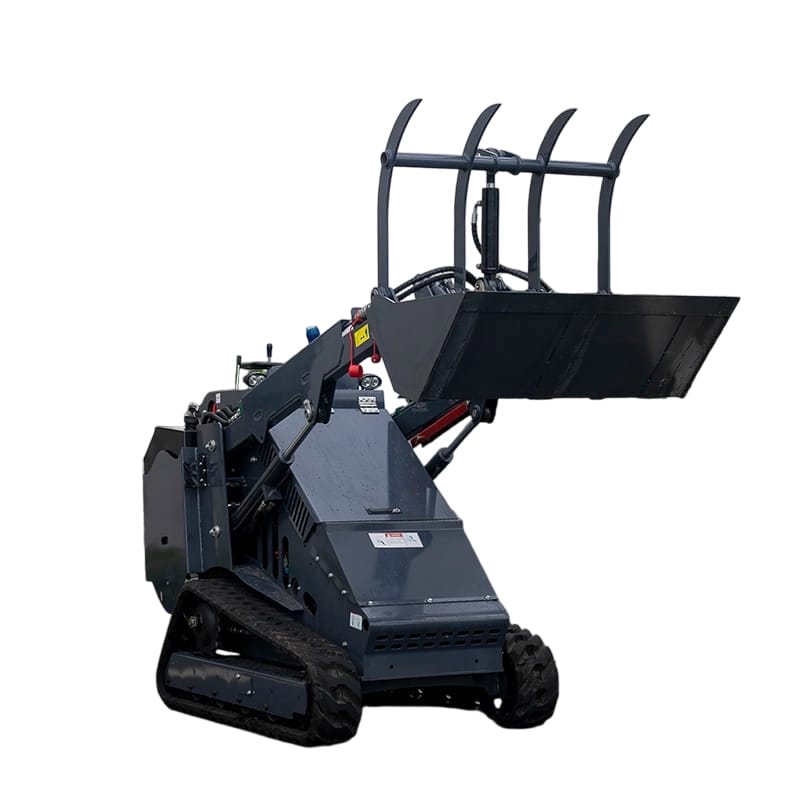

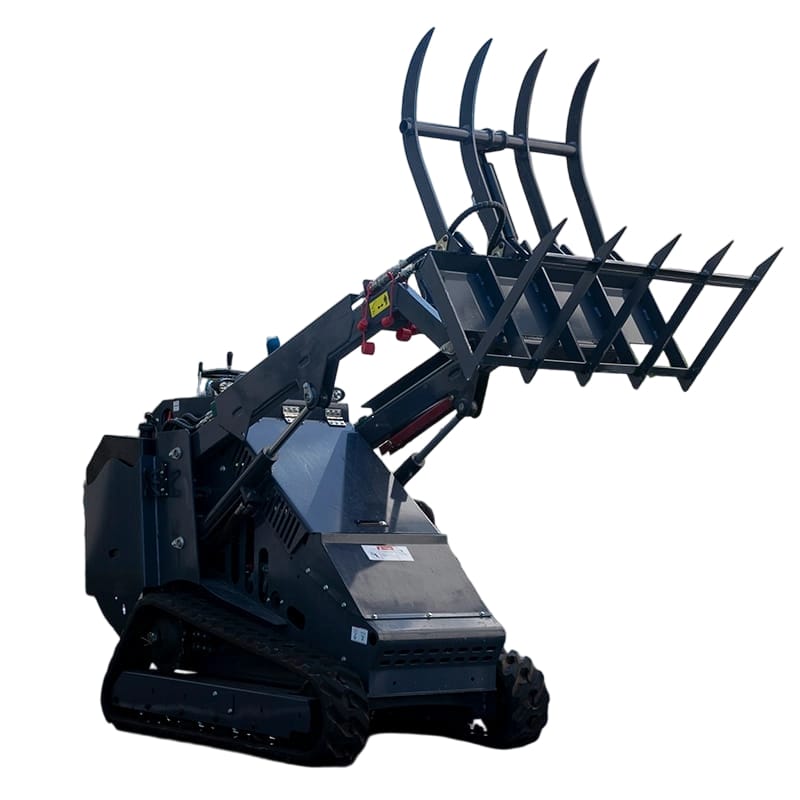

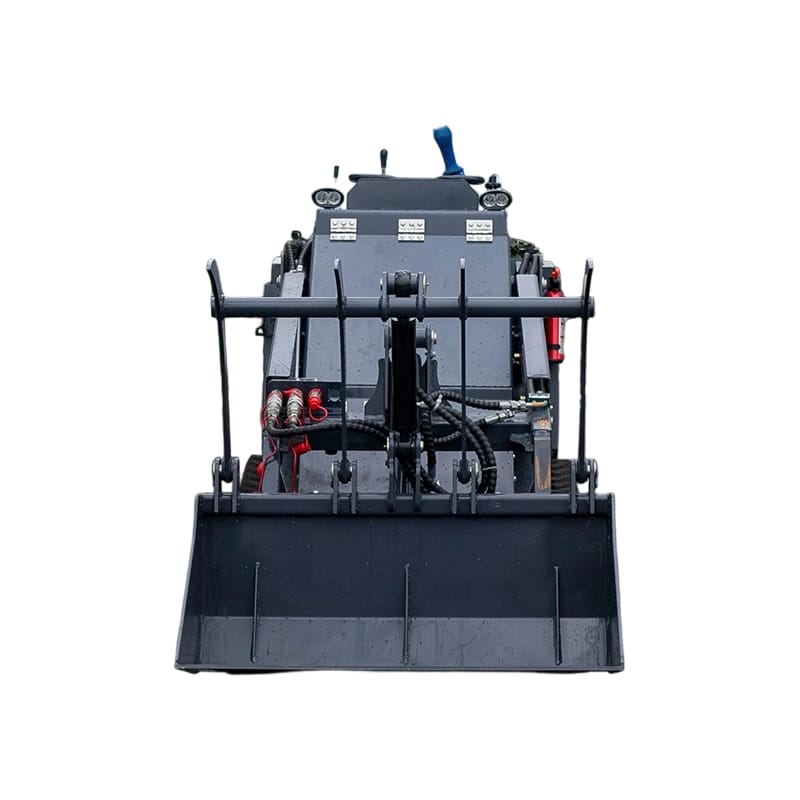

The T750 Skid Steer Loader is a compact, versatile machine designed for efficiency. It features an electric or diesel engine (Laidong 385/Yanmar 380) with 8–18.6 kW power, meeting EURO5/EPA standards. With an operating weight of 1200 kg, it offers a 400 kg rated capacity (450 kg max) and 4.5 kN breakout force. Its 0.15 m³ bucket operates at 25 bar pressure, achieving a 9-second cycle time. Dimensions include a 1550 mm height, 970 mm width, and 2700 mm length (with bucket). Ideal for tight spaces, it has a 6 km/h speed, 240 mm ground clearance, and 114° bucket flip angle for optimal performance.
Quote Now
Features, Applicable Scenarios and Value
Features
Multiple Power Options and Environmentally Friendly: Offers a variety of engine brands and meets Euro 5/EPA emission standards, aligning with current trends in green construction.
Highly Efficient Operation: Possesses a large rated load and maximum load capacity, enabling efficient task completion and improved work efficiency.
Flexible Maneuverability: Relatively lightweight and equipped with specific tire models, allowing for agile steering. It can move freely and operate in confined spaces or complex terrain, adapting to various site conditions.
Reliable Quality: Certified by ISO management and CE, with mechanical test reports and factory video inspections ensuring comprehensive product quality.
Applicable Scenarios
Small-scale Construction Projects: Its flexible maneuverability allows for free movement within narrow construction sites, facilitating material loading, unloading, and stacking, improving construction efficiency.
Road Maintenance: Used for routine road maintenance, such as clearing debris and filling potholes.
Logistics Loading and Unloading: Its efficient operation helps accelerate logistics turnover.
Agricultural Production: On farms, it can be used to transport agricultural products, feed, and other supplies, adapting to different terrain conditions and facilitating agricultural production.
Municipal Engineering: It can operate flexibly in urban environments, and its environmentally friendly characteristics meet the environmental requirements of municipal engineering projects.
Value
Increased Work Efficiency: High-efficiency operation and flexible maneuverability reduce manual labor intensity and operating time, thereby significantly improving overall work efficiency.
Reduced Costs: Reliable quality reduces equipment maintenance frequency and costs, and extended warranty service further reduces usage risks and costs.
Ensuring Project Quality: A stable hydraulic system and rigorously certified product quality ensure the stability and accuracy of the equipment during operation.
Environmental Compliance: Its environmentally friendly engine and low emission levels enable companies to meet increasingly stringent environmental regulations, avoid penalties for environmental issues, and maintain a good corporate image.
Engine Advantages and Standards Compliance
The T750 is available in electric (8kW) or diesel power (Laidong 385/Yanmar 380, 18.4-18.6kW). The diesel version utilizes naturally-aspirated technology, is reliable and easy-to-maintain, and is compliant with the EURO5/EPA emission standards, balancing power with environmental protection. The electric version has zero emission and is suitable for indoor or sensitive environments. The battery pack (72V/20Ah) supports stable range and reduces long-term operating costs.
Advantages in brief
Tracked walking system
Advantages: large grounding area, strong traction, adapting to mud, snow, sand and other complex terrain; high stability, reducing bumps; low pressure on the ground, protecting paved roads or loose soil.
Disadvantages: slower speed (0-6km/h for T750), hard surface driving may wear out the tracks.
The track design of the T750 makes it ideal for agriculture, mining and rough conditions, especially for users who need high throughput.
Operating system:open cabin&humanized control design
The T750 adopts an open cab design, which provides the operator with a more direct sense of the environment and natural ventilation, making it particularly suitable for high-temperature operating environments and work scenarios that require frequent entry and exit. The advantages of its control system include:
Environmental Adaptability Advantages
- Operators can more intuitively feel the working environment, and precisely control the position of the equipment.
- Natural ventilation avoids the problem of stifling heat in closed spaces, enhancing the comfort of summer operation.
- Simplified structural design reduces weight and maintenance costs.
Intelligent control panel
Adopting graphical instrument panel, the key parameters can be seen at a glance:
- Engine speed icon shows real-time power status
- Hydraulic temperature warning light to prevent system overheating
- Fuel/electricity display is designed as a bar graph to visualize the remaining amount of fuel.
Parameter Comparison and Target User Analysis
T750 Core Parameters (Crawler)
Dimensions: 1550mm (H) x 970mm (W) x 2070-2700mm (L)
Performance: 400kg rated load, 4.5kN breakout force, 0.15m³ bucket, 6km/h travel speed
Power: electric 8kW or diesel 18.4kW, EURO5/EPA compliant
Track size: 180 x 72 x 45 (W x Pitch x Height), ground length 1300mm.
Other: 25bar system pressure, 9-second duty cycle, 240mm ground clearance
Competitor Comparison (Takeuchi TL8V2 tracked as an example)
Parameters T750 Takeuchi TL8V2
Rated load 400kg 816kg
Power Electric/diesel 18.4kW Diesel 24.8kW
Track width 180mm 230mm
Weight 1200kg 2470kg
Price Economy High-end
Conclusion
The T750, as a compact tracked skid steer The advantages of the T750 as a compact tracked skid steer are:
Lighter weight (1200kg), suitable for small and medium-sized operations;
Multiple power options, with an electric version to meet environmental demands;
Lower cost, suitable for users with limited budget.
Suitable for: small farmers, landscape contractors, municipal maintenance teams and other users who need to work in soft or complex terrain, taking into account the cost-effectiveness and passability needs.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/Laidong 385/Yanmar 380 | Vehicle height | 1550mm |
| Rated power | 8kw、72v、20ah/18.6/18.4kw | Length with standard bucket | 2700mm |
| Number of cylinders | 3 | Vehicle width (standard tire) | 970mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 2070mm |
| Emissions standards | EURO5/EPA | Bucket width | 1270mm |
| Rated operating capacity | 400Kg | Tail length | 500mm |
| Maximum operating capacity | 450Kg | Height at maximum extension | 2920mm |
| Maximum breakout force | 4.5KN | Height to the the bucket pin | 2300mm |
| Bucket capacity | 0.15m³ | Maximum height as lay the bucket flat | 2140mm |
| Driving speed | 0-6km/h | Dumping height | 1700mm |
| Total cycling time | 9s | Discharge distance | 150mm |
| System operating pressure | 25bar | Track contact with ground length | 1300mm |
| Fuel tank capcity | 30L | Ground clearance | 240mm |
| Operating weight | 1200KG | The flip angle of the bucket on the ground | 27° |
| Track model | 180*72*45 | Bucket flip angle at highest position | 114° |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
