- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.

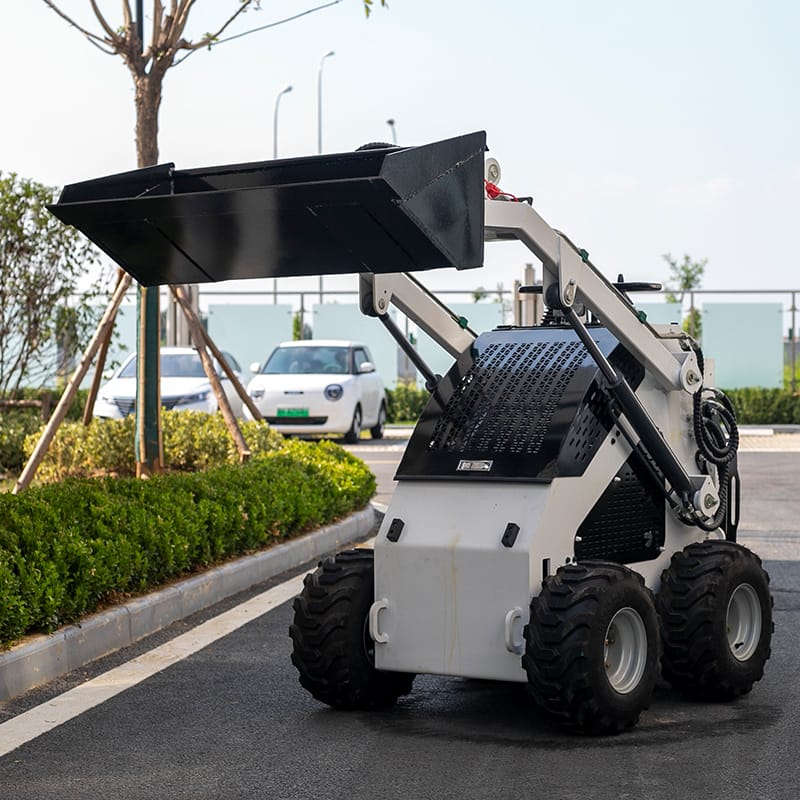

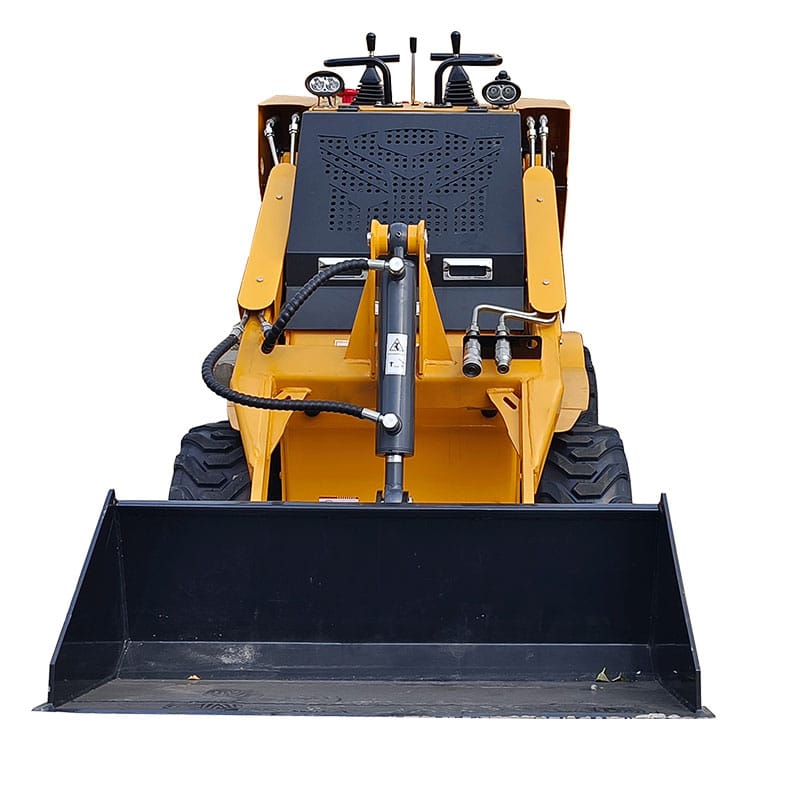

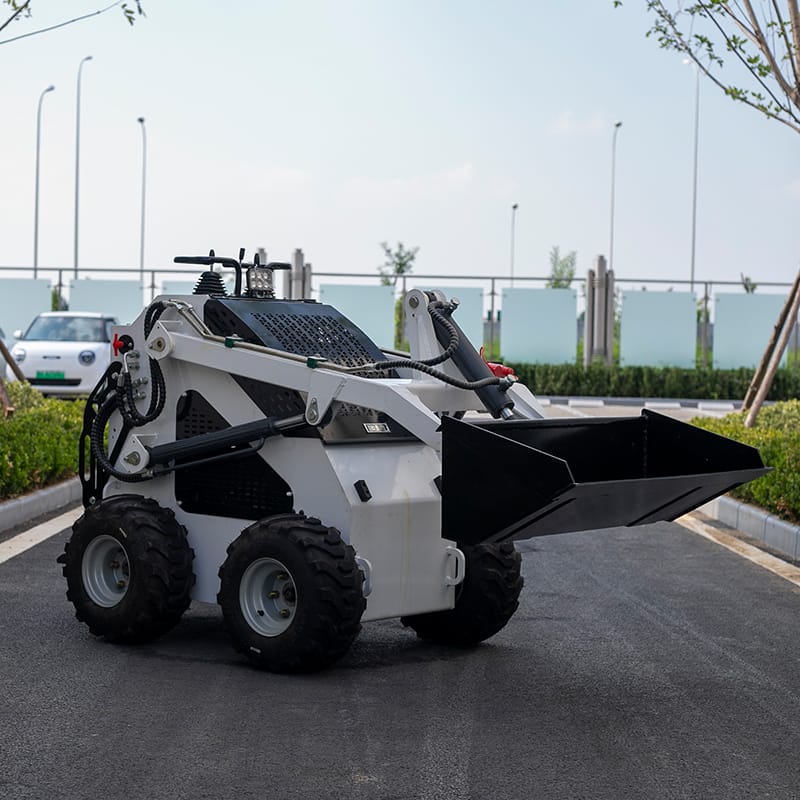

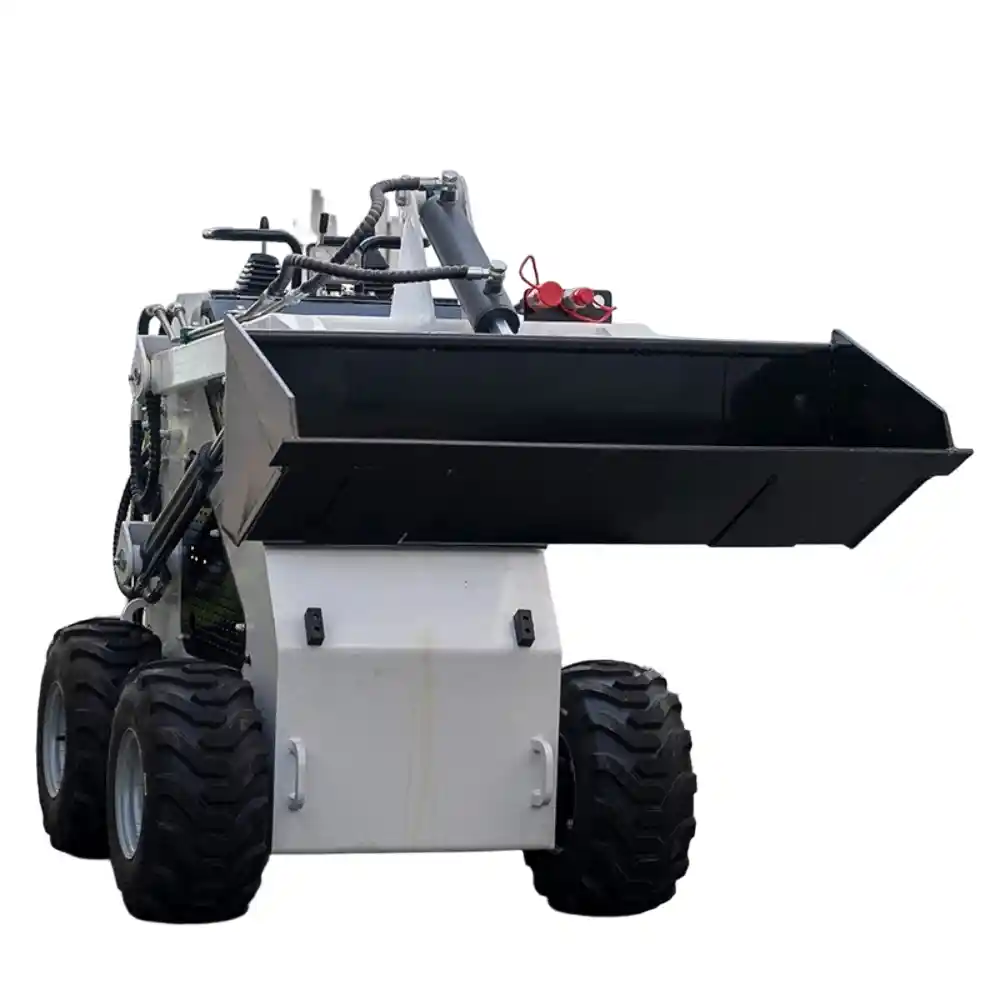

EZ-S360 Best Skid Steer Loader Mini Loader
EZ-S360 Best Skid Steer Loader Mini Loader
Powered by a reliable 13.5HP single-cylinder engine (options including Koop, Science, Runtong, or Bai Litong), this compact skid steer loader delivers a 200kg rated capacity (up to 300kg max), strong 3.5kN breakout force, and a practical 0.12m³ bucket. Featuring tough 15*72 skid steer loader tires for superior grip, smooth 0-6km/h speeds, fast 9-second cycles, and only a 5L fuel tank for efficiency, this small skid steer loader excels in tight spaces with its narrow 850mm width and 1300mm height.
Quote Now
Product Introduction
Boasting a 200kg rated load capacity expandable to 300kg maximum, a powerful 3.5kN breakout force, and a spacious 0.12m³ bucket, the EZ-S360 shines as a compact skid steer loader in diverse environments. It achieves speeds up to 6km/h, with a swift 9-second hydraulic cycle and operating pressure of 17-21bar, complemented by a 5L fuel reservoir and lightweight 900kg frame for easy transport. The inclusion of high-quality 15*72 skid steer loader tires ensures stable handling, while key measurements like 2450mm max operating height, 1510mm dump height, and 450mm reach enhance its utility.
Applications
- Residential landscaping with a best mini skid steer loader for digging and leveling tasks.
- Commercial building sites using a compact skid steer loader for debris removal and site prep.
- Farm management where skid steer loader for sale handles livestock feeding and fencing.
- Industrial yards employing small skid steer loader for inventory shifting and cleanup.
- Municipal maintenance with chinese skid steer loader for road patching and green space care.
Core Selling Points
- Exceptional low maintenance cost, a key advantage for this best mini skid steer loader in cost-sensitive operations.
- Full EURO5 and EPA adherence ensuring sustainable use across European territories.
- Superior compactness for easy navigation, highlighting its role as a top compact skid steer loader.
- Resilient skid steer loader tires for consistent traction in challenging conditions.
- Quality validations through provided test reports and inspections for a reliable skid steer loader for sale.
Core Configuration
- Powertrain: Koop engine at 13.5HP with Euro 5/EPA emission standard.
- Hydraulic System: Gear pump with other branded cylinders and valves for smooth function.
- Wheels: 15*72 tire model supporting wheel loader mobility.
- Size Specs: Overall 2100*850*1870mm, 850mm vehicle width, 280mm tail length.
- Essentials: Engine as core component, 606kg machine weight, 900kg operation quality, 1-year warranty.
Why Choose Our EZ-S360?
Choosing the EZ-S360 positions you with the best mini skid steer loader available, crafted by skilled chinese skid steer loader producers emphasizing durability and cost savings. This compact skid steer loader distinguishes itself through provided video inspections, test reports, and a full 1-year warranty, guaranteeing peace of mind for European clientele. Its design prioritizes user-friendly features like a gear pump hydraulic system, minimizing repair needs and maximizing uptime in demanding settings. As a top small skid steer loader, the EZ-S360 offers exceptional value with its skid steer loader tires and versatile attachments compatibility, ideal for enhancing workflow efficiency across the EU without compromising on quality or environmental standards.
FAQ
What makes the EZ-S360 the best mini skid steer loader?
Its 13.5HP engine, compact size, and EURO5 compliance make it stand out among skid steer loader for sale options.
What is the travel speed of this compact skid steer loader?
It ranges from 0-6km/h, providing controlled movement for a small skid steer loader.
How durable are the skid steer loader tires on the EZ-S360?
The 15*72 tires are built for resilience, supporting the chinese skid steer loader in tough conditions.
What is the bucket capacity of this model?
0.12m³, ideal for efficient loading in the best mini skid steer loader.
Does the EZ-S360 include quality inspections?
Yes, with machinery test reports and video outgoing-inspections provided for this skid steer loader for sale.
Tags: skid steer loader, skid steer loader for sale, small skid steer loader, skid steer loader tires, chinese skid steer loader, best mini skid steer loader, compact skid steer loader, mini skid steer EU, efficient mini loader
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/koop/Runtong/Zhongcheng/B&S | Vehicle height | 1300mm |
| Rated power 6kw、72V、 | 125ah/7.5/8.6/8.5/9.9kw | Length with standard bucket | 2070mm |
| Number of cylinders | 1 | Vehicle width (standard tire) | 980mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 1640mm |
| Emissions standards | EURO5/EPA | Bucket width | 1050mm |
| Rated operating capacity | 200Kg | Tail length | 500mm |
| Maximum operating capacity | 300Kg | Height at maximum extension | 2400mm |
| Maximum breakout force | 3.5KN | Height to the the bucket pin | 1870mm |
| Bucket capacity | 0.12m³ | Maximum height as lay the bucket flat | 1720mm |
| Driving speed | 0-6km/h | Dumping height | 1510mm |
| Total cycling time | 9s | Discharge distance | 250mm |
| System operating pressure | 17-21bar | Wheelbase | 750mm |
| Fuel tank capcity | 5L | Ground clearance | 130mm |
| Operating weight | 900KG | The flip angle of the bucket on the ground | 27° |
| Wheel size | 18*8.5-8 | Bucket flip angle at highest position | 114° |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
