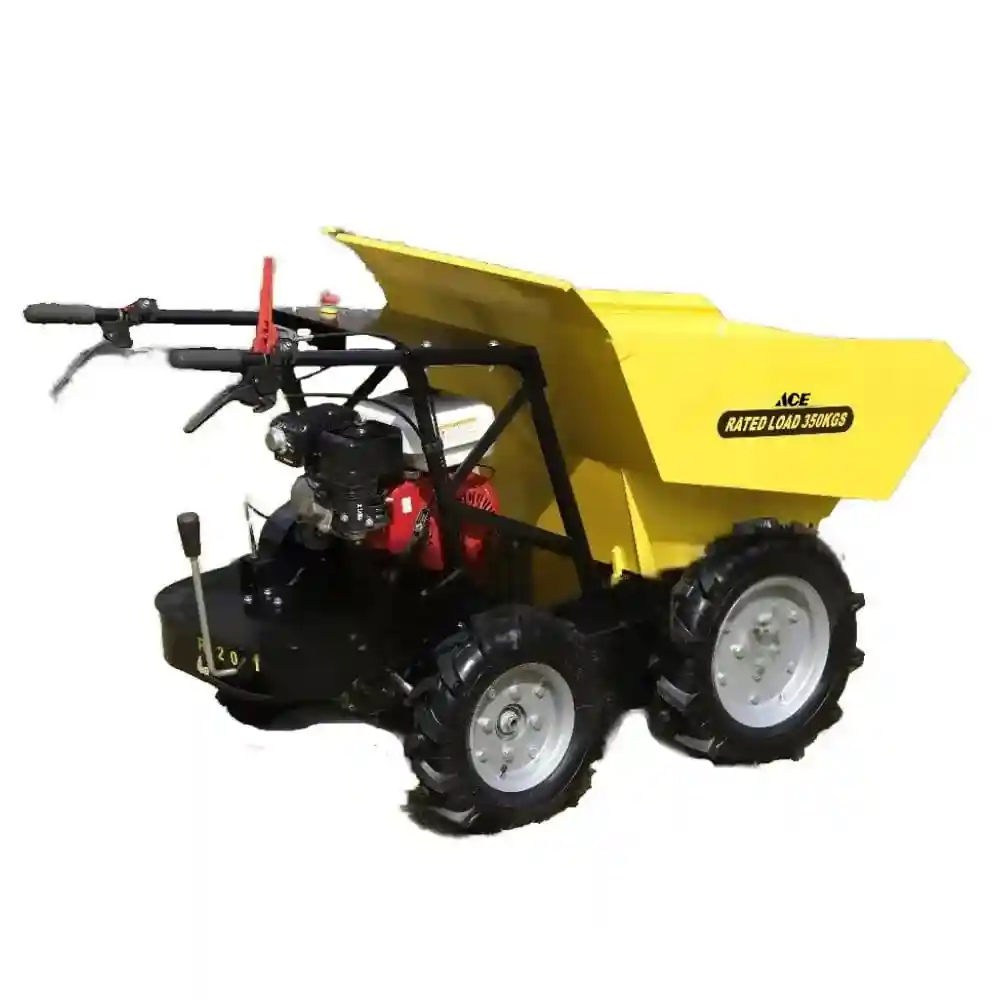

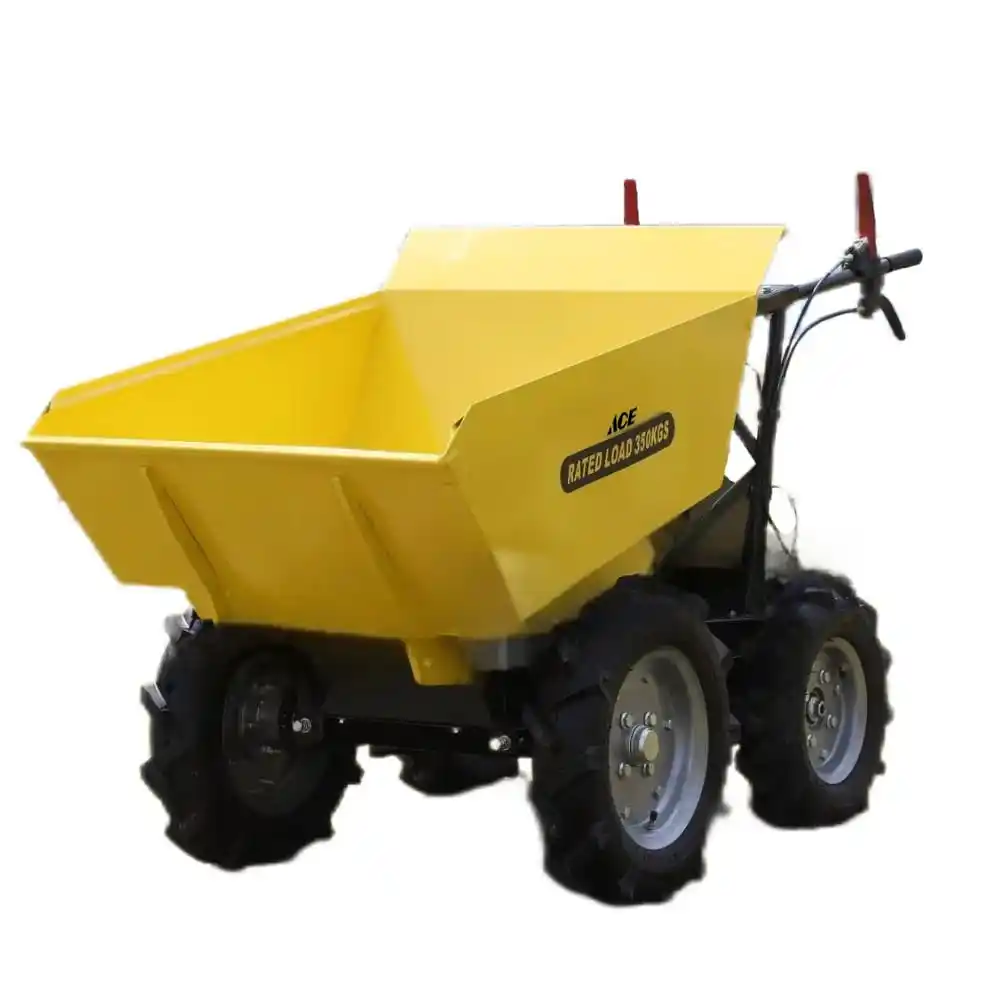

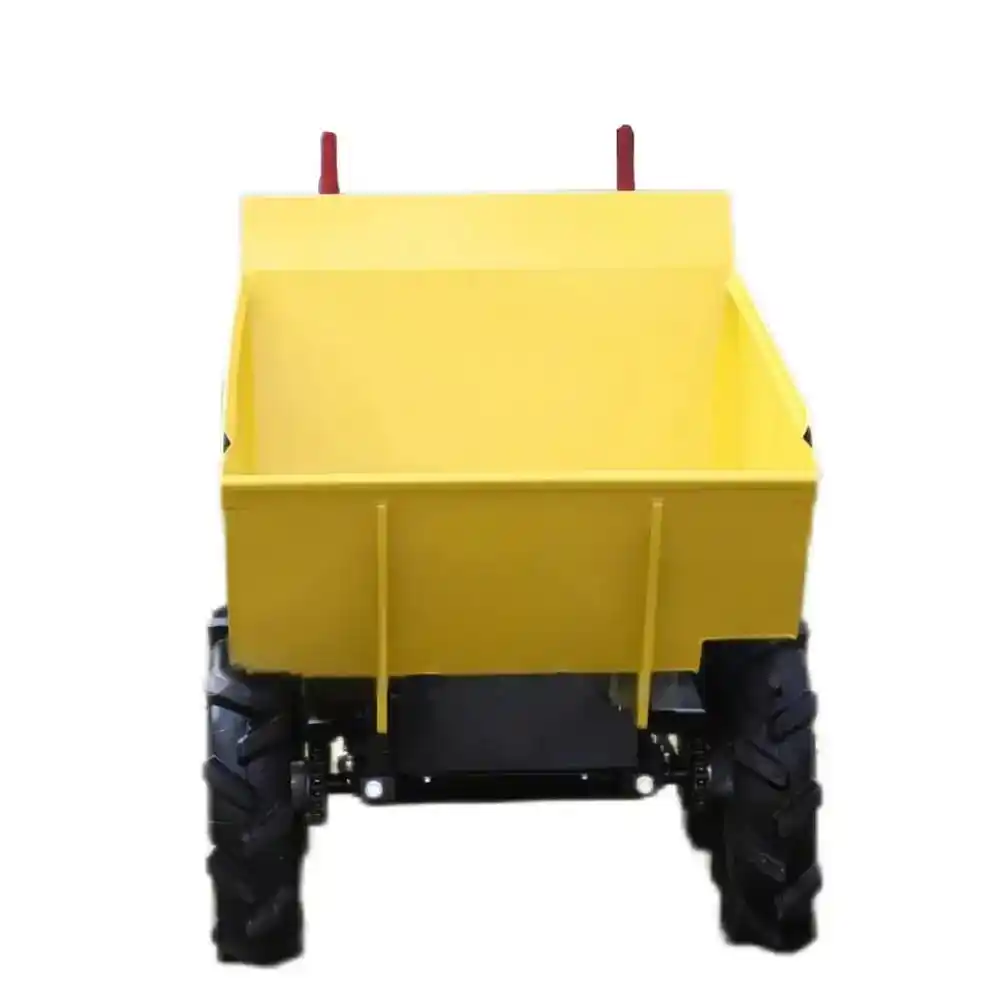

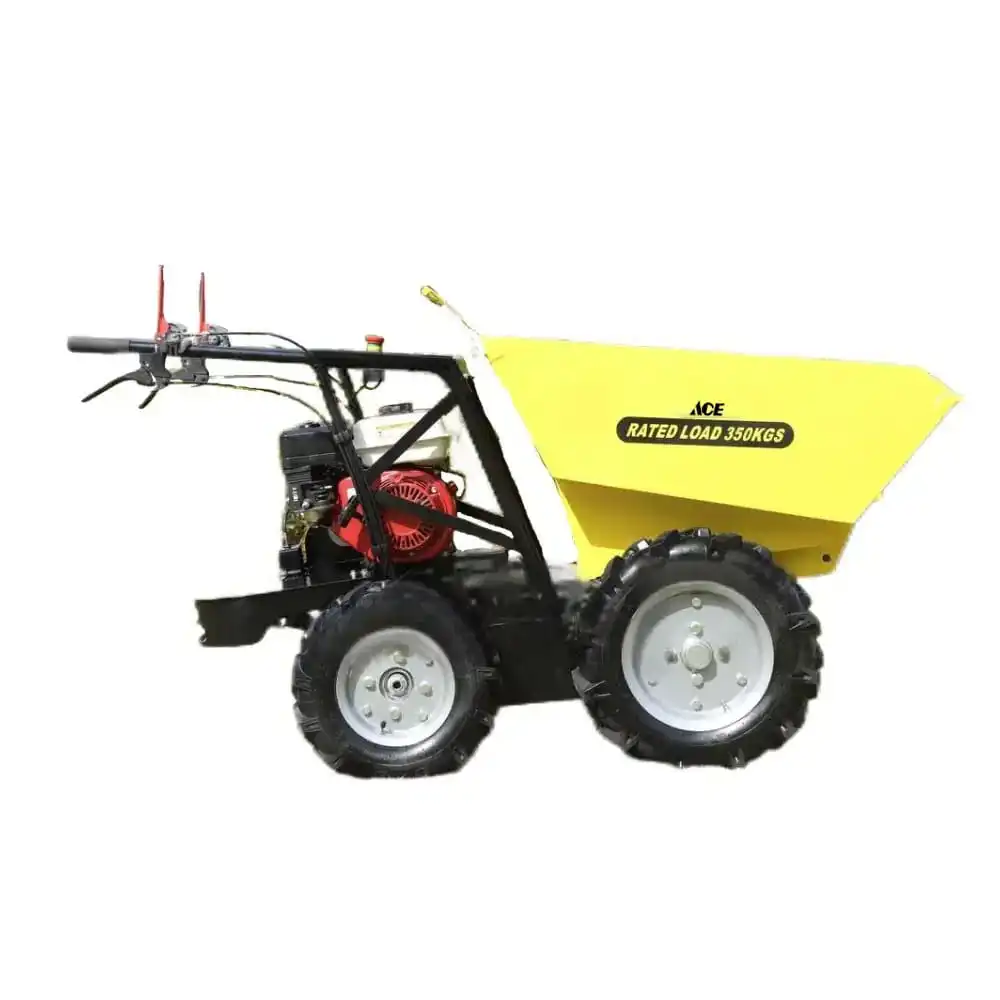

Powered wheel barrowBY350
This powered wheel barrowBY350 is hydraulic design and 4wheels driven. The main parts are imported from USA with global warranty. The max loading weight is 350kgs and the width is 78cm narrow. It’s powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites. There are rich accessries to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.
Quote Now
Product Overview
The BY350 is a hydraulically designed, four-wheel-drive heavy-duty power pallet truck with a maximum payload of 350 kg. Its core components are imported from the USA and come with a global warranty. With a width of only 78 cm, its compact structure allows it to easily navigate narrow spaces. This powerful machine can transport a variety of materials, including bricks, sand, timber, and crops, and supports various attachments such as flatbeds, extension boards, snowplows, trailer hitches, and power lifts, offering exceptional versatility.
Key Features
Powerful Brand Engine: Optional Briggs & Honda 5.5 hp gasoline engine provides reliable power.
Hydraulic Drive & Four-Wheel Drive: Hydraulic design ensures smooth and powerful transmission, while four-wheel drive provides excellent traction and terrain adaptability.
Chain Drive System: Robust and durable mechanical transmission structure, easy maintenance, and long service life.
Compact Body Design: With a width of only 78 cm, it can easily pass through standard doorways and narrow passages.
High Load Capacity: With a load capacity of 350 kg, far exceeding that of ordinary handcarts, it meets the needs of heavy material transportation.
Rich Attachment Options: It can be equipped with flatbeds, extended side panels, snowplows, etc., achieving multi-purpose functionality.
Durable Structure: The hopper features a yellow powder-coated finish, the frame is robust, and the machine weighs only 175 kg, ensuring stability and a long service life.
Core Advantages
Superior Off-Road Capability: Four-wheel drive combined with a compact body allows it to easily handle rough terrain and narrow spaces, reaching virtually anywhere.
Versatile Functionality: By changing attachments, it can adapt to various tasks such as transportation, sweeping, and towing, offering a high return on investment.
Durable: Reliable core components, a robust overall structure, and a long design life allow it to withstand heavy use.
Simple Operation: The mechanical transmission is intuitive and reliable, with three forward gears and one reverse gear, making it easy to learn and operate.
Applicable Scenarios
Construction: Transporting heavy building materials such as concrete, bricks, and mortar on construction sites.
Agricultural Production: Transporting fertilizer, fodder, and harvested crops; particularly suitable for large farms and orchards.
Pasture and Forestry: Transporting hay and timber.
Snow Removal: With the addition of a snowplow, it can be used for snow removal in yards and along paths.
Industrial Warehousing: Moving heavy parts and materials in factories and warehouses.
Product Parameters
| BY350 | |
| Brand Name | ACE |
| Type | Backhoe Loader |
| Engine Brand | Briggs & Stratton |
| Power | Other |
| Bucket capacity | NO |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Machine Weight | 150 kg |
| Hydraulic Pump Brand | NO |
| UNIQUE SELLING POINT | Long lifetime |
| Core Components | Engine, Gear, Bearing, Gearbox |
| Moving Type | Wheel Loader |
| Dimension(Long * Breadth * High) | 1300*800*1080MM |
| Hydraulic Cylinder Brand | NO |
| Hydraulic Valve Brand | NO |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Product name | Front Wheel Loaders |
| Drive type | 4 Wheel Drive |
| After-sales Service Provided | Video Technical Support |
| After Warranty Service | Spare Parts Support |
| Driven | Chain driven |
| Unloading | Manual |
| Drum material | Plastic spray |
| Specification | |
| BY350 | Mechanical Transmission case with chain driven |
| Engine | B&S 5.5HP/GXV160 5.5HP 4stroke, 163cm3 gasoline |
| Transmission | 3 forward / 1 reverse speed |
| Forward/ Reverse speed | 3.8 /2.5 km/h |
| Capacity | 350kg weight |
| Brake | shoe brake |
| Cabels | Protected |
| Wheels | Front 400×10,rear 400×8 |
| Weight | 175KG |
| Limited grade ability | 25° |
| Dimension | 155*74*85 |
| Drum Material | yellow powder coating |
| Unloading | Manual |
| Driven | Chain Driven |
| Loading Capacity | 20GP |
| 40GP | |
| 40HQ | |
| Warranty | one year after use |
| Payment Term | T/T |
