Quick Hitch for Mini Excavator | 30mm Pin Quick Coupler for 1.8 Ton Excavator
Quick Hitch for Mini Excavator | 30mm Pin Quick Coupler for 1.8 Ton Excavator
Quick hitch (also known as a quick coupler) is a mechanical device used on excavators and other construction machinery to rapidly connect and disconnect attachments, such as buckets, breakers, rippers, and augers, without the need for manual intervention with pins and tools.
Quote Now

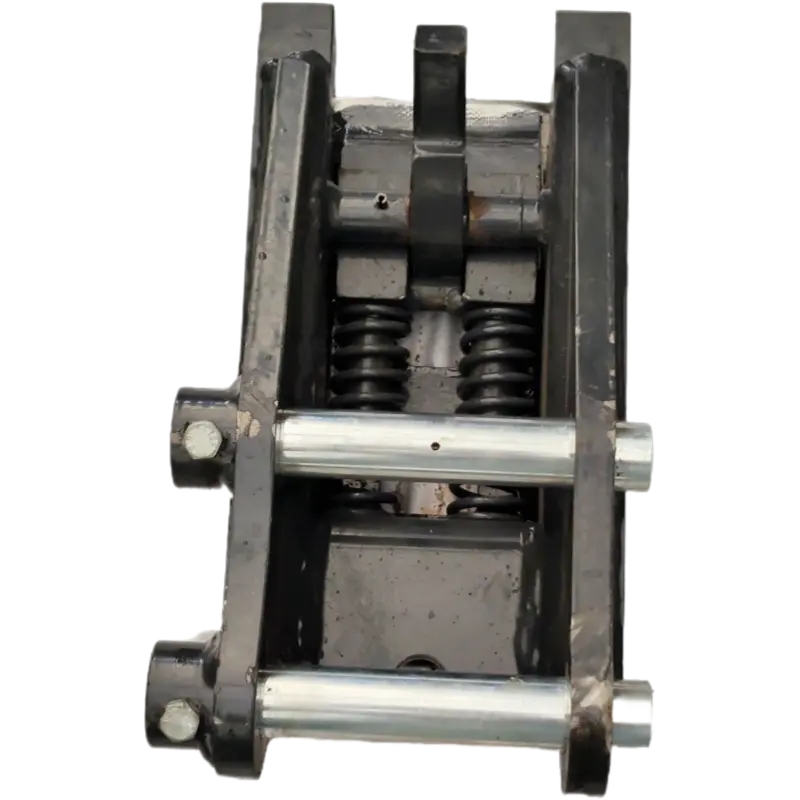

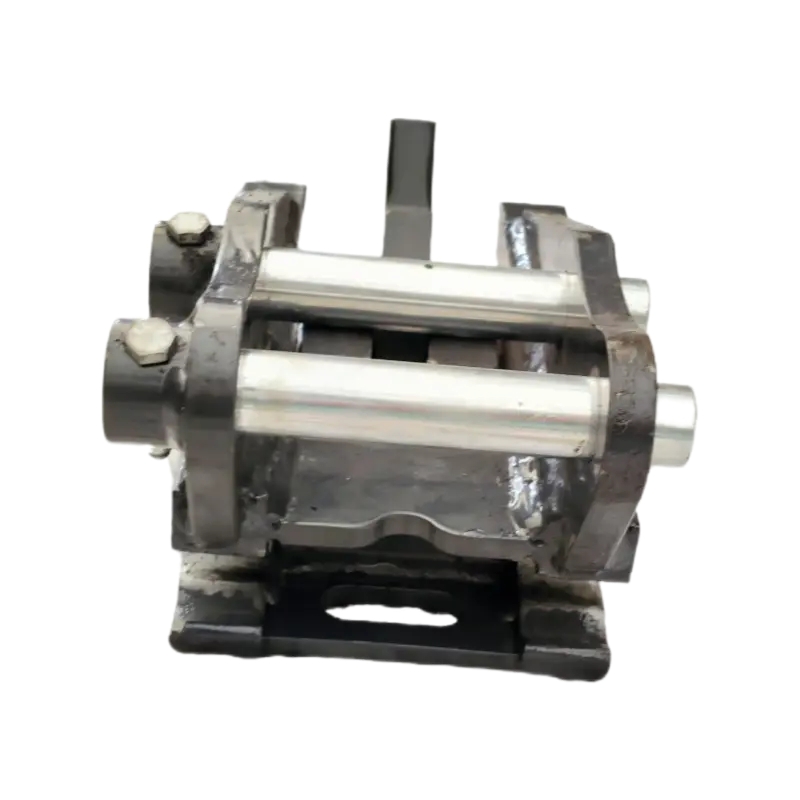

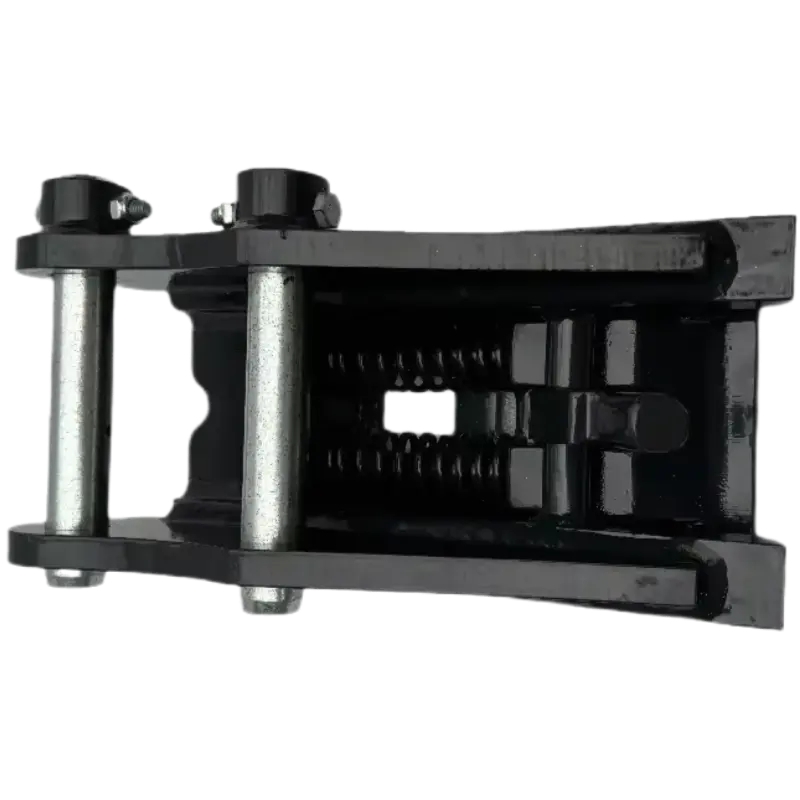

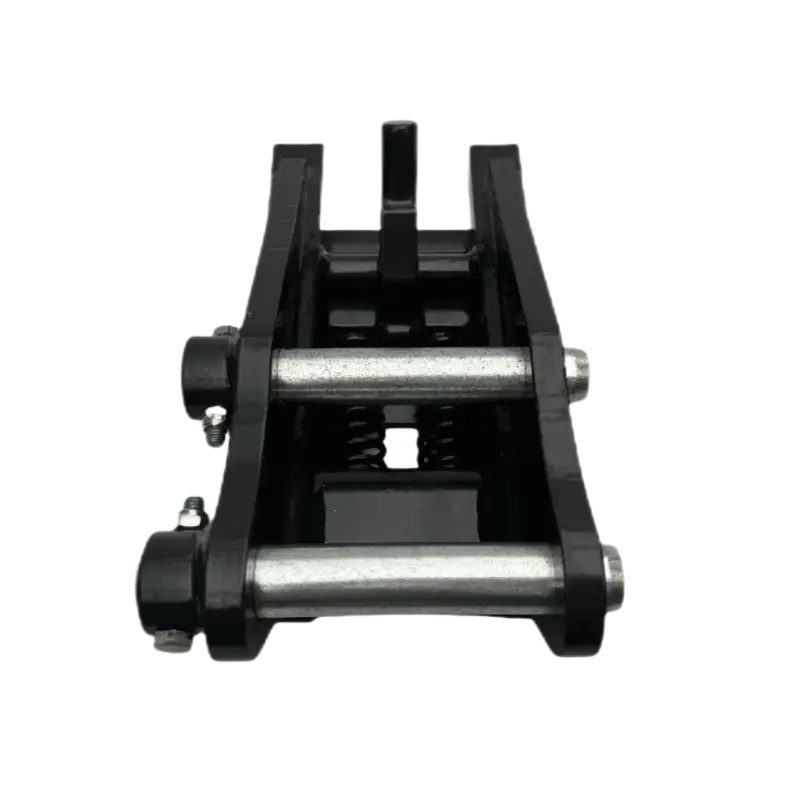

The ACE mini excavator quick hitch is designed to make compatible attachment changes more efficient. This model features a steel structure, a 30mm pin diameter and a listed weight of 20kg. It is intended for suitable 1.8-ton mini excavators, subject to confirmation of the machine linkage and attachment mounting dimensions.
A matching pin diameter is only the first check. Before ordering, confirm the pin centre distance, mounting width and clearance around the excavator linkage. These measurements help prevent the familiar problem of receiving a useful attachment that does not fit the machine.
Quick Hitch Specifications
| Specification | Details |
|---|---|
| Product | Mini excavator quick hitch |
| Brand | ACE |
| Listed excavator application | 1.8-ton mini excavator; compatibility must be confirmed |
| Pin diameter | 30mm |
| Product weight | 20kg |
| Material | Steel |
| Warranty | 1 Year |
| Colour | Customised |
| Minimum order quantity | 1 piece |
| Packing | Wooden case |
| Place of origin | Zhejiang, China |
Confirm the Fit Before Ordering
Mini excavators in the same weight class can have different mounting dimensions. A 30mm pin quick coupler should therefore be selected using measured dimensions rather than excavator tonnage alone. Send the following information so our team can review compatibility before preparing a quotation.
| Information Required | What to Provide |
|---|---|
| Excavator details | Make, model and operating weight |
| Pin diameters | Measured diameter of both mounting pins |
| Pin centre distance | Distance between the centres of the two mounting pins |
| Mounting width | Measured width at the attachment connection, with a photograph showing the measurement |
| Attachment details | Tool type, mounting photographs and any available drawings |
| Locking requirements | Required locking mechanism and any machine-side connections |
For help preparing these measurements, read our mini excavator quick hitch size guide. If a measurement is unclear, send a photograph with a ruler or calliper in place rather than estimating it.
Attachment Compatibility and Safe Use
A quick hitch can support changes between suitable attachments, but each tool requires its own compatibility check. Buckets and rippers must match the mounting geometry and operating clearances. Hydraulic breakers and augers also require checks of their hydraulic connections and machine requirements. A mechanical fit alone does not confirm that a powered attachment is suitable.
Confirm the locking mechanism supplied with your order and follow its installation, locking and inspection instructions. Before working, verify that the attachment is correctly engaged and secured using the manufacturer’s specified procedure. Do not assume that this model provides cab-controlled or fully automatic attachment changes.
Frequently Asked Questions
Will this quick hitch fit every 1.8-ton mini excavator?
No. The listed application is a 1.8-ton mini excavator, but fit depends on the linkage dimensions. Confirm both pin diameters, pin centre distance, mounting width and operating clearance before ordering.
Is this a mechanical or hydraulic quick hitch?
The locking mechanism must be confirmed for the quoted configuration. Ask our team for the relevant product details and installation requirements before placing an order.
Can I use it with a hydraulic breaker or auger?
Compatibility must be checked for the specific hitch, attachment and excavator combination. In addition to mounting dimensions, confirm tool clearances, hydraulic requirements and any restrictions in the equipment instructions.
What is the warranty?
This quick hitch has a 1-year warranty. Ask our team for the applicable warranty terms before ordering.
Can the colour be customised?
Customised colour is available. Include your colour requirements when requesting a quotation so the configuration can be confirmed.
What information is needed for a quotation?
Provide your excavator make and model, mounting measurements, attachment photographs, required quantity and destination country. Include any colour or branding requirements for review.
Request a Quick Hitch Quotation
Send your machine details and mounting measurements to ACE Machinery for a compatibility review and quotation. You can also explore our mini excavator attachments to discuss the tools you plan to use with the hitch.
Product Parameters
| Brand Name | ACE |
| Suitable Excavator(ton) | 1.8 ton mini excavator |
| Pin Diameter | 30MM |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Weight | 20 kg |
| Core Components | Gear |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Product name | Excavator quick hitch |
| Type | Quick hitch |
| Color | Customised |
| Material | steel |
| MOQ | 1 Piece |
| Feature | Model Rake |
| Suitable | 1.8t Excavator |
| Packing | Wooden Case |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
