S490 Mini Small Skid Steer Loader Electric wheel loader

S490 Mini Small Skid Steer Loader Electric wheel loader

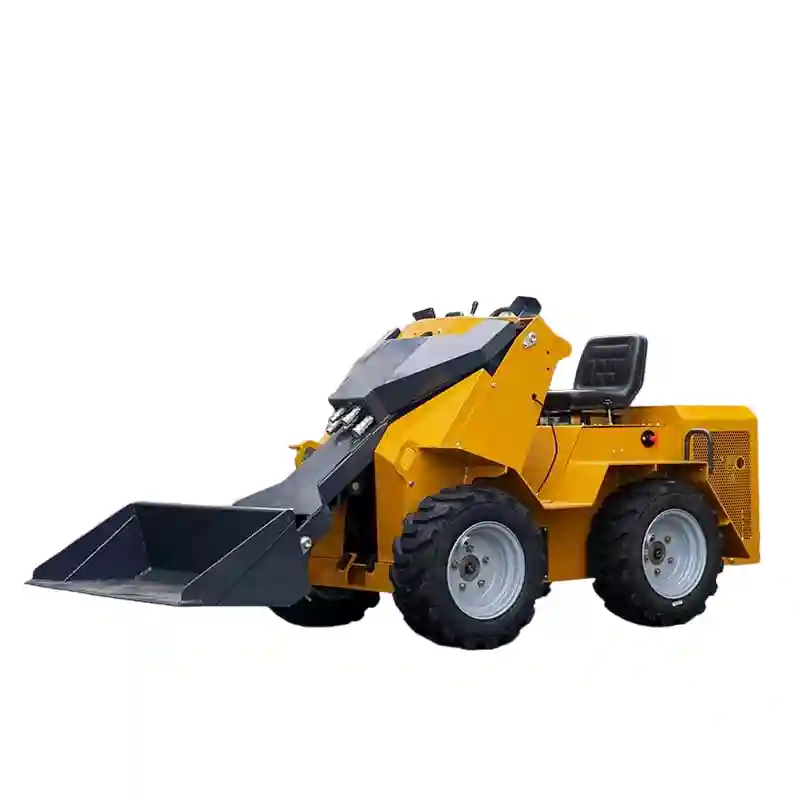

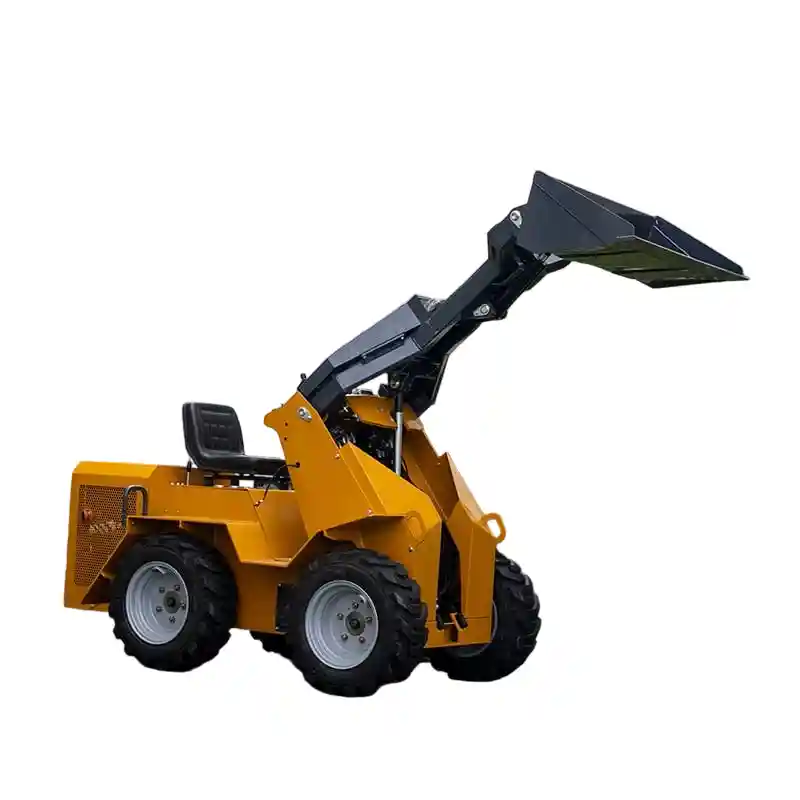

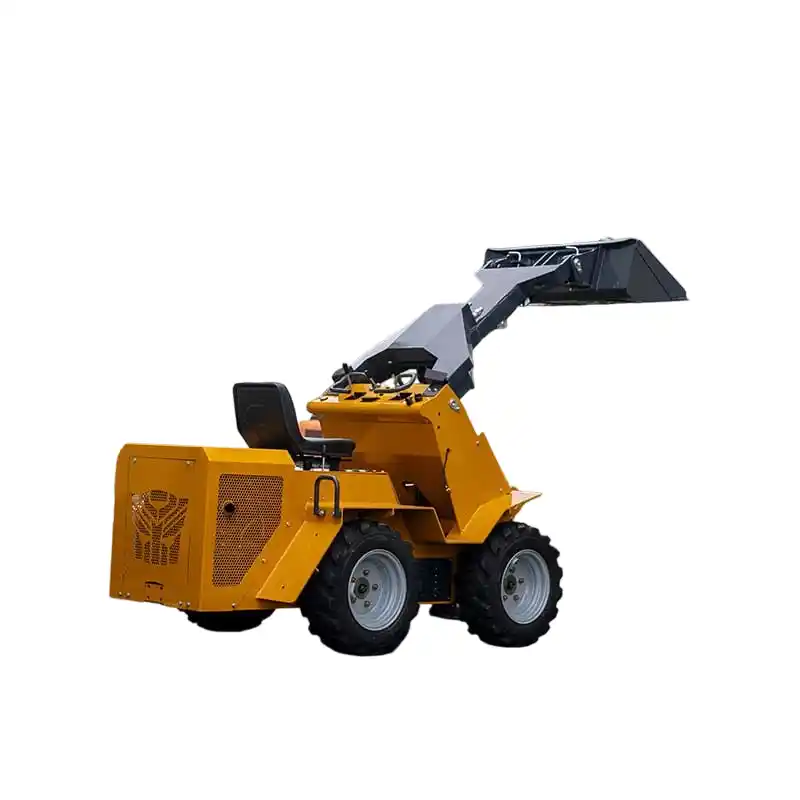

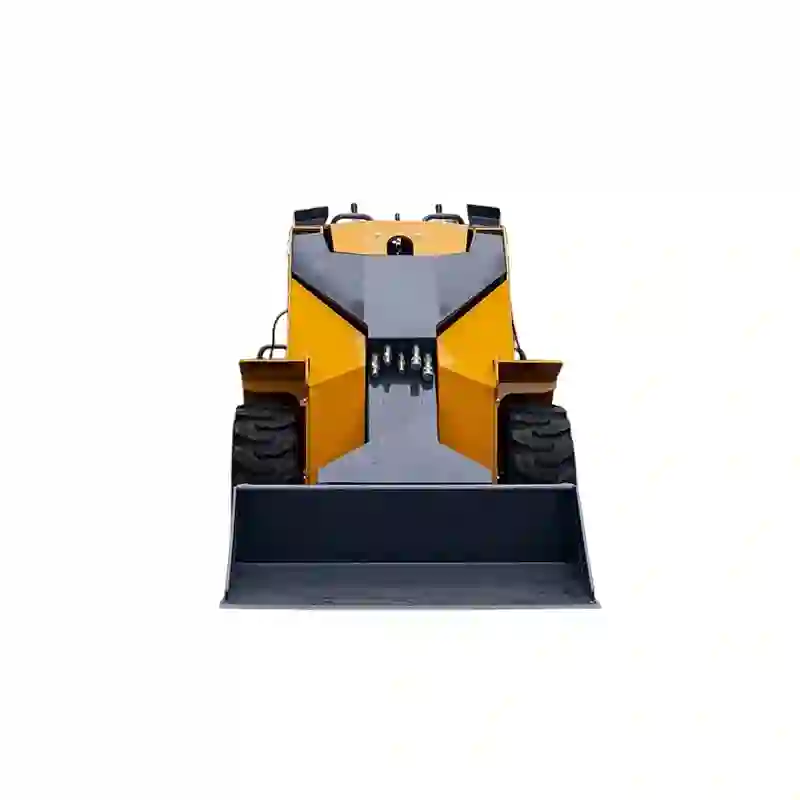

The S490 Skid Steer Loader is a compact, versatile machine with an 8kW electric or 15-19.2kW gasoline engine, offering 250kg rated (350kg max) operating capacity. It features a 0.12m³ bucket, 6km/h max speed, and 450KN breakout force. Dimensions include a 1300mm height, 1100mm width, and 2700mm length (with bucket). Key specs: 17-21bar system pressure, 9s cycle time, 180mm ground clearance, and 114° bucket flip angle. Ideal for tight spaces, it has EURO5/EPA emissions compliance and 1200kg operating weight, ensuring efficiency in construction, agriculture, and material handling.

Quote Now

    Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

    S490 Skid Steer Loader Features and Application Value

    The S490 skid steer loader is a compact and efficient construction machine suitable for confined space operations, such as construction sites, agricultural sheds, warehouse loading and unloading scenarios. Its flexible steering and multifunctional attachment compatibility (e.g. bucket, forklift, etc.) enable it to perform a wide range of tasks such as digging, handling and leveling. With a rated load of 250kg (max. 350kg) and a powerful breakout force of 450KN, it can easily cope with hard soil, sand and gravel, improving construction efficiency and reducing labor costs, making it an ideal choice for small and medium-sized projects and municipal maintenance.

    Engine Advantage and Standard Compliance

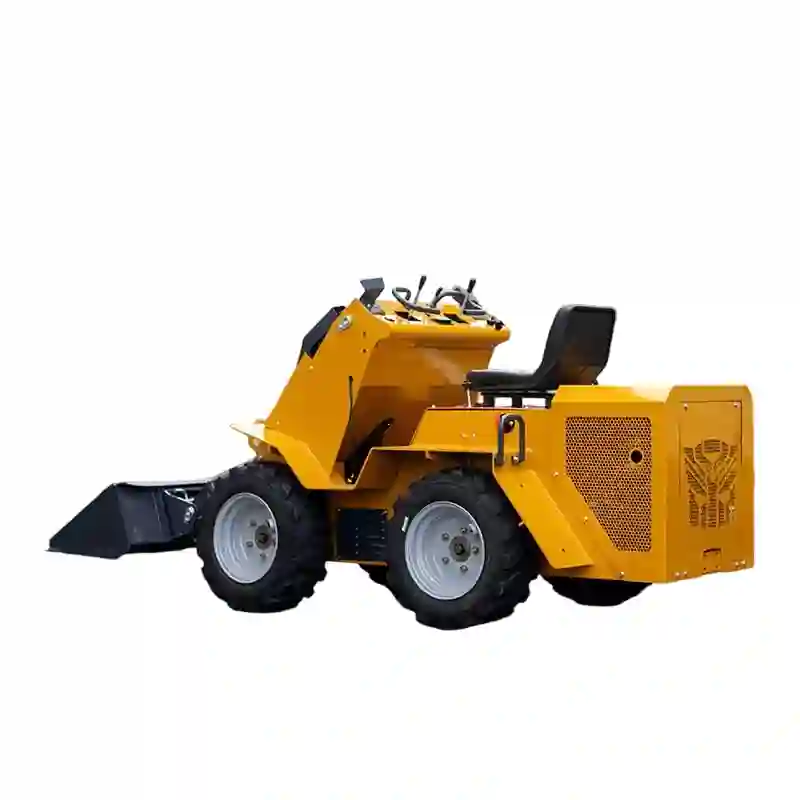

    S490 is available with 8kW electric or 15-19.2kW gasoline engine, which is powerful, energy-saving and environmentally friendly. The electric version utilizes a 72V/200Ah battery for long life, while the fuel version meets EURO5/EPA emission standards to satisfy environmental regulations. Low noise and low vibration design enhances operating comfort, suitable for indoor and outdoor work.

    Travel System: Wheeled vs. Crawler

    Wheeled skid steer (e.g. S490) Advantages: fast speed (0-6km/h), flexible steering, less ground damage, suitable for hard surfaces. Disadvantages: easy to slip on mud.
    Tracked Advantages: low ground pressure, strong off-road. Disadvantages: slow speed, high maintenance cost.
    S490 adopts 23×8.5-12 tires, taking into account mobility and low wear and tear, suitable for urban engineering, warehousing and logistics, and other high-frequency, short-distance operations.

    Operating system:open cabin & humanized control design

    The T750 adopts an open cab design, providing operators with more direct environmental awareness and natural ventilation, which is especially suitable for hot working environments and work scenarios that require frequent entry and exit. The advantages of its control system include:

    Environmental Adaptability Advantages

    Operators can more intuitively feel the working environment, and precisely control the position of the equipment.

    Natural ventilation avoids the problem of stifling heat in enclosed spaces, enhancing the comfort of summer operation.

    Simplified structural design reduces weight and maintenance costs.

    Intelligent control panel

    Adopting graphical instrument panel, the key parameters can be seen at a glance:
    – Engine speed icon shows real-time power status
    – Hydraulic temperature warning light to prevent system overheating
    – Fuel/electricity display is designed as a bar graph to visualize the remaining amount of fuel.

    Ergonomic control handle layout, frequently used functions at your fingertips.

    S490 Parameter Comparison and Market Positioning

    S490 Key Parameters:

    Dimensions (L×W×H): 2700×1100×1300mm

    Rated load: 250kg (max. 350kg)

    Engine: 8kW electric/15-19.2kW fuel oil

    Travel mode: wheeled (23×8.5-12 tires)

    Hydraulic pressure: 17-21bar

    Comparison with competitors (e.g. Bobcat S450):

    Bobcat S450: 18kW diesel, 340kg load, but 30% more expensive and bigger (1520mm wide).

    Wacker Neuson 803: electric version 7.5kW, 250kg load, but shorter range.

    S490 advantage:

    Cost-effective: dual electric/fuel option for those on a budget.

    Compact and flexible: 1100mm width to pass through narrow aisles, suitable for sheds and warehouses.

    Low maintenance cost: wheeled structure is more economical than tracked.

    Suitable for people:

    Small and medium-sized contractors, farmers, logistics centers users who need flexible loading and unloading.

    Areas with high environmental requirements (e.g. indoors, municipalities) prioritize the electric version.

    Working conditions that require versatile attachment compatibility.

    Conclusion: The S490 dominates the market segment with moderate load, compact size and low cost, making it the preferred choice for economical skid steer loaders.

    Product Parameters

    Item nameParametersItem nameParameters
    Engine brandElectric/koop/Runtong/B&SVehicle height1300mm
    Rated power8kw、72v、200ah/15/19.2/17kwLength with standard bucket2700mm
    Number of cylinders2Vehicle width(standard tire)1100mm
    Air intake wayNaturally AspiratedLength without standard bucket2300mm
    Emissions standardsEURO5/EPABucket width1050mm
    Rated operating capacity250KgTail length500mm
    Maximum operating capacity350KgHeight at maximum extension2530mm
    Maximum breakout force450KNHeight to the bucket pin1933mm
    Bucket capacity0.12m³Maximum height as lay the bucket flat1740mm
    Driving speed0-6km/hDumping height1400mm
    Total cycling time9sDischarge distance595mm
    System operating pressure17-21barWheelbase940mm
    Fuel tank capcity10LGround clearance180mm
    Operating weight1200KGThe flip angle of the bucket on the ground27°
    Wheel size23*8.5-12Bucket flip angle at highest position114°
