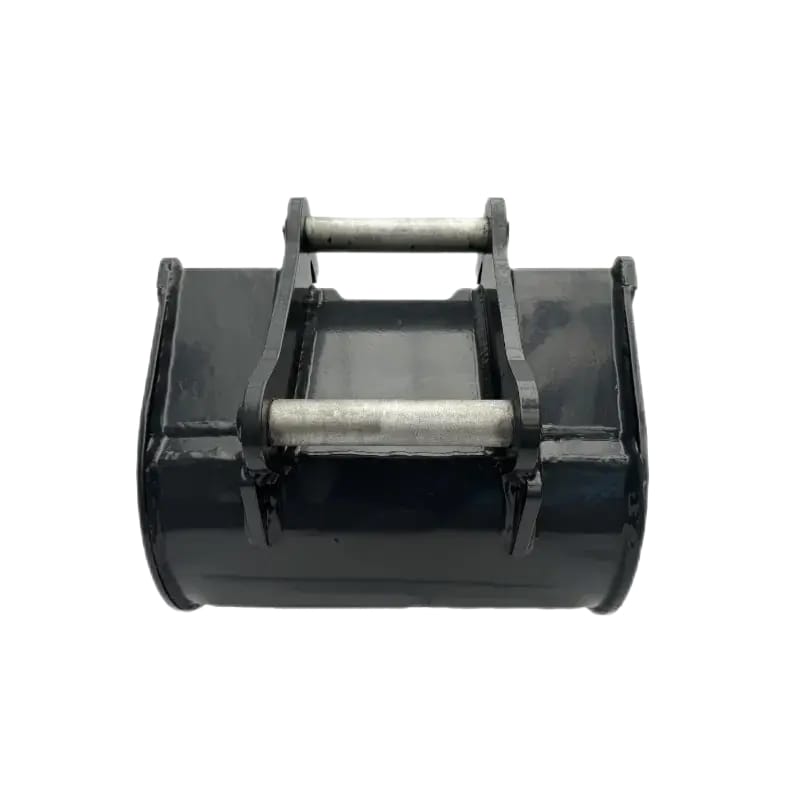

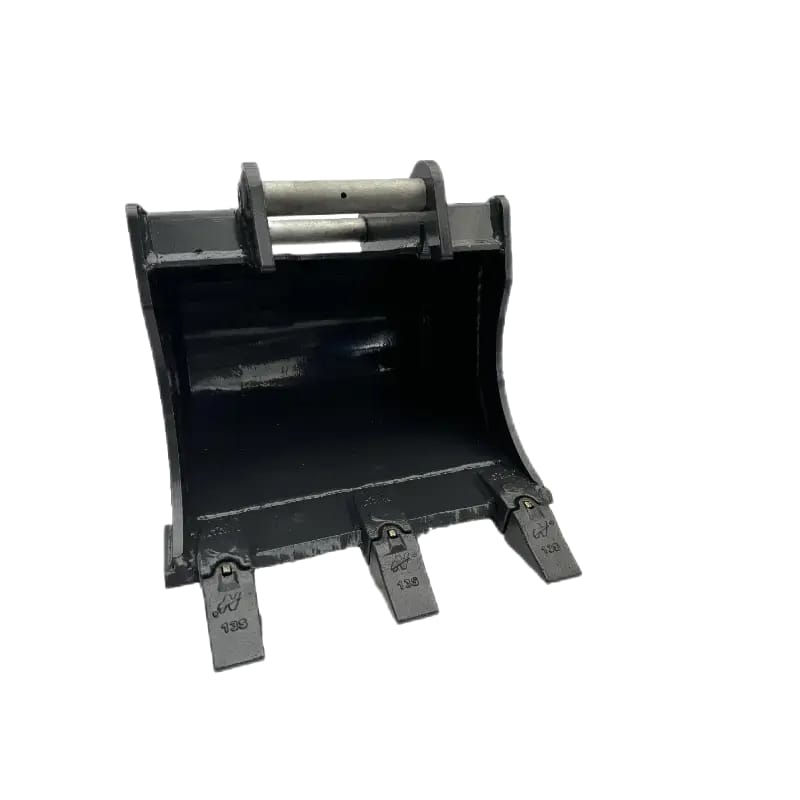

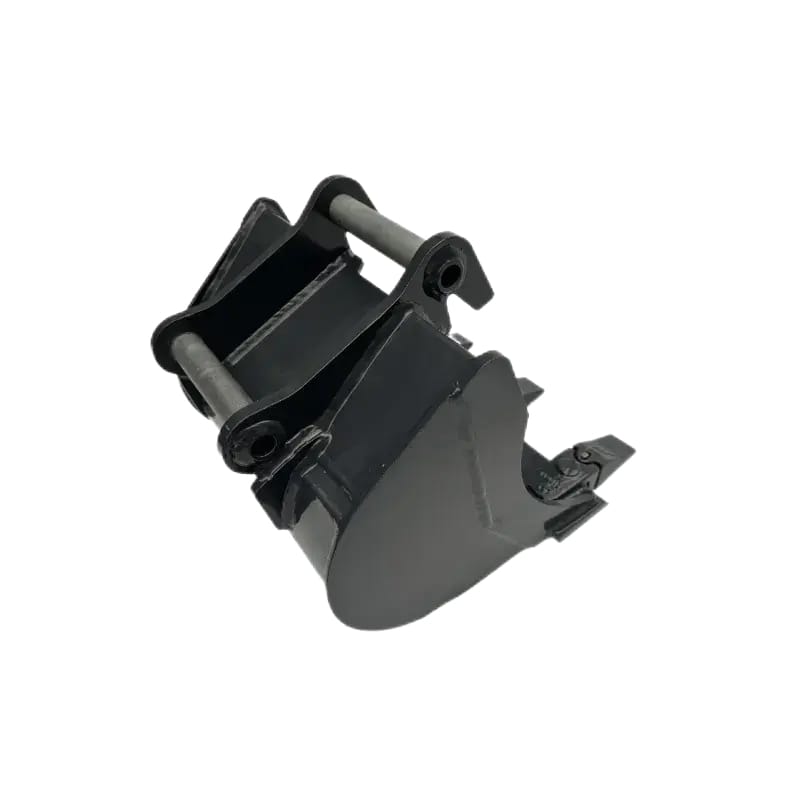

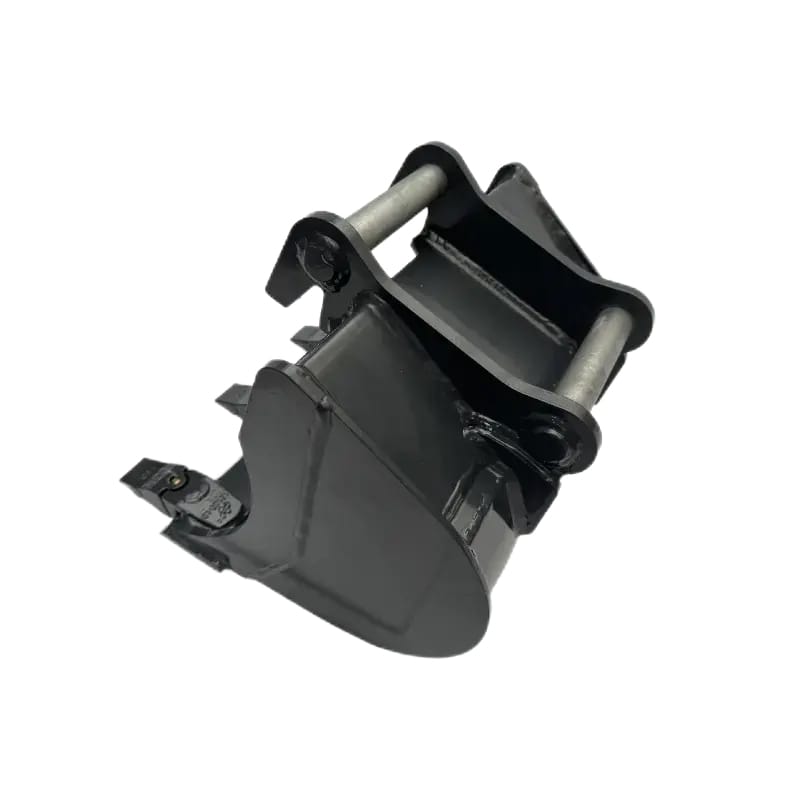

Bucket With Three Teeth mini excavator attachments
Bucket With Three Teeth mini excavator attachments
The three-tooth bucket design increases penetration power, allowing the mini excavator to dig faster and deeper in compacted soil or rocky ground. Each tooth focuses force into a narrow point, improving break-through capacity with less effort.
Quote Now
The ACE three-tooth digging bucket is a mini excavator attachment for excavation and material removal. Its teeth provide initial contact with the ground before material enters the bucket. Select the bucket according to the machine, working material and required excavation width, then confirm the mounting dimensions before ordering.
The number of teeth alone does not determine digging performance. Bucket width, capacity, geometry and the excavator’s capabilities must be considered together. Send your machine details and describe the job so our team can review the proposed configuration before preparing a quotation.
Choose a Bucket for the Excavation Task
A digging bucket is used to penetrate and remove material, while a grading bucket is selected for shaping and finishing surfaces. For trenching or general excavation, begin with the required cut width and ground conditions. A wider bucket may move more material per pass, but it also changes the demand on the machine.
Describe whether you are working in loose soil, compacted ground or mixed material. Do not select this bucket for rock or demolition work without an application review. For finishing tasks after excavation, consider our mini excavator grading bucket.
Product Information
| Item | Details |
|---|---|
| Brand | ACE |
| Product type | Three-tooth digging bucket for mini excavators |
| Warranty | 1 Year |
| Colour | Customised, subject to confirmation |
| Place of origin | Zhejiang, China |
| Bucket dimensions and capacity | Confirm the proposed specification before ordering |
| Machine compatibility | Subject to excavator and mounting checks |
Confirm Width, Capacity and Mounting Dimensions
Start with the excavation width needed for the job, then check the proposed bucket capacity and attachment weight against the excavator’s requirements. A bucket that fits the linkage is not automatically suitable for every material or working condition.
For the mounting check, provide both pin diameters, pin centre distance and mounting width. If a quick hitch is fitted, send its details and photographs of the connection. Measurements should follow a clear drawing or show exactly where they were taken.
| Information Required | What to Provide |
|---|---|
| Excavator | Make, model and operating weight |
| Working requirements | Required excavation width, material and intended task |
| Pin diameters | Measured diameter of both mounting pins |
| Pin centre distance | Distance between the centres of the mounting pins |
| Mounting width | Connection dimensions with photographs or a drawing |
| Quick hitch | Hitch model and connection details, if fitted |
Our mini excavator attachment compatibility checklist explains what to collect before requesting a quotation. Ask for the final bucket width, capacity, net weight and mounting dimensions to be confirmed in the technical specification.
Inspection and Maintenance
Follow the excavator and attachment instructions for installation and use. Check mounting security, tooth condition and the bucket structure before work. Stop using the attachment if teeth are loose, mounting parts are damaged or cracks are found.
Confirm the tooth mounting design and compatible replacement parts for the supplied bucket. Do not assume that teeth from another bucket will fit, even when their appearance is similar.
Frequently Asked Questions
Will this bucket fit my mini excavator?
Compatibility must be checked using your excavator model and mounting dimensions. Matching machine tonnage or pin diameter alone is not sufficient.
What bucket width should I choose?
Choose according to the required excavation width, material and machine capability. Review width together with capacity and attachment weight before confirming the order.
Are three teeth better than four teeth?
There is no universal answer. Tooth arrangement is one part of the bucket design. Compare the complete bucket specification and intended application rather than choosing by tooth count alone.
Can the teeth be replaced?
Ask our team to confirm the tooth mounting design and replacement procedure for the quoted configuration. Request the corresponding part details before ordering spares.
What warranty is provided?
This bucket has a 1-year warranty. Ask for the applicable coverage and exclusions before placing an order.
What do I need for a quotation?
Send your excavator model, required bucket width, working material, quantity and destination country. Mounting measurements or a drawing will help our team confirm the specification.
Request a Digging Bucket Quotation
Contact ACE Machinery with your machine details and excavation requirements for a compatibility review and quotation. Explore our mini excavator attachments for other tools used during excavation and finishing.
Product Parameters
| Brand Name | ACE |
| Suitable Excavator(ton) | 1.2ton, 1ton, 1.6ton |
| Max Jaw Opening | 500mm |
| Bucket type | Standard bucket |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Weight | 60 |
| Model Number | CX10-CX15 |
| Height | 360mm |
| Width | 1000mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Product name | swing bucket |
| Color | Customised |
| Quality | China OEM Parts |
| After Warranty Service | Spare parts |
| Packaging and delivery | |
| Selling Units: | Single item |
| Single package size: | 50X100X40 cm |
| Single gross weight: | 60.000 kg |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
