V1000 Skid Steer Loader | Compact Mini Skid Steer Loader for Sale
V1000 Skid Steer Loader | Compact Mini Skid Steer Loader for Sale
V1000 Skid Steer Loader is a compact mini skid steer loader with a 500 kg rated load and 650 kg maximum capacity, designed for construction, farming, and material handling.
Powered by a Yanmar / Kubota EPA & EURO 5 engine, it features vertical lift arms, hydraulic pilot control, and supports multiple attachments for efficient work in narrow job sites.
Quote Now
What Is a Skid Steer Loader?
A skid steer loader is a compact construction machine designed for loading, lifting, grading, and material handling. Thanks to its small size and ability to use multiple attachments, a skid steer loader is widely used in construction, agriculture, landscaping, and municipal projects.
V1000 Compact Skid Steer Loader Overview
The V1000 Skid Steer Loader is a compact mini skid steer loader engineered for high efficiency in narrow and demanding job sites. Featuring a vertical lift design, hydraulic pilot control, and reliable engine options, the V1000 delivers stable performance, excellent maneuverability, and strong lifting capacity for global markets.
Mini Skid Steer Loader Key Features

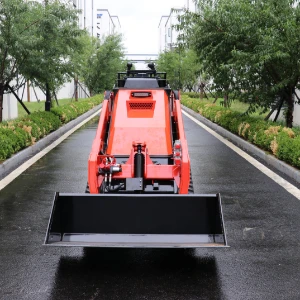

Compact Design for Narrow Job Sites
With a width of only 1235 mm and a minimum height of 1548 mm, the V1000 compact skid steer loader is ideal for confined spaces such as urban streets, farms, warehouses, and residential construction areas. Its compact footprint also makes transportation easy and cost-effective.

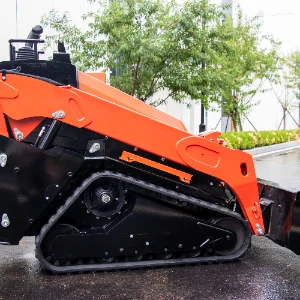

Vertical Lift Performance
The vertical lift arm structure provides improved lifting stability and higher dumping reach. The V1000 mini skid steer loader offers a rated operating load of 500 kg and a maximum load capacity of 650 kg, making it suitable for efficient loading, unloading, and stacking operations.

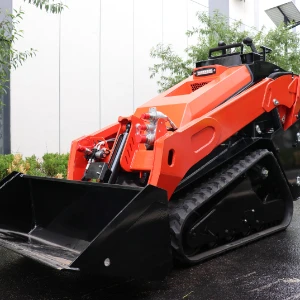

Hydraulic Pilot Control System
Equipped with a hydraulic pilot control system, the V1000 skid steer loader ensures smooth, precise, and responsive operation. This system reduces operator fatigue and improves working accuracy, even during long operating hours.

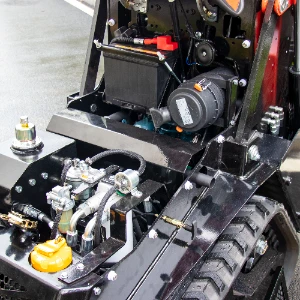

Reliable Engine with Global Emission Compliance
The V1000 skid steer loader is powered by a 3-cylinder Yanmar or Kubota engine, delivering stable power output and fuel efficiency. The engine complies with EPA and EURO 5 emission standards, making this compact skid steer loader suitable for Europe, North America, and other global markets.
Skid Steer Loader Attachments & Applications
Skid Steer Loader Attachments
The V1000 skid steer loader supports a wide range of skid steer loader attachments, including:
- Skid steer loader bucket
- Grapple bucket for skid steer loader
- Skid steer loader forks
- Bale spear for skid steer loader
- Grading attachment skid steer loader
- Backhoe attachment for skid steer loader
Skid Steer Loader Applications
This mini skid steer loader is widely used in:
- Construction and infrastructure projects
- Farming and agricultural operations
- Landscaping and gardening
- Municipal maintenance and street cleaning
- Industrial material handling
Skid Steer vs Track Loader
Compared with wheeled loaders, a tracked skid steer loader like the V1000 offers better traction and stability on soft, muddy, or uneven ground. This makes it a preferred choice for construction sites and outdoor applications where surface conditions vary.
Skid Steer Loader FAQ
Is the V1000 a mini skid steer loader?
Yes. The V1000 is classified as a compact mini skid steer loader, designed for narrow spaces and small to medium job sites.
What attachments can be used with this skid steer loader?
The V1000 supports buckets, forks, grapple buckets, bale spears, grading attachments, and backhoe attachments.
Is this skid steer loader suitable as an alternative to Bobcat or CAT?
The V1000 skid steer loader is designed as a cost-effective and reliable compact alternative, offering similar functionality with global compliance.
Is this skid steer loader for sale worldwide?
Yes. The V1000 skid steer loader is available for global markets and suitable for dealers, distributors, and project buyers.
Product Parameters
Technical Specifications of V1000 Skid Steer Loader
| Model | V1000 |
|---|---|
| Operating Weight | 1417 kg |
| Bucket Capacity | 0.19 m³ |
| Rated Load | 500 kg |
| Maximum Load | 650 kg |
| Maximum Breakout Force | 4.5 kN |
| Travel Speed | 0–4.5 km/h |
| Climbing Ability | 25° |
| Working System Pressure | 19.5 MPa |
| Bucket Width | 1235 mm |
| Max Loading Height | 1740 mm |
| Max Dumping Height | 1522 mm |
| Max Operating Height | 2794 mm |
| Ground Clearance | 200 mm |
| Overall Dimensions (L×W×H) | 2691 × 1235 × 1548 mm |
Engine Specifications
| Engine Brand | Yanmar / Kubota |
|---|---|
| Engine Model | 3TNV80 / D1105 |
| Rated Power | 17.8 / 18.5 kW |
| Cylinder | 3 |
| Emission Standard | EPA / EURO 5 |
| Fuel Tank Capacity | 40 L |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:

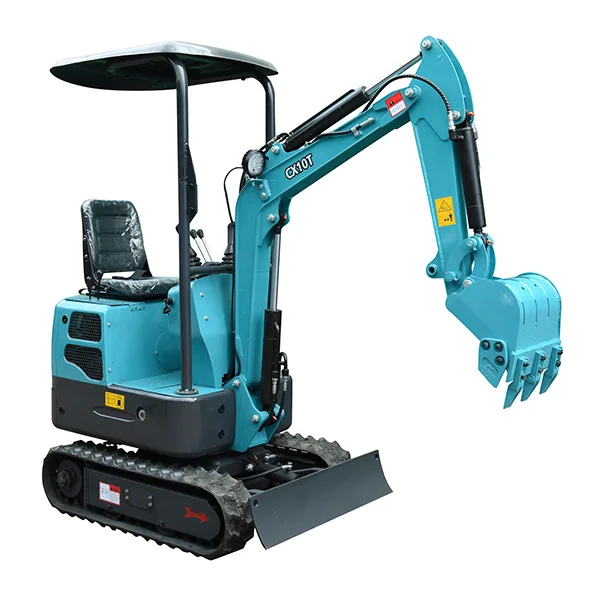

The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
