- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.
T490 Mini Crawler skid steer loaders yanmar Skid Steer Loader diesel gasoline engine
T490 Mini Crawler skid steer loaders yanmar Skid Steer Loader diesel gasoline engine

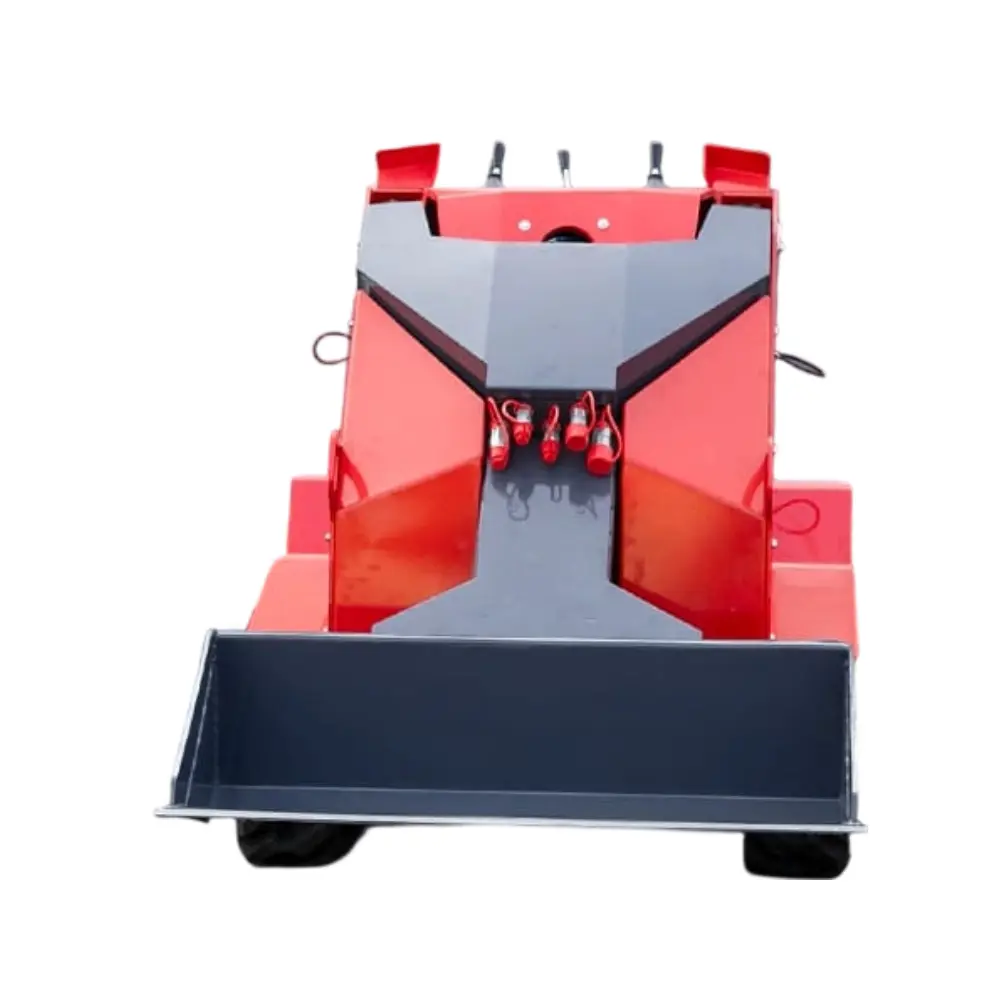

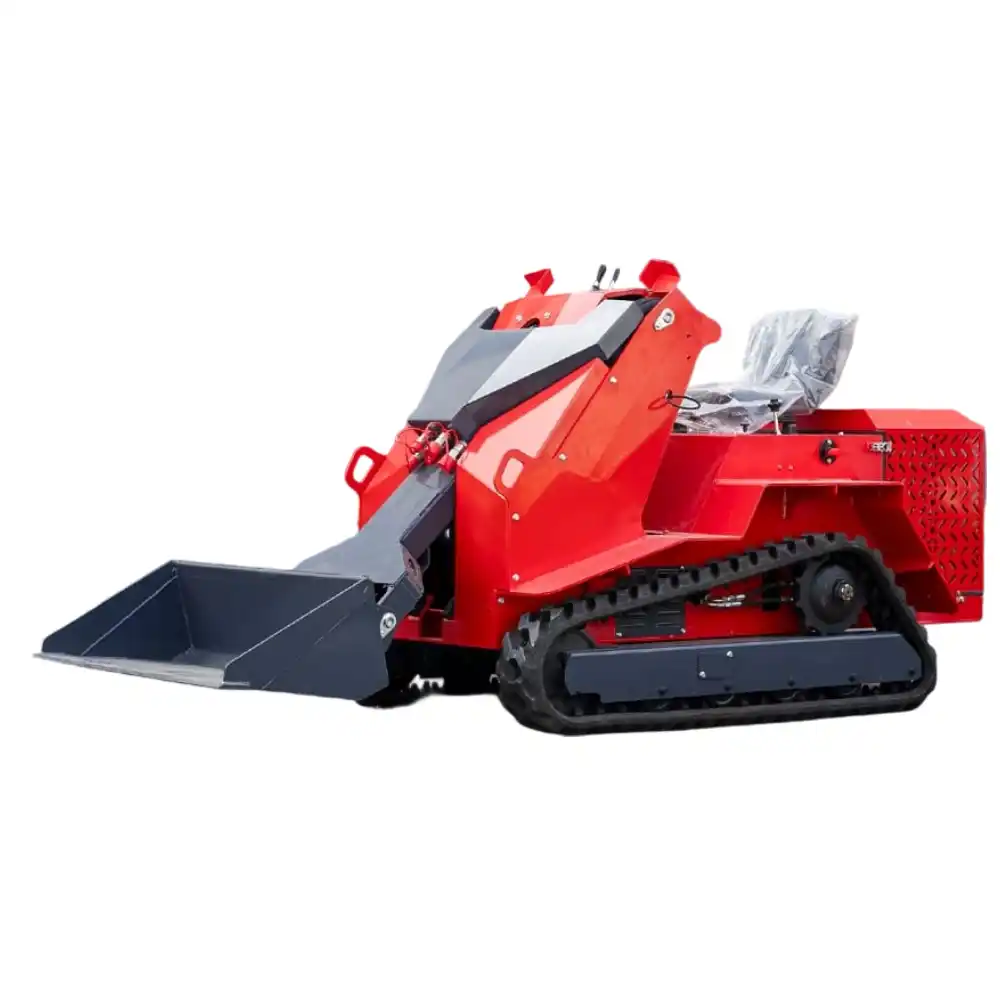

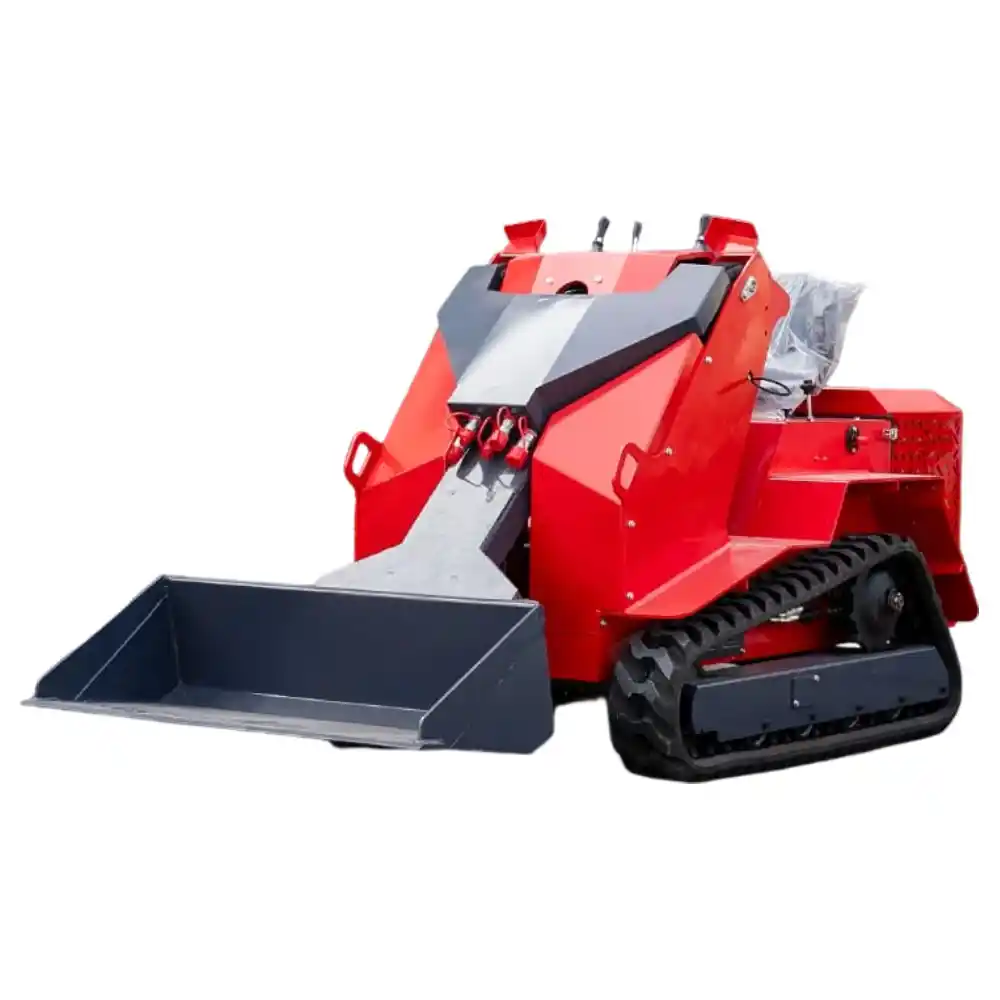

The T490 Skid Steer Loader is a compact, versatile machine with an 8kW electric or 15-19.2kW diesel engine, offering 250kg rated (350kg max) operating capacity. It features a 0.12m³ bucket, 450KN breakout force, and 0-6km/h speed, ideal for tight spaces. With 1300mm height and 1100mm width, it excels in maneuverability. Key specs include a 9s cycle time, 17-21bar operating pressure, and 230mm ground clearance. Its 2530mm max reach and 114° bucket flip enhance productivity. Weighing 1200kg, it’s built for efficiency in construction, agriculture, and landscaping. A robust, eco-friendly (EURO5/EPA) loader for diverse tasks.
Quote Now
Professional introduction of T490 skid steer loader
Product features and application value
T490 skid steer loader is known for its compactness and flexibility, with a body height of only 1,300mm and a width of 1,100mm, which makes it suitable for narrow space operation. Equipped with 0.12m³ standard bucket and 450KN maximum breakout force, the T490 skid steer loader can efficiently accomplish tasks such as earth moving, agricultural material handling and site cleaning. Its 250kg rated load (max. 350kg) and 6km/h travel speed balance efficiency and maneuverability, which is especially suitable for small projects, greenhouse work and municipal maintenance, providing users with cost-effective solutions.
Engine Advantages and Standards Compliance
T490 is available with either electric (8kW) or diesel power (15-19.2kW), and the naturally aspirated design reduces maintenance costs. The diesel version complies with EURO5/EPA emission standards, taking into account both environmental protection and power requirements. The 10L fuel tank capacity supports long-time operation and meets the energy efficiency requirements of small and medium-sized projects.
Comparison of travel system and wheeled advantage
Crawler type has large grounding area, which is suitable for soft ground but high cost; tire type is flexible in steering and does not damage the hard road surface. T490 adopts wheeled design, with 1350mm grounding length and 230mm ground clearance, which combines passability and low operating cost, and it is suitable for multi-scenario operation with frequent transitions.
Operating system:open cabin & humanized control design
The T750 adopts an open cab design, providing operators with more direct environmental awareness and natural ventilation, which is especially suitable for hot working environments and work scenarios that require frequent entry and exit. The advantages of its control system include:
Environmental Adaptability Advantages
Operators can more intuitively feel the working environment, and precisely control the position of the equipment.
Natural ventilation avoids the problem of stifling heat in enclosed spaces, enhancing the comfort of summer operation.
Simplified structural design reduces weight and maintenance costs.
Intelligent control panel
Adopting graphical instrument panel, the key parameters can be seen at a glance:
– Engine speed icon shows real-time power status
– Hydraulic temperature warning light to prevent system overheating
– Fuel/electricity display is designed as a bar graph to visualize the remaining amount of fuel.
Ergonomic control handle layout, frequently used functions at your fingertips.
Parameter Comparison and Target Groups
T490 key parameters: 1200kg weight, 9 seconds cycle time, 1740mm flat shovel height, compared with similar products (such as the Bobcat S450 with 1.3 tons weight and 8 seconds cycle time), the T490 performs better in the lightweight scenario. Its strengths lie in its low fuel consumption (zero emissions for the electric version), compact dimensions and fine workability thanks to the 27° bucket grounding angle, making it suitable for small contractors, farmers and municipalities that need an economical, versatile machine. In its price range, the T490 stands out for its high flexibility and low maintenance costs.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/koop/Runtong/B&S | Vehicle height | 1300mm |
| Rated power | 8kw、72v200ah/15/19.2/17kw | Length with standard bucket | 2700mm |
| Number of cylinders | 2 | Vehicle width(standard tire） | 1100mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 2300mm |
| Emissions standards | EURO5/EPA | Bucket width | 1050mm |
| Rated operating capacity | 250Kg | Tail length | 500mm |
| Maximum operating capacity | 350Kg | Height at maximum extension | 2530mm |
| Maximum breakout force | 450KN | Height to the bucket pin | 1933mm |
| Bucket capacity | 0.12m³ | Maximum height as lay the bucket flat | 1740mm |
| Driving speed | 0-6km/h | Dumping height | 1400mm |
| Total cycling time | 9s | Discharge distance | 595mm |
| System operating pressure | 17-21bar | Track contact with ground length | 1350mm |
| Fuel tank capcity | 10L | Ground clearance | 230mm |
| Operating weight | 1200KG | The flip angle of the bucket on the ground | 27° |
| Track model | 180*72*45 | Bucket flip angle at highest position | 114° |
Why Choose Us.
Customer’s Feedback
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
