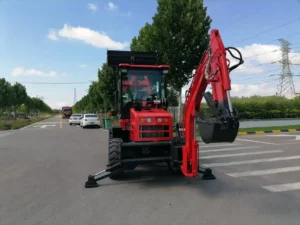

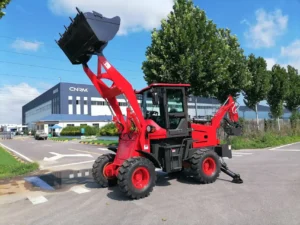

WZ10-20 Backhoe Loader
WZ10-20 Backhoe Loader
This product is suitable for small- and medium-sized earth excavation and material loading needs in small-scale construction, municipal maintenance, agricultural operations, garden projects, etc. It can replace the traditional “excavator + loader” combination and reduce equipment switching costs.
Quote Now
Product Parameters
| Model | WZ10-20 | |
| Overall dimensions | Overall dimensions (mm) | 5500*1750*2650 |
| Wheelbase (mm) | 2070 | |
| Track width (mm) | 1475 | |
| Minimum ground clearance (mm) | 250 | |
| Performance parameters | System pressure (MPa) | 16 |
| Machine weight (Kg) | 3400 | |
| Maximum speed (km/h) | 25 | |
| Maximum climbing ability (°) | 25 | |
| Minimum turning radius (mm) | 3500 | |
| Mining parameters | Maximum digging depth (mm) | 2000 |
| Digging and unloading height (mm) | 1800 | |
| Maximum digging radius (mm) | 2700 | |
| Bucket width (mm) | 400 | |
| Bucket capacity (m³) | 0.1 | |
| Maximum digging height (mm) | 3300 | |
| Maximum digging force (KN) | 25 | |
| Excavator rotation angle (°) | 180 | |
| Loading parameters | Maximum unloading height (mm) | 2800 |
| Maximum unloading distance (mm) | 800 | |
| Bucket width (mm) | 1800 | |
| Bucket capacity (m³) | 0.5 | |
| Maximum lifting height when loading (mm) | 3300 | |
| Maximum breakout force (KN) | 36 | |
| Shovel action time (S) | 12 | |
| Engine | Model | 490 |
| Type | Direct injection, four-stroke | |
| Rated power (KW) | 37 | |
| Rated speed (r/min) | 2400 | |
| Cylinder number-inner diameter | 4-90 | |
| Drivetrain | Gearbox | Fixed-axis power shift |
| Number of gears | 2 in front and 2 in back | |
| torque converter | ZL28F | |
| Steering system | Type | Articulated fully hydraulic steering |
| Steering angle (°) | 33 | |
| Tire | Specification | 20.5-16 |
| Front wheel air pressure (KPa) | 250 | |
| Rear wheel air pressure (KPa) | 250 | |
| Service brake | Oil brake drum brake | |
| Parking brake | Manual | |
| Oil volume | Fuel tank (L) | 30 |
| Hydraulic oil tank (L) | 30 | |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
