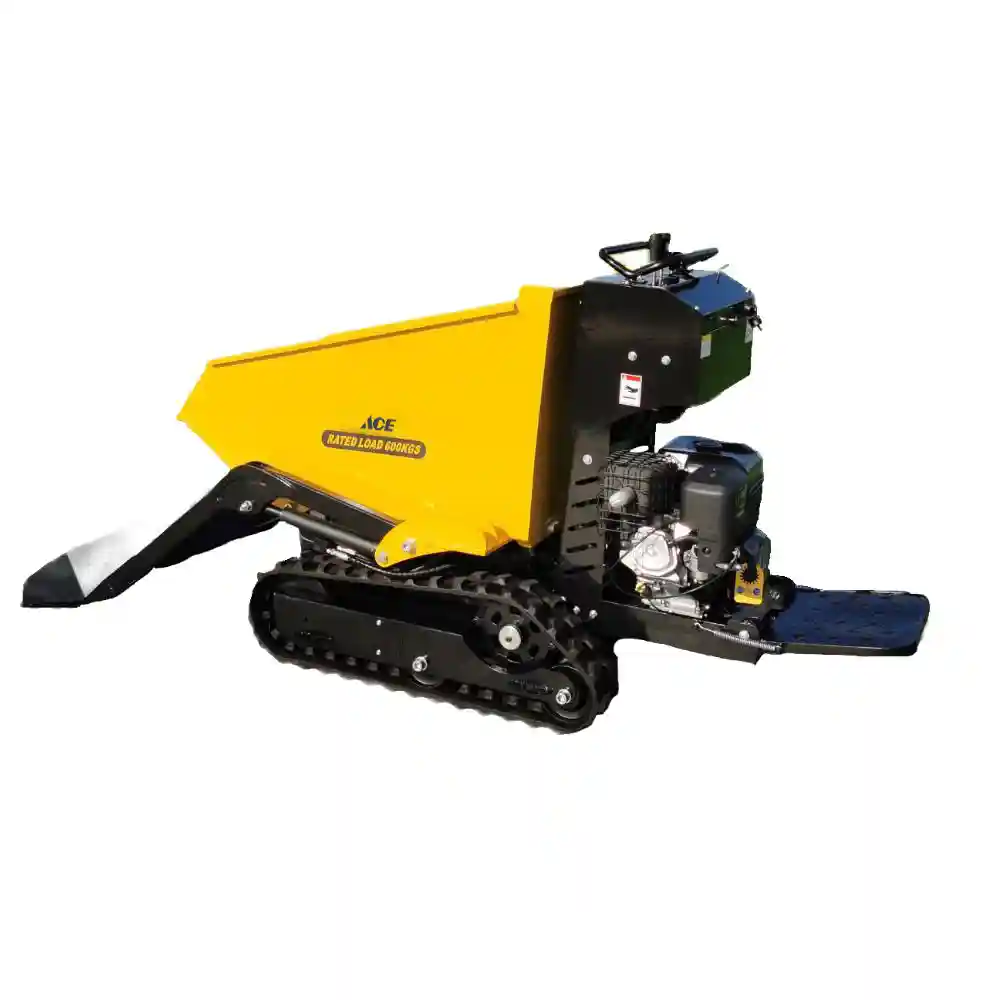

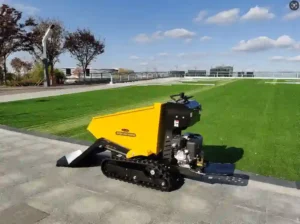

ACE BY600W Tracked Dump Truck
ACE BY600W Tracked Dump Truck
This model is hydraulic design and Track driven. The max loading weight is 600kgs . No lift function,can load it yourself.It’s powerful for tough outdoor sites, carrying bricks, sand, stones, wood, crops, fruits around various sites.
BY600W can safely carry 600kg,incredibly robust,beautiful appearance.We use similiar system of BY800, hydraulic transmission system,crawler design,stand-on stage,all make it easier to operate.And the crawler design make it suitable for complex site,whether construction site or mud field, BY600W can deal with it.
Quote Now
Product Introduction
The ACE BY600W compact skid steer loader combines high efficiency, durability, and versatility, designed specifically to meet the operational needs of complex outdoor sites. Its hydraulic design and tracked drive system set it apart from other loaders, making it a valuable asset in construction, agricultural production, and landscaping.
Key Parameters

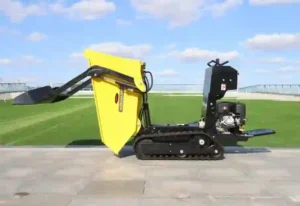

Load Capacity: Maximum load capacity of 600 kg, easily handling various heavy objects such as bricks, sand, stones, timber, crops, and fruits, meeting diverse loading needs.

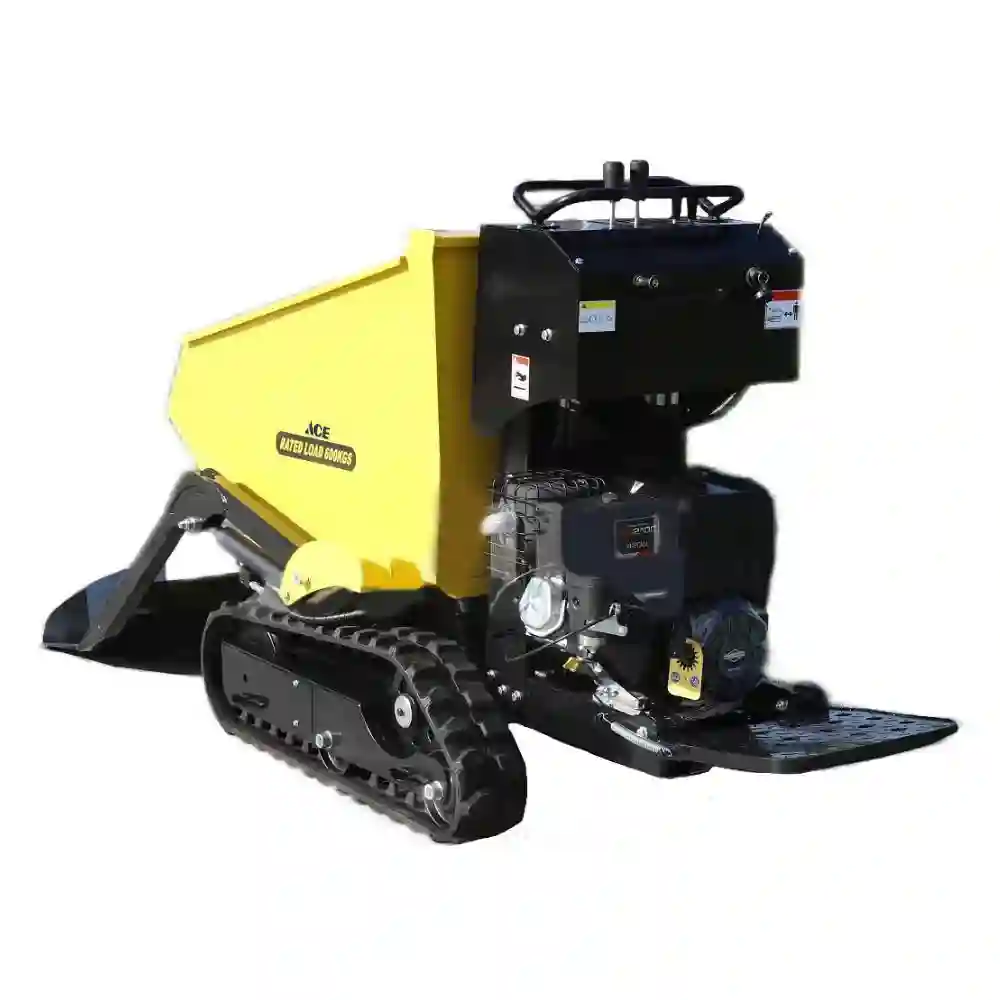

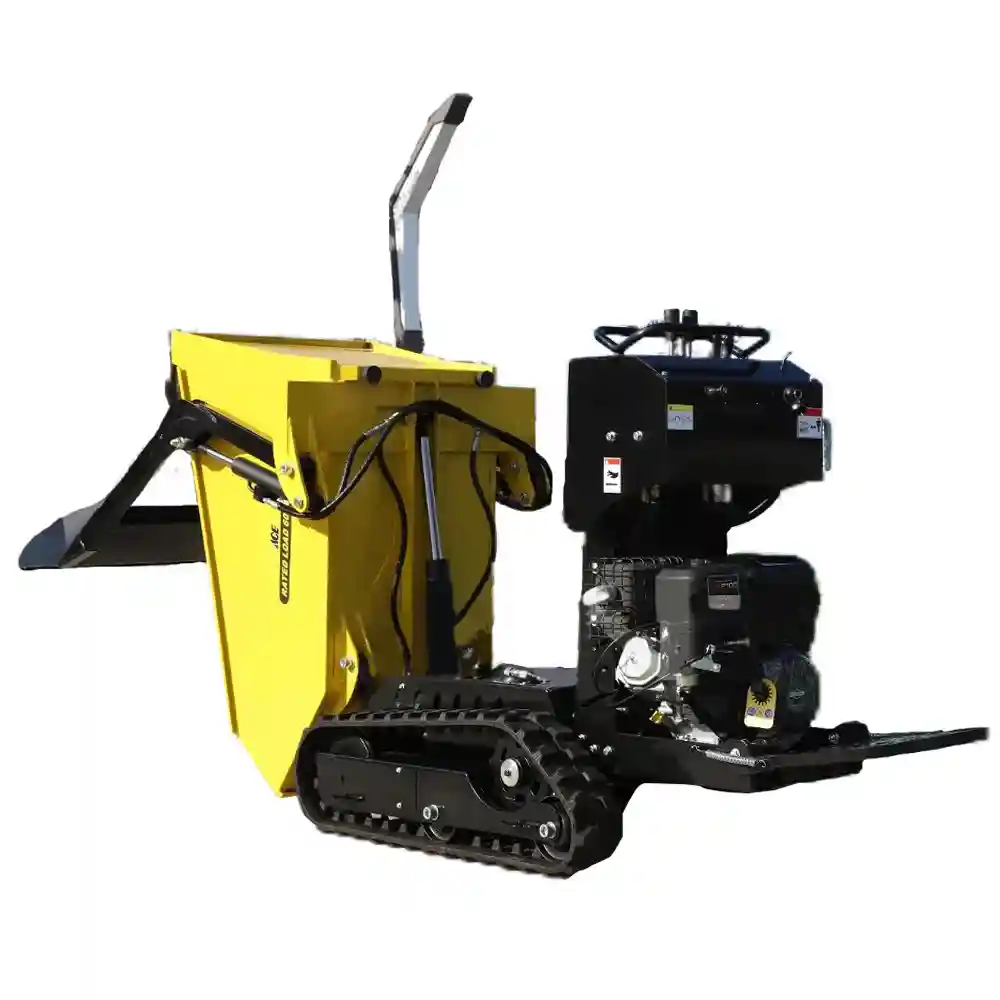

Power System: Equipped with a Briggs & Stratton or HONDA GX390 engine, providing powerful performance with 13.5 HP output. The 4-stroke design ensures stable and efficient operation.
Speed and Performance: With a travel speed of 3.5 km/h and a limited climbing ability of 25°, it can operate flexibly even on sloped terrain.
Dimensions: The overall dimensions are 1900*850*1300 mm. Its compact size allows it to maneuver freely in narrow spaces and adapt to various complex terrains.
Unique Design
Hydraulic System: Utilizes an advanced hydraulic transmission system, similar to the BY800, offering simple operation, sensitive response, and precise control of the loader’s movements.
Tracked Design: The tracked walking mechanism greatly enhances the loader’s traction on complex terrains, allowing it to handle rugged construction sites and muddy fields with ease.
Operating Experience: Equipped with a standing operating platform, dual shock-absorbing rubber handrails, and a four-spring linkage system, it effectively reduces vibration during operation, lowers operator fatigue, and improves work comfort.
Practical Functions:

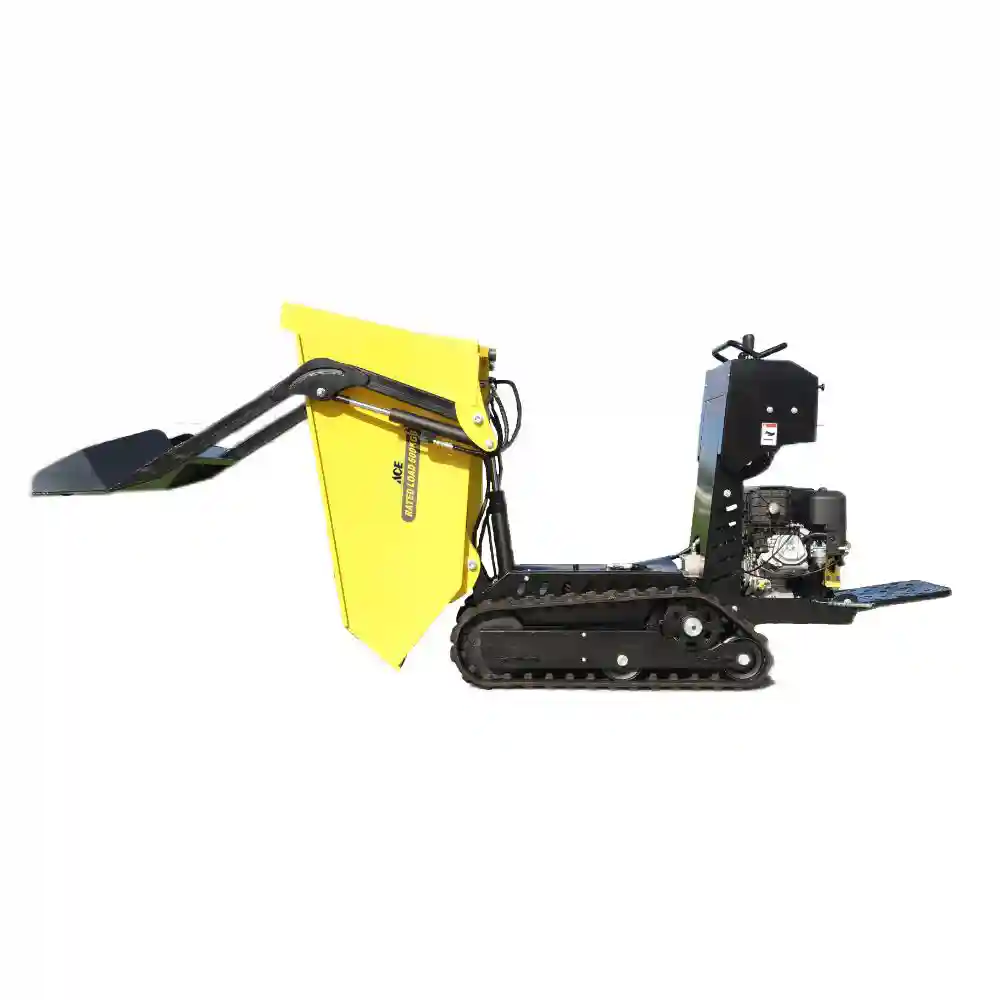

Self-Loading and Unloading: Featuring self-shoveling and self-unloading capabilities, it easily loads and unloads goods without the need for additional auxiliary equipment, improving work efficiency.
Multi-Scenario Applicability: Suitable for various industry scenarios such as goods handling in building material stores, farm supply transportation, small-scale household projects, construction, and agricultural production, meeting the needs of diverse users.
Product Parameters
| BY600W | |
| Brand Name | ACE |
| Type | Backhoe Loader |
| Engine Brand | Briggs & Stratton |
| Power | Other |
| Bucket capacity | 0.48cbm |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Machine Weight | 489 kg |
| Hydraulic Pump Brand | SAUER-DANFOSS |
| UNIQUE SELLING POINT | Long lifetime |
| Core Components | Engine, Gear, motor, Pump, Bearing |
| Moving Type | Crawler Loader |
| Dimension(Long * Breadth * High) | 1900*850*1300mm |
| Hydraulic Cylinder Brand | SAUER-DANFOSS |
| Hydraulic Valve Brand | SAUER-DANFOSS |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Brand | ACE |
| Product name | Small Skid Steer Loader |
| Model | BY600W |
| After-sales Service Provided | Video Technical Support |
| Drive type | Hydraulic |
| After Warranty Service | Online Suppor |
| Dimension | 1900*850*1300mm |
| Engine | B&S 13.5HP/HONDA GX390 13.5HP |
| Transmission | Hydraulic system |
| Drum material | Plastic-spray |
| Packaging and delivery | |
| Selling Units: | Single item |
| Single package size: | 205X95X160 cm |
| Single gross weight: | 565.000 kg |
| Specification | |
| BY600W | Hydraulic system |
| Engine | B&S 13.5HP /HONDA GX390 13.5HP, 4stroke |
| Transmission | Gear pump |
| Speed | 3.5km/h |
| Capacity | 600KG weight |
| Driven type | crawler driven |
| Limited grade ability | 25 |
| Weight | 489KG |
| Dimension | 1900*850*1300MM |
| self shovel | YES |
| Unloading | Self-unloading |
| Loading Capacity | 20GP |
| 40GP | |
| Warranty | 1 year or 3 years, depending on configuration. |
| Payment Term | T/T |
