- Imported engine, motor adopted to keep its quality stable.
- Small batch customization service is welcome.
- Complete machine warranty as long as 2 years.
- Multi-channel delivery of after-sales service via Youtube, Facebook and our global distributors.
- All excavators are fixed by wood strip in shipping in order not lead to any damage.

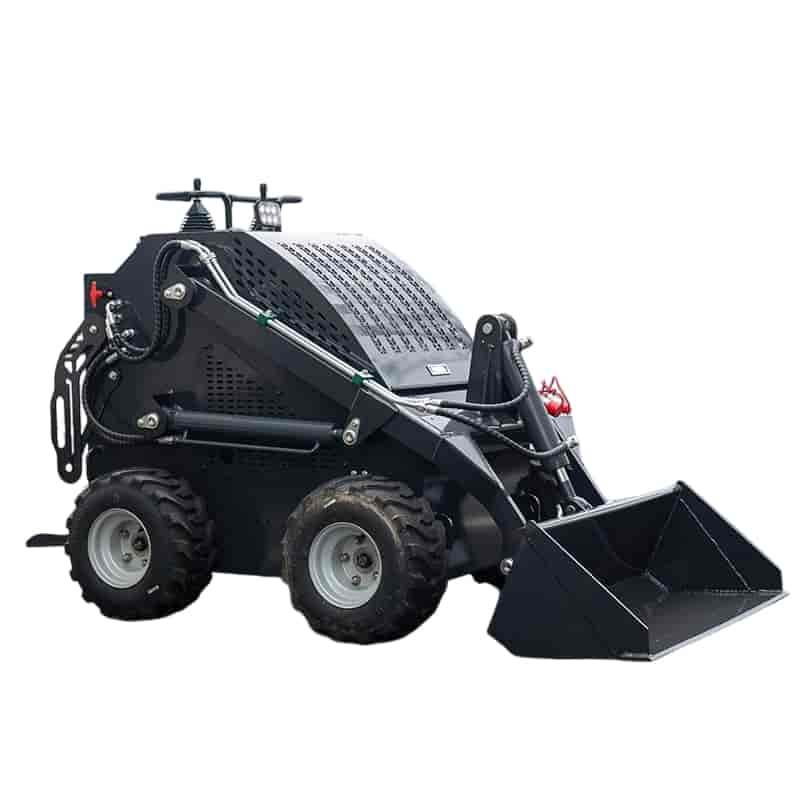

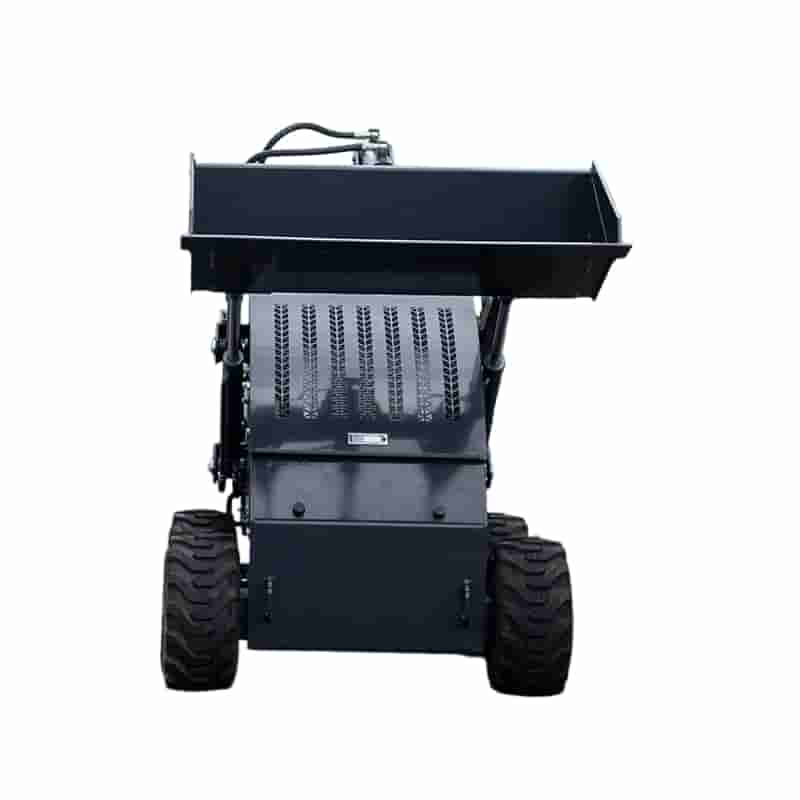

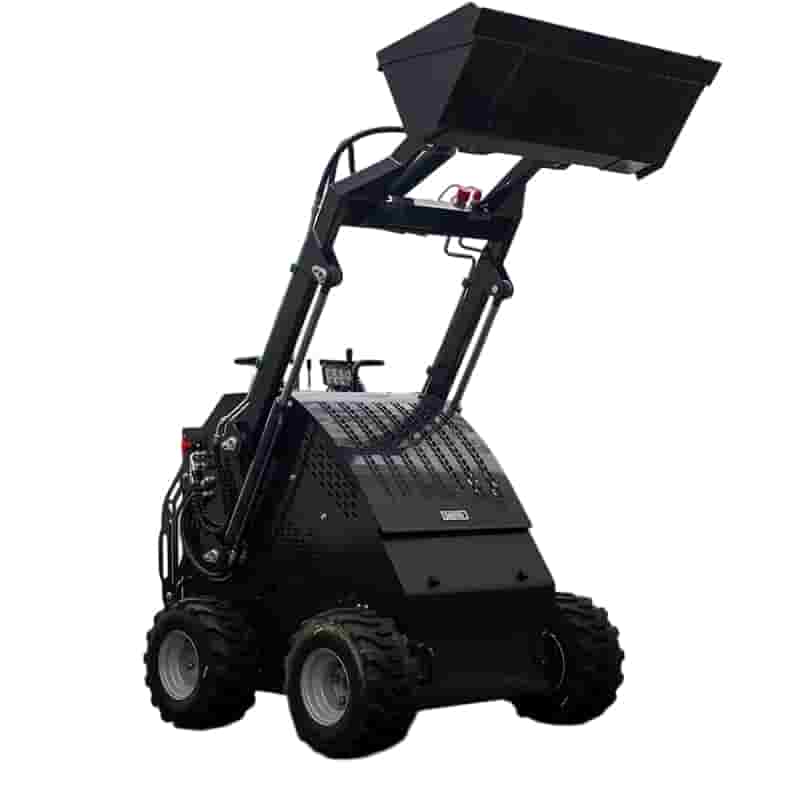

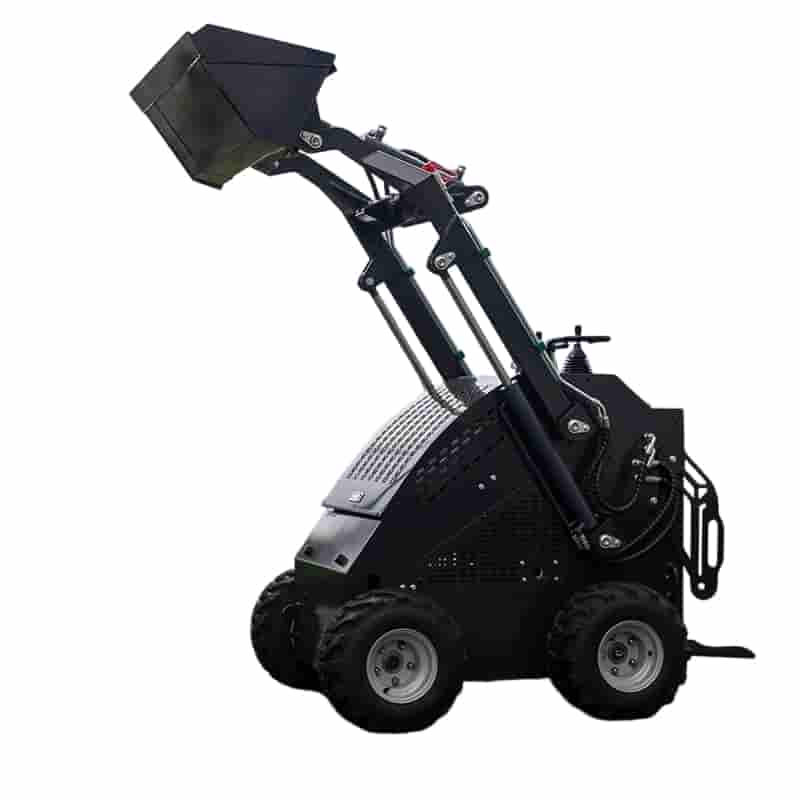

YZ-S460 mini skid steer loader mini skid steer wheel loader
YZ-S460 mini skid steer loader mini skid steer wheel loader
The S460 skid steer loader is a compact, high-performance machine ideal for small-scale construction and landscaping tasks. It features multiple engine options including electric and diesel, with rated power ranging from 8kW to 19.2kW. Designed for efficiency, it offers a 300kg rated operating capacity and a maximum breakout force of 4.5KN. With a bucket capacity of 0.12m³ and a total weight of 1200kg, the S460 ensures precise control, fast cycling time, and strong lifting capabilities, all within a narrow 1050mm frame for easy maneuverability.
Quote Now
Versatile Performance for Compact Workspaces
The S460 skid steer loader is engineered for efficiency in confined spaces, making it ideal for urban construction, landscaping, and agricultural tasks. Its compact dimensions—2140mm in length with the bucket and 1050mm in width—allow for easy maneuverability through narrow passages. With a rated operating capacity of 300kg and a maximum breakout force of 4.5KN, the S460 delivers reliable performance for material handling and site preparation. Its robust design ensures durability, while the intuitive controls enhance operator productivity, offering significant value to contractors and operators seeking a dependable, compact loader solution.
Engine Options Meeting Global Standards
The S460 offers a range of engine options, including electric, KOOP, Runtong, and B&S, with power outputs from 8kW to 19.2kW. These engines comply with EURO5 and EPA emission standards, ensuring environmentally friendly operation. The naturally aspirated engines provide reliable performance with low maintenance requirements, making them suitable for various applications while meeting international regulatory standards.
Wheel-Based Mobility for Enhanced Maneuverability
Skid steer loaders are available in both wheeled and tracked configurations. Tracked models offer superior traction on uneven terrain but can be more expensive to maintain. The S460 features a wheeled design, providing faster travel speeds and reduced ground disturbance, making it ideal for paved surfaces and indoor applications. Its 18*8.5-8 wheels contribute to its agility, allowing for quick turns and efficient operation in tight spaces.
Enclosed Cabin with Intuitive Controls
The S460’s enclosed cabin design offers protection against environmental elements, ensuring operator comfort in various weather conditions. This closed structure minimizes exposure to dust and noise, enhancing the working environment. The control system utilizes intuitive icons, simplifying operation and reducing the learning curve for new users. This user-friendly interface allows operators to quickly understand and manage the machine’s functions, leading to increased efficiency and reduced training time.
Competitive Specifications Tailored for Diverse Needs
The S460 boasts a rated operating capacity of 300kg and an operating weight of 1200kg, positioning it as a lightweight yet capable option in the skid steer loader market. Its compact dimensions—2140mm in length with the bucket and 1050mm in width—facilitate operation in confined spaces. When compared to models like the Bobcat S450, which has a rated operating capacity of 608kg and an operating weight of 2365kg, the S460 offers a more compact and lightweight alternative. This makes it particularly suitable for tasks requiring maneuverability and minimal ground impact, such as indoor construction, landscaping, and maintenance work. Its efficient design and compliance with international emission standards make the S460 an excellent choice for operators seeking a reliable, environmentally friendly, and versatile skid steer loader.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/koop/Runtong/B&S | Vehicle height | 1300mm |
| Rated power | 8kw、72v、200ah/15/19.2/17kw | Length with standard bucket | 2140mm |
| Number of cylinders | 2 | Vehicle width (standard tire) | 1050mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 1850mm |
| Emissions standards | EURO5/EPA | Bucket width | 1050mm |
| Rated operating capacity | 300Kg | Tail length | 500mm |
| Maximum operating capacity | 400Kg | Height at maximum extension | 2400mm |
| Maximum breakout force | 4.5KN | Height to the the bucket pin | 1870mm |
| Bucket capacity | 0.12m³ | Maximum height as lay the bucket flat | 1720mm |
| Driving speed | 0-6km/h | Dumping height | 1510mm |
| Total cycling time | 9s | Discharge distance | 250mm |
| System operating pressure | 17-21bar | Wheelbase | 800mm |
| Fuel tank capcity | 10L | Ground clearance | 110mm |
| Operating weight | 1200KG | The flip angle of the bucket on the ground | 27° |
| Wheel size | 18*8.5-8 | Bucket flip angle at highest position | 114° |
Why Choose Us.
Customer’s Feedback
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
