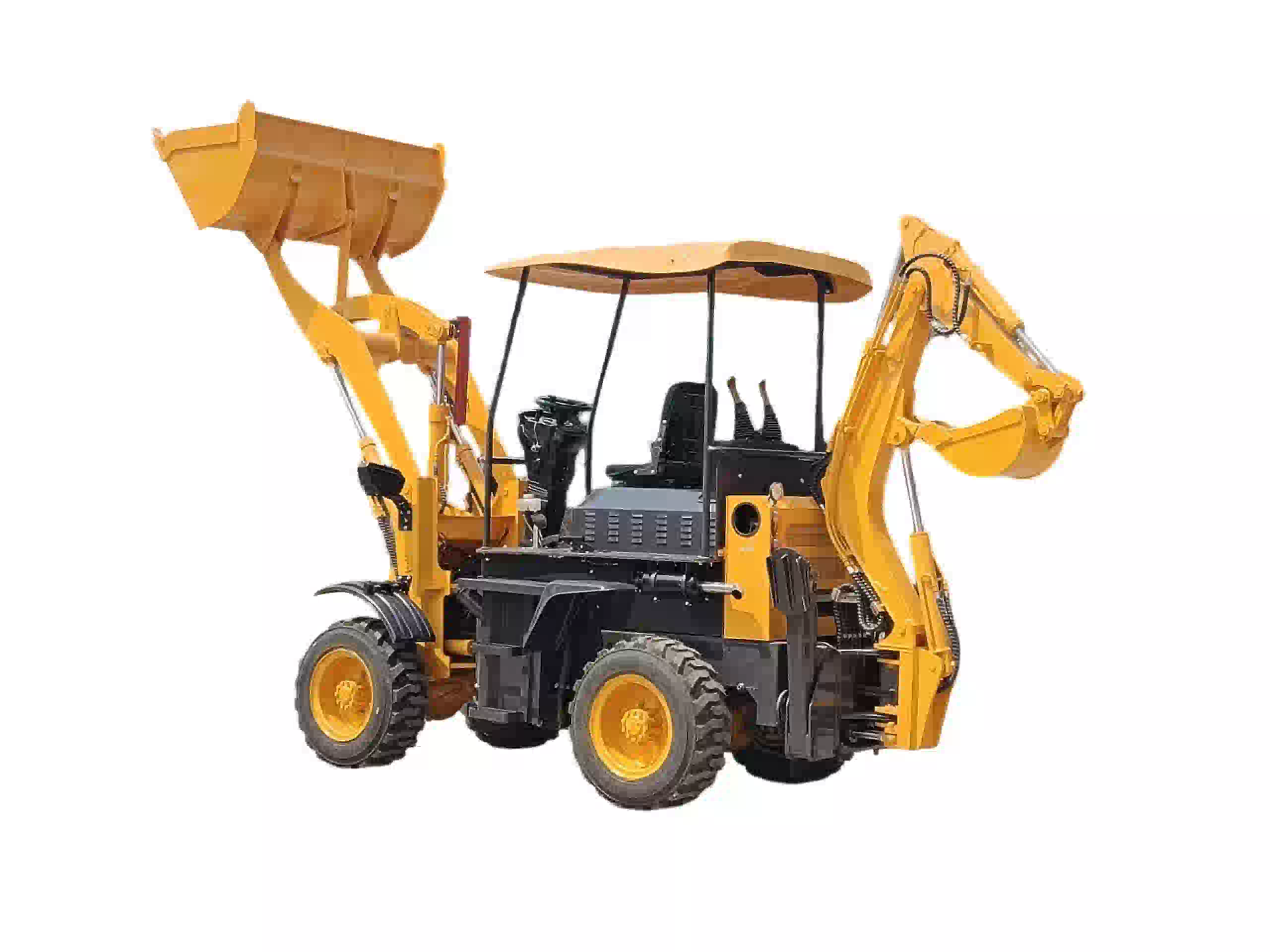

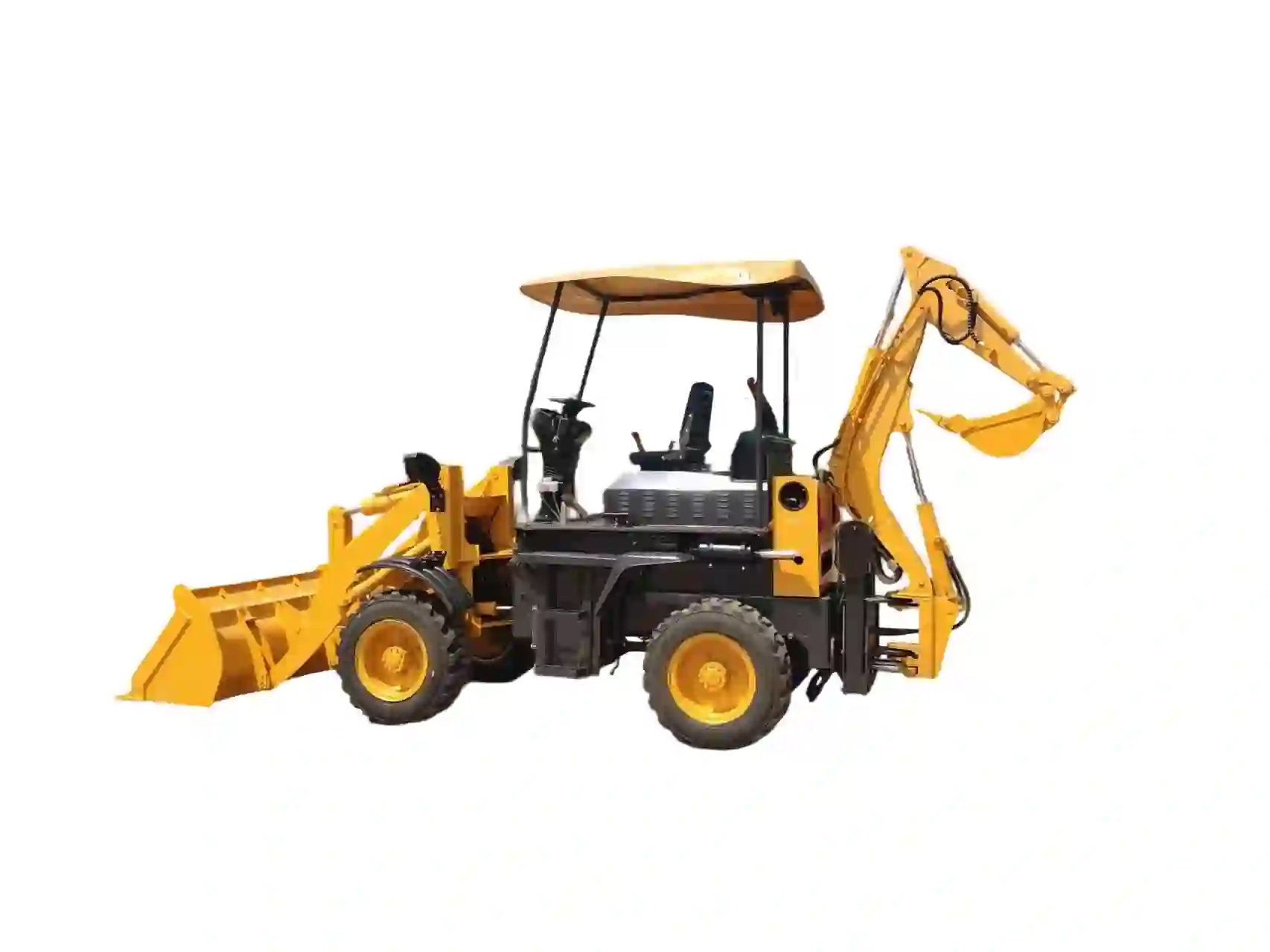

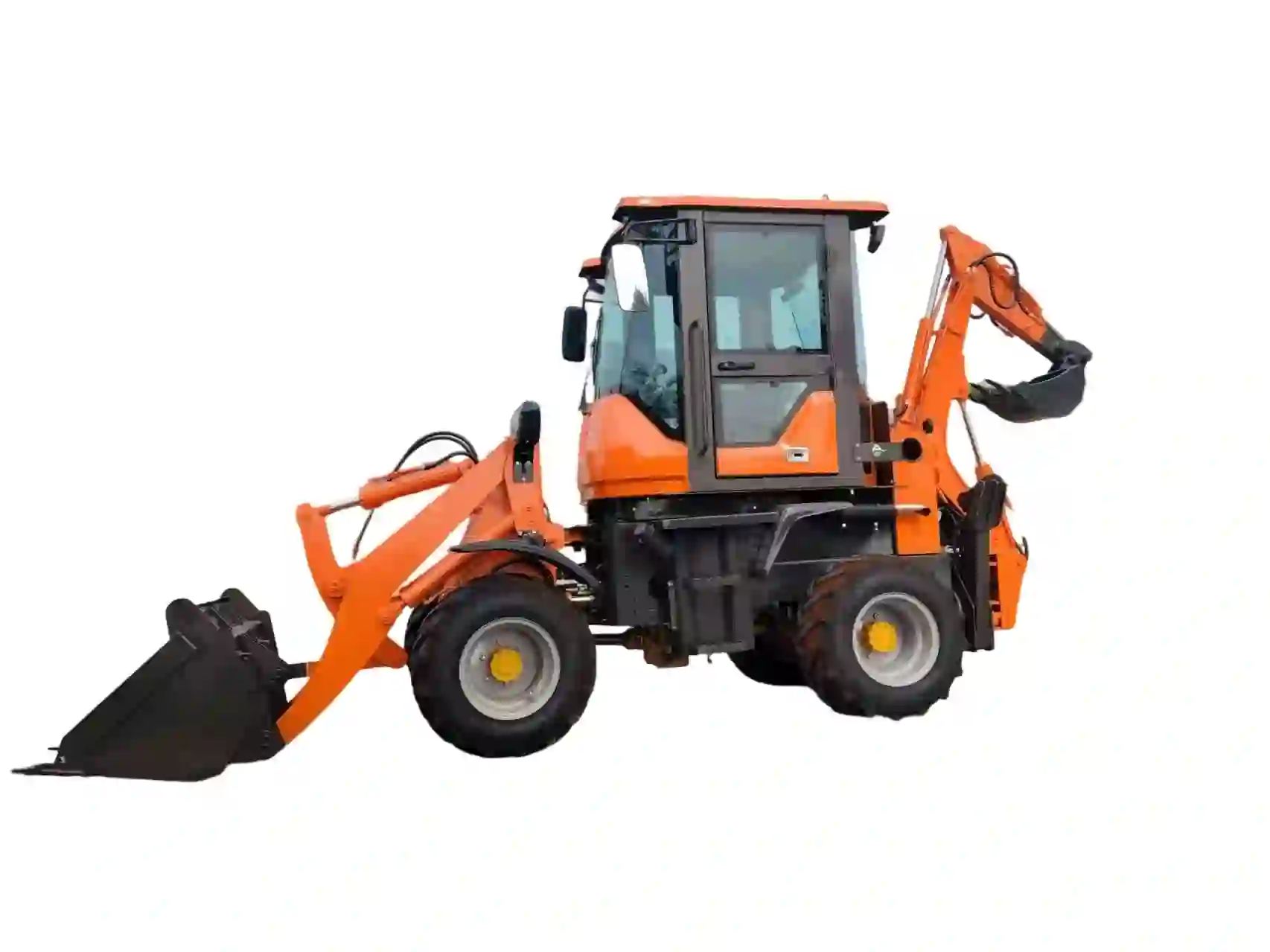

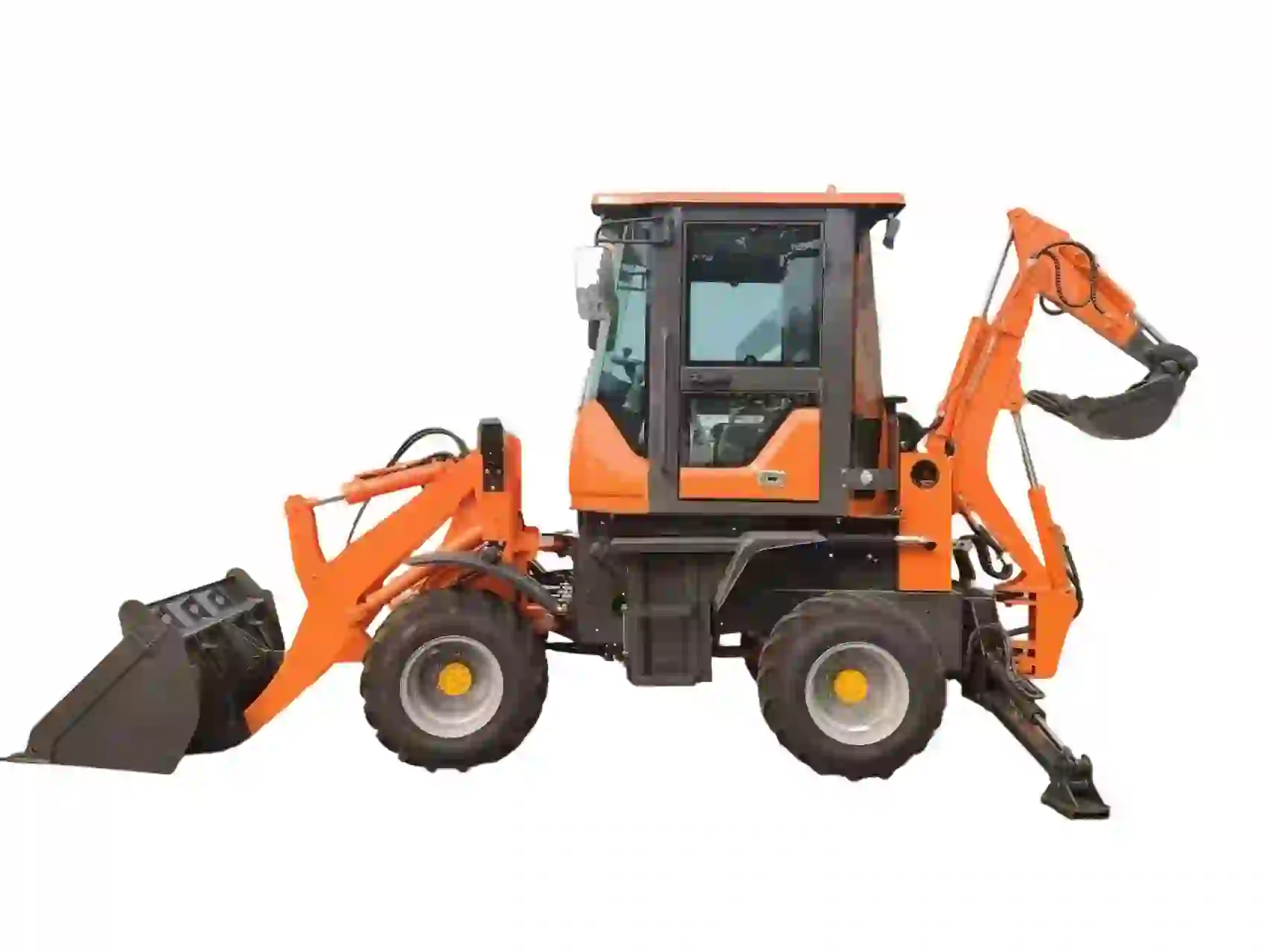

WZ08-12A Multi-functional Excavator Loader
WZ08-12A Multi-functional Excavator Loader
Our WZ08-12A multi-functional backhoe loader (commonly known as a “double-header”) is an innovative piece of equipment designed to improve engineering efficiency. It perfectly integrates front-end loading and rear-end digging functions, allowing for quick switching between different tasks. This compact yet powerful machine is ideal for operating in confined spaces and complex terrain, making it an ideal partner for municipal engineering, agricultural irrigation, and construction sites, significantly reducing equipment procurement costs and labor hours.
Quote Now
Core Product Advantages
Dual-purpose machine, high return on investment: One machine solves both loading and digging needs simultaneously, eliminating the need for frequent machine switching, greatly improving work efficiency and saving costs.
Powerful engine and superior performance: Equipped with a Yunnei YN25GB 37kW high-pressure common rail engine, providing continuous and stable power. It has a 25° climbing ability and a travel speed of 25 km/h, enabling rapid and flexible site relocation.
Excellent working capacity: With a maximum digging depth of 1450mm at the rear and a front-end loading bucket capacity of 0.3m³, it can easily handle both deep digging and large-scale material handling.
Compact and flexible with excellent maneuverability: With a width of only 1.4 meters and a minimum turning radius of 3.2 meters, it is ideal for operation in space-constrained construction sites, orchard greenhouses, and urban streets.
Safe operation and easy maintenance: Utilizing a mature fixed-axis power shift gearbox and an articulated full hydraulic steering system, operation is effortless, key components are easy to maintain, and high uptime is guaranteed.
Applicable Scenarios
Municipal Engineering: Excavation and backfilling of urban utility trenches; transportation of road repair materials.
Agricultural Irrigation: Dredging, pit digging, and small-scale earthwork transportation.
Construction Sites: Foundation excavation, site leveling, and construction waste removal.
Landscaping: Land leveling and tree pit digging.
Emergency Rescue: Rapid excavation and obstacle clearing in confined spaces.
Product Parameters
| Model | WZ08-12A | |
| Overall dimensions | Overall dimensions (mm) | 4400*1400*2550 |
| Wheelbase (mm) | 1960 | |
| track width (mm) | 1130 | |
| Minimum ground clearance (mm) | 250 | |
| Performance parameters | System pressure (MPa) | 16 |
| Machine weight (Kg) | 2400 | |
| Maximum speed (km/h) | 25 | |
| Maximum climbing ability (°) | 25 | |
| Minimum turning radius (mm) | 3200 | |
| Mining parameters | Maximum digging depth (mm) | 1450 |
| Digging and unloading height (mm) | 1800 | |
| Maximum digging radius (mm) | 2600 | |
| Bucket width (mm) | 400 | |
| Bucket capacity (m³) | 0.08 | |
| Maximum digging height (mm) | 2300 | |
| Maximum digging force (KN) | 25 | |
| Excavator rotation angle (°) | 180 | |
| Loading parameters | Maximum unloading height (mm) | 2300 |
| Maximum unloading distance (mm) | 750 | |
| Bucket width (mm) | 1300 | |
| Bucket capacity (m³) | 0.3 | |
| Maximum lifting height when loading (mm) | 2800 | |
| Maximum breakout force (KN) | 36 | |
| Shovel action time (S) | 12 | |
| engine | model | Yunnei YN25GB |
| Type | Direct injection, four-stroke | |
| Rated power (KW) | 37 | |
| Rated speed (r/min) | 2400 | |
| Cylinder number-inner diameter | 4-90 | |
| Drivetrain | gearbox | Fixed-axis power shift |
| Number of gears | 2 in front and 2 in back | |
| torque converter | ZL28F | |
| Steering system | Type | Articulated fully hydraulic steering |
| Steering angle (°) | 33 | |
| tire | Specification | 10-16.5 |
| Front wheel air pressure (KPa) | 250 | |
| Rear wheel air pressure (KPa) | 250 | |
| Service brake | Oil brake drum brake | |
| parking brake | Manual | |
| Oil volume | Fuel tank (L) | 25 |
| Hydraulic oil tank (L) | 25 | |
