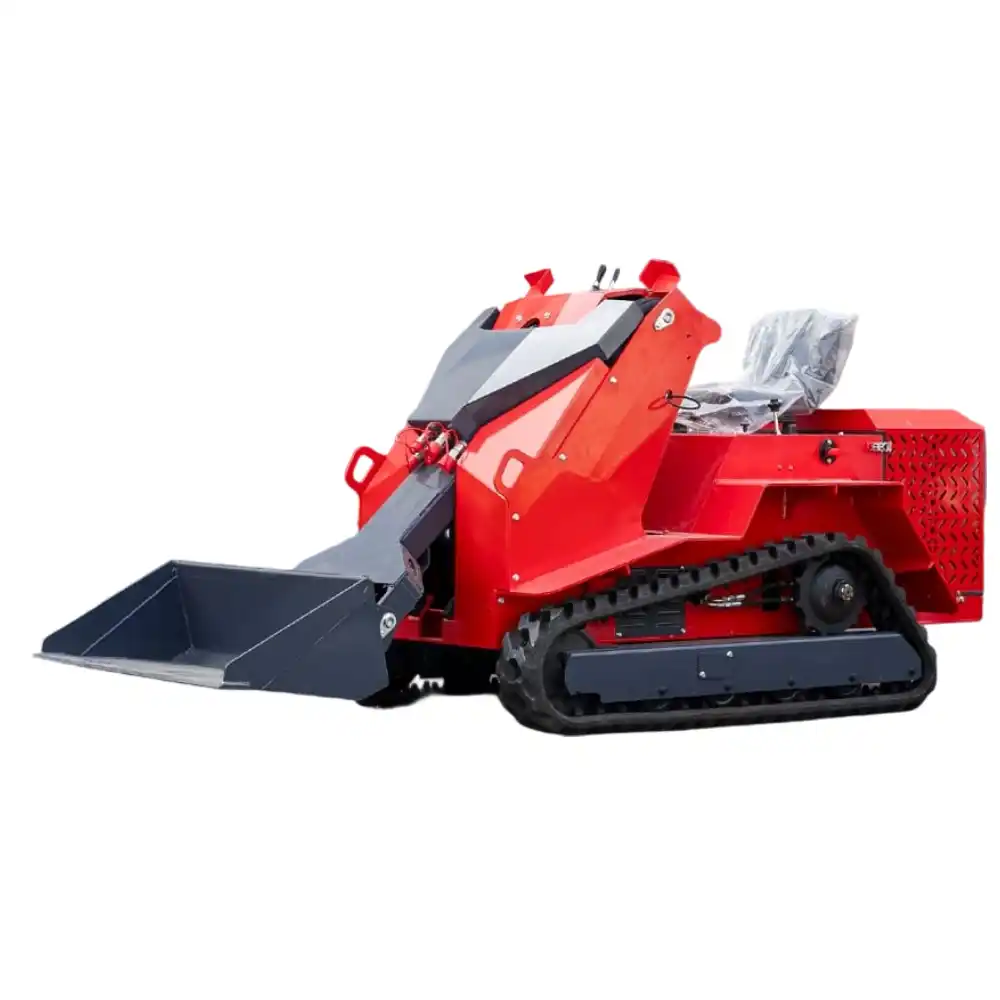

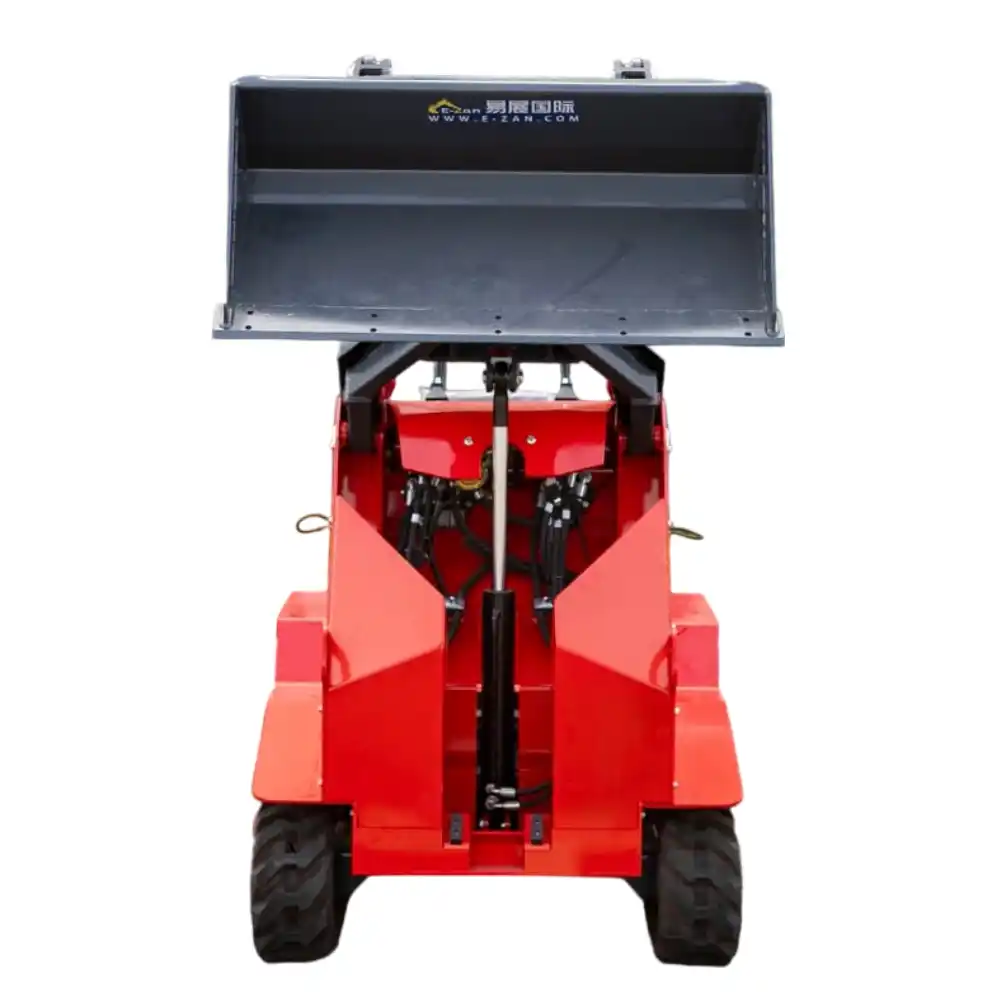

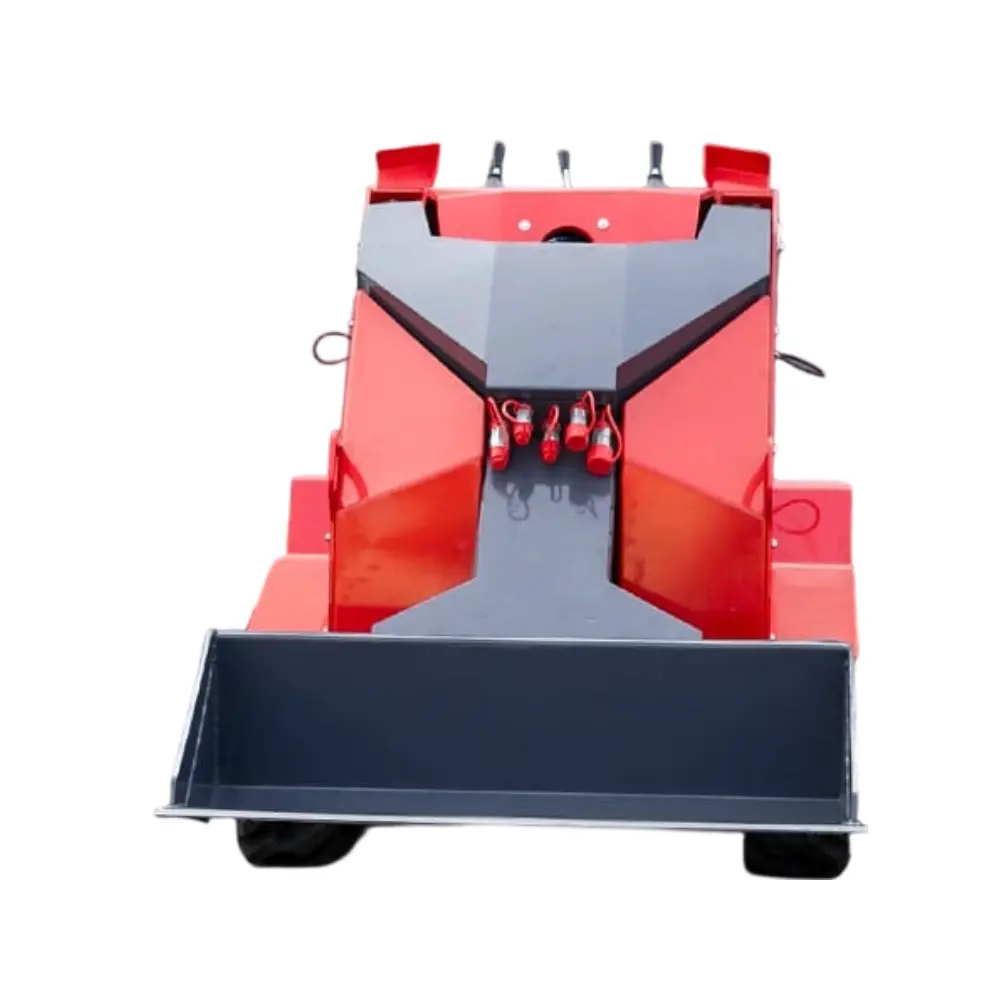

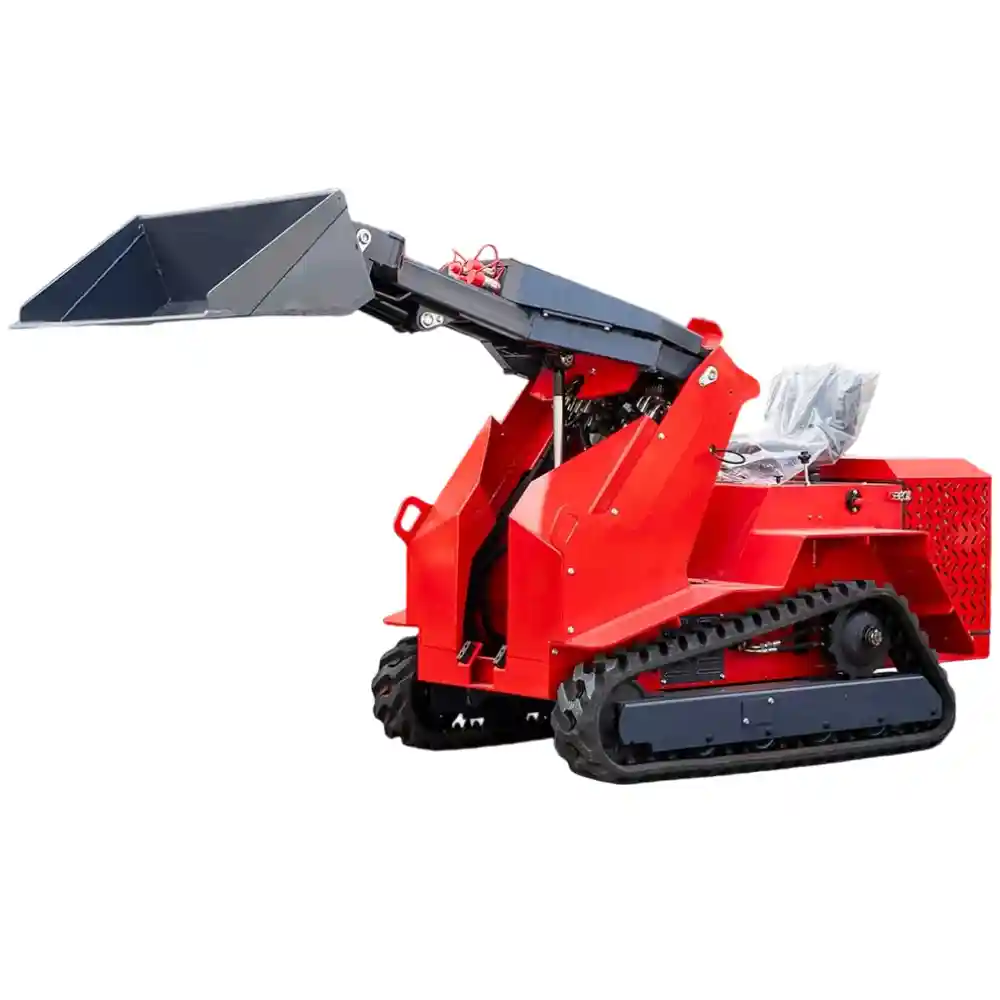

T490 Newest Design Skid Steer wheel Loader Mini Small Skid Steer Loader
T490 Newest Design Skid Steer wheel Loader Mini Small Skid Steer Loader
Powered by reliable engine options (Electric, Koop, Runtong, or B&S) with up to 19.2kW, it delivers a rated load capacity of 250kg (max 350kg), strong 450kN breakout force, and a 0.12m³ bucket. With a narrow 1100mm width, low 1300mm height, and smooth 0-6km/h driving speed, this best mini skid steer loader offers excellent maneuverability, quick 9-second cycle times, and compliance with EURO5/EPA standards. Ideal for landscaping, construction, and agricultural tasks, the T490 stands out among skid steer loader brands as a powerful, durable, and affordable mini skid steer loader for sale.
Quote Now
T490 Newest Design Skid Steer Loader Mini Small Skid Steer Loader
As one of the leading skid steer loader brands, this mini skid steer loader for sale combines a powerful engine from options like Electric, Koop, Runtong, or B&S with rated power up to 19.2kW, ensuring reliable operation under EURO5 and EPA emission standards. Featuring a naturally aspirated two-cylinder design, the T490 offers a rated operating capacity of 250kg and a maximum of 350kg, with a breakout force of 450kN and a bucket capacity of 0.12m³, making it the best mini skid steer loader for efficient material handling. Its driving speed reaches 0-6km/h, with a total cycling time of just 9 seconds and system pressure between 17-21bar.
Applications
- Landscaping and gardening tasks requiring a compact skid steer loader for soil moving and planting.
- Construction sites for material handling with the best mini skid steer loader in confined areas.
- Agricultural operations using a mini skid steer loader for sale to manage feed and waste efficiently.
- Warehouse and industrial environments where skid steer loader brands provide versatile lifting and transporting.
- Snow removal and maintenance with a small skid steer loader compliant with European standards.
Product Advantages and Features
- Powerful Engine Options: Choose from Electric, Koop, Runtong, or B&S engines with up to 19.2kW power, making it one of the best mini skid steer loader for heavy-duty tasks.
- Compact Design: With a vehicle width of 1100mm and height of 1300mm, this compact skid steer loader navigates tight spaces effortlessly.
- High Capacity and Force: 350kg maximum operating capacity and 450kN breakout force ensure robust performance among skid steer loader brands.
- Efficient Operation: Quick 9-second cycling time and 0-6km/h speed for productive workflows in a mini skid steer loader for sale.
- Advanced Reach: Maximum extension height of 2530mm and dumping height of 1400mm for versatile applications.
Why Choose Our Skid Steer Loader?
When selecting from skid steer loader brands, the T490 stands out as the best mini skid steer loader due to its blend of innovation, reliability, and compliance with European regulations. This compact skid steer loader offers exceptional value as a mini skid steer loader for sale, with customizable engine options and emission standards meeting EURO5 and EPA requirements. Its durable construction, low operating weight of 1200kg, and user-friendly features like automatic controls reduce fatigue and enhance safety. Backed by superior engineering, the T490 ensures minimal downtime and cost-effective maintenance, making it the ideal choice for professionals across the EU seeking a high-performance small skid steer loader.
Tags: skid steer loader, compact skid steer loader, mini skid steer loader for sale, skid steer loader brands, best mini skid steer loader, small skid steer loader, T490 loader, EURO5 compliant loader, versatile mini loader
FAQ
What engine options are available for the T490 skid steer loader?
The T490 offers versatile engine brands including Electric, Koop, Runtong, or B&S, with rated power options up to 19.2kW, ensuring it fits various needs among skid steer loader brands.
What is the operating capacity of this compact skid steer loader?
The rated operating capacity is 250kg, with a maximum of 350kg, making it a reliable choice for the best mini skid steer loader in demanding tasks.
Does the T490 mini skid steer loader for sale meet European emission standards?
Yes, it complies with EURO5 and EPA standards, providing an eco-friendly solution for users across Europe.
What are the dimensions of this small skid steer loader?
The vehicle height is 1300mm, width 1100mm, and length with bucket 2700mm, ideal for compact operations in tight spaces.
How does the T490 perform in terms of speed and cycling time?
It achieves a driving speed of 0-6km/h and a total cycling time of 9 seconds, enhancing efficiency as one of the top skid steer loader brands.
Product Parameters
| Item name | Parameters | Item name | Parameters |
| Engine brand | Electric/koop/Runtong/B&S | Vehicle height | 1300mm |
| Rated power | 8kw、72v200ah/15/19.2/17kw | Length with standard bucket | 2700mm |
| Number of cylinders | 2 | Vehicle width(standard tire） | 1100mm |
| Air intake way | Naturally Aspirated | Length without standard bucket | 2300mm |
| Emissions standards | EURO5/EPA | Bucket width | 1050mm |
| Rated operating capacity | 250Kg | Tail length | 500mm |
| Maximum operating capacity | 350Kg | Height at maximum extension | 2530mm |
| Maximum breakout force | 450KN | Height to the bucket pin | 1933mm |
| Bucket capacity | 0.12m³ | Maximum height as lay the bucket flat | 1740mm |
| Driving speed | 0-6km/h | Dumping height | 1400mm |
| Total cycling time | 9s | Discharge distance | 595mm |
| System operating pressure | 17-21bar | Track contact with ground length | 1350mm |
| Fuel tank capcity | 10L | Ground clearance | 230mm |
| Operating weight | 1200KG | The flip angle of the bucket on the ground | 27° |
| Track model | 180*72*45 | Bucket flip angle at highest position | 114° |
