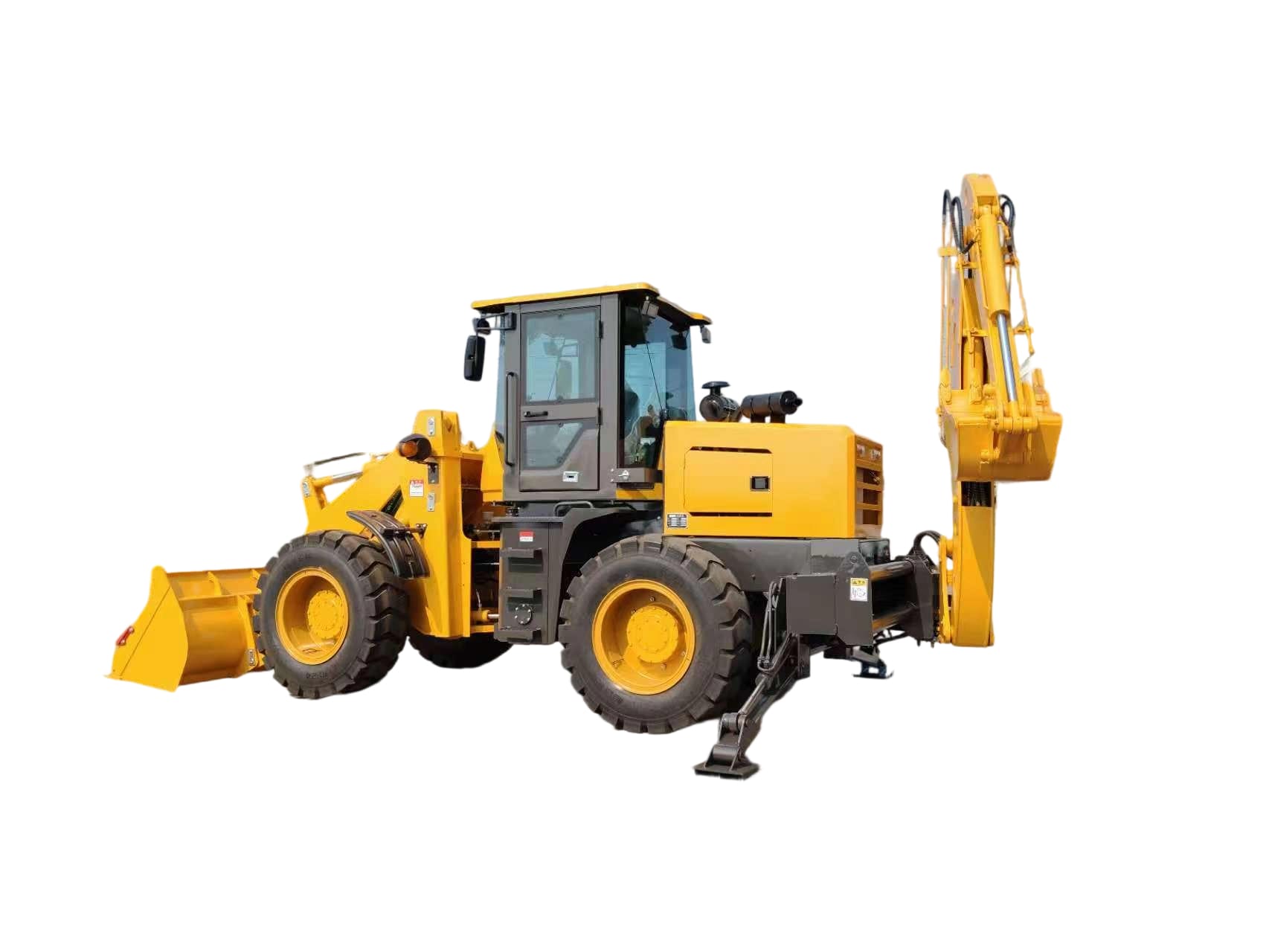

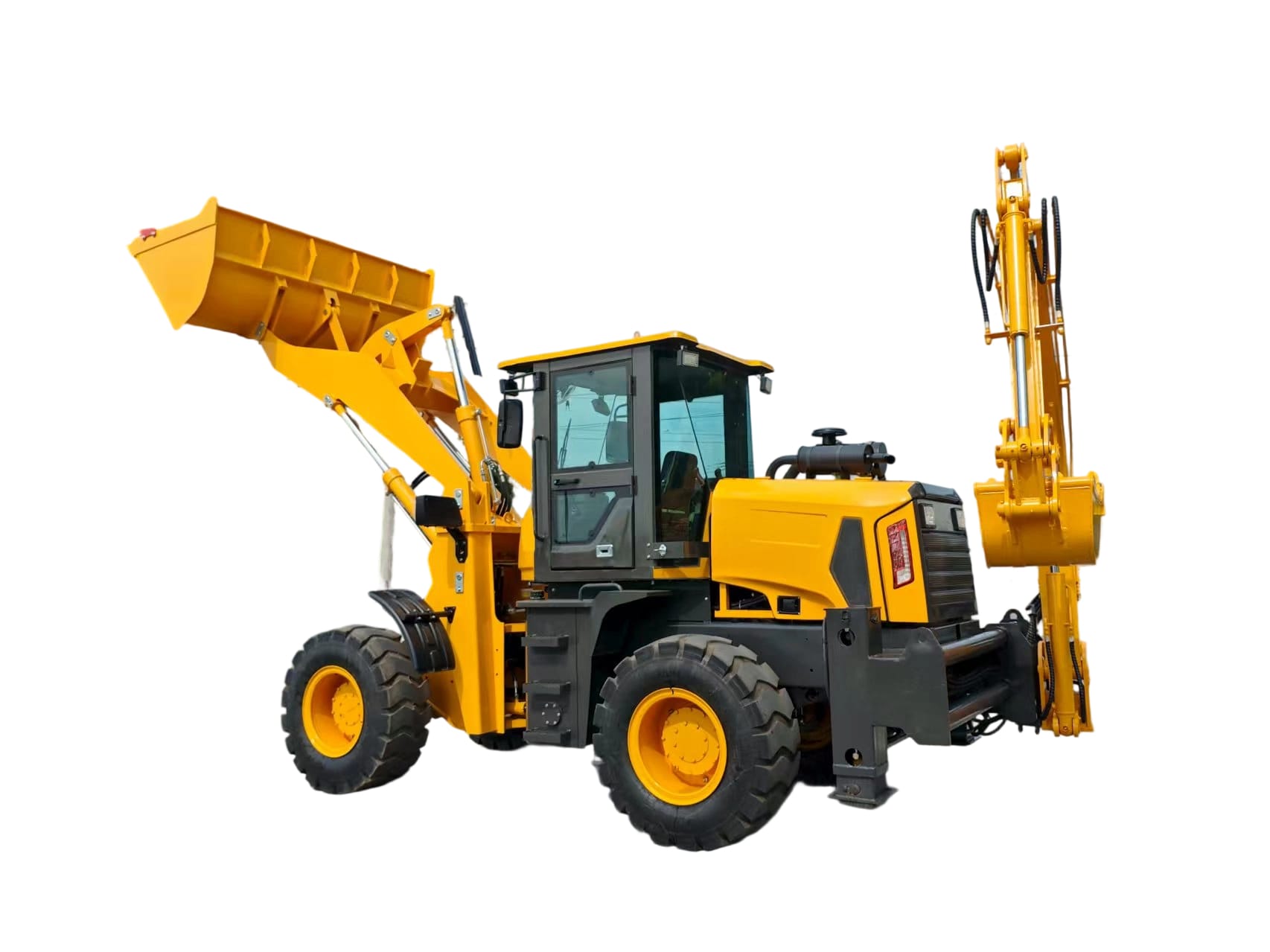

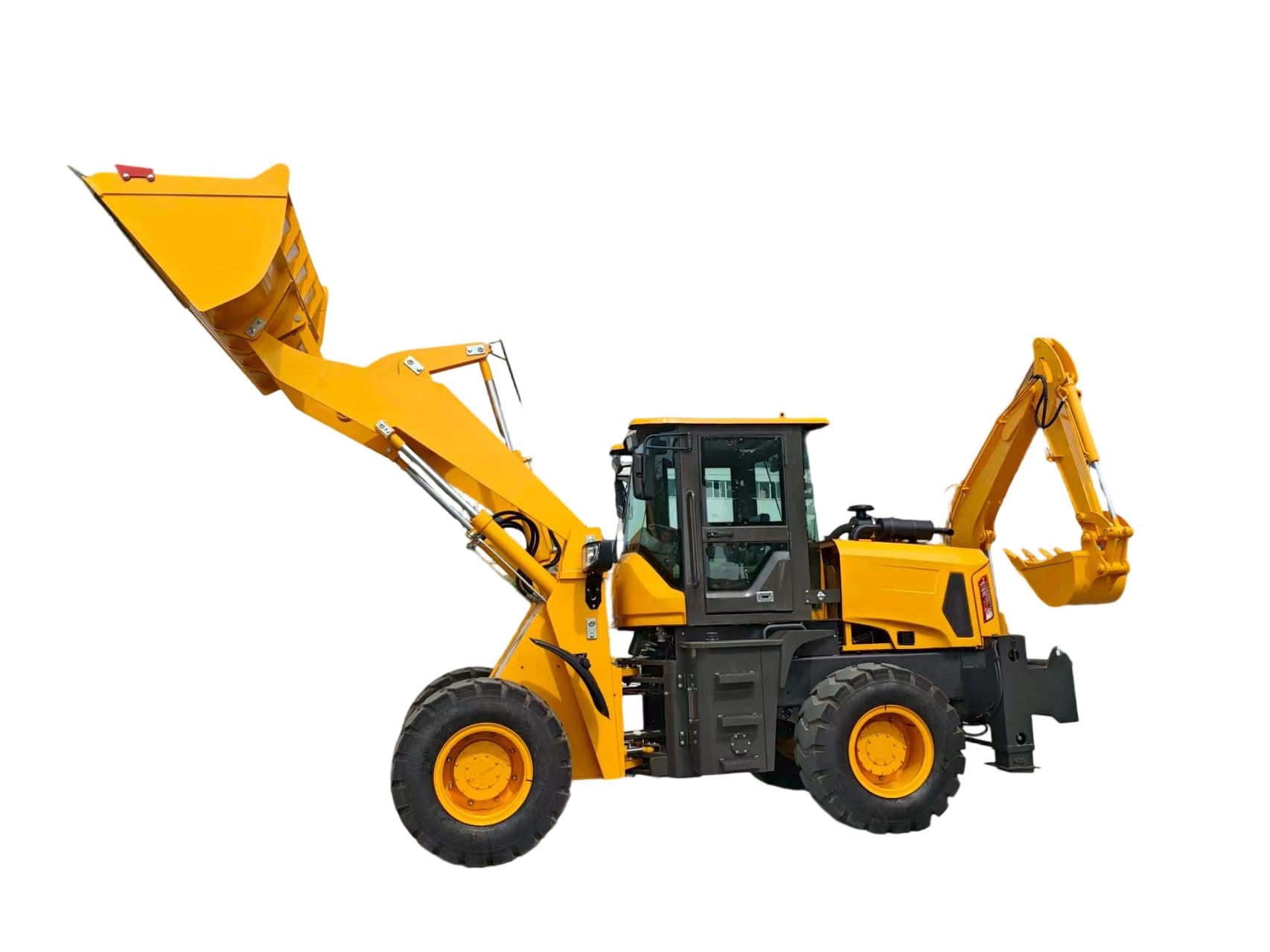

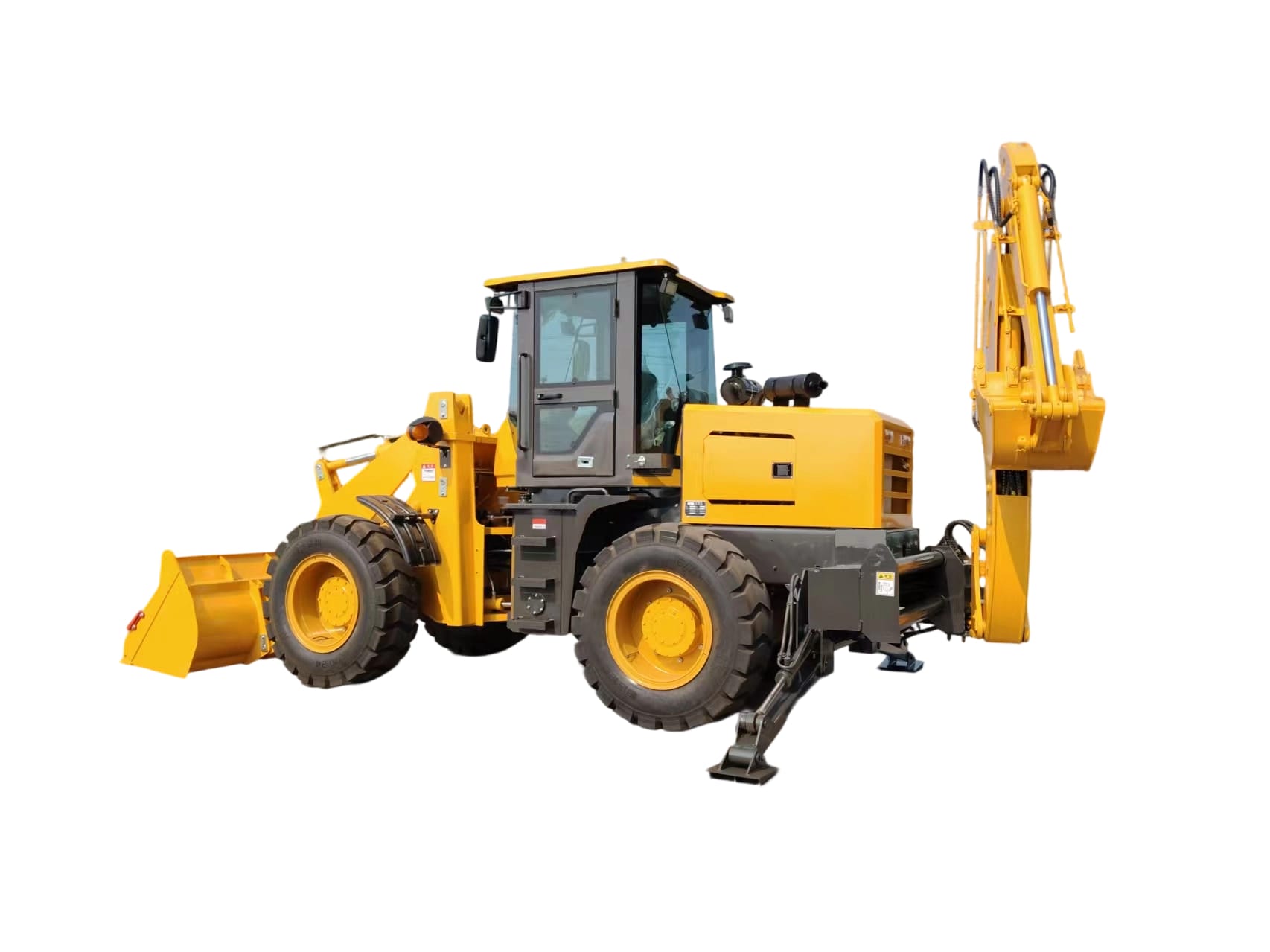

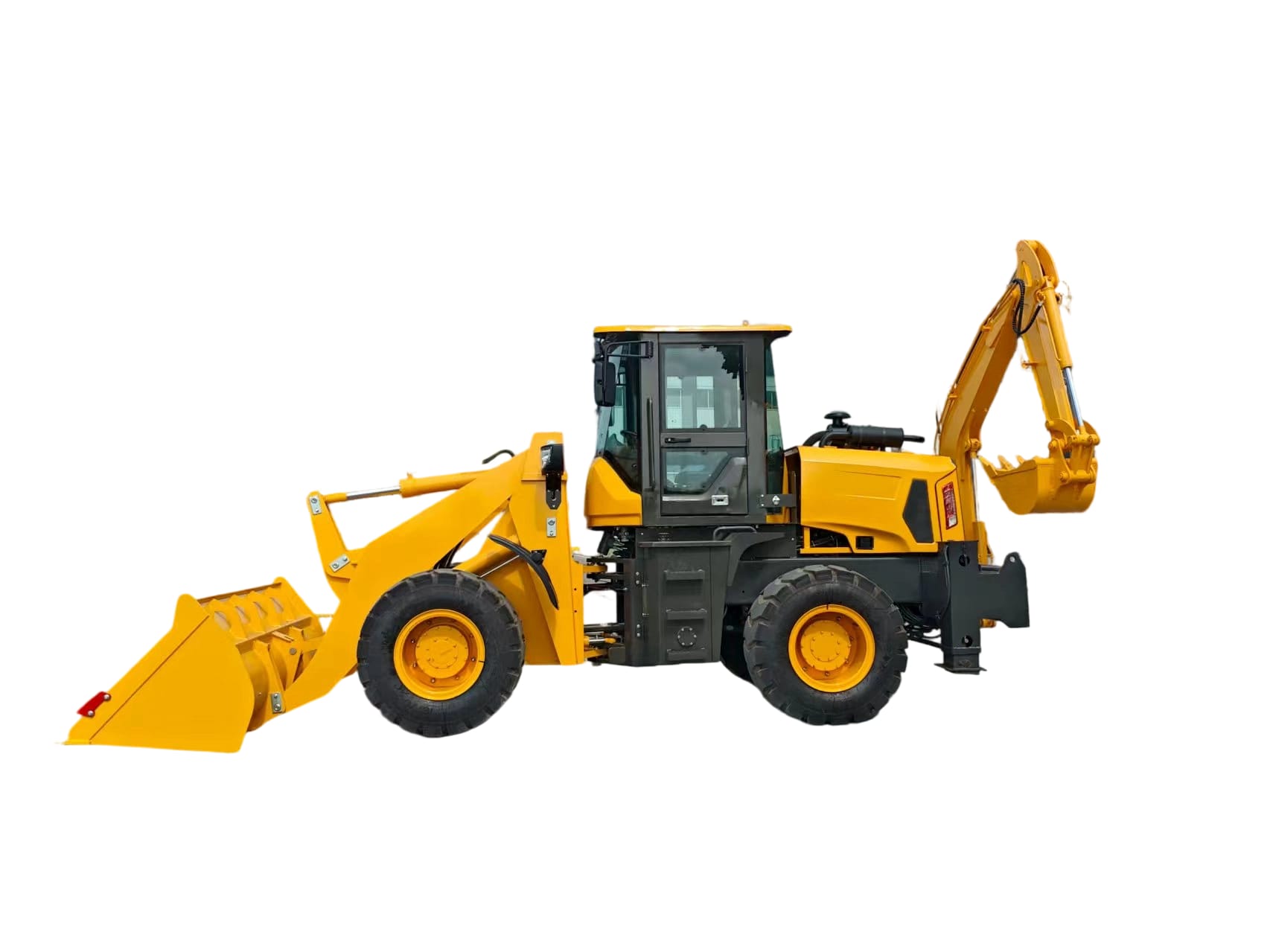

WZ25-30 Backhoe Loader
WZ25-30 Backhoe Loader
This construction machine combines excavation and loading functions. It’s powered by a Yunnei YN48GBZ turbocharged four-stroke engine (rated power 92kW, rated speed 2400r/min), a fixed-axis power shift system (2 front and 2 rear gears) and a ZL29A torque converter. Its steering is fully hydraulic with an articulated mechanism (steering angle 33°).
Quote Now
Product Parameters
| Model | WZ25-30 | |
| Overall dimensions | Overall dimensions (mm) | 6500*2040*2800 |
| Wheelbase (mm) | 2675 | |
| Track width (mm) | 1630 | |
| Minimum ground clearance (mm) | 280 | |
| Performance parameters | System pressure (MPa) | 18 |
| Machine weight (Kg) | 6500 | |
| Maximum speed (km/h) | 28 | |
| Maximum climbing ability (°) | 25 | |
| Minimum turning radius (mm) | 4500 | |
| Mining parameters | Maximum digging depth (mm) | 2600 |
| Digging and unloading height (mm) | 2300 | |
| Maximum digging radius (mm) | 4600 | |
| Bucket width (mm) | 700 | |
| Bucket capacity (m³) | 0.25 | |
| Maximum digging height (mm) | 4300 | |
| Maximum digging force (KN) | 28 | |
| Excavator rotation angle (°) | 180 | |
| Loading parameters | Maximum unloading height (mm) | 3500 |
| Maximum unloading distance (mm) | 900 | |
| Bucket width (mm) | 2200 | |
| Bucket capacity (m³) | 1.2 | |
| Maximum lifting height when loading (mm) | 4300 | |
| Maximum breakout force (KN) | 42 | |
| Shovel action time (S) | 12 | |
| Engine | Model | YN48GBZ |
| Type | Turbocharged, four-stroke | |
| Rated power (KW) | 92 | |
| Rated speed (r/min) | 2400 | |
| Cylinder number-inner diameter | 4-108 | |
| Drivetrain | gearbox | Fixed-axis power shift |
| Number of gears | 2 in front and 2 in back | |
| torque converter | ZL29A | |
| Steering system | Type | Articulated fully hydraulic steering |
| Steering angle (°) | 33° | |
| Tire | Specification | 16/70-20 |
| Front wheel air pressure (KPa) | 250 | |
| Rear wheel air pressure (KPa) | 250 | |
| Service brake | Air-over-oil caliper brake | |
| Parking brake | Manual | |
| Oil volume | Fuel tank (L) | 50 |
| Hydraulic oil tank (L) | 50 | |
