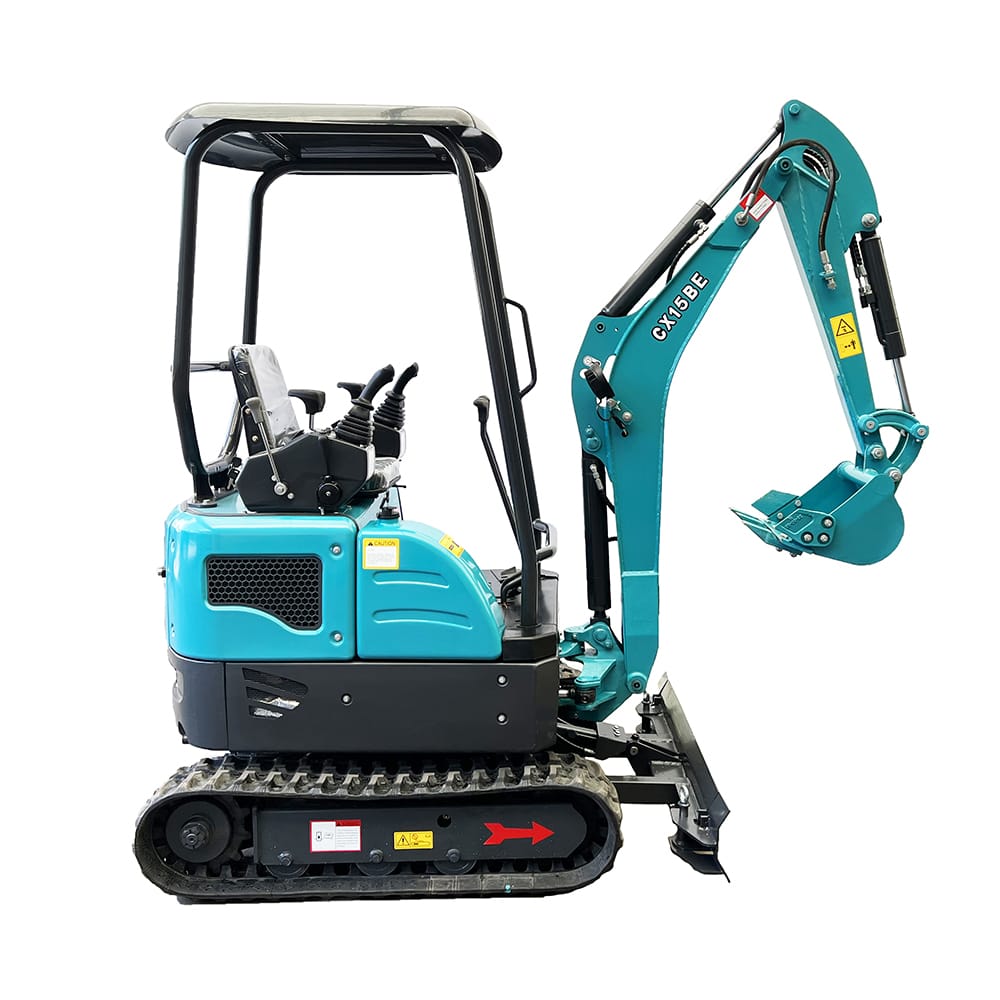

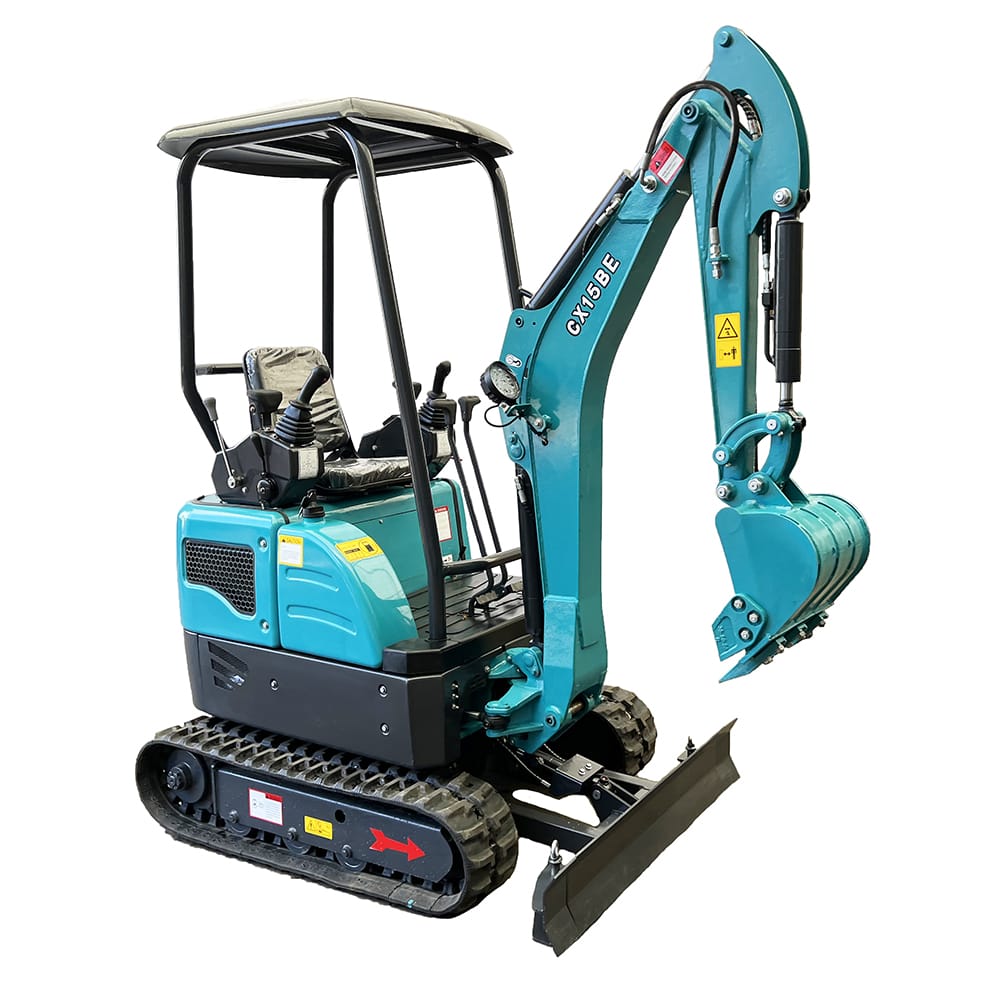

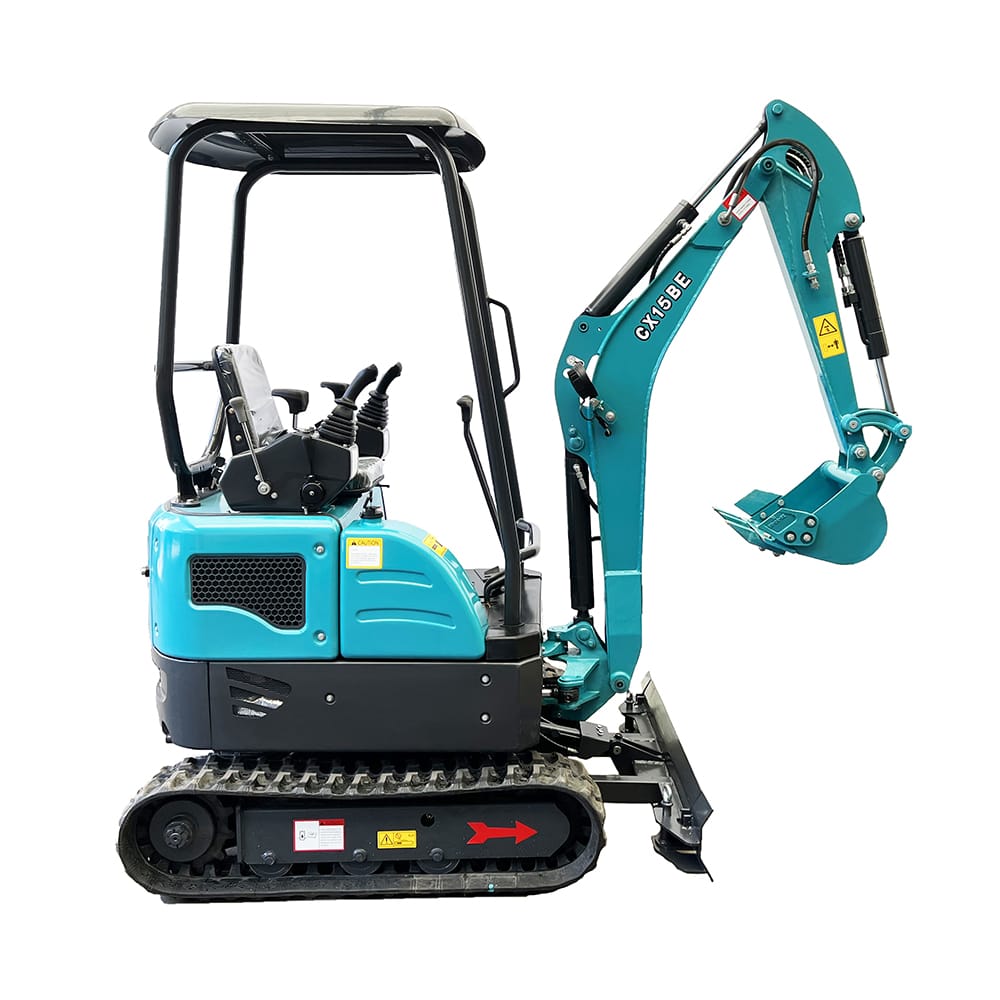

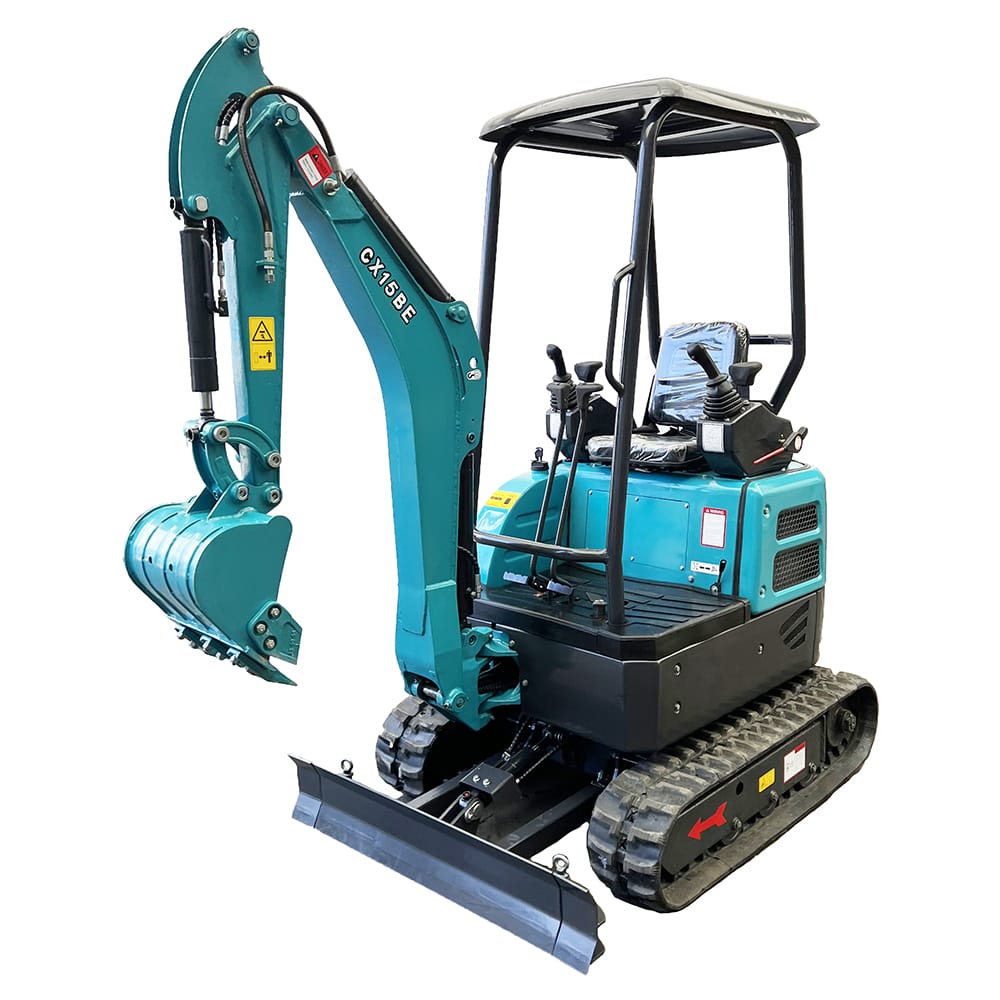

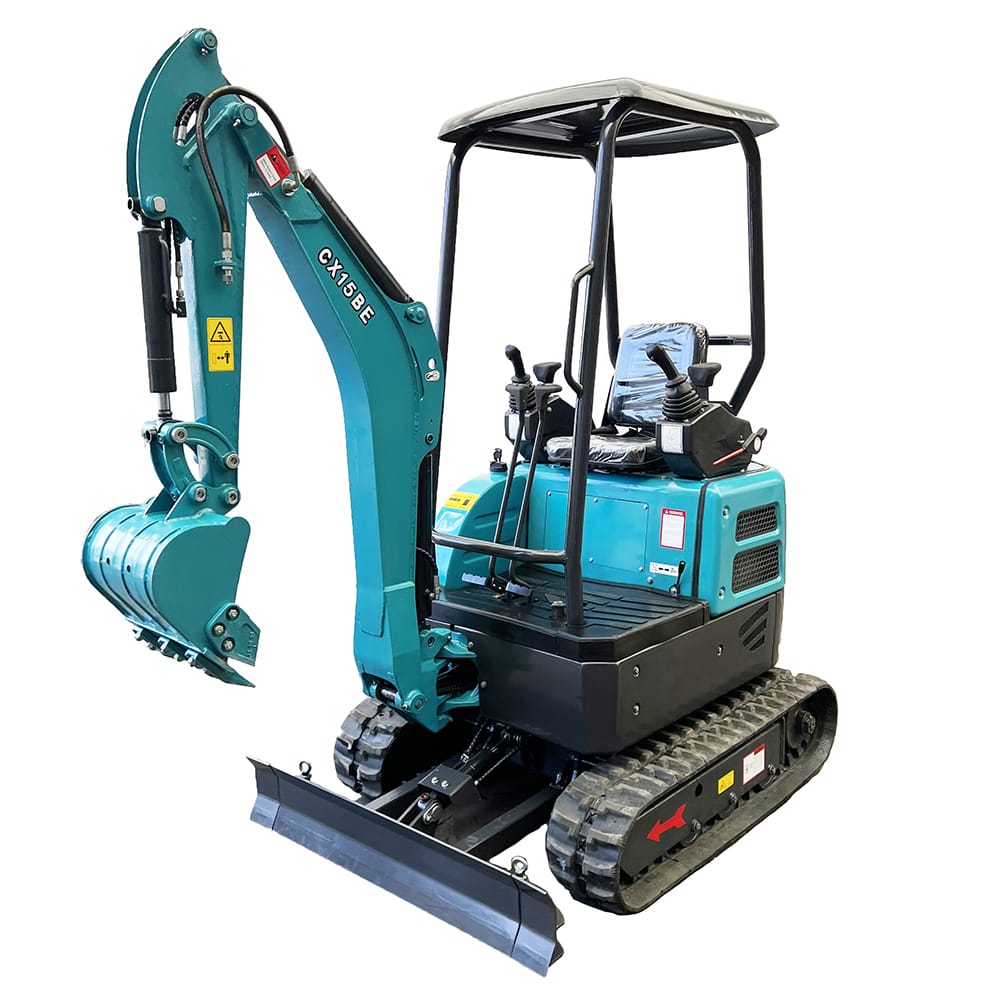

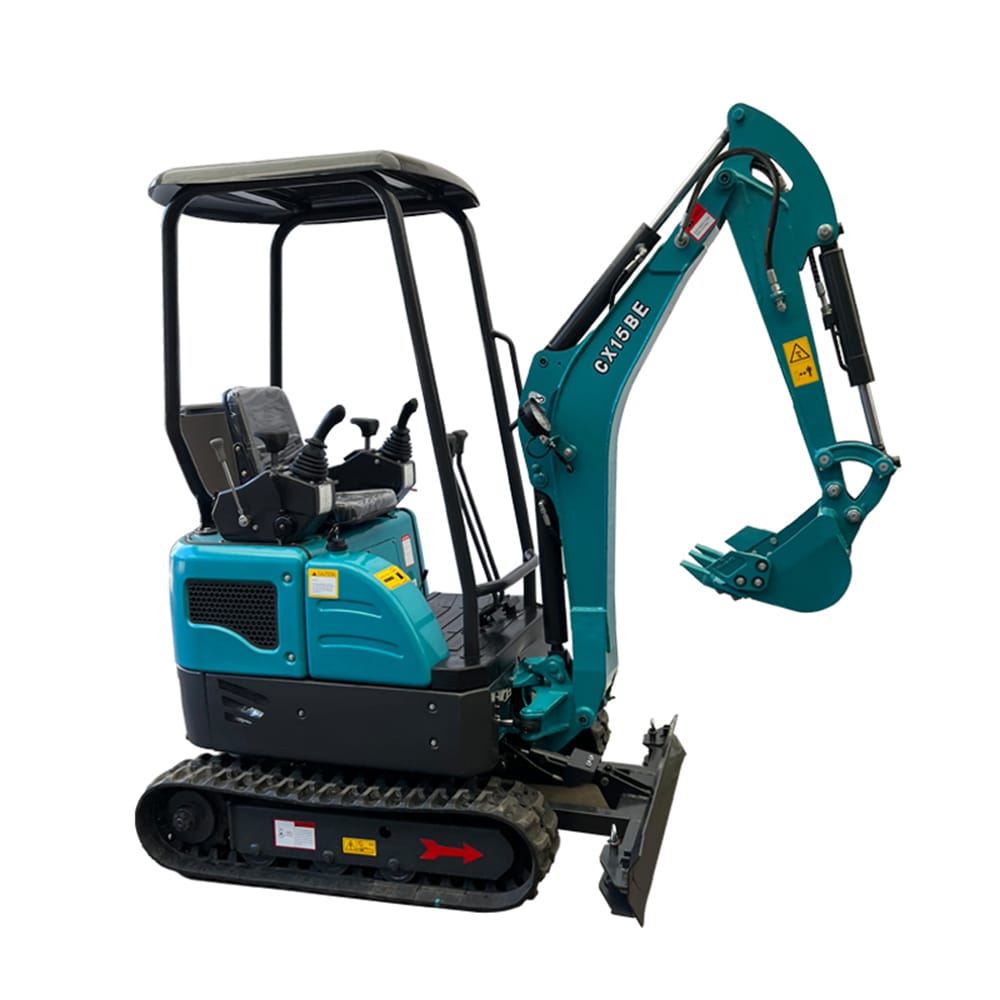

CX-15BE mini excavator yanmar for sale
CX-15BE mini excavator yanmar for sale
The CX-15BE excavator is a compact electric mini excavator designed for efficiency, low noise, and zero emissions, making it ideal for indoor projects and environmentally sensitive areas. It features a powerful electric motor that delivers smooth performance with reduced maintenance compared to diesel models. Its zero-tail swing design ensures safe operation in tight spaces. The CX-15BE supports various attachments, enhancing its versatility for digging, grading, and trenching tasks. With user-friendly controls and a comfortable operator station, it’s perfect for clean, quiet, and efficient small-scale construction work.
Quote Now
CX-15BE Electric Mini Excavator – Detailed Description
The CX-15BE electric mini excavator by Ningbo ACE Machinery is an eco-friendly, high-performance solution for modern construction needs. Engineered for clean and quiet operation, it is ideal for indoor environments, urban job sites, and areas with strict emission regulations.
Main Features
- Electric Motor: Delivers efficient, zero-emission power with lower operating costs and minimal maintenance.
- Low Noise Operation: Significantly quieter than traditional diesel models, making it ideal for noise-sensitive sites.
- Zero-Tail Swing: Enables full rotation within the track width, enhancing safety and maneuverability in tight spaces.
- Hydraulic Precision: Smooth hydraulic control allows for accurate digging, grading, and material handling.
- Compact Design: Easily fits into confined spaces such as basements, indoor job sites, and narrow urban areas.
Recommended Applications
The CX-15BE is suitable for:
- Indoor construction and renovation
- Urban landscaping and infrastructure
- Trenching in noise or emission-restricted zones
- Environmentally sensitive areas like schools and hospitals
Operator Comfort and Ease of Use
- Ergonomic Controls: Simple and intuitive layout allows easy operation, even for new users.
- Comfortable Cabin: Designed to minimize fatigue during long work sessions with padded seating and clear visibility.
- Digital Monitoring: Optional digital display for real-time monitoring of battery and performance status.
Maintenance and Environmental Benefits
- Low Maintenance: Fewer moving parts compared to diesel engines result in less wear and lower servicing needs.
- Eco-Friendly: Produces no emissions, helping reduce the carbon footprint of construction projects.
- Quiet Efficiency: Perfect for projects in residential or indoor environments where noise is a concern.
The CX-15BE electric mini excavator combines sustainability, efficiency, and compact design, making it a smart investment for professionals looking to meet modern environmental and operational standards without sacrificing performance.
Product Parameters
| Model | CX15BE | ||
| Engine type | Model | Kubota D902 / Yanmar 3TNV74 | |
| Engine power | kw @rpm | 11.8kw / 11.2kw /2300 | |
| Operation Weight(Kgs) | kgs | 1560 | |
| Bucket capacity | m³ | 0.025 m³ | |
| Arm rotatable or not | Rotatable | ||
| Operating system | Pilot valve operation | ||
| Chassis telescopic | YES | ||
| Dimensions | Overall length(Transport) | (mm) | 3240 mm |
| Overall height(Transport) | (mm) | 2280 mm | |
| Overal l width Standard(mm ) | Standard(mm ) | 1160 mm | |
| Overal l width Narrow(mm ) | Narrow(mm ) | 920 mm | |
| Track gauge Standard(mm ) | Standard(mm ) | 1160 mm | |
| Track gauge Narrow(mm ) | Narrow(mm ) | 92 0 mm | |
| Minground clearance | (mm) | 160 mm | |
| Hydraulic system | Pump capacity | GPM(/min) | 2.8(10.5)× 2/0.8(3.1)× 1 |
| Auxiliary hydraulic flow | GPM(/min) | 5.5(21 ) | |
| Max. breakout force | Bucket / Arm I bs. (kgf) | 2337 (1060 )/1214 (550 .6) | |
| Drive system | Travel speed | Low / High mph( km/h) | 1.2(2.3) |
| Tumbler distance | (mm) | 1040 mm | |
| Crawler length | (mm) | 1360 mm | |
| Shoe width | (mm) | 180 mm | |
| Ground contact pressure | psi(kg f/cm2) | 4.2(0.30) | |
| Swing system | Uni t swing speed | rpm | 8.5 |
| Boom swing angle | Left / Right degree | 55 /55 | |
| Blade | Dimens ions Width S td / Nar row ft.in.(mm ) | Width S td / Nar row ft.in.(mm ) | 990 /750 mm |
| Dimensions Height in.(mm ) | Height in.(mm ) | 200 mm | |
| Max. lift above ground | in.(mm ) | 215 mm | |
| Max. drop below ground | in.(mm ) | 1 90 mm | |
Why Choose Us.
Customer’s Feedback
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
