KV13 Mini Excavator – Enhanced 1 Ton Small Excavator with Hydraulic Pilot | EPA & CE Certified
KV13 Mini Excavator – Enhanced 1 Ton Small Excavator with Hydraulic Pilot | EPA & CE Certified
The KV13 and KV13 Pro are compact 1 ton mini excavators (1100 kg operating weight), perfect for tight European sites with full 360 degree rotation mini excavator work, Briggs & Stratton / KOOP engine (up to 13.5 HP), engineering rubber tracks (steel tracks/cab optional), EPA/CE certified and Euro 5 emissions compliant. Both share key specs: 2200 × 1100 × 2200 mm transport size, max digging radius 3100 mm, depth 1740 mm, height 2550 mm, digging force 11 kN, speed 0–4 km/h, climb 30°.
Both include premium features: thickened anti-corrosion steel, renowned reducers, American Eaton self-braking walking motor, wear-resistant oil pipes, buffered quick connects, cast steel breaker valve (leak-proof), thickened boom cylinders with imported seals, reinforcement/widened wear plates, rotary throttle, cup/phone holder, foot breaking. Optional attachments: hammer, ripper, grapple, rake, auger, large/mud bucket.
Quote Now
Product Description
The KV13 Pro mini excavator represents the pinnacle of 1 ton small excavator innovation, optimized for precise 360 degree rotation mini excavator work in restricted areas, excelling in applications like indoor demolition, concrete crushing, pipeline laying, and channel clearing. Driven by a high-performance KOOP engine and equipped with engineering rubber tracks, this tracked mini excavator accommodates optional steel tracks and cab installations for flexibility across European landscapes. EPA certified, CE certified, and having passed Euro 5 emissions certification, the KV13 Pro boasts premium anti-rust construction and multifunctionality encompassing excavation, breaking, ditch cleaning, drilling, and bulldozing, all within an intuitive framework designed for professional efficiency in construction, landscaping, and municipal works in Europe.
Applications
The KV13 small excavator is ideal for indoor demolition, toilet upgrading, engineering forcible entry, excavating barren hills, small earthwork, municipal projects, concrete breaking, dredging rivers, and similar environments across Europe.
Core Advantages and Features
- Compact and Versatile Design: Engineered for flexibility in narrow spaces and small terrains, with 360-degree body rotation for efficient outdoor operations, making it ideal for indoor demolition and municipal projects.

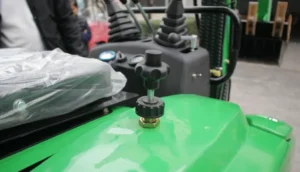

- User-Friendly Operation: Features simple controls, hydraulic pilot operation (Pro models), flip-forward seat, rotary throttle, central cup holder and phone slot, and foot-operated breaking for convenient, ergonomic use without interrupting work.
- Durable Construction: Built with thickened high-quality steel, plastic molding for rust and corrosion resistance, widened wear plates, reinforcement plates for extended arm life, and full-machine wear-resistant oil pipes for long-lasting performance.

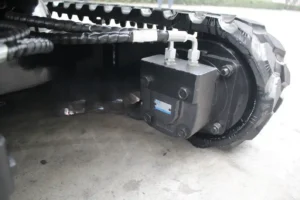

- High-Performance Components: Equipped with American Eaton walking motor for smooth, efficient movement with integrated self-braking, internationally renowned reducers, and thickened boom cylinders with imported seals for stable, stutter-free operation.

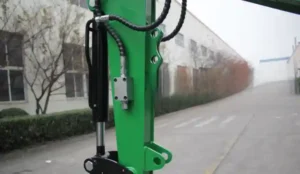

- Advanced Hydraulic System: Includes spare oil pipes with cut-off valves in durable cast steel to prevent leaks, hydraulic attachment quick connects with buffered oil flow for smoother performance, and options like big arm side swing (Pro models) for precision.
- Eco-Friendly and Certified: EPA certified, CE certified, and passed Euro 5 emissions certification, powered by reliable Briggs & Stratton or KOOP engine, ensuring compliance and sustainability in European markets.
Product Details
Differences between KV13 and KV13 Pro
The main differences between the KV13 and KV13 Pro lie in their operating methods and hydraulic attachment compatibility: the KV13 uses traditional mechanical operation, while the KV13 Pro features hydraulic pilot control, offering lighter, more precise, and effortless operation. The Pro version also comes standard with spare oil lines and shut-off valves, making it easier and faster to install hydraulic attachments such as hydraulic breakers.
Overall, the KV13 is suitable for light-duty users with limited budgets, while the KV13 Pro is recommended for professional construction scenarios requiring comfortable operation over extended periods or frequent use of hydraulic attachments.
Selection Recommendations
Go for the KV13 Pro when advanced hydraulic controls and oil management are essential for intricate projects. The standard KV13 suits simpler, economical needs in European applications.
FAQ
What distinguishes the KV13 Pro from the KV13?
The KV13 Pro adds spare oil pipe with cut-off valve and hydraulic pilot operation for better control compared to the standard KV13.
Does the KV13 Pro have 360 degree rotation?
Yes, it includes 360-degree body rotation for versatile 360 degree rotation mini excavator work.
Is the KV13 Pro compliant with European emissions?
Yes, it is EPA certified, CE certified, and has passed Euro 5 emissions certification.
What is the engine in the KV13 Pro?
It is powered by a Briggs & Stratton or KOOP engine.
Can the KV13 Pro handle indoor demolition?
Yes, it’s an optimal small excavator for indoor demolition and confined operations.
Product Parameters
| Category | Details |
|---|---|
| Model | KV13 |
| Operating Weight | 1100kg |
| Total Length | 2200mm |
| Total Width | 1100mm |
| Total Height | 2200mm |
| Max. Digging Radius | 3100mm |
| Max. Digging Depth | 1740mm |
| Max. Digging Height | 2550mm |
| Counterweight Ground Clearance | 1710mm |
| Max. Digging Force | 11KN |
| Engine Brand | Briggs & Stratton / KOOP |
| Engine Model | XR13.5 / 192F |
| Maximum Power | 13.5HP / 10HP |
| Walking Speed | 0-4km/h |
| Climbing Angle | 30° |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
