Mini Excavator Ripper Attachment
Mini Excavator Ripper Attachment
A ripper (also known as a ripper or hook machine) is a heavy-duty crushing attachment installed on an excavator or bulldozer. It has a high-strength single-tooth or multi-tooth structure and is specifically used to crush hard ground, frozen soil, rock or old concrete. It is one of the core tools in the mining, construction and agricultural fields.
Quote Now

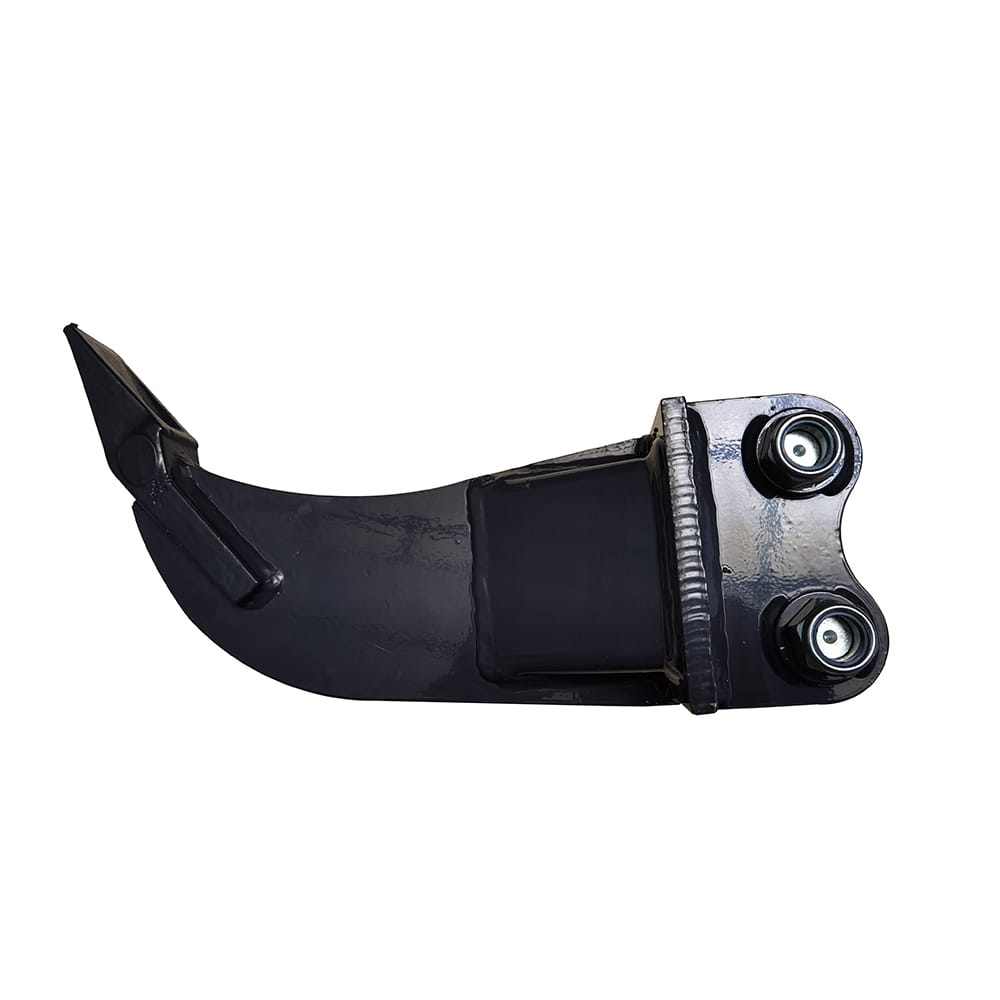

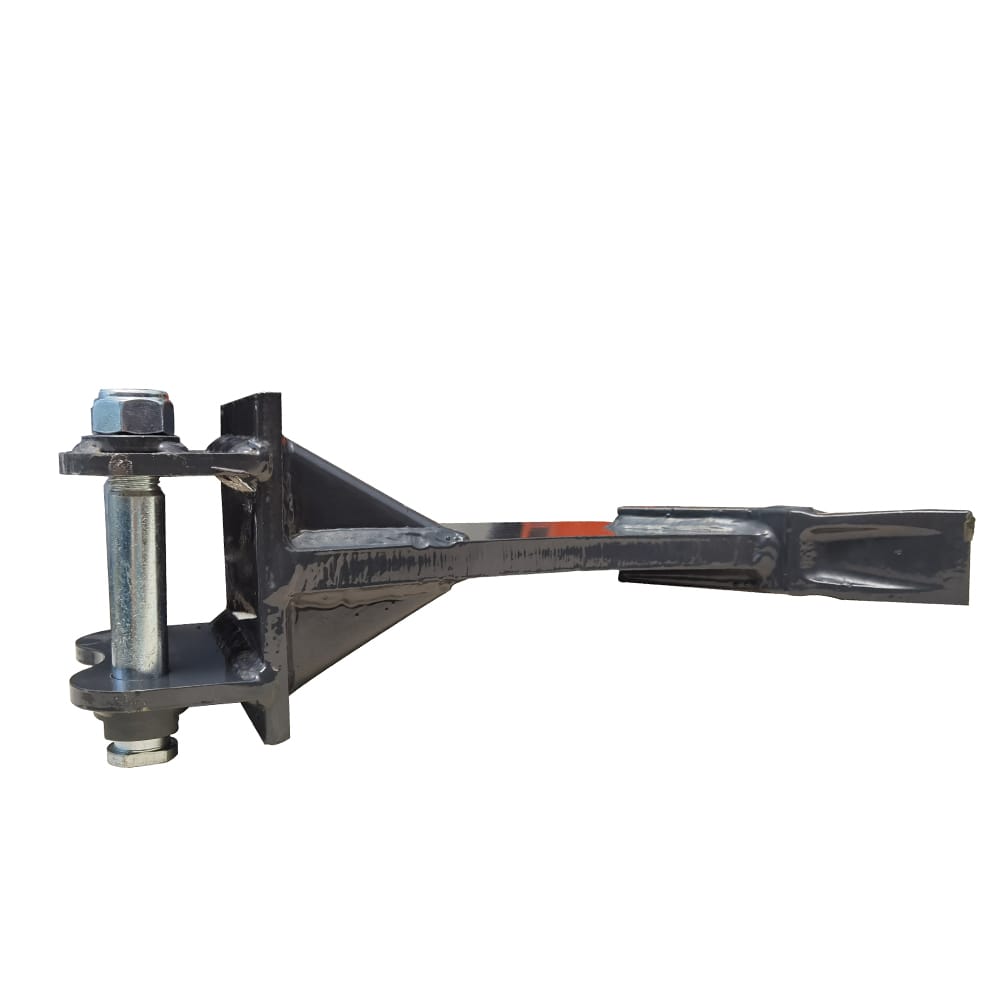

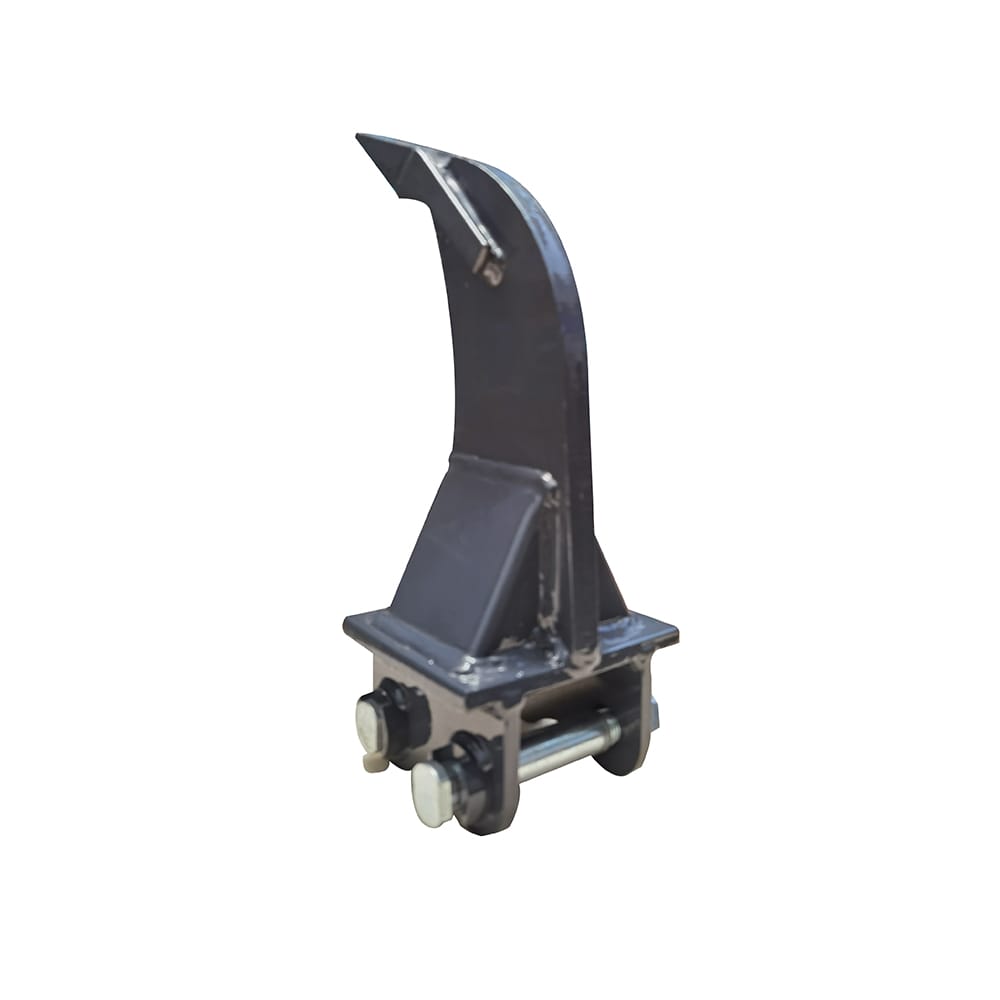

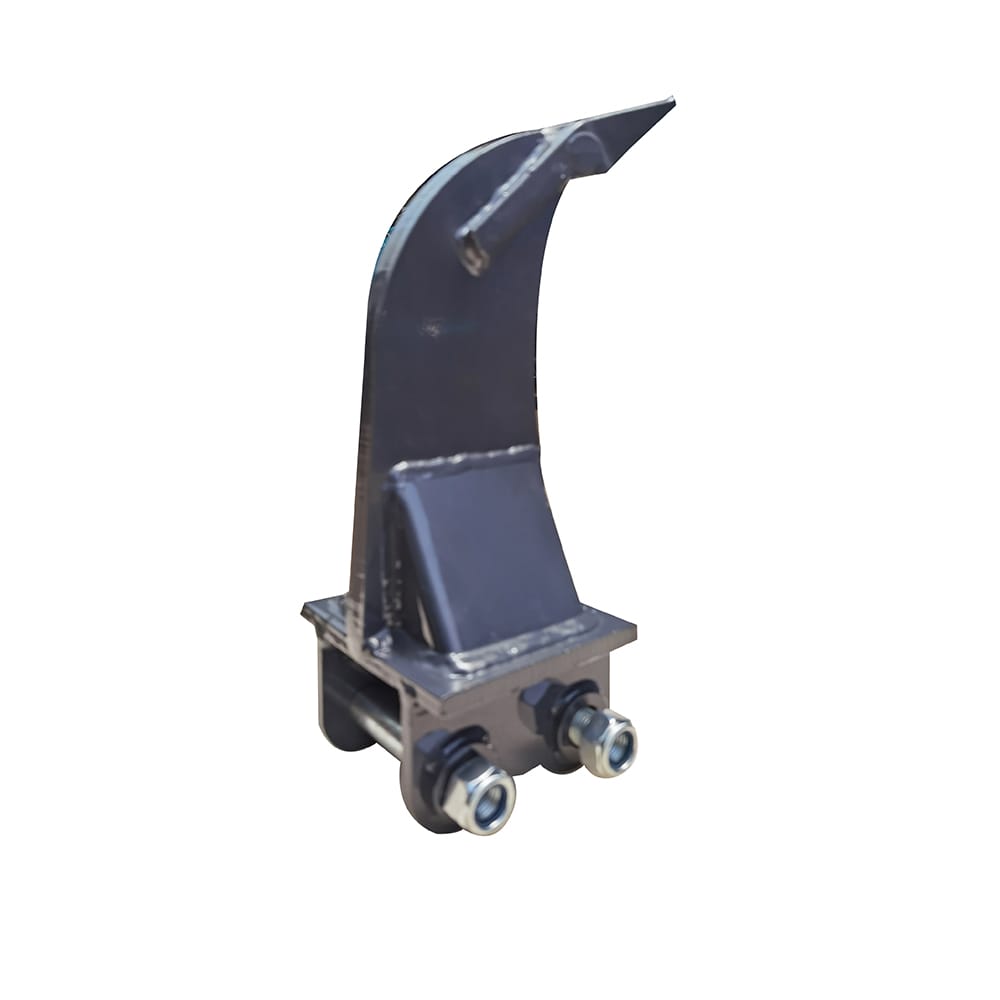

The ACE mini excavator ripper attachment is designed to loosen compacted ground before excavation. Its narrow working profile concentrates the excavator’s digging force into a smaller contact area, helping prepare material for removal with a bucket. This model uses alloy steel and is listed for suitable 1.2-ton mini excavators, subject to mounting and machine compatibility checks.
Choosing a ripper starts with the machine and the material. Excavator weight alone does not confirm suitability, and a ripper should not be treated as a hydraulic breaker. Send your mounting dimensions and describe the ground conditions so our team can review the application before quoting.
Mini Excavator Ripper Specifications
| Specification | Details |
|---|---|
| Brand | ACE |
| Product type | Mini excavator ripper attachment |
| Listed excavator application | 1.2-ton mini excavator; compatibility must be confirmed |
| Material | Alloy steel |
| Warranty | 1 Year |
| OEM | Available subject to confirmation |
| Packing | Wooden case |
| Place of origin | Zhejiang, China |
Where a Ripper Attachment Can Help
A ripper can be useful when compacted material is difficult to penetrate with a bucket. Loosening the ground first allows a suitable bucket to handle the removal work. Whether this approach is practical depends on the material, excavator capability and attachment geometry, so describe the actual job rather than selecting by machine tonnage alone.
For solid rock, reinforced concrete or other demanding breaking work, ask for an application review before choosing this attachment. Do not assume that a small excavator ripper can replace a hydraulic breaker. Our mini excavator hydraulic breaker page provides an alternative product to discuss with our team.
Confirm Mounting Dimensions Before Ordering

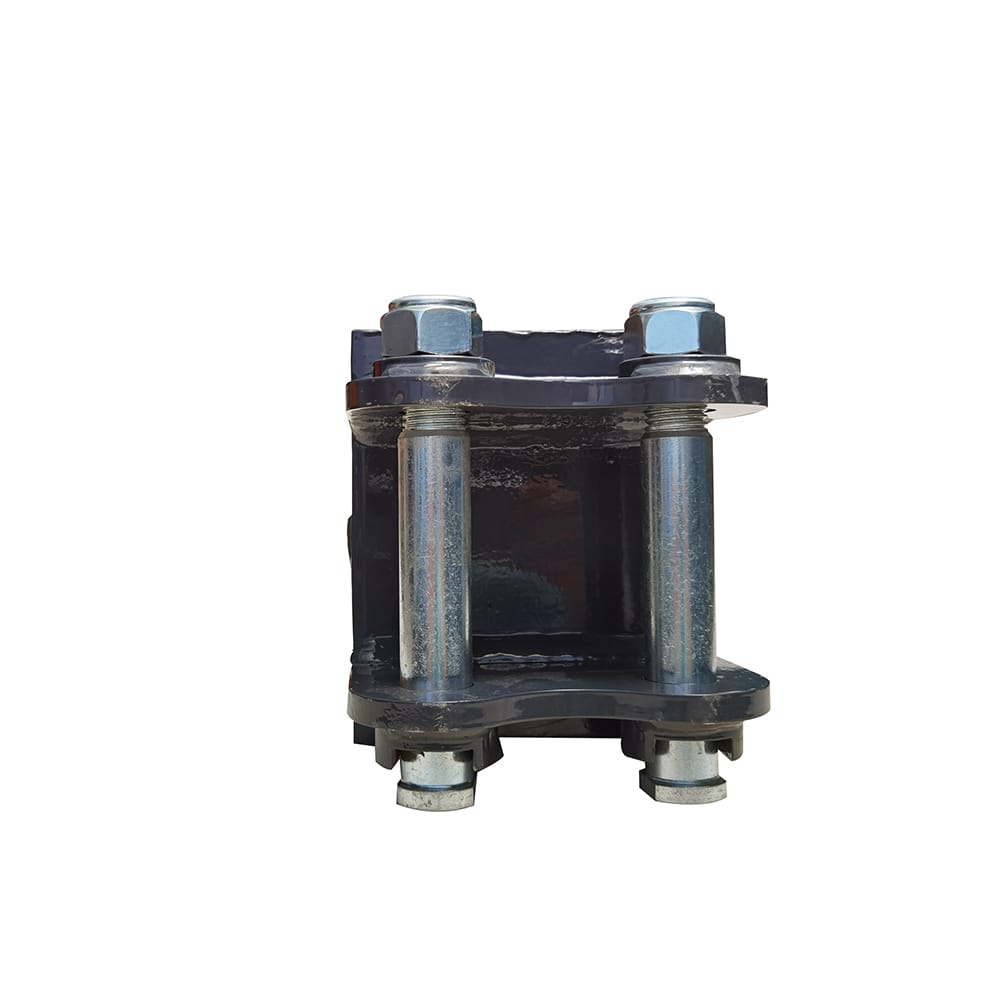

Two excavators in the same weight class can have different attachment connections. Please provide the dimensions below, together with photographs or a drawing of the existing mounting arrangement. If you use a quick hitch, include its details because the hitch and attachment must also be compatible.
| Required Information | What to Send |
|---|---|
| Machine details | Excavator make, model and operating weight |
| Pin diameters | Measured diameter of both mounting pins |
| Pin centre distance | Distance between the centres of the mounting pins |
| Mounting width | Connection dimensions, with a photograph showing the measurement |
| Quick hitch | Hitch model and mounting details, if fitted |
| Working conditions | Material type, intended task and photographs where available |
Our mini excavator attachment compatibility checklist explains the information to collect. Supplying measurements at the enquiry stage helps reduce back-and-forth before a quotation can be confirmed.
Operating Considerations
Check the attachment installation and follow the excavator and attachment operating instructions. Avoid using the ripper to apply side loads or force beyond the equipment’s permitted use. Locate underground services before disturbing the ground, and stop work if the machine becomes unstable or the attachment does not penetrate as expected.
Frequently Asked Questions
Will this ripper fit every 1.2-ton mini excavator?
No. The listed application is a 1.2-ton mini excavator, but mounting dimensions and machine suitability must be checked. Send both pin diameters, pin centre distance, mounting width and your machine details before ordering.
Can I use this ripper with a quick hitch?
Possibly, provided the hitch, ripper and excavator are compatible. Send the hitch details and mounting dimensions for review rather than assuming that matching pin diameters are sufficient.
Can it replace a hydraulic breaker?
A ripper loosens material using the excavator’s digging force, while a hydraulic breaker uses repeated impacts. The appropriate attachment depends on the material and task. Describe the application so our team can discuss a suitable option.
What warranty is provided?
This ripper attachment has a 1-year warranty. Ask our team for the applicable warranty terms before placing an order.
What should I send for a quotation?
Send your excavator make and model, mounting measurements, intended application, quantity and destination country. Include any OEM requirements so they can be reviewed with the quotation.
Request a Ripper Attachment Quotation
Contact ACE Machinery with your excavator details and mounting measurements to discuss compatibility and request a quotation. You can also explore our mini excavator attachments when planning the tools required for your work.
Product Parameters
| Brand Name | ACE |
| Suitable Excavator(ton) | 1.2ton mini excavator |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Weight | 30 |
| Core Components | Bearing |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Product name | Excavator Bucket Ripper |
| Suitable | 1.2 ton mini excavator |
| OEM | Acceptable |
| Material | Alloy Steel |
| Packing | Wooden Case |
