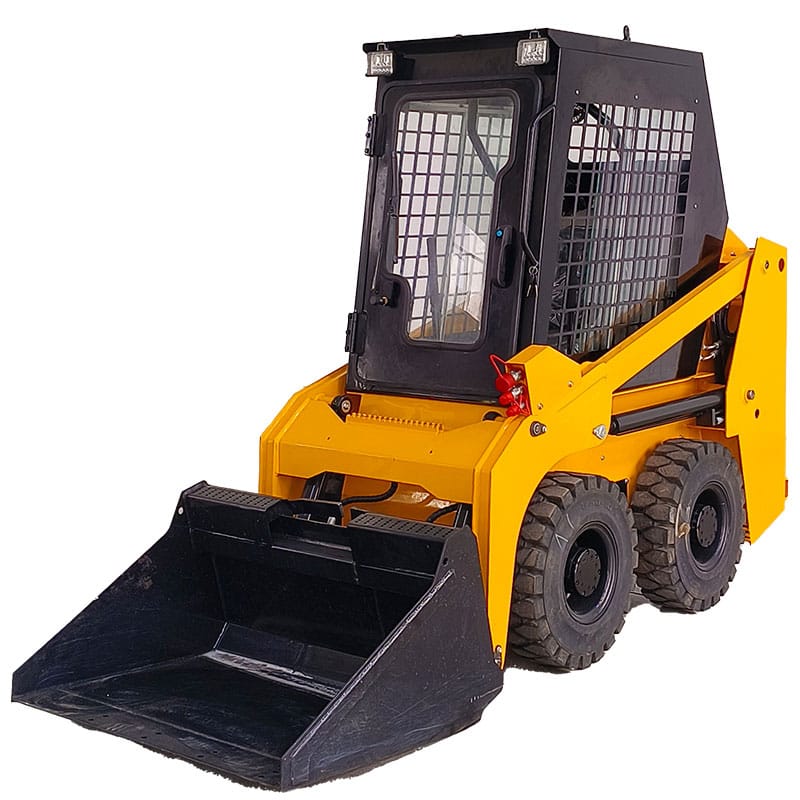

SLM-S25 Yanmar Skid Steer Loader mini Loader Equipment

Core Performance Features

Efficient and Compliant Power System

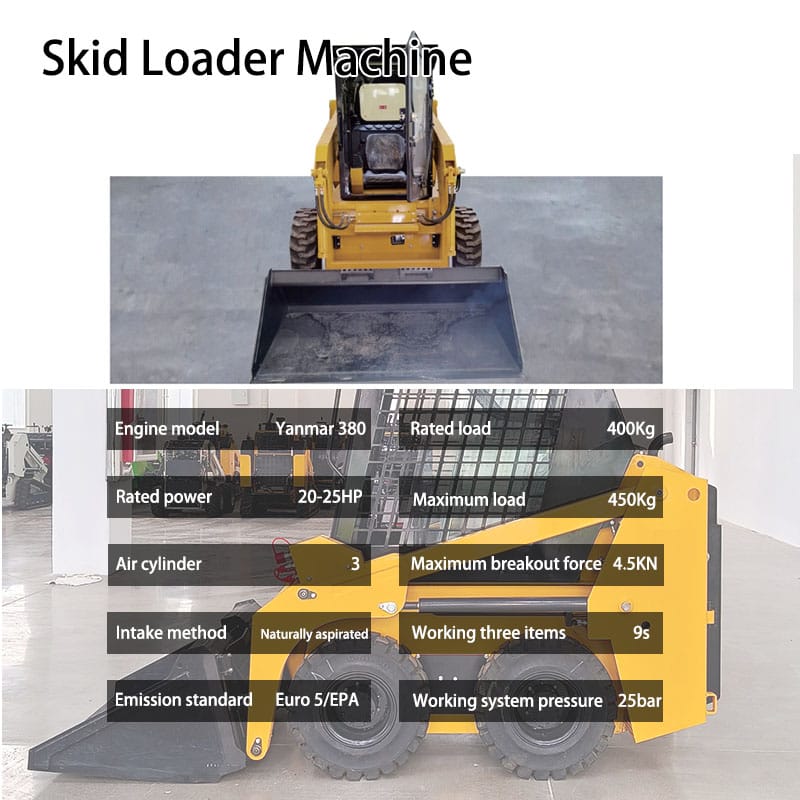

Equipped with a dedicated Yanmar 380 engine, the rated power reaches 18.8kW (approximately 25HP), providing strong and stable power output. It precisely matches various light and medium-duty work load requirements, ensuring quick power response during operation without any power shortage issues.

Featuring a 3-cylinder design and natural aspiration, it operates smoothly with low noise. Combined with the high-standard Euro 5/EPA emission standards, it boasts outstanding environmental performance, meeting compliance requirements in many domestic and international locations, eliminating concerns about environmental restrictions.

Equipped with a large 24.6L fuel tank, it offers excellent endurance, reducing work interruptions caused by frequent refueling and effectively improving overall work efficiency.

Precise and Flexible Operating Performance

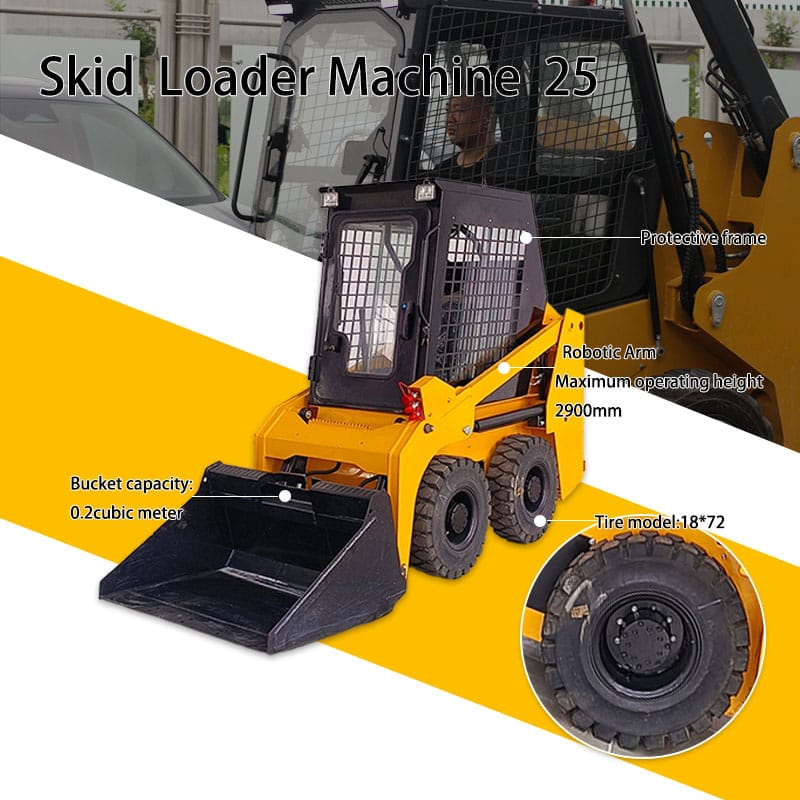

Excellent Load and Digging Force Performance: Rated load of 400kg, with a maximum load of up to 450kg, and a maximum digging force of 4.5KN. Combined with a 0.2-0.22m³ bucket capacity, it can efficiently complete the shoveling, loading, and unloading of various materials such as sand, soil, and waste. The load-bearing capacity meets the core needs of small-scale work scenarios.

Rich Bucket Operating Functions: The bucket swing angle reaches 130°, the unloading angle is 30°, the ground tipping angle is 27°, the maximum tipping angle at the highest position is 114°, the maximum unloading height is 2000mm, and the maximum unloading distance is 2400mm. It can adapt to different stacking heights and unloading distance requirements, providing a wider working range and flexibly handling diverse work scenarios.

Outstanding Work Efficiency: The three work functions are completed in only 9 seconds, with rapid response and efficient work cycles; the driving speed can reach 10.1km/h, allowing for flexible and convenient site transfers, reducing time spent moving within the site, and increasing the amount of work completed per unit of time.

Compact and Reasonable Structural Design

Compact and flexible dimensions: With a total width of only 950-1000mm, a total length (with bucket) of 2067-2730mm, and a turning radius of 2000mm, it can easily maneuver in narrow spaces, workshop aisles, and other confined areas, offering strong operational mobility and significant advantages in confined spaces.

Reliable chassis configuration: Featuring a reasonable wheelbase of 730-1180mm, a ground clearance of 130-180mm, and a 20° departure angle, combined with 570155 solid tires or 1872 tires, it has a large ground contact area and excellent passability. It can adapt to complex working conditions such as uneven ground and soft terrain, preventing slippage and sinking, and offering strong operational adaptability.

With an operating weight of 1312KG and a uniform and stable center of gravity distribution, it is less prone to tipping during operation, significantly improving operational safety.

Stable Hydraulic and Control Systems

The hydraulic system operates at a working pressure of 18MPa-25 bar, providing sufficient and stable pressure to continuously and reliably power the bucket movements and travel system, ensuring smooth and uninterrupted operation of all functions.

Equipped with a P-630 travel motor and controlled by mechanical levers, the operation logic is clear and easy to understand, making it easy to learn. Even novice operators can quickly master the operating techniques, reducing training costs.

Core Product Advantages

Strong Compliance: Certified with ISO, CE, and EPA standards, meeting Euro 5 emission standards, suitable for various operating scenarios both domestically and internationally, completely eliminating user concerns regarding environmental compliance.

Flexible and Versatile: Compact size and flexible steering design allow for operation in confined spaces and efficient transitions; a wide range of bucket operating angles and stable load capacity adapt to various operational needs such as material handling, site leveling, and waste removal, enabling multi-scenario operation with a single machine.

Reliable and Durable: Solid tires combined with a high ground clearance design effectively withstand wear and tear in complex working conditions; equipped with a renowned Yanmar 380 engine and a mature hydraulic system, components are highly reliable, resulting in low failure rates, reduced downtime for maintenance, and lower long-term maintenance costs.

Convenient Operation: Simple and intuitive mechanical lever control, short work cycles, and high operating efficiency reduce operator fatigue and increase output per shift.

High Cost-Effectiveness: In the small skid steer loader category, featuring a high-quality Yanmar engine, it balances power performance, operational stability, and compliance, all at an affordable price. Suitable for small and medium-sized enterprises and individual businesses, offering low initial investment and a short return on investment period.

Comprehensive Safety Design: The cab structure provides comprehensive protection for the operator; the reasonable wheelbase and center of gravity design further enhance operational stability; optimized departure angle and ground clearance improve passability on complex terrain, ensuring all-around operational safety from structural design to working condition adaptation.

Thoughtful Detail Design: Bucket width of 980-1000mm precisely matches common material handling scenarios; a tail length of only 280mm reduces the risk of tail collisions during operation; a large-capacity fuel tank ensures extended operating time. Details are carefully considered to meet users’ actual operational needs and enhance operational convenience.
