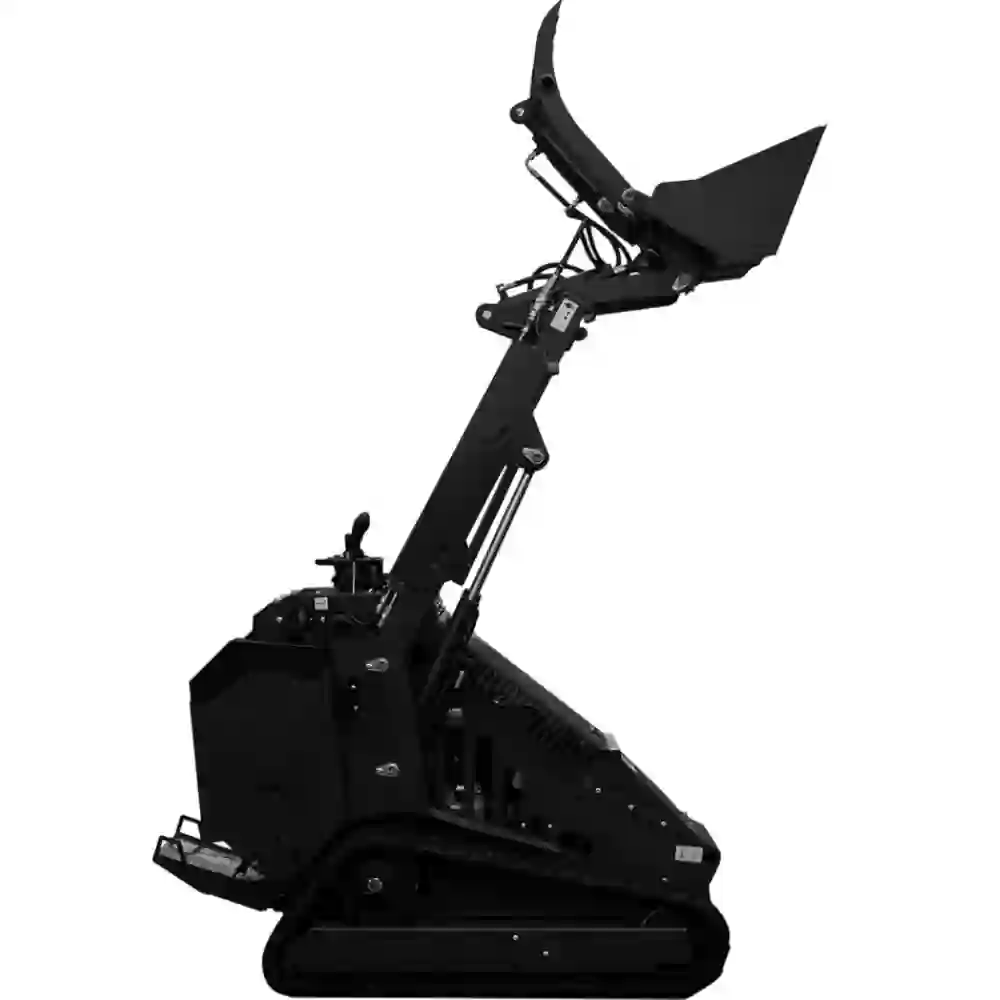

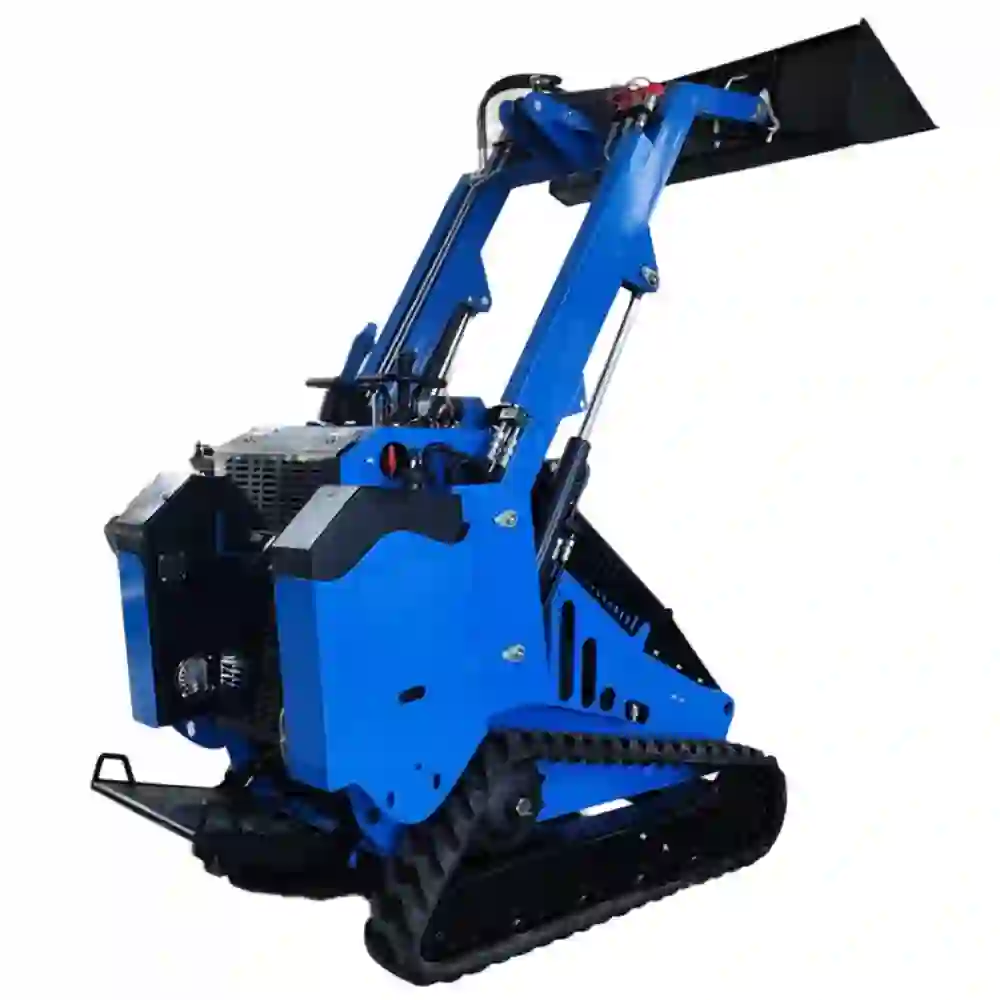

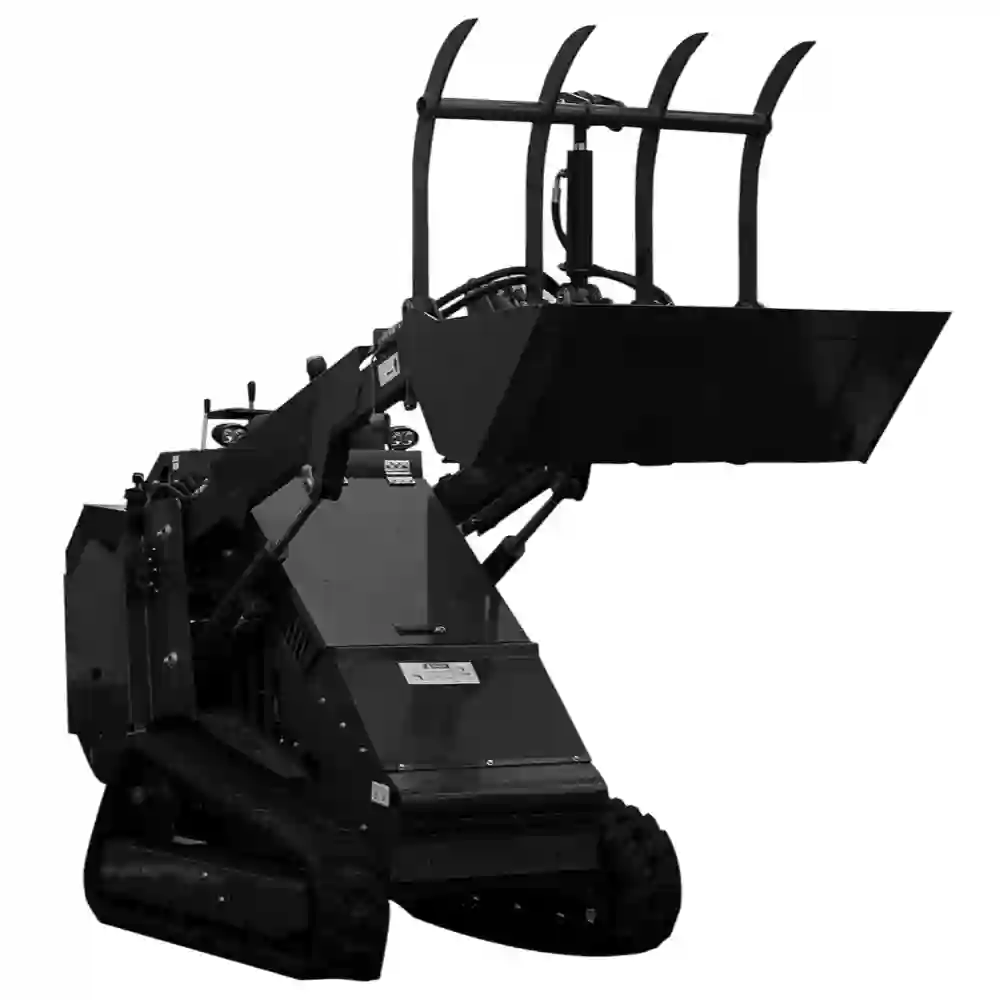

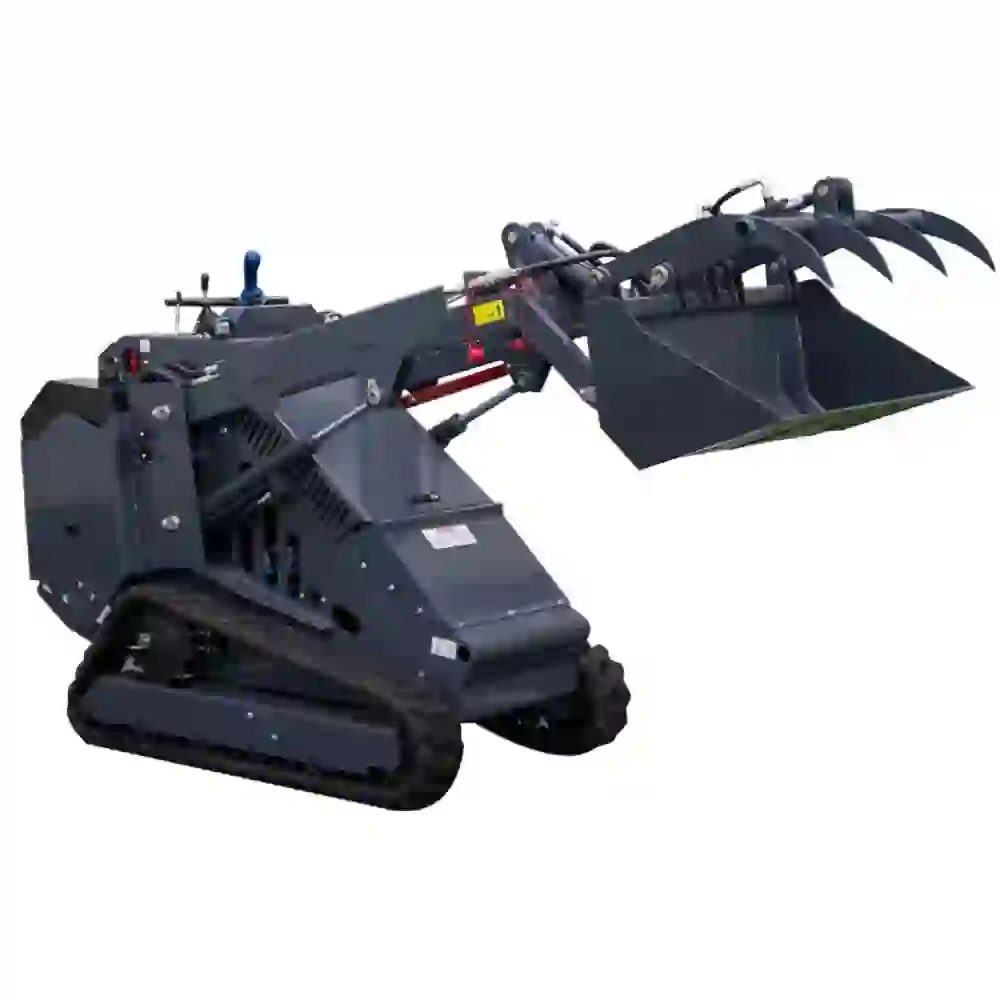

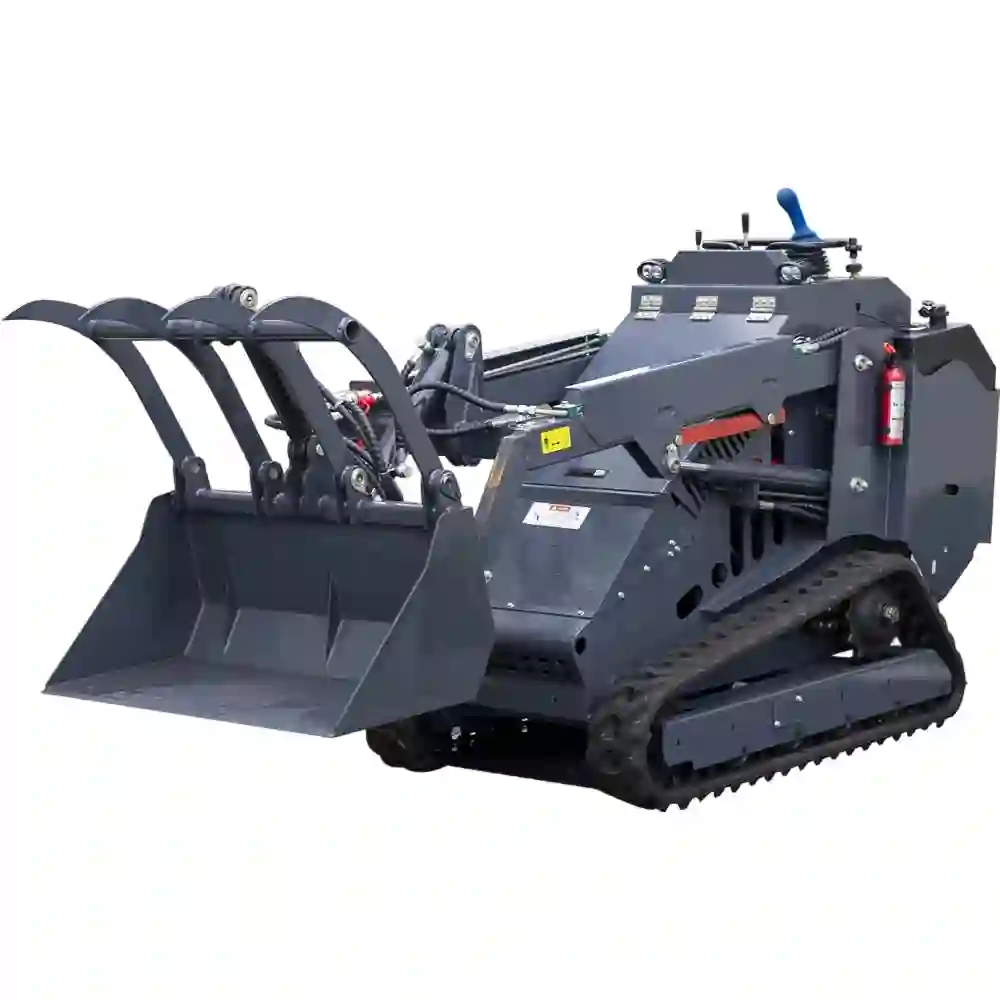

The CE-certified compact YZ-T750 skid steer loader
The CE-certified compact YZ-T750 skid steer loader
The YZ-T750 is a high-efficiency, compact, multi-functional skid steer loader suitable for various tasks in confined or complex working conditions. Combining an advanced hydraulic system, a high-performance engine, and user-friendly design, this machine offers excellent maneuverability, stability, and operational efficiency, and is widely used in construction, agriculture, municipal engineering, logistics, and other fields.
Quote Now
Environmentally Friendly and Efficient Power System
Equipped with a renowned brand engine, ensuring stable and reliable power output.
The engine has a rated power of 20-25 hp (approximately 14 kW), a 3-cylinder naturally aspirated design, providing strong power and excellent fuel economy.
Complies with Euro 5/EPA dual emission standards, making it environmentally friendly and meeting the environmental regulations of major global markets.
Superior Operating Performance
Rated load of 400 kg, maximum load up to 450 kg, maximum lifting force of 4.5 kN, meeting the needs of small to medium-sized material handling.
The three-stage operation cycle (lift, tilt, and lower) takes only 9 seconds, exceeding the industry average efficiency.
The hydraulic system operates at a pressure of 25 bar, using a high-quality gear pump, ensuring rapid hydraulic response and precise, smooth operation.
Flexible and Compact Structural Design
With an overall width of only 980 mm, a total length of 2694 mm with a standard bucket, and a total length of 2067 mm without a bucket, it can easily navigate narrow passages.
Tracked drive design with low ground pressure reduces the likelihood of getting stuck on soft ground, enhancing terrain adaptability.
Minimum ground clearance of 180mm provides excellent passability, allowing for operation on slightly undulating terrain.
Edible Operating Experience
Operating weight of 1200kg (machine weight 1156kg) ensures good overall stability, low vibration during operation, and high operator comfort.
Ergonomically designed control handles require minimal operating force, reducing fatigue during extended operation.
The cab offers excellent visibility, and the logical layout of key operating components facilitates quick operator familiarization and operation.
Reliable Quality Assurance
The product is CE and ISO certified, manufactured to international quality standards, guaranteeing quality.
Core components such as the engine and hydraulic pump use reputable brands, resulting in low failure rates and long service life.
A one-year warranty and comprehensive after-sales service system are provided for peace of mind.
Product Parameters
| Brand Name | ACE |
| Type | Mini Loader, Skid Steer Loader, Skid Loaders |
| Engine Brand | Kubota |
| Power | 14kw |
| Bucket capacity | 0.15cubic meter |
| Other attributes | |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Machine Weight | 1156 kg |
| Hydraulic Pump Brand | Gear Pump |
| UNIQUE SELLING POINT | EPA Engine |
| Core Components | Engine |
| Power Type | Diesel |
| Moving Type | Crawler Loader |
| Dimension(Long * Breadth * High) | 2.4*1.35*1.8m |
| Hydraulic Cylinder Brand | Gear Pump |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Type | Skid steer loader |
| Engine brand | Electric/Laidong 385/Yanmar 380 |
| Emissions standards | EURO5/EPA |
| Management certifications | ISO |
| Product certificatons | CE |
| Engine Model | Yanmar 380 |
| Cylinders | 3 |
| Emission Standard | Euro 5/EPA |
| Maximum Load | 450 Kg |
| Bucket Volume | 0.15 m³ |
| Working Three – Item Sum | 9 s |
| Fuel Tank Capacity | 30 L |
| Tire Model | 18*72 |
| Height to Bucket Pin | 2160 mm |
| Maximum Height with Bucket Flat | 1810 mm |
| Overall Length without Bucket | 2067 mm |
| Dumping Distance | 450 mm |
| Bucket Tipping Angle at Maximum Height | 114° |
| Ground Clearance | 180 mm |
| Vehicle Width | 980 mm |
| Rated Power | 20 – 25HP |
| Intake Method | Natural Aspiration |
| Working System Pressure | 25 bar |
| Operating Mass | 1200 KG |
| Maximum Operating Height | 2900 mm |
| Overall Vehicle Height | 1540 mm |
| Overall Length with Standard Bucket | 2694 mm |
| Dumping Height | 1600 mm |
| Bucket Tipping Angle on Ground | 27° |
| Wheelbase | 1180 mm |
| Rear End Length | 280 mm |
| Bucket Width | 1100 mm |
Why Choose Us.
Frequently Asked Questions
A: Compact or mini excavators are built for digging in confined jobsites. Most models feature a hydraulic-powered arm attached to a track-mounted chassis.
Construction, landscaping and farm & orchard professionals rely on mini excavators to work where larger machines can’t fit. They can maneuver between buildings and around obstacles with minimal or zero tail swing, giving them an advantage over large excavators.
A: ACE compact (mini) excavators range in operating weights:
The smallest ACE mini excavator model, the CX10T, weighs 1020 kgs.
The heaviest ACE mini excavator, the CX36, weighs 3800 kgs.
Additional factors that affect compact excavator weight:
- Attachments for your excavator can add hundreds of kilo grams.
- Steel tracks increase weight compared to rubber tracks.
- Other features like enclosed cabs or add-on counterweights also contribute to overall weight.
A: Operating a mini excavator isn’t hard, but it requires proper training. With ACE operator training courses, you can quickly learn what you need to know:
- Safe and efficient operation
- Understanding of key components and safety features
- Detailed explanations of controls and functions
- Maneuvering, traveling and working safely
Courses are available online to learn at your own pace. They make learning easy with interactive videos, graphics, quizzes and more.
A: Excavator prices vary based on features, options, location and other factors. Contact ACE Sales Engineer +86 191 5798 3137 or local distributors for accurate pricing, or use our Build & Quote tool to customize your own machine and receive a quote from us.
A: ACE compact excavators are exclusively available from ACE ASOK and our authorized distributors. Contact us to get industry-leading sales, service and support.
A: Absolutely yes, we provide customization service range including: logo, color and accessories, etc. for some special requirement in its functionality, you are more than welcome to contact our sale engineer for further help.
